A3LST80Digital Camera

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly.
Click a topic User Manual Common questionsQuick referenceContentsBasic functionsExtended functionsShooting optionsPlayback/EditingWireless networkAppendixesIndex SAMSUNG ST80 1 Health and safety informationAlways comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your c amera. Warning —situations that could cause injury to yourself or others Caution —situations that could cause damage to your camera or other equipment Note —notes, usage tips, or additional information Safety warnings Do not use your camera near flammable or explosive gases and liquidsDo not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.Keep your camera away from small children and petsKeep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Prevent damage to subjects’ eyesightDo not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage.Handle and dispose of batteries and chargers with care Use only Samsung-approved batteries and chargers. t
Incompatible batteries and chargers can cause serious injuries or damage to your camera.Never dispose of batteries in a fire. Follow all local regulations t
when disposing of used batteries.Never place batteries or cameras on or in heating devices, t
such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.Do not use a damaged power supply cord, plug, or loose t
outlet when charging batteries. This may cause a fire or electric shock. Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between cameras and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. 2 Health and safety information Do not insert foreign objects into any of your camera’s t
compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.Do not swing your camera by the strap. This may cause injury t
to yourself or others.Do not paint your camera, as paint can clog moving parts and t
prevent proper operation.Paint or metal on the outside of the camera may cause t
allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you have experience any of these symptoms, stop using the camera immediately and consult a doctor. Protect batteries, chargers, and memory cards from damage Avoid exposing batteries or memory cards to very cold or very t
hot temperatures (below 0º C/32º F or above 40º C/104º F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.Prevent batteries from making contact with metal objects, as t
this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage. Also, this may cause a fire or electric shock.Prevent memory cards from making contact with liquids, dirt, or t
foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.Do not allow liquids, dirt, or foreign substances to come in t
contact with the memory card slot. Doing so may cause the camera to malfunction. Safety precautions Handle and store your camera carefully and sensibly Do not allow your camera to get wet—liquids can cause serious t
damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty.Do not expose the camera to direct sunlight or high t
temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.Avoid using or storing your camera in dusty, dirty, humid, or t
poorly-ventilated areas to prevent damage to moving parts and internal components.Remove the batteries from your camera when storing it for an t
extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera.Protect your camera from sand and dirt when using it on t
beaches or in other similar areas.Protect your camera and monitor from impact, rough handling, t
and excessive vibration to avoid serious damage.Exercise caution when connecting cables or adapters and t
installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. 3 Health and safety information Turn off the camera near medical equipmentYour camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Turn off the camera when in an aircraftYour camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel.Avoid interference with other electronic devicesYour camera emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience. Turn off the camera when inserting or removing …

Text truncated - open the document above for the full version.

Date: May 27, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir/Madam We, SAMSUNG ELECTRONICS CO., LTD., located at 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea as manufacturer of the product model: SAMSUNG ST80, declare that SAMSUNG ST80 doesn’t support Bluetooth function. The chipset support Bluetooth function but SAMSUNG ST80 blocked it by their Firmware according to product characteristic. FCC ID: A3LST80 SAMSUNG ST80 has 11 channels of allowed operating range from 2412 MHz to 2462 MHz in USA. Accordingly, Ad-Hoc mode will not be operated outside the allowed frequency band used in USA. Sincerely, _________________________________ Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: May 28, 2010 From: Samsung Electronics Co., Ltd. 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea To : Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir/Madam Samsung Electronics Co., Ltd., headquartered at 416, Maetan-dong, Yeongtong- gu, Suwon-si, Gyeonggi-do, Korea, informs that WLAN function is only activated when customers want to transmit the data [pictures or files] to other object such as camera, TV or e-mail on WLAN mode. In shooting or playback mode, when customer click WLAN icon, camera status is converted to WLAN mode and customer choose certain file. Also When data transfering is done and turns back to camera operating mode, WLAN is automatically turned off. In conclusion, WLAN is never operated in normal camera mode like shooting, playback or others except data transmission mode. FCC ID: A3LST80 / IC ID: 649E-ST80 Sincerely, _________________________________ Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd. TEL : 310-900-5250 FAX : 310-537-5500 E-mail : [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

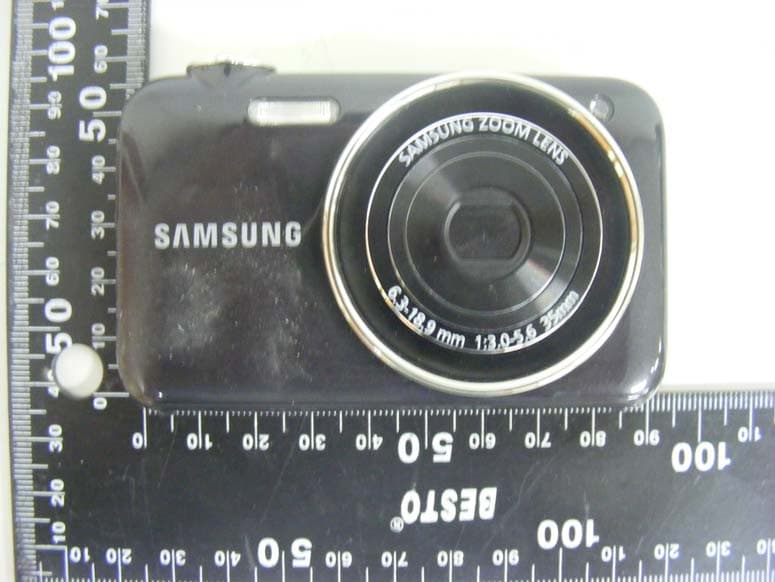

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1. FCC/IC Label Drawing Samsung Electronics Co., Ltd. Model : SAMSUNG ST80 FCC ID : A3LST80 IC: 649E-ST80 Made in China 2. FCC/IC Label Location Bottom side of EUT

Internal photos of EUT Internal view of EUT Top view of LCD Bottom view of LCD Top view of Main PCB Bottom view of Main PCB Top view of Wi-Fi module PCB Bottom view of Wi-Fi module PCB WLAN Antenna Top view of Lens cover Bottom view of Lens cover Top view of Flash module Bottom view of Flash module

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test
