A3LSTR2100ICE-PAD 802.11(a) Wireless Multimedia Transceiver

OWNER’S MANUAL AND INSTALLATION DA99-01278D REV(0.0) CONTENTS SAFETY WARNING SIGNS...............................................................2 OPERATING INSTRUCTIONS........................................................4 SETTING UP THE REFRIGERATOR.........................................................4 MAJOR FEATURES .....................................................................................4 CONTROL PANEL........................................................................................5 DIGITAL PANEL...........................................................................................6 TEMPERATURE CONTROL .......................................................................7 ICE and COLD WATER DISPENSER .........................................................7 SHELVES and BINS.....................................................................................8 FOOD STORAGE GUIDE ...........................................................................9 CoolSelect Zone TM Drawer GUIDE.............................................................11 REMOVING THE FREEZER ACCESSORIES..........................................13 REMOVING THE REFRIGERATOR ACCESSORIES ..............................13 CARE AND CLEANING .............................................................................14 CHANGING THE INTERIOR LIGHT .........................................................15 WATER FILTER ..........................................................................................16 DOORS .......................................................................................................16 INSTALLATION INSTRUCTIONS................................................17 INSTALLATION OF THE REFRIGERATOR .............................................17 REMOVING THE REFRIGERATOR DOORS ...........................................18 REATTACHING THE REFRIGERATOR DOORS......................................21 LEVELING THE REFRIGERATOR ............................................................24 ADJUSTING THE CLEARANCE BETWEEN THE DOORS ....................25 CHECKING THE WATER DISPENSER LINE...........................................26 INSTALLATION OF THE WATER DISPENSER LINE...............................27 OPERATING INSTRUCTIONS(I.C.E. PAD)..............................31 GENERAL INFORMATION ........................................................................32 VIEWS OF I.C.E. PAD AND TRANSMITTER............................................34 I.C.E. PAD POWER MANAGEMENT.........................................................37 HOW TO USE VIRTUAL KEYBOARD.......................................................39 USER INTERFACE ....................................................................................41 INSTALLATION INSTRUCTIONS(I.C.E. PAD).......................57 HOW TO INSERT THE ICEPAD IN THE DOCKING STATION OF THE REFRIGERATOR.....57 TROUBLESHOOTING ...............................................................................58 CONSUMER SUPPORT....................................................................59 WARRANTY ...............................................................................................59 In the U.S. for questions about features, operation/performance, parts, accesories or service, call: 1-800-726-7864 (1-800-SAMSUNG) www.samsung.com Write the model and serial number here: Model # SHP-2100 & STR-2100 Serial # THESE NUMBERS CAN BE FOUND INSIDE THE REFRIGERATOR’S CABINET ON THE LEFT HAND SIDE. Register your product at www.samsung.com/global/register I.C.E. PAD (Interactive ControlEntertainment) REFRIGERATOR RH269LBSH %"%
3&7



".

ಕ੉૑ ŶFCC Radio Frequency Interference Requirements This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. ŶRadio Specifications Data transfer rates IEEE802.11a:54/48/36/24/18/12/9/6Mbps (automatically switched) Standards supported IEEE802.11a Transmission method OFDM system Wireless channels used IEEE802.11a: Channels 36, 40, 44 RF frequency band IEEE802.11a: 5.18~5.22 GHz ŶUSER INSTALLER CAUTION: Your authority to operate this FCC certified equipment could be voided it you make changed or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules. NOT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: T Reorient or relocate the receiving antenna T Increase the separation between the equipment and receiver T Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. T Consult the dealer or an experienced radio/TV technician for help and for additional suggestions The user may find the following booklet prepared by the Federal Communications Commission helpful : “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4. FCC Warning The User is cautioned that changes or modifications not expressly approved by the manufac…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






October 19, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: October 19, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L STR2100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

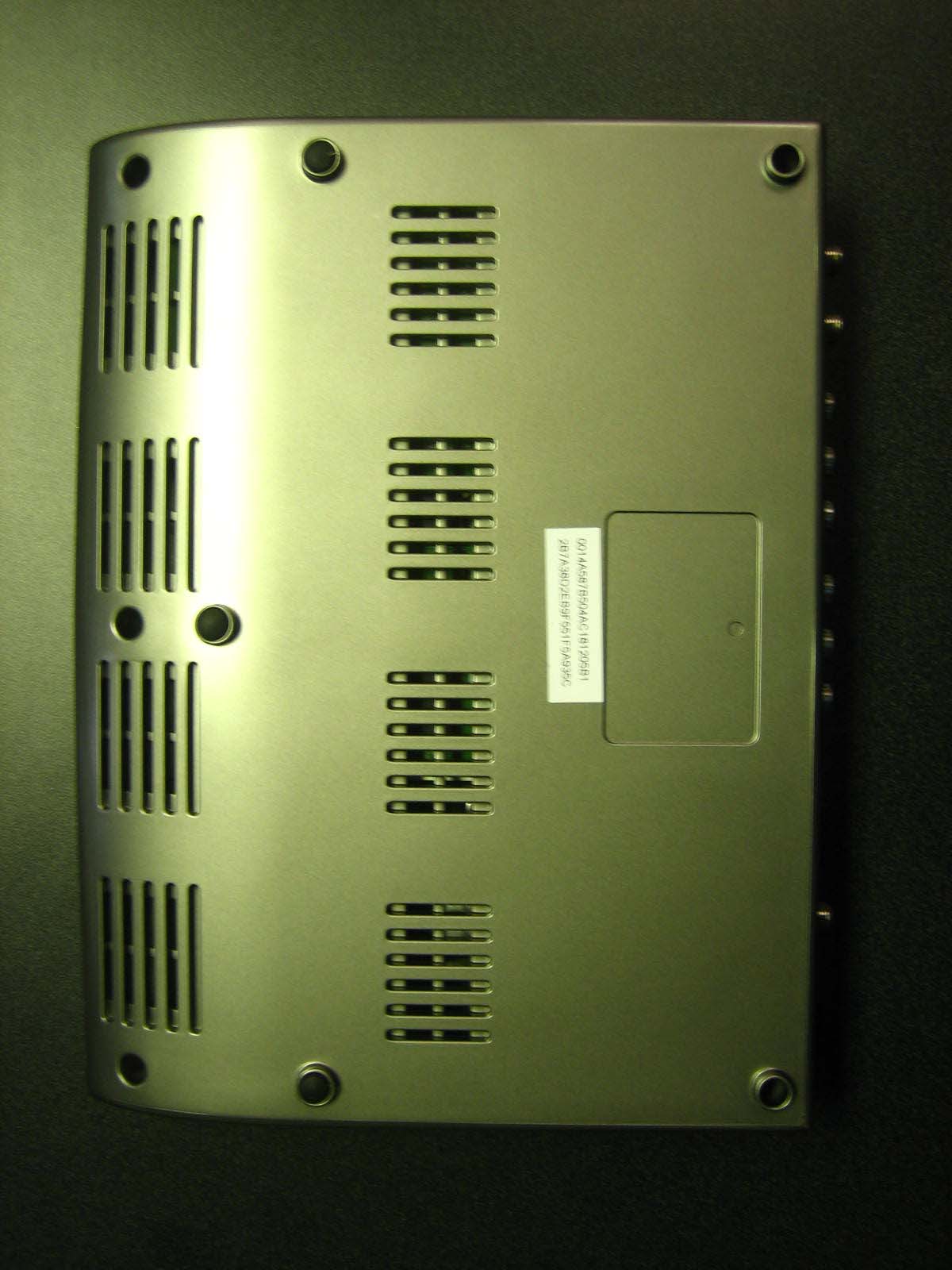

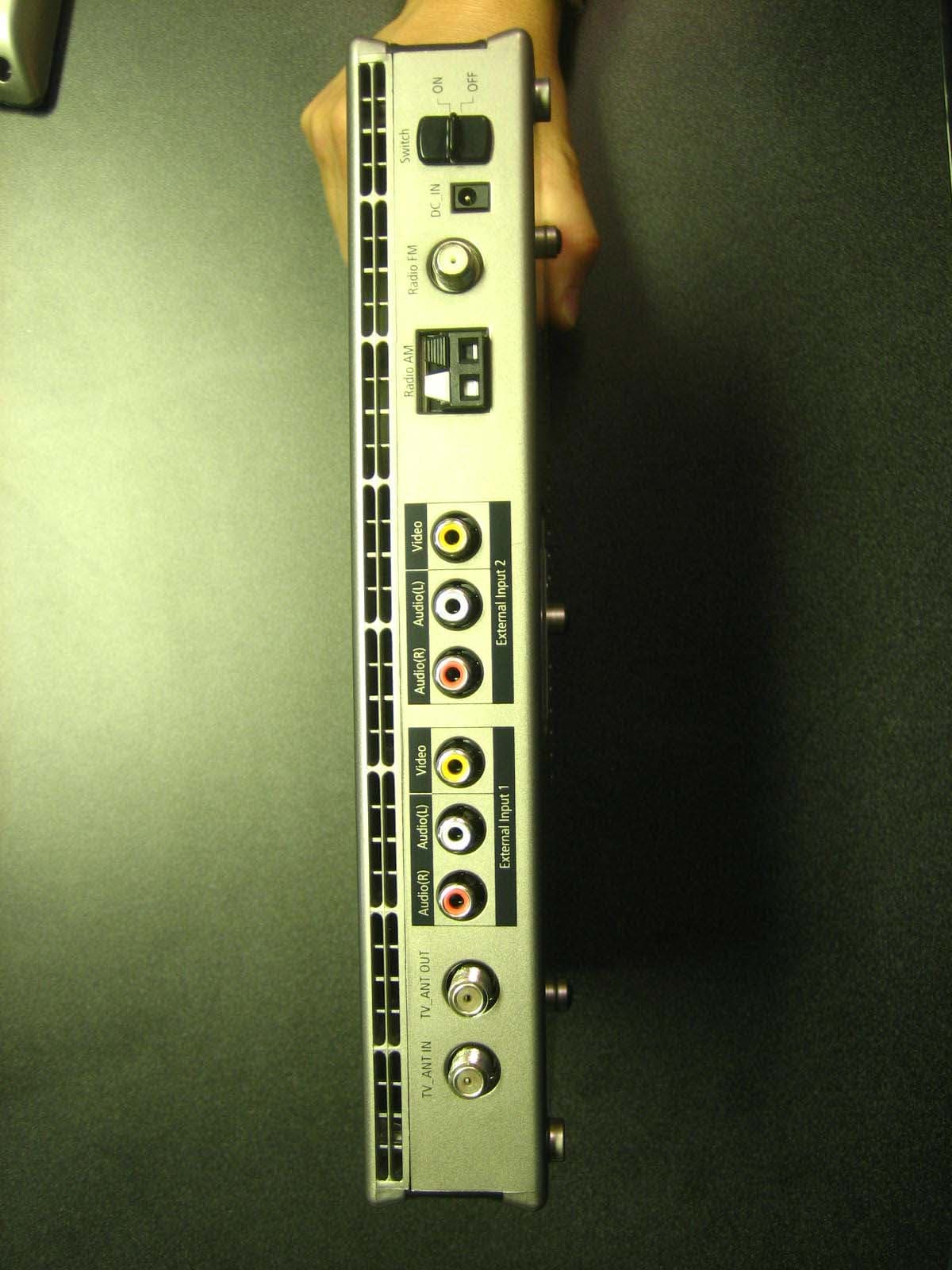

Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100

Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR-2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100

Reviewed by: FCC ID: A3LSTR2100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611020961 October 31, 2006 ICE PAD Wireless Multimedia Transceiver Page 1 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.5 RF Exposure Evaluation – Maximum Permissible Exposure (MPE) Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-300. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1. Limits For Maximum Permissible Exposure (MPE) Friis Transmission Formula Friis transmission formula: P d = (P out *G) / (4πr 2 ) Where, P d = Power Density (mW/cm 2 ) P out = output power to antenna (mW) G = gain of antenna in linear scale π = 3.1416 r = distance between observation point and center of the radiator (cm) EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. Reviewed by: FCC ID: A3LSTR2100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611020961 October 31, 2006 ICE PAD Wireless Multimedia Transceiver Page 2 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.5 Climate Condition The temperature and relative humidity: 22 ̊C and 78% RH Measurement Calculation Analysis Frequency Channel PowerMeasurement Numeric OutputDistance Antenna (MHz)(mW)(cm)Gain 51803610.94201.00.00217641.0 52004010.16201.00.00202131.0 52204410.74201.00.00213671.0 Power Density (mW/cm 2 ) Exposure Limit (mW/cm 2 ) Table 2. MPE Calculation Analysis Result Note: Measurements are made while all transmitters are operating simultaneously. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

Reviewed by: FCC ID: A3LSTR2100 FCC Pt. 15.407 CERTIFICATION TEST REPORT (WLAN 802.11a UNII (LOW BAND)) Quality Manager Test Report S/N: Test Dates: EUT Type: 0610190906 October 23 - 27, 2006 ICE PAD Multimedia Transceiver Page 1 of 33 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.5 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. October 23 - 27, 2006 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0610190906 FCC ID: A3LSTR2100 APPLICANT: Samsung Electronics, Co. Ltd. Model(s): STR-2100 EUT Type: ICE PAD Multimedia Transceiver Max. RF Output Power: 10.39dBm Conducted (UNII Low Band) Frequency Range: 5180MHz – 5220MHz (UNII Low Band) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. This device is restricted to indoor use for the 5.15 – 5.25GHz range. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.407 Certification Reviewed by: FCC ID: A3LSTR2100 FCC Pt. 15.407 CERTIFICATION TEST REPORT (WLAN 802.11a UNII (LOW BAND)) Quality Manager Test Report S/N: Test Dates: EUT Type: 0610190906 October 23 - 27, 2006 ICE PAD Multimedia Transceiver Page 2 of 33 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.5 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT..................................................................................................3 1.0 INTRODUCTION ..................................................................................................................................................... 4 1.1 EVALUATION PROCEDURE ............................................................................................................................................... 4 1.2 SCOPE ................................................................................................................................................................................. 4 1.3 PCTEST TEST LOCATION .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION ..................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ............................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS............................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................................ 6 3.1 CONDUCTED EMISSIONS .................................................................................................................................................. 6 3.2 RADIATED EMISSIONS ....................................................................................................................................................... 7 4.0 ANTENNA REQUIREMENTS.................................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................................... 10 6.1 26DB BANDWIDTH MEASUREMENT ............................................................................................................................... 11 6.2 OUTPUT POWER MEASUREMENT – UNII (LOW BAND)................................................................................................ 14 6.3 PEAK POWER SPECTRAL DENSITY ............................................................................................................................... 15 6.4 PEAK EXCURSION RATIO ................................................................................................................................................ 19 6.5 RADIATED MEASUREMENTS .......................................................................................................................................... 22 6.6 RADIATED RESTRICTED BAND MEASUREMENTS ....................................................................................................... 26 6.7 LINE-CONDUCTED TEST DATA ....................................................................................................................................... 27 7.0 CONCLUSION ....................................................................................................................................................... 29 EXHIBIT A – LABELING REQUIREMENTS ........................................................................................................................ 30 SAMPLE LABEL & LOCATION .........................................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100 Samsung FCC ID: A3LSTR2100 EUT Photographs © 2006 PCTEST Lab. Wireless LAN 802.11a Model: STR -2100
