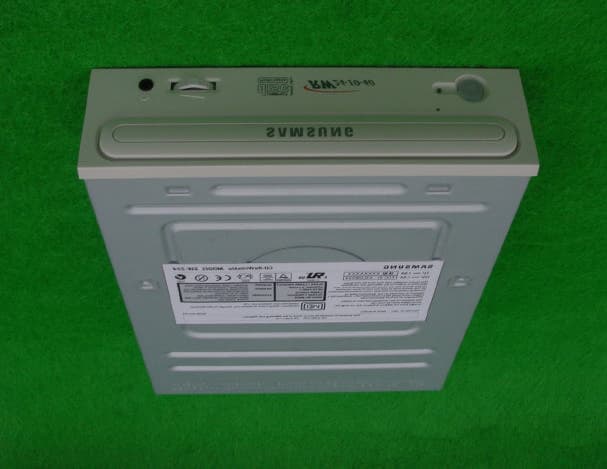

A3LSW224Internal CD-RW Drive

User's Guide CD-R/RW DRIVESW-224 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SW-224_eng Ver.00 10/11/01 5:26 PM Page 1 Contents 3 Safety Precautions 2 The following diagrams illustrate the precautions to be taken when usingyour CD-R/RW drive. You must not use the drive in any manner other than that specified in this guide. ✱ Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the CD-R/RW drive yourself. Contactyour dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations otherthan those specified in this guide, you run the risk of exposure tohazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements . Precautions 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of thecenter hole, we recommend that you make a copy of the discimmediately and then stop using it. If you continue using thedisc, it will probably develop more cracks and eventually causeirreparable damage. 3. Do not use poor quality discs:  From unknown sources  Without any copyright  Scratched or damaged in any way Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Your CD-R/RW Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Upgrading the Firmware Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . .5System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Installing the CD-R/RW Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Installing the CD Record Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Installing the Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Setting Up the Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Using the CD-R/RW Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Storing and Cleaning Your Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Solving Recording Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Recommended Disc Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Solving Technical Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 * All product names mentioned in this document are trademarks or registered trademarks of their respective owners. SW-224_eng Ver.00 10/11/01 5:26 PM Page 2 Upgrading the Firmware Flash Memory 5 The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http://www.samsungelectronics.com Before you install the CD-R/RW drive, we strongly recommend that youcheck that your setup meets the system requirements listed below.System Requirements Item Description Computer Intel Pentium II ( or higher), 32 MB of RAM (or higher) with an E-IDE interface Disk space 700 MB minimum Windows version Windows 95 / 98 OSR2 / 2000 / ME or Windows NT 4.0 (or higher) Your CD-R/RW Drive 4 1 2 3 4 5 6 1 23 4 5 1. Connector for stereo headphones with a 3.6 mm stereo mini-jack2. Headphone volume control3. Emergency eject hole (if the compartment does not open when you press the Eject button, power off the computer, insert a pin orunfolded paper clip in the hole and push firmly) 4. Indicator light (when it is green, a disc is being read or recorded)5. Disc compartment (the compartment opens and closes automatically when you press the Eject button) 6. Eject button1. Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features 2. Four-pin sound output terminal for use with a sound card (refer to the sound card documentation for further details) 3. Master/slave select terminal4. Forty-pin host E-IDE interface connector5. Four-pin power terminal General DMA Installation Guide Windows 95/98/Me : Jan 2001 Important!Please read the entire DMA installation guide before installing your CD-R/RW drive.About DMA InstallationFor stable writing performance at high speeds, Installation of DMA transfer mode forE-IDE/ATAPI interface is strongly recommended. Especially for writing at 12x speed,DMA installation should be set to enabled on your PC system instead of PIO transfermode. If DMA is not set to enabled on your PC, the data transfer may become tooslow and resulting in data writin…

Text truncated - open the document above for the full version.

This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.

This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.

This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.

Page 1 of 13 Project NO. : SE-01-0493 Project NO. : SE-01-0493 Product :CD-ReWritable ROM DRIVE Model No. :SW-224 FCC ID. :A3LSW224 Date of test :October 10, 2001 Issued Date :October 18, 2001 Tested by: Byeong Soo, KIM / Test Engineer Reviewed by: Seung Kyu, CHA / Manager of EMC Lab. Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. Suwon EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT According to FCC Part 15B Class B Page 2 of 13 Project NO. : SE-01-0493 Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Configuration of EUT and peripherals 1.4 Used Cable Description 1.5 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Environment 2.3 Justification 2.4 EUT Exercise Software 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Test Equipment Used This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 13 Project NO. : SE-01-0493 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT PERSON :Son Mun Eul CONTACT ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 REGULATION(S) :FCC Part 15 Class B MODEL NUMBER :SW-224(Trade Name "SAMSUNG") VARIANT MODEL NUMBER :- SERIAL NUMBER :- KIND OF PRODUCT :CD-ReWritable ROM DRIVE TESTED DATE :October 10, 2001 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number: 98856 Anechoic Chamber #1 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 13 Project NO. : SE-01-0493 1.1 Product Description Speed CD : 40X, CD-R : 24X, CD/RW : 10X Access Time CD 120ms, CD/RW 120ms Buffer2048KB Interface ATAPI BUS(IDE) Size148.2(W) x 42(H) x 184(D)mm 1.2 Tested System Details MakersProduct ModelFCC IDSerial NumberRemarks (1)SAMSUNGCD-ReWritable ROM DRIVEEUT M/N : SW-224A3LSW224S/N : - (2)SAMSUNG External Monitor Unshielded AC Power Cable M/N : AQ19LSDOCS/N : AQ19H3NR4001 (3)LOGITECH PS/2 Mouse Shielded Mouse Cable M/N : M-S34DZL211029S/N : LZB74453426 (4)SAMSUNG PS/2 Keyboard Shielded Keyboard Cable M/N : SEM-DC8HE2XSEM-DC8HS/N : 85000144 (5)COMPAQ Personal Computer Unshielded AC Power Cable M/N : 7000DOCS/N : 14921-013 (6)HPDSI6XU2225 Printer Shielded Printer Cable M/N :2225C+S/N : 2810S08375 (7)SONYEar PhoneShielded Ear Phone Cable M/N : -S/N : - This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 5 of 13 Project NO. : SE-01-0493 1.3 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark ACD-ReWritable ROM DRIVESW-224-SamsungEUT BExternal MonitorAQ19LSAQ19H3NR4001Samsung CPersonal Computer700014921-013COMPAQ DPS/2 MouseM-S34LZB74453426LOGITECH EPS/2 KeyboardSEM-DC8H85000144SAMSUNG FEar phone- -SONY GPrinter2225C+2810S08375H/P 1.4 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power Cable1.5N 2AC Power Cable1.5N 3Earphone Cable1.5Y 4Mouse Cable1.5Y 5Keyboard Cable1.5Y 6AC Power Cable1.5N 7Monitor Cable1.2Y 8Printer Cable1.5Y This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 6 of 13 Project NO. : SE-01-0493 1.5 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 7 C B F D E 5 4 1 3 2 A G 8 6 AC POWER AC POWER AC POWER Page 9 of 13 Project NO. : SE-01-0493 2.2 Operation Environment ConductionRadiation Temperature [centigrade] :24.524 Humidity [%] :4241 Power supply :AC120V/60HzAC120V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Software The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 13 Project NO. : SE-01-0493 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.5.2 Radiated Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. This report shall no…

Text truncated - open the document above for the full version.

Page 7 of 13 Project NO. : SE-01-0493 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 13 Project NO. : SE-01-0493 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
