A3LWB800FDigital Camera

Click a topic Basic troubleshooting Quick reference Contents Basic functions Extended functions Shooting options Playback/Editing Wireless network Settings Appendixes Index This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. WB800F 1 Prevent damage to subjects’ eyesight. Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage. Keep your camera away from small children and pets. Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. Health and safety information Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Warning—situations that could cause injury to yourself or others Do not disassemble or attempt to repair your camera. This may result in electric shock or damage to the camera. Do not use your camera near flammable or explosive gases and liquids. This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera. This may cause a fire or electric shock. Do not handle your camera with wet hands. This may result in electric shock. 2 Avoid covering the camera or charger with blankets or clothes. The camera may overheat, which may distort the camera or cause a fire. Do not handle the power supply cord or go near the charger during a thunderstorm. This may result in electric shock. If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center. Comply with any regulations that restrict the use of a camera in a certain area. • Avoid interference with other electronic devices. • Turn off the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel. • Turn off the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Avoid interference with pacemakers. Maintain a minimum of 15 cm (6 inches) between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and the independent research group, Wireless Technology Research. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. Health and safety information 3 Caution—situations that could cause damage to your camera or other equipment Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera. Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery. Inauthentic, damaged, or heated batteries may cause a fire or personal injury. Use only Samsung-approved batteries, chargers, cables and accessories. • Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury. • Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories. Use the battery only for its intended purpose. Misusing the battery may cause a fire or electric shock. Do not touch the flash while it fires. The flash is very hot when fired and may burn your skin. When you use the AC charger, turn off the camera before you disconnect the power to the AC charger. Failing to do so may result in fire or electric shock. Disconnect the charger from the wall socket when not in use. Failing to do so may result in fire or electric shock. Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries. This may cause a fire or electric shock. Do not allow the AC charger to come in contact with the +/- terminals on the battery. This may cause a fire or electric shock. Health and safety information 4 Health and safety information Do not force the camera’s parts or apply pressure to the camera. This may cause your camera to malfunction. Exercise caution when you connect cables or adapters and install batteries and memory cards. If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories. Keep cards with magnetic strips away from the camera case. Information stored on the card may be damaged or erased. Never use a damaged charger, battery, or memory card. This may result in electric shock or camera malfunction or cause a fire. Check that the camera is operating properly before use. The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use. You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. Avoid interference with other electronic devices. Your camera emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference p…

Text truncated - open the document above for the full version.

Date: Sep 15, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: Nov 01, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LWB800F To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

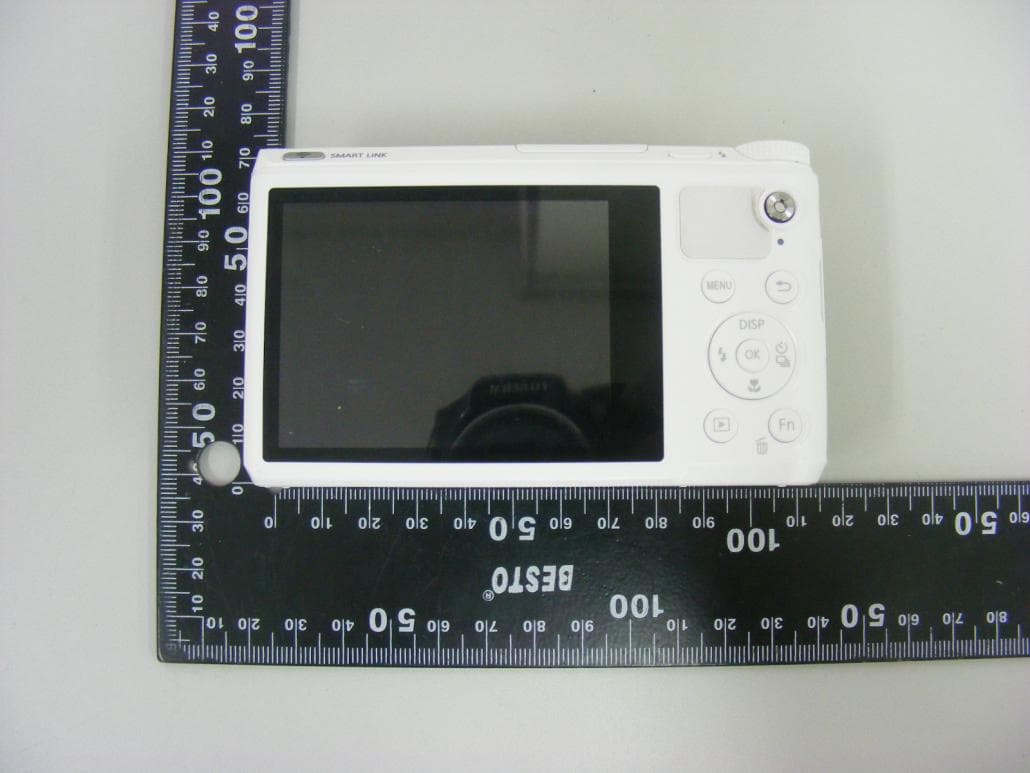

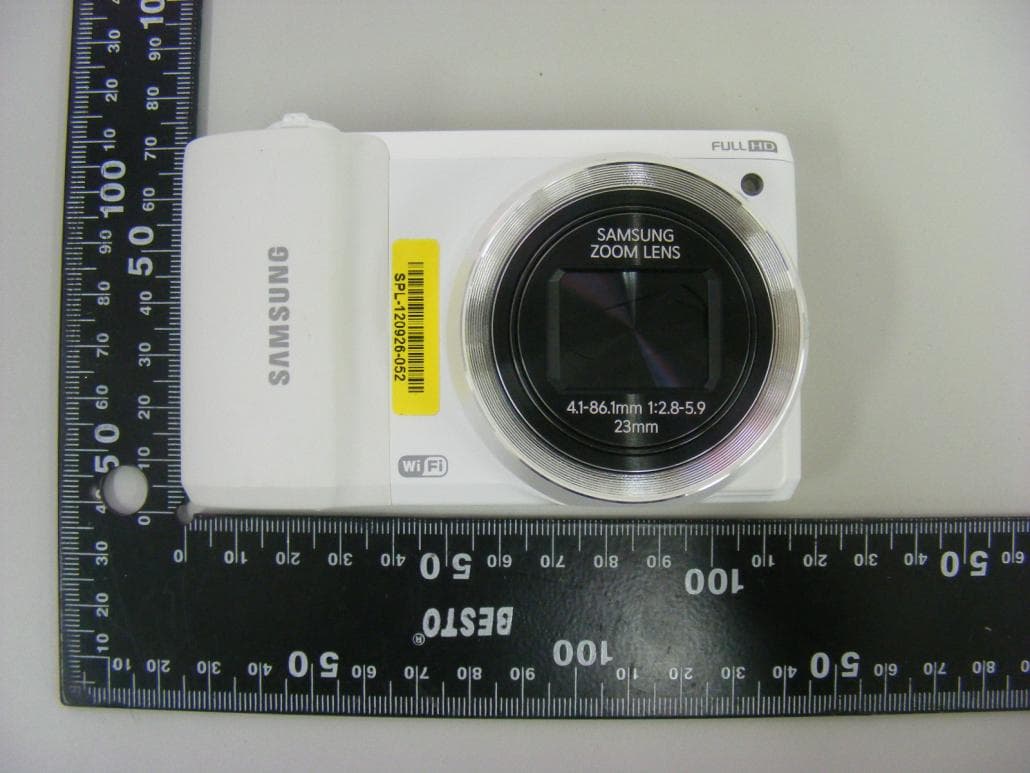

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1.(1) FCC Label Drawing G (2) FCC Label Location i–››–”Gš‹ŒG–Gl|{GG 2.(1) IC Label Drawing (2) IC Label Location i–››–”Gš‹ŒG–Gl|{GG .0%&-8#'

Model : WB800F Internal photos of EUT Model : WB800F Internal view of EUT Model : WB800F Top view of Main PCB Bottom view of Main PCB Model : WB800F Top view of Power PCB Bottom view of Power PCB Model : WB800F Top view of Wifi HPCB Bottom view of Wifi HPCB Model : WB800F Top view of Antenna Antenna

Report File No. : F690501/RF-SAR002025 Date of Issue :2012-10-31 Page :1 / 57 SAR TEST REPORT Equipment Under Test:Digital Camera Model No.:WB800F(add: WB801F) Applicant:Samsung Electronics Co., Ltd. Address of Applicant:416, Maetan-dong, Yeongtong-gu, Suwon-city, Gyeonggi-do, Korea FCC ID:A3LWB800F IC ID649E-WB800F Device Category:Portable Device Exposure Category:General Population /Uncontrolled Exposure Date of Receipt:2012-10-11 Date of Test(s):2012-10-30 Date of Issue:2012-10-31 Max. SAR: 0.110 W/㎏(11b) Standards:FCC OET Bulletin 65 supplement C RSS-102 (Issue 4) IEEE 1528, 2003 ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Tested by :Minhyuk Han2012-10-31 Approved by:Feel Jeong2012-10-31 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. Report File No. : F690501/RF-SAR002025 Date of Issue :2012-10-31 Page :2 / 57 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 4 1.8 The SAR Measurement System............................................................................ 5 1.9 System Components.......................................................................................... 7 1.10 SAR System Verification.................................................................................... 8 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 10 1.12 Test Standards and Limits................................................................................... 11 1.13 Justification for Extended SAR Dipole Calibrations................................................... 12 2 Instruments List................................................................................. 13 3 Summary of Results ........................................................................... 14 3.1 FCC Power Measurement Procedures..................................................................... 14 3.2 RF Conducted Power....................................................................................... 14 3.3 SAR Test Configuration ................................................................................... 16 3.4 Still cameras and video cameras Test position ......................................................... 17 APPENDIX A. DASY4 SAR Report B. Uncertainty Analysis C. Calibration certificate Report File No. : F690501/RF-SAR002025 Date of Issue :2012-10-31 Page :3 / 57 1. General Information 1.1Testing Laboratory SGS Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone: +82 +31 428 5700 FAX: +82 +31 427 2371 Homepage:All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms- and-Conditions.aspx 1.2 Details of Applicant Manufacturer: Samsung Electronics Co., Ltd. Address: 416, Maetan-dong, Yeongtong-gu, Suwon-city, Gyeonggi-do, Korea Contact Person: hyuck- Kim Phone No.: +82 +31 277 6402 E-mail: [email protected] 1.3 Version of Report Version NumberDateRevision 002012-10-31Initial issue 1.4 Description of EUT(s) EUT Type : Digital Camera Model : WB800F Serial Number : SPL-120926-052 H/W Version : DV2 2012.08.04 S/W Version : 0907 Mode of Operation : WLAN Body worn Accessory : None Tx Frequency Range : 2412㎒~ 2462㎒(WLAN) Max. Conducted RF Power : 13.24㏈m (WLAN) Battery Type : DC 3.7 V (Li-ion Battery) Report File No. : F690501/RF-SAR002025 Date of Issue :2012-10-31 Page :4 / 57 1.5 Test Environment Ambient temperature : (22±2) ° C Tissue Simulating Liquid : (22±2) ° C Relative Humidity : (55±5) % R.H. 1.6 Operation Configuration The client provided a special driver and test program which can control the frequency and power of the WLAN module. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distan…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL005929Page:2of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. 6㏈bandwidth & 99 % Occupied Bandwidth ----------------------------------------------------34 4. Maximum peak output power --------------------------------------------------------------------------45 5. Power Spectral Density ---------------------------------------------------------------------------------49 6. Transmitter AC Power Line Conducted Emission-------------------------------------------------56 7. Antenna Requirement -----------------------------------------------------------------------------------61 Report Number:F690501/RF-RTL005929Page:3of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -413-15, Gomae-Dong Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. -Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 -705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx . Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant: Samsung Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea Contact Person: Kim, Hyeok Phone No.: +82 31 277 8402 1.3. Description of EUT Kind of Product Digital Camera Model Name WB800F Serial Number N/A Power Supply DC 3.7 V Frequency Range 2 412㎒~ 2 462㎒(11b/g/n_HT20_SISO) Modulation Technique DSSS, OFDM Number of Channels 11 channel (11b/g/n_HT20_SISO) Antenna Type Internal type (FPCB) Antenna Gain 2 412㎒~ 2 462㎒: -2.50㏈i 1.4. Declaration by the manufacturer - N/A Report Number:F690501/RF-RTL005929Page:4of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMR40100540 Jan, 05, 2012 Annual Jan, 05, 2013 Spectrum Analyzer R&S FSV30101004 Jul. 05, 2012 Annual Jul. 05, 2013 AttenuatorMini-CircuitsBW-N20W5+0950-4Mar. 30, 2012AnnualMar. 30, 2013 High Pass FilterWainwrightWHK3.0/18G-6SS4 Aug. 01, 2012 Annual Aug. 01, 2013 Low Pass FilterMini circuitsNLP-1200+V9500401023-1 Aug. 01, 2012 Annual Aug. 01, 2013 Power SensorR&S NRP-Z81101341 Jul. 31. 2012 Annual Jul. 31. 2013 DC Power SupplyAgilentU8002AMY50020026Mar. 29, 2012 Annual Mar. 29, 2013 PreamplifierR&S8447D2727A05143Jul. 18. 2012AnnualJul. 18. 2013 PreamplifierR&SSCU 1810117Jan. 02, 2012 Annual Jan. 02, 2013 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891Jul. 12, 2012 Annual Jul. 12, 2013 Test ReceiverR&SESU40100075Feb. 13, 2012 Annual Feb. 13, 2013 Trilog AntennaSCHWARZBECKVULB91639163-390Apr. 19, 2012BiennialApr. 19, 2014 Horn AntennaR&SHF907 100208Aug. 13, 2012BiennialAug. 13, 2014 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170BBHA9170431May 15, 2012BiennialMay 15, 2014 Antenna MasterINN-COMA4000-EP N/A N.C.R.N.C.R.N.C.R. Turn TableINN-CODT-3000S N/A N.C.R.N.C.R.N.C.R. Anechoic ChamberSY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/AN.C.R. N.C.R. N.C.R. EMI Test Receiver R&S ESCI7100778Aug. 01, 2012AnnualAug. 01, 2013 Two-Line V-Network R&S ENV216101180May 14, 2012 Annual May 14, 2013 ▶Support equipment DescriptionManufacturerModelSerial Number N/A--- Report Number:F690501/RF-RTL005929Page:5of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart B&C, RSS-210, RSS-Gen Standard sectionTest ItemResult 15.205(a) 15.209 15.247(d) A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2)A8.2(a)6 dB Bandwidth and 99% BWComplied 15.247(b)(3)A8.4(4)Maximum Peak Output PowerComplied 15.247(e)A8.3(2)Power Spectral DensityComplied 15.207 RSS-Gen 5.5/ RSS-102 Transmitter AC power line conducted emission Complied 1.7. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9㎑to 40㎓ (ANSI C63.4-2003) and the guidance provided in KDB 558074 were used in the measurement of the DUT. 1.8.Sample calculation Where relevant, the following sample calculation is provided: 1.8.1. Conducted test Offset value (㏈) = Attenuator (㏈) + Cable loss (㏈) 1.8.2. Radiation test Field strength level (㏈㎶/m) = Measured le…

Text truncated - open the document above for the full version.

Test Setup Photographs Front Rear Right Edge Left Edge Top Bottom EUT Photo Front Back Right Edge Left Edge Top Bottom Battery

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test
