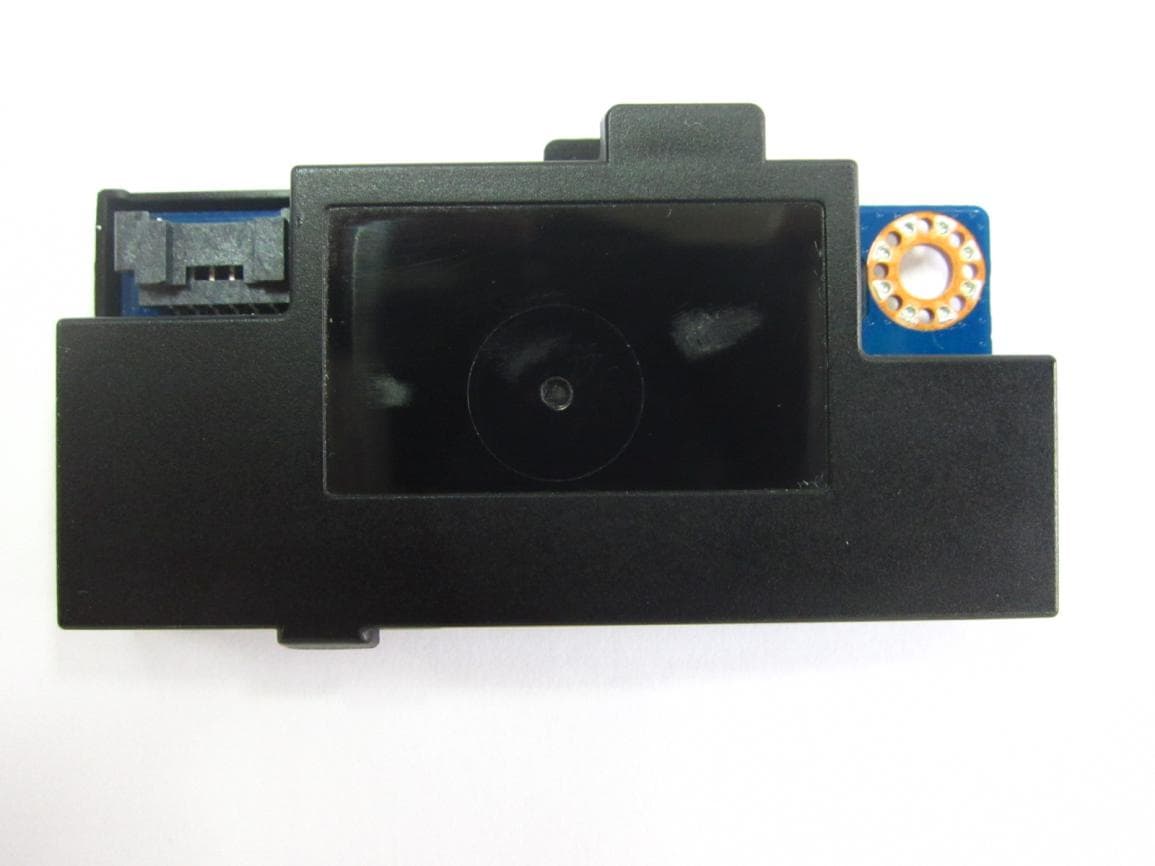

A3LWEG720BWi-Fi Transmitter

Manual For WEG720B Wi-Fi module(2.4 GHz, 5GHz, a/b/g/n, AC) - Model name : WEG720B - Operation Temperature : 0°C ~ +70°C - Power : +5V ±5% (+4.75V ~ +5.25V) 1. Introduction WEG720B is a USB embedded module compliant with IEEE802.11ac standard. The core chipset is from Broadcom, part number is BCM43526KMLG. And WEG720B automatically discontinue transmission in case of either absence of information to transmit or operational failure. Technical Information for FCC Freq. (MHz) CH Support IEEE802.11 and BW Active Scan Passive Scan Client Only DFS Mobile Hop spot Wi-Fi Direct Peer to Peer Ad-hoc Radar Detection 2412 1 802.11b/g/n(HT20) & BW = 20MHz YES NO YES NO NO YES YES YES NO 2417 2 2422 3 2427 4 2432 5 2437 6 2442 7 2447 8 2452 9 2457 10 2462 11 2422 3 802.11n(HT40) & BW = 40MHz YES NO YES NO NO YES YES YES NO 2427 4 2432 5 2437 6 2442 7 YES NO YES NO NO YES YES YES NO 2447 8 2452 9 Freq. (MHz) CH Support IEEE802.11 and BW Active Scan Passive Scan Client Only DFS Mobile Hop spot Wi-Fi Direct Peer to Peer Ad-hoc Radar Detection 5745 149 802.11a/n(HT20) /ac(VHT20) & BW = 20MHz YES NO YES NO NO YES YES YES NO 5765 153 5785 157 5805 161 5825 165 5755 151 802.11n(HT40) /ac(VHT40) & BW = 40MHz YES NO YES NO NO YES YES YES NO 5795 159 5775 155 802.11/ac(VHT80) & BW = 80MHz YES NO YES NO NO YES YES YES NO Freq. (MHz) CH Support IEEE802.11 and BW Active Scan Passive Scan Client Only DFS Mobile Hop spot Wi-Fi Direct Peer to Peer Ad-hoc Radar Detection 5180 36 802.11a/n(HT20) /ac(VHT20) & BW=20MHz YES NO YES NO NO NO NO NO NO 5200 40 5220 44 5240 48 5260 52 NO YES YES YES NO NO NO NO NO 5280 56 5300 60 5320 64 5500 100 NO YES YES YES NO NO NO NO NO 5520 104 5540 108 5560 112 5580 116 5600 120 N/A This device does not support these channel. 5620 124 5640 128 5660 132 NO YES YES YES NO NO NO NO NO 5680 136 5700 140 5190 38 802.11a/n(HT40) /ac(VHT40) & BW=40MHz YES NO YES NO NO NO NO NO NO 5230 46 5270 54 NO YES YES YES NO NO NO NO NO 5310 62 5510 102 NO YES YES YES NO NO NO NO NO 5550 110 5590 118 N/A This device does not support these channel. 5630 126 5670 134 NO YES YES YES NO NO NO NO NO 5210 42 802.11ac(VHT80) & BW=80MHz YES NO YES NO NO NO NO NO NO 5290 58 NO YES YES YES NO NO NO NO NO 5530 106 NO YES YES YES NO NO NO NO NO Approval Statement CE Statement Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. FCC Statement To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter module FCC ID: A3LWEG720B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. IC Information This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. The end product must be labeled to display the Industry Canada certification number of the module. Contains transmitter module IC: 649E-WEG720B Le dispositif d'accueil doivent être étiquetés pour afficher le numéro de certification d'Industrie Canada du module. Contient module émetteur IC : 649E-WEG720B User Information This device complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) This module may not be co-located with any other transmitters or antennas. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this module installed. In the event that these conditions cannot be met, then the FCC & IC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product including this module and obtaining separate FCC & IC authorizations. Cet appareil est conforme aux …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Date: February 19, 2014 Letter of Authorization We, the undersigned, hereby authorize Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: A3LWEG720B including signing of all documents relating to these matters. Any and all acts carried out by Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Samsung Electronics Co., Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Sang Kyung (Peter), Ra General Manager

Digital EMC Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: February 19, 2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA February 17, 2014 Modular Approval Attestation for Wi-Fi Transmitter Module. Applicant: Samsung Electronics Co Ltd FCC ID: A3LWEG720B No. FCC requirements EUT 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 This module uses Internal PIFA antenna This module meets the antenna requirements of section 15.203 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT (module) was tested a stand alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: A3LWEG720B” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operation under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) The exposure condition of this module is compliant with the requirements. Please refer to MPE calculation. Sincerely, Name : Sang Kyung (Peter), Ra Title : General Manager Company : Samsung Electronics Co., Ltd.

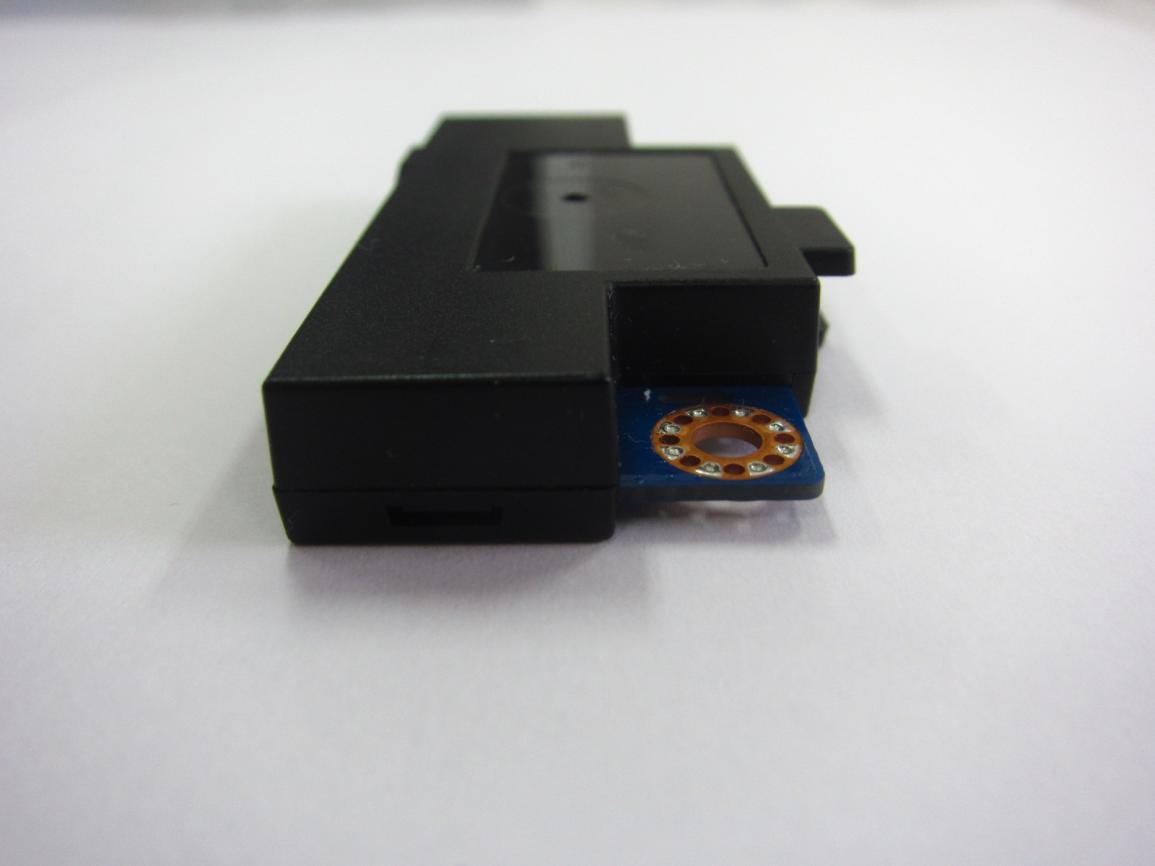

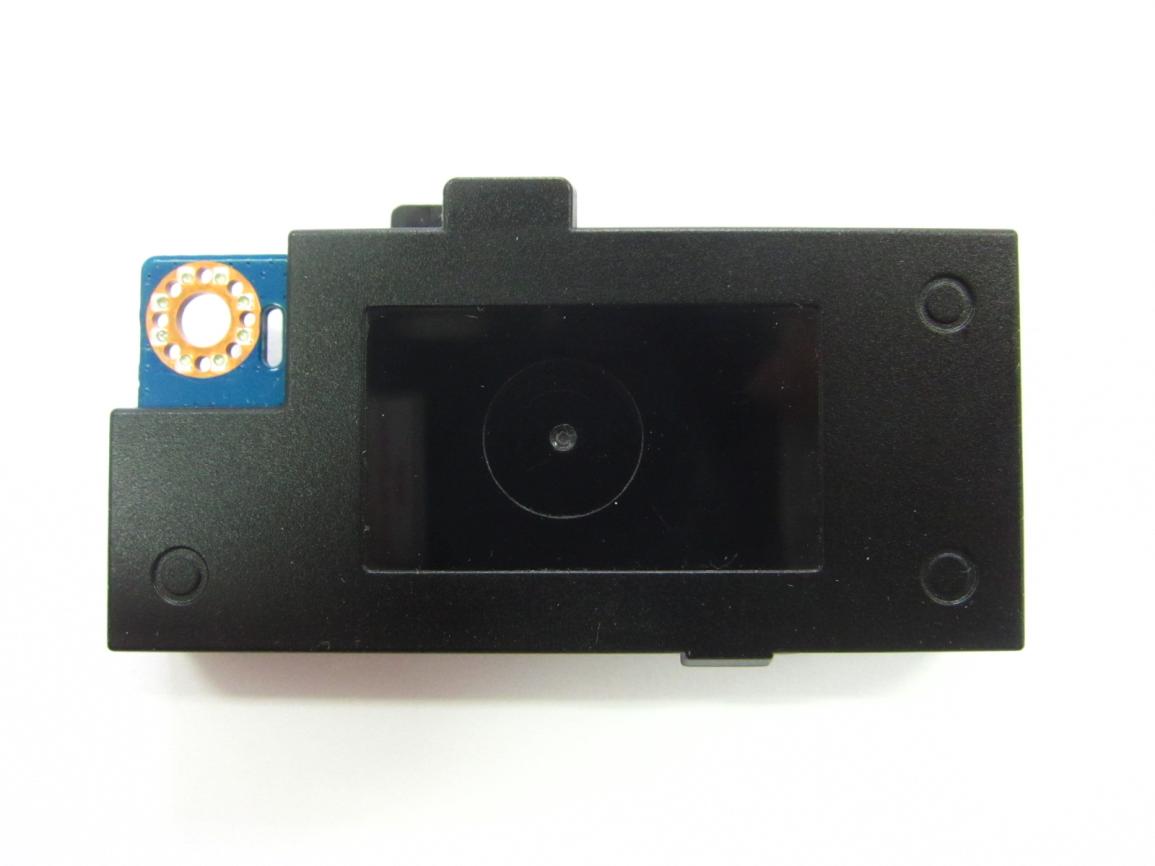

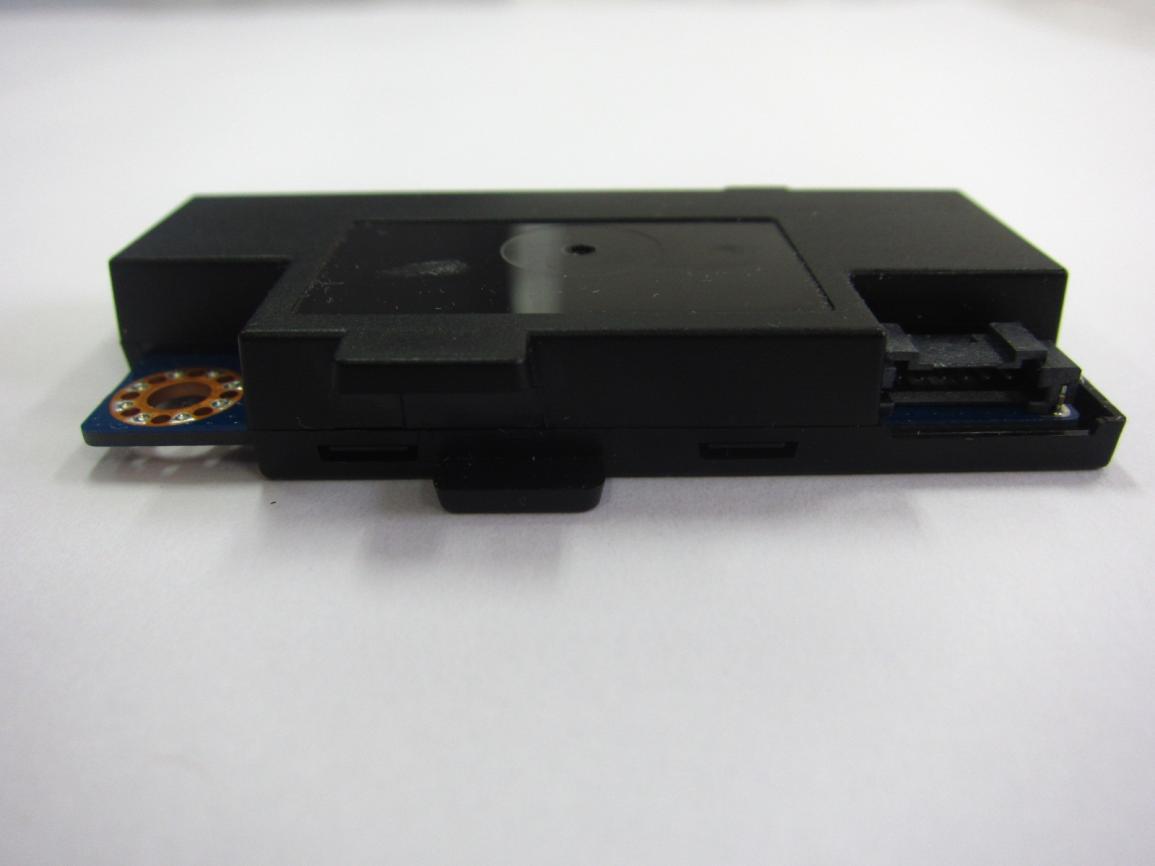

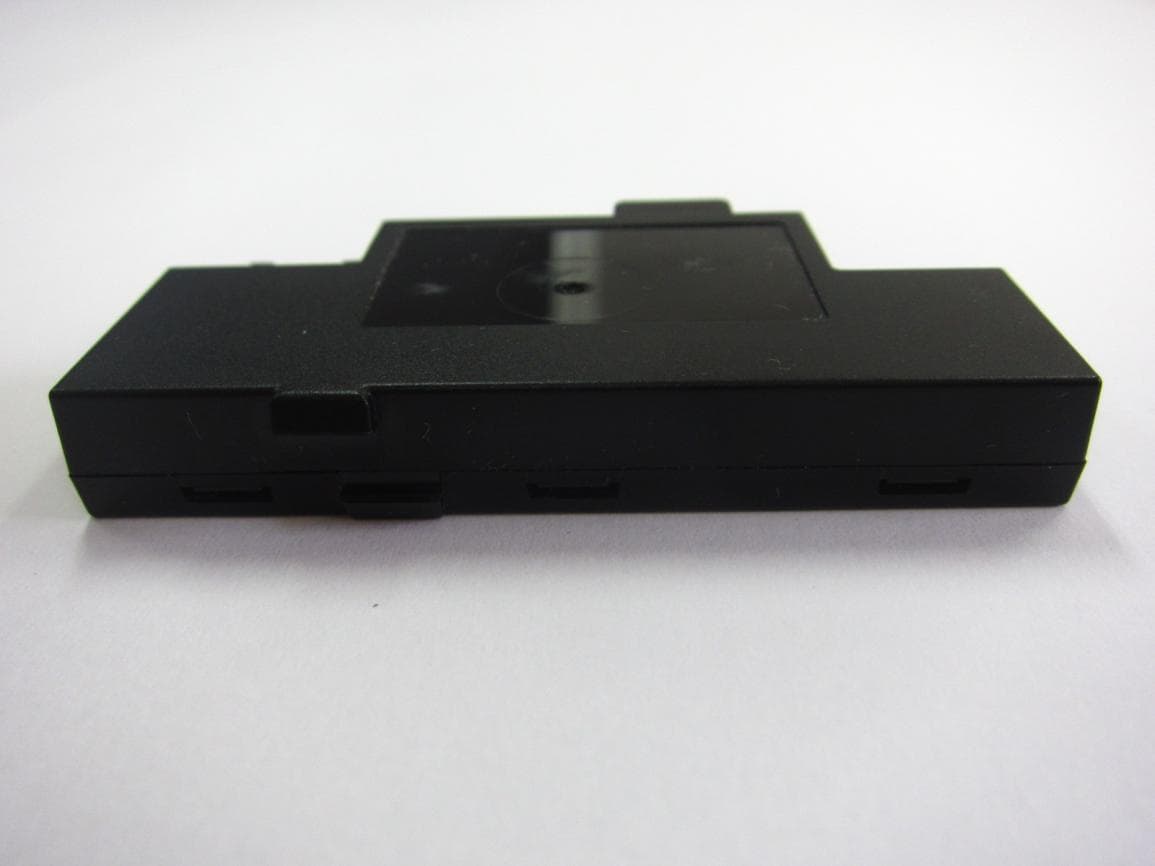

FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 1 FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 2 FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 3

FCC ID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate Top side - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 1 / 3 View 1 FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 2 / 3 View 2 FCCID: A3LWEG720B Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page 3 / 3 View 3

The MPE calculation for this exposure is shown below. - P = Power input to the antenna(mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna(20cm) 5GHz Band DTS FCC ID:A3LWEG720B RF Exposure Calculation The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the us Power density at the specific separation Note S = Maximum power dencity(mW/cm 2 ) 24GHzBandDTS5GHz Band NII =S P G / ( 4 R 2 π ) ±±± Aggregated Power dBm Tolerance :3 dB 7.0 dBm ~ 13.0 dBm7.0 dBm ~ 13.0 dBm Target Power : 10.0Target Power : 10.0 dBm Tolerance :3 dBdB dBm ~dBm13.07.0 3 The power desity at 20cm does not exceed the 1.0mW/cm 2 . Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 Target power & Tolerance 10.0 5GHz Band DTS 0.012 mW/cm 2 mW/cm 2 0.012 mW/cm 2 Aggregated Power (P) Antenna gain (G) 2.4GHz Band DTS5GHz Band NII dBm Tolerance : Target Power : Aggregated PowerAggregated Power Calculated power density Max. 16.000 dBm 0.014 Directional antenna gainDirectional antenna gainDirectional antenna gain Max. 16.000 dBm 39.811 mW Max. Max. 16.000 dBm 39.811 mW39.811 mW dBi 1.664 numeric1.423 2.210 dBiMax. numeric1.391 numeric 1.529 dBiMax. 1.433 Copyright ⓒ 2014, Digital EMC Co., Ltd.

DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 2 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1402-0233 Feb. 18, 2014 Initial issue DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 3 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Table of Contents 1. EUT DESCRIPTION ................................................................... 4 2. INFORMATION ABOUT TESTING ............................................. 5 2.1 Test mode .......................................................................................................................... 5 2.3 Auxiliary equipment ......................................................................................................... 5 2.4 Tested environment ......................................................................................................... 5 2.5 EMI suppression Device(s) / Modifications ................................................................... 5 3. SUMMARY OF TESTS ............................................................... 6 4. TEST METHODOLOGY ............................................................. 7 4.1 EUT configuration ............................................................................................................ 7 4.2 EUT exercise ..................................................................................................................... 7 4.3 General test procedures .................................................................................................. 7 4.4 Description of test modes ............................................................................................... 7 5. INSTRUMENT CALIBRATION ................................................... 8 6. FACILITIES AND ACCREDITATIONS ........................................ 8 6.1 Facilities ............................................................................................................................ 8 6.2 Equipment ......................................................................................................................... 8 7. ANTENNA REQUIREMENTS ..................................................... 8 8. TEST RESULT ........................................................................... 9 8.1 6dB bandwidth .................................................................................................................. 9 8.2 Maximum peak conducted output power ..................................................................... 38 8.3 Maximum power spectral density ................................................................................. 65 8.4 Out of band emissions at the band edge / conducted spurious emissions ............. 94 8.5 Radiated spurious emissions...................................................................................... 215 8.6 Power-line conducted emissions ............................................................................... 224 8.7 Occupied bandwidth .................................................................................................... 229 9. LIST OF TEST EQUIPMENT .................................................. 257 APPENDIX I ............................................................................... 258 DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 4 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. 1. EUT DESCRIPTION FCC Equipment Class Digital Transmission System(DTS) Product Wi-Fi Transmitter Model Name WEG720B Add Model Name N/A Power Supply DC 5 V Frequency Range 2.4 GHz Band ▪ 802.11b/g/n(HT20): 2412 MHz ~ 2462 MHz ▪ 802.11n(HT40): 2422 MHz ~ 2452 MHz 5.7 GHz Band ▪ 802.11a/n(HT20)/ac(VHT20): 5745 MHz ~ 5825 MHz ▪ 802.11n(HT40)/ac(VHT40): 5755 MHz ~ 5795 MHz ▪ 802.11ac(VHT80): 5775 MHz Modulation Type CCK, DQPSK, DBPSK for DSSS 256QAM, 64QAM, 16QAM, QPSK BPSK for OFDM Transmissions category Completely uncorrelated signal Antenna Specification Antenna type: Internal Antenna Antenna gain ▪ 2.4 GHz Band: ANT 1 : 1.9 dBi & ANT 2 : 2.5 dBi ▪ 5.7 GHz Band: ANT 1 : 2.2 dBi & ANT 2 : 0.5 dBi Antenna configuration ▪ 802.11b/g/a: Single Transmitting (ANT 1 or ANT 2) ▪ 802.11n(MCS0 ~ 7) : Single Transmitting (ANT 1 or ANT 2) ▪ 802.11n(MCS8 ~ 15): Multiple Transmitting (ANT 1 and ANT 2) ▪ 802.11ac(NSS 1): Single Transmitting (ANT 1 or ANT 2) ▪ 802.11ac(NSS 2): Multiple Transmitting (ANT 1 and ANT 2) DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 5 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. 2. INFORMATION ABOUT TESTING 2.1 Test mode Test mode Worst case data rate Tested Frequency(MHz) Lowest Middle Highest TM 1 802.11b 5.5 Mbps 2412 2442 2472 TM 2 802.11g 54 Mbps 2412 2442 2472 TM 3 802.11n(HT20) MCS 7 2412 2442 2472 TM 4 802.11n(HT40) MCS 7 2422 2437 2452 TM 5 802.11a 6 Mbps 5745 5785 5825 TM 6 802.11n(HT20) MCS 0 5745 5785 5825 TM 7 802.11n(HT40) MCS 0 5755 - 5795 N/A 802.11ac(VHT20) NSS 1 MCS 8 5745 5785 5825 N/A 802.11ac(VHT40) NSS 1 MCS 8 5755 - 5795 TM 10 802.11ac(VHT80) NSS 1 MCS 8 - 5775 - The worst case data rate for each modulation is determined as above test mode. And all tests conducted in this report were made at the worst case data rate of each modulation. 2.3 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note Laptop Satellite U50D-A 8D031763K Toshiba FCC DoC - - - - - 2.4 Tested environment Temperature : 21 ~ 24 o C Relative humidity content : 39 ~ 49 % R.H. Details of power supply : DC 5 V 2.5 EMI suppression Device(s) / Modifications EMI suppression device(s) added and/or modifications made during testing → None DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 6 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC P…

Text truncated - open the document above for the full version.

DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 65 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. 8.3 Maximum power spectral density Test requirements and limit, §15.247(e) & RSS-210 [A8.2] The peak power density is measured with a spectrum analyzer connected to the antenna terminal while the EUT is operating in transmission mode at the appropriate frequencies. Minimum Standard –specifies a conducted power spectral density (PSD) limit of 8 dBm in any 3 kHz band segment within the fundamental EBW during any time interval of continuous transmission. ▣ TEST CONFIGURATION ▣ TEST PROCEDURE: The Measurement Procedure Method PKPSD of KDB558074 v03r1 is used. 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the span to 1.5 times the DTS bandwidth. 3. Set the RBW to: 3 kHz ≤ RBW ≤ 100 kHz 4. Set the VBW ≥ 3 x RBW 5. Detector = peak 6. Sweep time = auto couple 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Use the peak marker function to determine the maximum amplitude level within the RBW. 10. If measured value exceeds limit, reduce RBW (no less than 3 kHz) and repeat. DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 66 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. ▣ TEST RESULTS: Comply Test Mode Frequency RBW PKPSD [dBm] ANT 1 ANT 2 SUM (ANT 1 + ANT 2) TM 1 Lowest 3 kHz -9.732 -10.067 N/A Middle 3 kHz -9.911 -9.453 N/A Highest 3 kHz -9.601 -9.814 N/A TM 2 Lowest 3 kHz -15.872 -16.236 N/A Middle 3 kHz -15.925 -16.436 N/A Highest 3 kHz -16.135 -16.088 N/A TM 3 Lowest 3 kHz -15.658 -16.257 -12.937 Middle 3 kHz -15.583 -16.025 -12.789 Highest 3 kHz -15.659 -14.976 -12.294 TM 4 Lowest 3 kHz -19.204 -17.723 -15.391 Middle 3 kHz -18.923 -17.490 -15.138 Highest 3 kHz -19.279 -18.392 -15.803 TM 5 Lowest 3 kHz -15.301 -15.500 N/A Middle 3 kHz -14.946 -14.832 N/A Highest 3 kHz -14.696 -14.305 N/A TM 6 Lowest 3 kHz -15.929 -15.151 -12.513 Middle 3 kHz -15.581 -14.374 -11.926 Highest 3 kHz -14.661 -14.272 -11.452 TM 7 Lowest 3 kHz -18.122 -18.552 -15.322 Highest 3 kHz -18.251 -18.349 -15.290 TM 10 Middle 3 kHz -23.376 -22.356 -19.826 DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 67 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. ▣RESULT PLOTS Maximum PPSD TM 1 & ANT 1 & Lowest Maximum PPSD TM 1 & ANT 1 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 68 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 1 & ANT 1 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 69 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 1 & ANT 2 & Lowest Maximum PPSD TM 1 & ANT 2 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 70 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 1 & ANT 2 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 71 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 2 & ANT 1 & Lowest Maximum PPSD TM 2 & ANT 1 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 72 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 2 & ANT 1 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 73 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 2 & ANT 2 & Lowest Maximum PPSD TM 2 & ANT 2 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 74 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 2 & ANT 2 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 75 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 3 & ANT 1 & Lowest Maximum PPSD TM 3 & ANT 1 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 76 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 3 & ANT 1 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 77 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 3 & ANT 2 & Lowest Maximum PPSD TM 3 & ANT 2 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 78 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 3 & ANT 2 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 79 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 4 & ANT 1 & Lowest Maximum PPSD TM 4 & ANT 1 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 80 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 4 & ANT 1 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 81 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 4 & ANT 2 & Lowest Maximum PPSD TM 4 & ANT 2 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 82 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 4 & ANT 2 & Highest DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 83 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 5 & ANT 1 & Lowest Maximum PPSD TM 5 & ANT 1 & Middle DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 84 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Maximum PPSD TM 5 & ANT 1 & Highest DEMC1311-03573 FC…

Text truncated - open the document above for the full version.

DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 127 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 1 & Lowest Reference Low Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 128 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 129 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 130 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 1 & Middle Reference Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 131 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 132 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 1 & Highest Reference High Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 133 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 134 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 135 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 2 & Lowest Reference Low Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 136 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 137 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 138 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 2 & Middle Reference Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 139 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 140 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 3 & ANT 2 & Highest Reference High Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 141 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 142 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 143 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 4 & ANT 1 & Lowest Reference Low Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 144 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 145 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 146 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 4 & ANT 1 & Middle Reference Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 147 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Emissions DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 148 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. TM 4 & ANT 1 & Highest Reference High Band-edge DEMC1311-03573 FCC ID: A3LWEG720B Report No.: DRTFCC1402-0233 IC: 649E-WEG720B TRF-RF-221(00)140218 Page 149 / 260 Copyright ○ C 2014, Digital EMC Co., Ltd. Conducted Spurious Em…

Text truncated - open the document above for the full version.
