WIP-5001A Quick Installation Guide Before You Begin UniData Communication Systems Inc. Page 1 April 27, 2004 1. Before You Begin The best way to set the configuration is using a PC with LAN card installed. The factory default IP address for WIP-5001A is 192.168.1.100, and Subnet Mask is 255.255.255.0. Change the PC IP address to static (192.168.1.xxx) such as the WIP-5001A. 1.1 Setting the PC as Static IP Address Before connecting to setup-screen, change the PC IP to static. 1 Double-Click the [Start] -> [Setup] -> [Control Pannel] -> [Network Connection]. 2 [Local Area Connection] -> [Properties] -> [This connection uses the following items:]. Double-click the [TCP/IP] and enter the followings below. y IP Address: 192.168.1.2 y Subnet Mask: 255.255.255.0 y Gateway Address: None 3 After entering all of the above, press [OK] button and finish the setting. (For Windows ME/98, PC needs to be restarted.) 2. Check Your Package Contents After purchasing the WIP-5001A, please check if the following items are included. y WIP-5001A Wireless LAN Adaptor y Ethernet (CAT 5 UTP/Straight Through) Cable y 5V DC, 2A Power Adapter If any of the above items are missing, please contact your reseller. WIP-5001A POWER connecting jack must be connected with WIP-5001A adapter that came with. Using different type of adpater my cause serious damage to WIP-5001A. WIP-5001A Quick Installation Guide Connecting The WIP-5001A Wireless LAN Adaptor To Your Network UniData Communication Systems Inc. Page 2 April 27, 2004 3. Connecting The WIP-5001A Wireless LAN Adaptor To Your Network 1 Connect the PC and WIP-5001A with LAN cable. Connect LAN cable that is enclosed in WIP- 5001A box to PC LAN Port and connect the other side of LAN cable to WIP-5001A’s LAN Port. There is a LAN Port that it said 10 Base-T at the backside of WIP-5001A. 2 Connects WIP-5001A with Power. There is a Power Port that said DC 5V at the backside of WIP-5001A’s adapter. When WIP-5001A gets power, PWR and Link LED that are placed frontside of WIP-5001A get turned on. User must use WIP-5001A with the enclosed LAN cable in the box. If Link LED doesn’t get turned on, check the PC LAN card and see if Link/Activity LED is turned on. 3 When you have completed the steps in this Quick Installation Guide, your connected network should look similar to this. WIP-5001A Quick Installation Guide LED Status Indication UniData Communication Systems Inc. Page 3 April 27, 2004 4. LED Status Indication LED light on the WIP-5001A turns on/off depends on state. The followings explain the status of LED indication. 1. [PWR] indicates Power comes on. Red light sustains while power comes on. 2. [Link] indicates LAN Port’s Link (Connection)/Activity. Yellow light is up when the phone gets linked and LED blinks when transmitting the data. 3. [R/Tx] indicates Wireless LAN’s Link/Activity. Red light is up when it gets linked and LED blinks when transmitting the data. WIP-5001A Quick Installation Guide Information about the bridge UniData Communication Systems Inc. Page 4 April 27, 2004 5. Information about the bridge When [Information] Menu has selected, user can look up the setup information of Access Point WIP- 5001A version. Here are the Information contents. Contents Description Connected to SSID SSID that WIP-5001A is connected to Using channel Channel that are currently using MAC address of Access Point Connected Access Point’s MAC address Current transmission rate (Mbit/s) Connection speed (1, 2, 5.5, 11Mbit/s) Current communication quality (%) Signal Strength is shown in %. Non-IP MAC address Generally use “FFFFFFFFFFFF” MAC address of the wireless card WIP-5001A’s MAC address IP2022 Bridge Firmware Basic stack version WIP-5001A Quick Installation Guide Information about the bridge UniData Communication Systems Inc. Page 5 April 27, 2004 version IP2022 Bridge Software version Change of version after upgrading WLAN Primary firmware Wireless LAN module Primary firmware version WLAN Secondary firmware Wireless LAN module Secondary firmware version Net-page free Number of net-page left over Memory free (Kb) Memory left over (Kilo-bit) WIP-5001A Quick Installation Guide Wireless Configuration UniData Communication Systems Inc. Page 6 April 27, 2004 6. Wireless Configuration From this chapter, the SSID means 6 numbers that is registered in SYSTEM ID of iDCS 500 MMC [845]. Run the web browser. Enter “http://192.168.1.100 ” at URL address box and press [Enter] button. Then Logon screen shows up like the screen on the right. Enter “User Name: admin, Password: admin” and press [OK] button. Then Information screen shows up like the screen on the right. Click the [Wireless] menu and wait for a few second. WIP-5001A Quick Installation Guide Wireless Configuration UniData Communication Systems Inc. Page 7 April 27, 2004 Then Wireless Configuration screen shows up like the screen on the right. Check if Operating Mode is set to Infrastructure, and enter The SSID: Samsung WBS24’s ESS-ID. (Basically SSID is registered with “123456”.) From the Logon screen, check mark on [Save this password in your passward list] then password won’t be asked next time. When the Information screen doesn’t show up in 5 seconds, press F5 key to refresh the page. WIP-5001A Quick Installation Guide Wireless Configuration UniData Communication Systems Inc. Page 8 April 27, 2004 After done entering ESS-ID, click [Save] button. Then Dialog Box will pop up just like the screen on the right. Click [OK] button. In a moment Information screen will be on. See if ESS-ID you entered is shown correctly. If it is correct, basic setup is finished. The SSID: When menu has left empty, WIP-5001A will connects to Access Point that has the greatest Signal Strength and it might not work. WIP-5001A Quick Installation Guide Security Configuration UniData Communication Systems Inc. Page 9 April 27, 2004 7. Security Configuration WIP-5001A can supports WEP: Wireless LAN security protocol when the Access Point’s WEP KEY is set. Click…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 45 of 57 APPENDIX D – EUT PHOTOGRAPHS z Front View of EUT Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 46 of 57 z Rear View of EUT

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 41 of 57 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Labelling Requirements

MODEL : WIP-5001A RATING : 5V ;2A Manufactured : 55mm 40mm MADE IN KOREA Bar Code FCC ID : A3LWIP5001A SAMSUNG ELECTRONICS CO., LTD #259,Gongdan-dong,Kumi-city,Kyung-buk,Korea WLAN Adaptor This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 0470 55mm 40mm

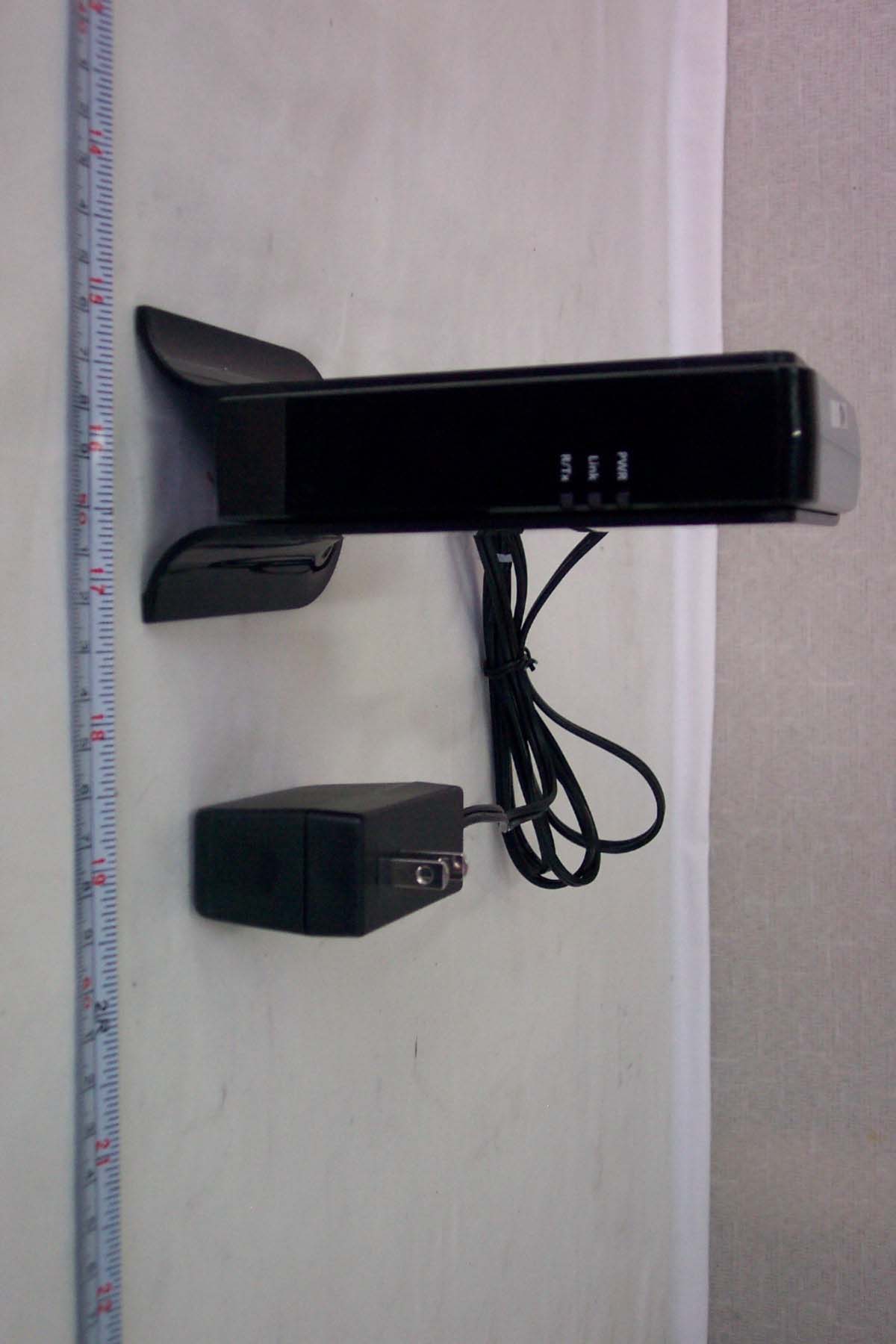

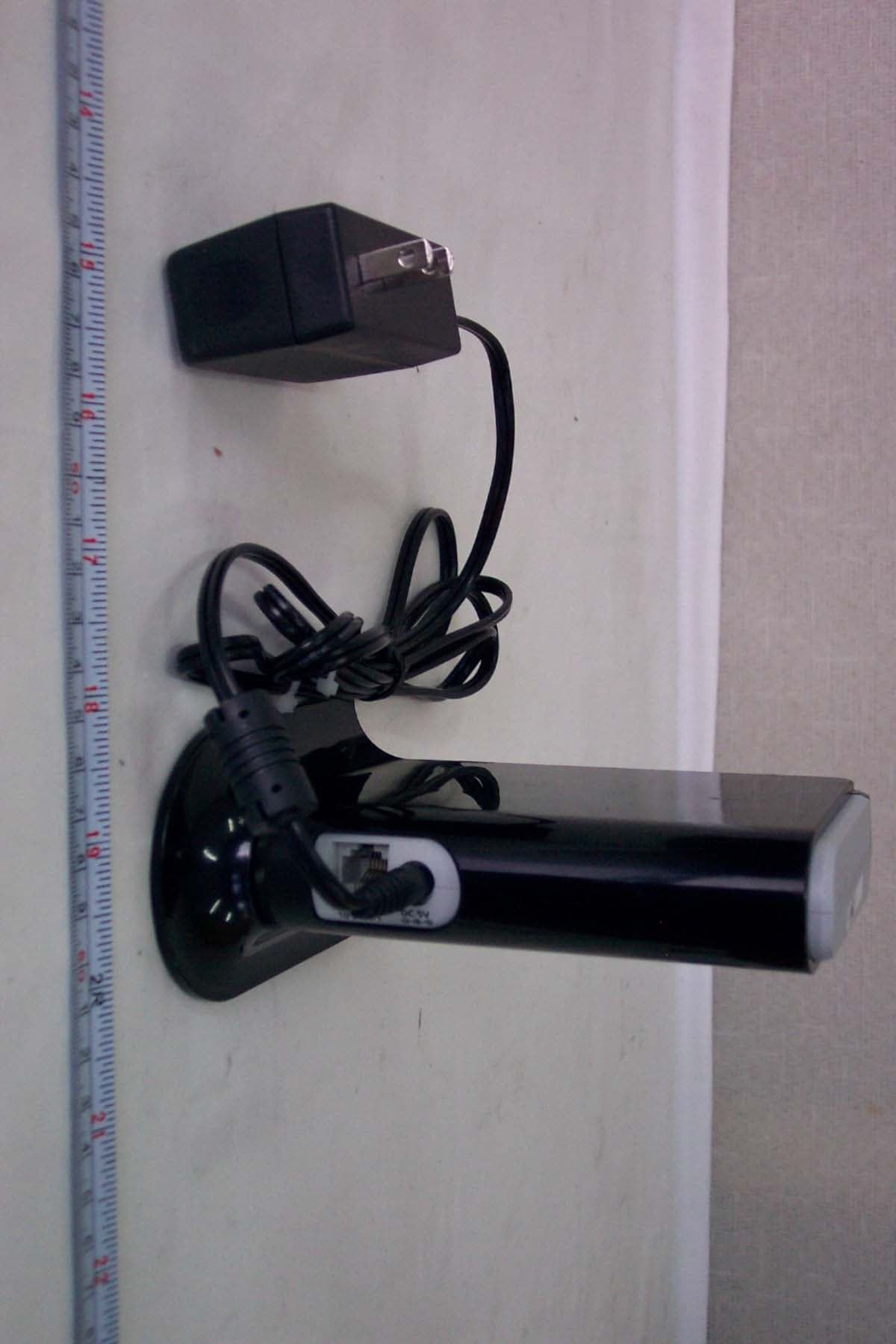

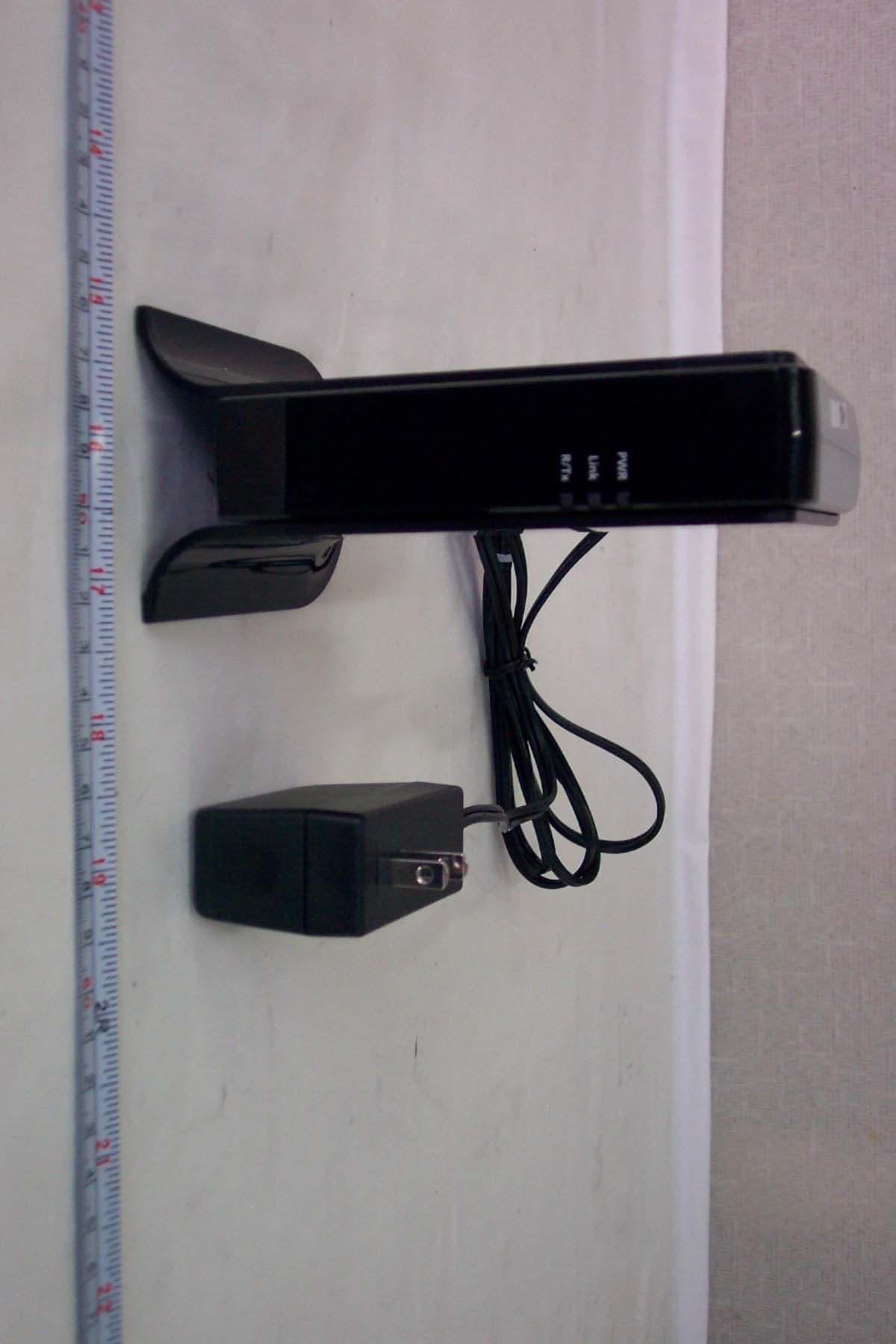

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 47 of 57 z Inside View of EUT Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 48 of 57 z Front View of Main Board Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 49 of 57 z Rear View of Main Board Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 50 of 57 z Front View of RF module Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 51 of 57 z Rear View of RF module Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 52 of 57 z View of Adaptor Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 53 of 57 z Front View of Adaptor board Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 54 of 57 z Rear View of Adaptor board

Operational Description 1. Data from the host processor is sent to the MAC through the CompactFlash interface 2. ISL3871 packetizes to compliant with 802.11b and translates into BPSK, QPSK and CCK I/Q signal by different rate –1, 2, 5.5 and 11Mbps 3. Through 3-wire control setting the communication channel at ISL3684 4. ISL3684 up-convert the I/Q to RF 2.4GHz and a variable gain block amplifies the RF signal by TX close-loop control 5. ISL3684 feeds the 2.4GHz modulated signal to PA for last stage power boost 6. After the power amplified, a BPF rejects the harmonics and spurious 7. Through software diversity selection, one antenna will be chosen for signal emission

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 1 of 57 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Dates of Issue : April 22, 2004 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea. Test Report No. : NK2EE242 Test Site : Nemko Korea Co., Ltd. (Post code : 442-743) EMC site, Korea Attn. : Mr. Yeon-Chun, Park FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15, Subpart C : 2001 Classification : FCC Class B Device EUT Type: WIP Adaptor The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2001. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : C. S. Choi Reviewed By : H.H. Kim Senior Engineer Manager & Chief Engineer A3LWIP5001A SAMSUNG Samsung Electronics Co., Ltd. 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea, 442-743. Mr. Yeon-Chun, Park Telephone No. : +82 32 279 4398 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 2 of 57 TABLE OF CONTENTS SCOPE 4 INTRODUCTION (Site Description) 5 TEST CONDITIONS & EUT INFORMATION 6 SUMMARY OF TEST RESULTS 8 RECOMMANDATION / CONCLUSION 8 SAMPLE CALCULATION 8 DESCRIPTION OF TESTS (Conducted Emissions) 9 DESCRIPTION OF TESTS (Radiated Emissions) 10 DESCRIPTION OF TESTS (Modulated Bandwidth & Peak Power Output) 11 DESCRIPTION OF TESTS (Conducted Spurious Emission & Peak Power Spectral Density) 12 TEST DATA (Conducted Emissions) 13 PLOTS OF EMISSIONS (Conducted Emissions) 14 TEST DATA (Radiated Emissions) 16 TEST DATA ( Modulated Bandwidth) 17 PLOTS OF EMISSIONS (6dB Bandwidth) 18 TEST DATA (Peak Power Output) 20 TEST DATA (Conducted & Radiated Spurious Emission) 21 PLOTS OF TEST DATA (Conducted & Radiated Spurious Emissions) 22 TEST DATA (Peak Power Spectral Density) 34 PLOTS OF TEST DATA (Peak Power Spectral Density) 35 TEST DATA (Maximum Permissible Exposure) 37 ACCURACY OF MEASUREMENT 39 TEST EQUIPMENT 40 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 3 of 57 APPENDIX A – LABELLING REQUIREMENTS 41 APPENDIX B – SCHEMATIC DIAGRAM 42 APPENDIX C – PHOTOGRAPHS OF TEST SET-UP 43 APPENDIX D – EUT PHOTOGRAPHS 45 APPENDIX E – BLOCK DIAGRAM 55 APPENDIX F – USER’S MANUAL 56 APPENDIX G – OPERATIONAL DESCRIPTION 57 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 4 of 57 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Yeon Chun, Park UniData Communication Systems, Inc. 2F, OhSung-Bldg, 82-15, NonHyun-Dong, GangNam-Gu, Seoul, Korea, 135-010. z FCC ID: A3LWIP5001A z Model: WIP-5001A z Brand Name: SAMSUNG z EUT Type: WIP ADAPTOR z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Class B FCC 47 CFR Part 15 , Subpart C ANSI C63.4 (2001) April 7, 2004 ~ April 22, 2004 Nemko Korea Co., Ltd. EMC Site NK2EE242 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 5 of 57 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2001) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. MODEL : WIP-5001A These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on June 06, 2001. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 6 of 57 TEST CONDITIONS & EUT INFORMATION Operating During Test Set loop with a notebook computer via a LAN cable, then sent and received a data during test. At the same time, transmitted each channel’s (the Lowest channel, Middle channel, Highest channel) data with test program in Notebook computer. EUT & Support Equipment WIP Adaptor (EUT) Samsung Electronics Co., Ltd. FCC ID : A3LWIP5001A S/N : N/A Adaptor (WIP Adaptor) Samsung Electronics Co.,Ltd. Model ; DSA-0101F-05A 2.0m unshielded DC power cable S/N : N/A Notebook Com…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 23 of 57 PLOTS OF TEST DATA Band edge at 2.4GHz, Middle Channel Conducted Spurious Emissions, Middle channel Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 24 of 57 PLOTS OF TEST DATA Band edge at 2.4GHz, Highest Channel Conducted Spurious Emissions, Highest Channel Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 25 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Lowest Channel (Horizontal) Radiated Spurious Emissions, Lowest Channel (Horizontal) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 26 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Lowest Channel (Horizontal) Radiated Spurious Emissions, Lowest Channel (Vertical) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 27 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Lowest Channel (Vertical) Radiated Spurious Emissions, Lowest Channel (Vertical) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 28 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Middle Channel (Horizontal) Radiated Spurious Emissions, Middle Channel (Horizontal) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 29 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Middle Channel (Horizontal) Radiated Spurious Emissions, Middle Channel (Vertical) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 30 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Middle Channel (Vertical) Radiated Spurious Emissions, Middle Channel (Vertical) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 31 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Highest Channel (Horizontal) Radiated Spurious Emissions, Highest Channel (Horizontal) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 32 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Highest Channel (Horizontal) Radiated Spurious Emissions, Highest Channel (Vertical) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 33 of 57 PLOTS OF TEST DATA Radiated Spurious Emissions, Highest Channel (Vertical) Radiated Spurious Emissions, Highest Channel (Vertical)

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 34 of 57 TEST DATA Peak Power Spectral Density – 15.247(d) FCC ID : A3LWIP5001A Test Mode : Set to Lowest channe, Middle channel and Highest channel. ChannelFrequency(MHz)Result(dBm)Limit(dBm)Margin(dB) 12412-13.058-21.05 62437-12.208-20.20 112462-13.358-21.35 Tested by C. S. Choi Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 35 of 57 PLOTS OF TEST DATA Peak Power Spectal Density, Lowest Channel Peak Power Spectal Density, Middle Channel Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 36 of 57 PLOTS OF TEST DATA Peak Power Spectal Density, Highest Channel Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 37 of 57 TEST DATA MAXIMUM PERMISSIBLE EXPOSURE RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the Environmental of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) FrequencyElectric FieldMagnetic Field Power Density Averaging Time Range(MHz)Strength(V/m)Strength(A/m) (mW/cm 2 ) (Minutes) 30 - 3006.140.16316 300 - 1500......F/3006 1500 - 100000......56 30 - 30027.50.0730.230 300 - 1500......F/150030 1500 - 100000......130 (A) Limits for occupational / Contral Exposure (B) Limits for General Population / Uncontrolled Exposure F = Frequency (MHz) Fries formula Fries transmission formula : Pd = (Pout * G) / (4 * π* r²) r = √((Pout * G) / 4 * π* Pd)) Where Pd = Power density in ㎽/㎠ Pout = Output power to antenna in ㎽ G = Gain of antenna in linear scale π= 3.1416 r = Distance between observation point center of the radiator in cm Pd is the limit of MPE, 1 ㎽/㎠. If we know the Maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 38 of 57 TEST DATA Test Result The maximum antenna gain is 2dBi or 1.585(Numeric) Output power into antenna and RF Exposure Distance ChannelFrequencyOutput Power toRF Exposure Distance (MHz)Antenna(mW)(cm) 1241211.20 1.19 6243711.46 1.20 11246210.52 1.15 MPE Safe Distance = 1.20cm Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 39 of 57 ACCURACY OF MEASUREMENT The Measurement Uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 with the confidence level of 95% 1. Radiation Uncertainty Calculation ContributionProbability DistributionUncertainty(+/-dB) Antenna FactorNormal (k=2) ± 0.5 Cable LossNormal (k=2) ± 0.04 Receiver SpecificationRectangular ± 2.0 Antenna directivity Antenna Factor variation with Height Antenna Phase Center Variation Antenna Factor Frequency Interpolation Measurement Distance Variation Site InperfectionsRectangular ± 2.0 Mismatch:Receiver VRC ri=0.3 Antenna VRC rR=0.1(Bi)0.4(Lp) Uncertainty Limits 20Log(1+/-ri rR) System RepeatibiltyStd.deviation ± 0.05 Repeatability of EUT-- Combined Standard UncertaintyNormal ± 1.77 Expended Uncertainty UNormal (k=2) ± 3.5 2. Conducted Uncertainty Calculation ContributionProbability DistributionUncertainty(+/-dB) Receiver SpecificationNormal (k=2) ± 2.0 LISN coupling spec.Normal (k=2) ± 0.4 Cable and input attenuator cal.Rectangular ± 0.4 Mismatch:Receiver VRC ri=0.3 LISN vrc rg=0.1 Uncertainty Limits 20Log(1+/-ri rR) System RepeatibiltyStd.deviation ± 0.68 Repeatability of EUT-- Combined Standard UncertaintyNormal ± 1.18 Expended Uncertainty UNormal (k=2) ± 2.4 U-Shaped ± 0.26 Rectangular ± 1.0 U-Shaped ＋ 0.25 / - 0.26 Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 40 of 57 TEST EQUIPMENT No.InstrumentManufacturerModelCalibration Date 1 *Test ReceiverR & SESCS 302003.09 2 *AmplifierHP8447F2004.01 3 *AmplifierHP8449B2004.03 4 *Spectrum AnalyzerAdvantestR3265A2003.12 5 *Spectrum AnalyzerHP8566B2004.03 6 *Spectrum AnalyzerAnritsuMS2668C2003.12 7 *Logbicon Super AntennaSchwarzbeckVULB91662003.05 8 Log-Periodic AntennaR & SHL0252003.05 9 Dipole AntennaR & SVHA91032003.05 10 Dipole AntennaR & SUHA91052003.05 11 *Biconical Log AntennaARALPB-2520/A2004.01 12 Asorbing ClampR & SMDS212003.06 13 *Horn AntennaSchwarzbeckBBHA 9120D2003.10 14 *Signal GeneraterR & SSMP042004.02 15 *Signal GeneraterHPE4436B2004.01 16 Matching PadR & S RAM358.5414.02 2003.05 17 *LISNR & SESH3-Z52003.11 18 *LISNKyoritsuKNW-4082003.12 19 LISNKyoritsuKNW-4072004.03 20 *Position ControllerEM Eng.N/AN/A 21 *Turn TableEM Eng.N/AN/A 22 *Antenna MastEM Eng.N/AN/A 23 *Anechoic ChamberEM Eng.N/AN/A 24 *Shielded RoomEM Eng.N/AN/A 25 *Power MeterR & SNRVS2004.01 *) Test equipment used during the test Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 42 of 57 APPENDIX B – SCHEMATIC DIAGRAM Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 55 of 57 APPENDIX E – BLOCK DIAGRAM Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 56 of 57 APPENDIX F – USER’S MANUAL Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 57 of 57 APPENDIX G – OPERATIONAL DESCRIPTION

Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 43 of 57 APPENDIX C – PHOTOGRAPHS OF TEST SET-UP The Conducted test Picture and Radiated Test Picture and show the worst-case configuration and cable placement z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2EE242 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LWIP5001A Page 44 of 57 z Radiated Test Picture (Front) z Radiated Test Picture (Rear)
