A3LWRP100Wi-Fi Repeater

Manual ( WRP100 ) 1.Summary WRP100 (Model name) is a Wi-Fi repeater to transmit AV data. The Wi-Fi repeater receives from an AP and retransmits to display devices. The main goal of the Wi-Fi repeater is to enlarger communication coverage between AP and display device. To meet the goal, the Wi-Fi repeater is composed of two transceivers. One transceiver communicates date with AP with 5GHz lower band channel, and the other transceiver receives the data through USB, and retransmits to target display devices with 5GHz upper band channel. The channel is able to be changed for each transceiver. Each transceiver follows IEEE 802.11n specification, and uses HT40 data format. Therefore, the transceiver uses 40MHz channel bandwidth. The transceiver has 2x4 MIMO(Multi Input Multi Output) architecture. The transmitter operates with two antennas and receives with 4 antennas. -Operating temperature : 0°C ~40 °C -Operating Voltage : 120V/50~60Hz -The frequency generation portion of device is±20ppm. -This device operates in the 5190 - 5230 MHz band which is restricted to Indoor operations 2.Set descriptions 2.1 Main Chipset Information ItemVenderPart number Transceiver (MAC/BBP/Radio) SamsungSpirra-V2 FEM (PA/LNA/SW) Skyworks5012T .Wireless module Both wireless modules use HT40 (IEEE 802.11n) and each wireless module uses following channel (center frequency). * Lower band wireless module : #36(5190MHz), #44(5230MHz) * Upper band wireless module : #149(5755MHz), #157(5795MHz) Inverted F-type antennas are used for both wireless modules and four antennas are used for receive mode, two antennas are used for transmission mode. Following Modulation Modes are available. Transmit signals are emitted throughthe Antenna Bandthe Antenna Cfor all MCS index (MCS Index 0~15 of above table) which means thatthe antenna Aandthe antenna D do not work during transmit state. Operating MCS Index 0~7, wireless module transmits same signal through the Antenna B and the Antenna C which means that one spatial same stream is transmitted through the Antenna B and the Antenna C. On the other hand, Operating MCS Index 8~15, wireless module transmits two spatial streams through Antenna B and Antenna C. When wireless module is in receiving state, it receives with all four antennas. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 5190Mhz (Channel 36), 5230MHz (Channel 44), 5755MHz (Channel 149), 5795MHz (Channel 157) can be operated. And Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiato…

Text truncated - open the document above for the full version.

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: January 5, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LWRP100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

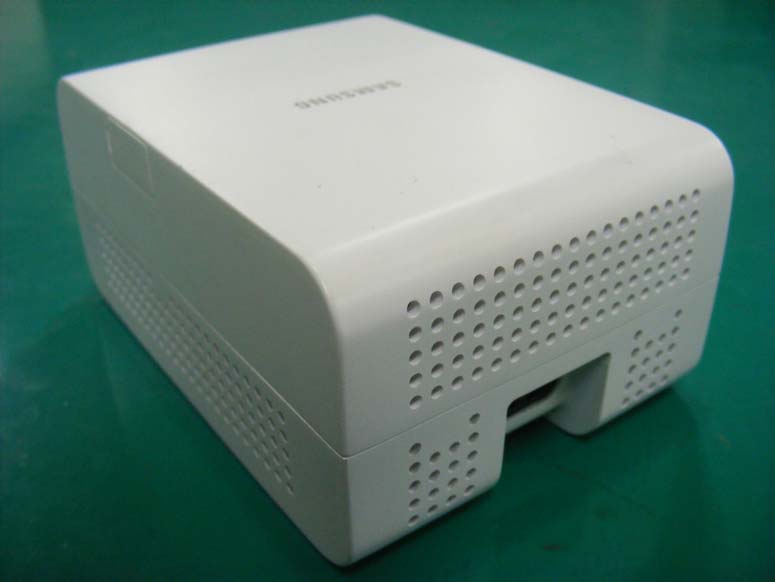

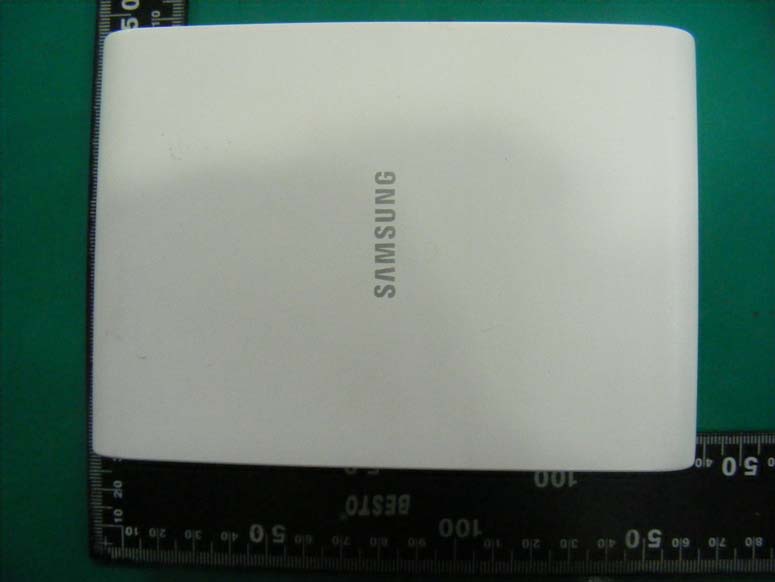

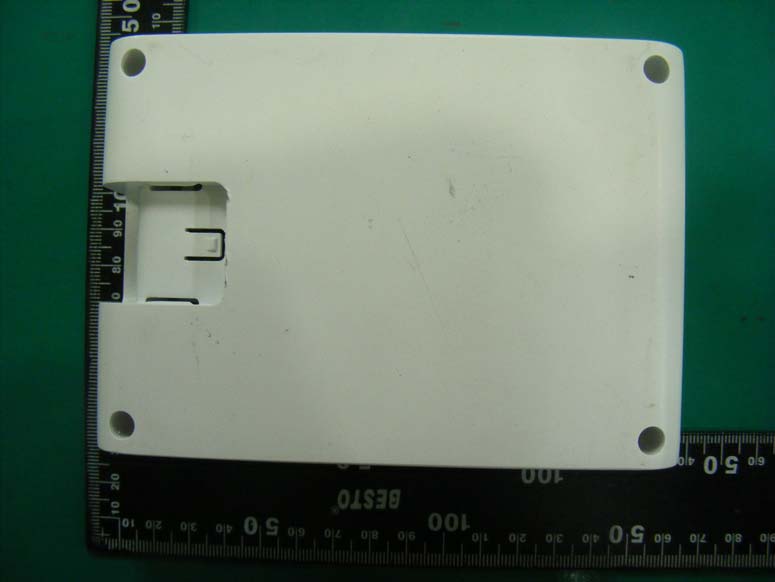

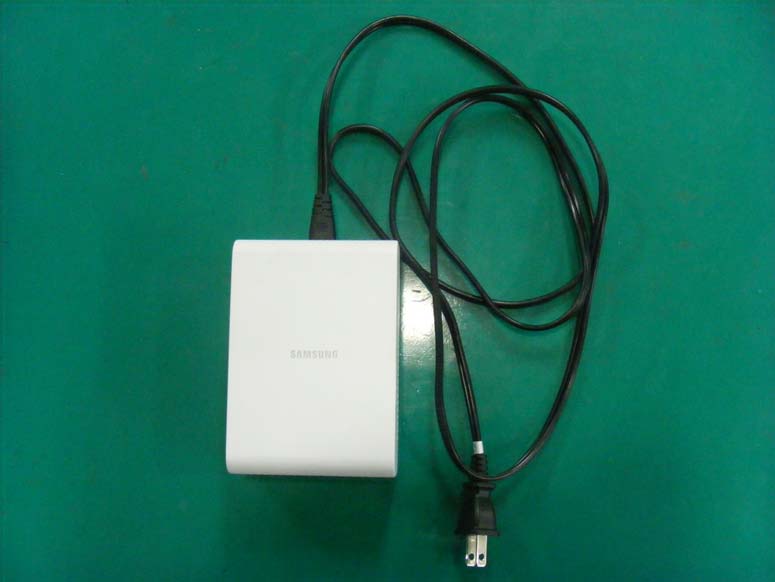

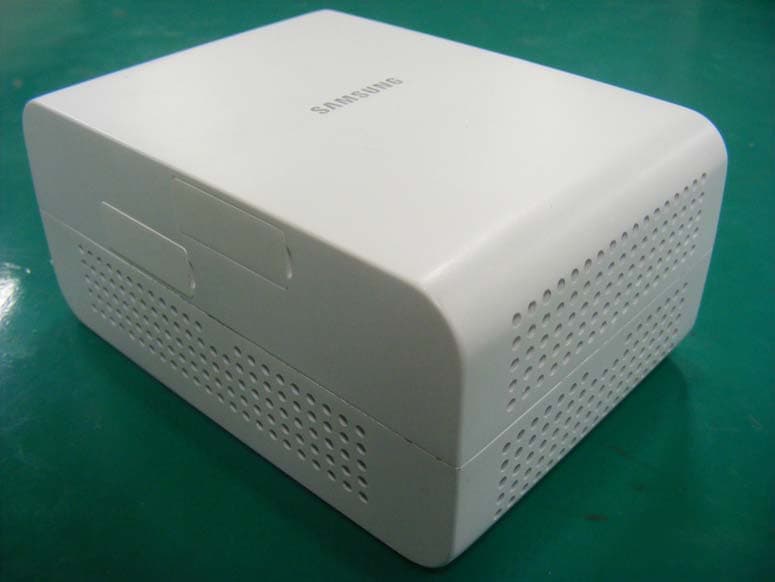

External photos of EUT View of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT

FCC/IC Label 1. FCC/IC Label Drawing SAMSUNG ELECTRONICS CO., LTD. Model : WRP100 FCC ID : A3LWRP100 Made in Korea 2. FCC/IC Label Location Bottom side of EUT

Internal photos of EUT Inter view of EUT Top view of Upper PCB Top view of Upper PCB Removing Shield Bottom view of Upper PCB Bottom view of Upper PCB Removing Shield Antenna of Upper PCB For 5 190 MHz and 5 230 MHz only, not 5 755 MHz and 5 795 MHz ANT D (Rx only) ANT C (Tx and Rx) ANT B (Tx and Rx) ANT A (Rx only) Top view of Lower PCB Top view of Lower PCB Removing Shield Bottom view of Lower PCB Bottom view of Lower PCB Removing Shield Antenna of Lower PCB For 5 755 MHz and 5 795 MHz only, not 5 190 MHz and 5 230 MHz ANT A (Rx only) ANT B (Tx and Rx) ANT C (Tx and Rx) ANT D (Rx only) Top view of Power board Bottom view of Power board

Report Number : F690501/RF-RTL005235 Page: 2 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Table of contents 1. General information ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 2. Transmitter radiated spurious emissions and conducted spurious emission ‐‐‐‐‐‐ 6 3. 26 dB Bandwidth ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12 4. Output power ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 16 5. Peak power spectral density ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 20 6. Peak excursion ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 24 7. Transmitter AC Power Line Conducted Emission ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 26 8. RF Exposure evaluation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 31 Report Number : F690501/RF-RTL005235 Page: 3 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Phone No. : +82 +31 428 5700 Fax No. : +82 +31 427 2371 1.2 Details of applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Jung, Doh Sung Phone No. : +82 +10 6618 0370 1.3 Description of EUT Kind of Product SAMSUNG WiFi Repeater Model Name WRP100 Serial Number N/A Power Supply AC 120 V Frequency Range 5 755 ㎒ ~ 5 795 ㎒ (11n_ HT40) 5 190 ㎒ ~ 5 230 ㎒ (11n_ HT40) Modulation Technique OFDM Number of Channels 5 755 ㎒ ~ 5 795 ㎒ : 2 Channels 5 190 ㎒ ~ 5 230 ㎒ : 2 Channels Antenna Type Fixed type (2 Tx / 4 Rx) Antenna Gain ANT B 5 755 ㎒ : 3.03 ㏈i 5 795 ㎒ : 2.57 ㏈i 5 190 ㎒ : 2.53 ㏈i 5 230 ㎒ : 3.06 ㏈i ANT C 5 755 ㎒ : 3.05 ㏈i 5 795 ㎒ : 3.22 ㏈i 5 190 ㎒ : 2.54 ㏈i 5 230 ㎒ : 2.45 ㏈i 1.4. Declaration by the manufacturer - The nominal channel bandwidth: 40 ㎒ - There are 4 antennas, A, B, C & D, but Ant A and Ant D are Rx only. - EUT uses Cyclic Delay Diversity (CDD) modes and the signals are correlated. Report Number : F690501/RF-RTL005235 Page: 4 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test equipment list Equipment Manufacturer Model S/N Cal Due. Signal Generator R & S SMR40 100272 Jul. 15, 2012 PXA Spectrum Analyzer Agilent N9030A US51350132 Oct. 28, 2012 Spectrum Analyzer R & S FSV30 101004 Jul. 06, 2012 Attenuator AEROFLEX 26A‐10dB 2 Apr. 06, 2012 High Pass Filter Wainwright WHK6.0/18G-10SS 11 Jul. 07, 2012 AC Power Supply KIKUSUI PCR 500M QC002962 Mar. 16, 2012 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R & S SCU 18 10117 Mar. 23, 2012 Test Receiver R & S ESU26 100109 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 396 Apr. 27, 2013 Horn Antenna R & S HF 906 100229 May. 04. 2012 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 BBHA9170223 Jun. 30, 2012 Antenna Master EMCO 1050 N.C.R. N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. N.C.R. Two-Line V-Network R & S ENV216 100190 Jan. 06, 2012 Test Receiver R & S ESHS10 863365/018 Apr. 27, 2012 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. N.C.R. Report Number : F690501/RF-RTL005235 Page: 5 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.6. Summary of test result The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart E Section in FCC 15 Test Item Result 15.205(a) 15.209(a) 15.407(b)(1) Transmitter radiated spurious emissions and Conducted spurious emission Complied 15.407(a)(1) Output power Complied 15.407(a)(1) Peak power spectral density Complied 15.407(a)(6) Peak excursion Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL005235 Initial Report Number : F690501/RF-RTL005235 Page: 6 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 2. Transmitter radiated spurious emissions and conducted spurious emission 2.1. Test setup 2.1.1. Transmitter radia…

Text truncated - open the document above for the full version.

Report Number : F690501/RF-RTL005235 Page: 2 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Table of contents 1. General information ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 2. Transmitter radiated spurious emissions and conducted spurious emission ‐‐‐‐‐‐ 6 3. 26 dB Bandwidth ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 12 4. Output power ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 16 5. Peak power spectral density ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 20 6. Peak excursion ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 24 7. Transmitter AC Power Line Conducted Emission ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 26 8. RF Exposure evaluation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 31 Report Number : F690501/RF-RTL005235 Page: 3 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Phone No. : +82 +31 428 5700 Fax No. : +82 +31 427 2371 1.2 Details of applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Jung, Doh Sung Phone No. : +82 +10 6618 0370 1.3 Description of EUT Kind of Product SAMSUNG WiFi Repeater Model Name WRP100 Serial Number N/A Power Supply AC 120 V Frequency Range 5 755 ㎒ ~ 5 795 ㎒ (11n_ HT40) 5 190 ㎒ ~ 5 230 ㎒ (11n_ HT40) Modulation Technique OFDM Number of Channels 5 755 ㎒ ~ 5 795 ㎒ : 2 Channels 5 190 ㎒ ~ 5 230 ㎒ : 2 Channels Antenna Type Fixed type (2 Tx / 4 Rx) Antenna Gain ANT B 5 755 ㎒ : 3.03 ㏈i 5 795 ㎒ : 2.57 ㏈i 5 190 ㎒ : 2.53 ㏈i 5 230 ㎒ : 3.06 ㏈i ANT C 5 755 ㎒ : 3.05 ㏈i 5 795 ㎒ : 3.22 ㏈i 5 190 ㎒ : 2.54 ㏈i 5 230 ㎒ : 2.45 ㏈i 1.4. Declaration by the manufacturer - The nominal channel bandwidth: 40 ㎒ - There are 4 antennas, A, B, C & D, but Ant A and Ant D are Rx only. - EUT uses Cyclic Delay Diversity (CDD) modes and the signals are correlated. Report Number : F690501/RF-RTL005235 Page: 4 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test equipment list Equipment Manufacturer Model S/N Cal Due. Signal Generator R & S SMR40 100272 Jul. 15, 2012 PXA Spectrum Analyzer Agilent N9030A US51350132 Oct. 28, 2012 Spectrum Analyzer R & S FSV30 101004 Jul. 06, 2012 Attenuator AEROFLEX 26A‐10dB 2 Apr. 06, 2012 High Pass Filter Wainwright WHK6.0/18G-10SS 11 Jul. 07, 2012 AC Power Supply KIKUSUI PCR 500M QC002962 Mar. 16, 2012 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R & S SCU 18 10117 Mar. 23, 2012 Test Receiver R & S ESU26 100109 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 396 Apr. 27, 2013 Horn Antenna R & S HF 906 100229 May. 04. 2012 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 BBHA9170223 Jun. 30, 2012 Antenna Master EMCO 1050 N.C.R. N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. N.C.R. Two-Line V-Network R & S ENV216 100190 Jan. 06, 2012 Test Receiver R & S ESHS10 863365/018 Apr. 27, 2012 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. N.C.R. Report Number : F690501/RF-RTL005235 Page: 5 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.6. Summary of test result The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart E Section in FCC 15 Test Item Result 15.205(a) 15.209(a) 15.407(b)(1) Transmitter radiated spurious emissions and Conducted spurious emission Complied 15.407(a)(1) Output power Complied 15.407(a)(1) Peak power spectral density Complied 15.407(a)(6) Peak excursion Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL005235 Initial Report Number : F690501/RF-RTL005235 Page: 6 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 2. Transmitter radiated spurious emissions and conducted spurious emission 2.1. Test setup 2.1.1. Transmitter radia…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test
