A4C10008ARoadExplorer 70

QUICK START GUIDE 1 Your Road Explorer ™ 70 Main Menu Volume DownUpPower Dash cam Micro USB SD Card Audio out Front-Facing Camera 2 Android User Interface 1 3 Swipe down at left to view notifications Swipe down at right to view settings 24 5 6 879 3 Android User Interface 1 GPS is on 2 Wi-Fi is on 3 Indicates remaining battery power 4 Current time 5 View installed apps 6 Tap or swipe right to view second home screen 7 Back 8 Return to last home screen 9 View open apps For more tips on your device, visit randmcnally.com/support 4 Install the Mount NOTE: Follow all local regulations governing the placement of the mount. Select an area with a line of sight to the sky and GPS satellites to ensure reliable GPS information. 1. Clean and dry the mounting area. 2. Remove the suction cup protective film. 3. Adjust the angle of the mount using the thumbscrew. 4. Pull the suction cup lever up to release suction. 5. Clip the two pieces of the mount together . Slide up to secure. 6. Plug the power cord into the mount and the vehicle’s 12-volt power source. 7. Attach the tablet to the mount. 8. Place and hold the mount suction cup against the mounting surface. 9. Press the suction cup lever down until it snaps into place . 10. Adjust the tablet so that it can be easily seen and does not block the driver ’s line of sight. 5 Main Menu 1 GPS Main Menu (See page 6.) 2 TripMaker ® Use the online planning tool to plan a trip and find things to do along the way 3 Backup Cam (accessory required) 4 Dash Cam 5 Road Atlas eBook 12 345 Pre-Installed Apps The following apps are ready to use on your tablet: • Da sh - Connect your car to your smartphone, and unlock enhanced performance, cost savings, and social driving. ( OBD accessory required.) Additional apps are available in the Rand McNally Market. 6 GPS > Main Menu 1 Enter trip information and access tools. 2 Show location on the map and view n avigation instructions. 3 Choose a destination. 4 Select device, route and map preferences. Access the tutorial. 5 Mute/unmute the speaker. 6 Adjust speaker volume. 7 Indicates charge when running on battery. Note: You can select different color schemes in Preferences > General > Skin Style. The following screen images appear in the “Ice” style. Some screens may appear different, based on model number. Note: From other screens, tap the Main Menu icon in the bottom right corner to return to the Main Menu. 1 4 5 6 7 2 3 7 GPS > Set Routing and Device Options 1. Tap Preferences. 2. Tap the General, Route or Map tab. 3. Tap and to view options. 4. Tap the option button to be changed. 5. Enter new settings. 6. Tap to save changes. On the left, tap on an option On the right, enter settings for the option 8 GPS > Destination 1 Route to a new location. (See page 9.) 2 Return to a previously entered address. 3 Access the Address Book. 4 Plan a multi-stop trip. 5 Route to a point of interest. (See page 13.) 6 Run an Internet search for a location by name or keyword. 7 View trip content from Rand McNally. 123 4567 9 GPS > Route to a New Location 1. Tap Choose Destination > New Location. 2. Tap Address. 3. E nter the name of the city. (NOTE: As you type, the keyboard displays only the next possible letter.) 4. P rompts appear in the top bar. Tap the city to select. Or, tap List to view cities beginning with the letter(s) you entered. 5. E nter the street name. (NOTE: If the letters you need do not appear, tap Expand Search.) 6. E nter the house number. (NOTE: To enter the house number before the street, tap the house number button in the previous step.) See Confirm Destination Window (See page 10.) Tips • Y ou can also route to a new location by City Center, Intersection, or Latitude/Longitude, or choose Address > Zip Code Search. • V iew recent destinations by tapping Choose De stination > History. View recent cities by tapping Choose Destination > New Location > Address > History. • V iew saved locations by tapping Choose Destination > Address Book. 10 GPS > Confirm Destination Window 1 Destination address. 2 Begin route to destination. 3 Compare a primary and alternate route and choose one. 4 Add the location as a via point on the way to a previously entered destination.* 5 Save the location to the Address Book. 6 Cross reference to printed Rand McNally Road Atlas. 7 View the map. 8 Change the starting location for a route to the location displayed here. 9 Return to Main Menu. 10 Return to previous window. *To manage via points, Tap Choose Destination > Multi-Stop Trips. You can add up to 50 destinations in a multi-stop trip, and optimize routing for trips of up to 10 stops. NOTE: This window may include additional buttons based on the type of destination selected. 1 3 5 67 9 8 10 2 4 11 GPS > Route Map Window 1 Repeat spoken next-maneuver instructions. 2 Name of street you will turn onto next. 3 Show arrival time, remaining time, or other options. 4 Slide out to show upcoming exit information. 5 Directions list slideout. Tap Route Display Options to select detail view, highway view, trip summary, or summary map view. 6 Zoom in/zoom out. 7 Return to Main Menu. 8 Current direction. Tap to select a map display option (Heading Up, North Up, or 3D View). 9 View current road name, upcoming cross road name, or city, county and state. Also displays current mile marker and advanced lane guidance. Tap to change. 10 View and save current location, detour, or cancel a route. 11 Tap on the current speed to display the Virtual Dashboard. (NOTE: Turns red for speed warnings; set in Trip Tools > Warnings.) 12 Current speed limit. Tap to open a “Tell Rand” about speed limits. 1 3 4 5 6 8 2 9 10 11 14 15 12 13 12 GPS > Junction View When on a route, Junction View displays when you have an upcoming maneuver. Once past the maneuver, Junction View closes and the previous window displays. 1 Signs to follow for the next maneuver. 2 Number and direction of lanes for the next maneuver. 3 Distance to the upcoming maneuver. Distance decreases as you appr…

Text truncated - open the document above for the full version.

MET Laboratories TCB - Samples Agent Authorization Letter 2015-02-09 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: John Harris Position: CFO Company Name: RM ACQUISITIONS LLC Address: 9855 Woods Drive Skokie. IL 60077 U.S.A E-Mail: [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Date:2015-02-09 FCC ID: A4C10008A Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Name: John Harris Position: CFO Company Name: RM ACQUISITIONS LLC Address: 9855 Woods Drive Skokie. IL 60077 U.S.A E-Mail: [email protected]

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 2015-02-09 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (RET70 / TNDT70, RoadExplorer 70 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Name: John Harris Position: CFO Company Name: RM ACQUISITIONS LLC Address: 9855 Woods Drive Skokie. IL 60077 U.S.A E-Mail: [email protected]

Model difference letter Feb. 09, 2015 Dear MET Reviewer, This is a new Application from RM ACQUISITIONS LLC RET70 and TNDT70 are identical in interior structure, electrical circuits, components and appearance, Only different in model name. Thank you for your cooperation! Yours sincerely, Signatory: Name: John Harris Position: CFO Company Name: RM ACQUISITIONS LLC Address: 9855 Woods Drive Skokie. IL 60077 U.S.A E-Mail: [email protected]

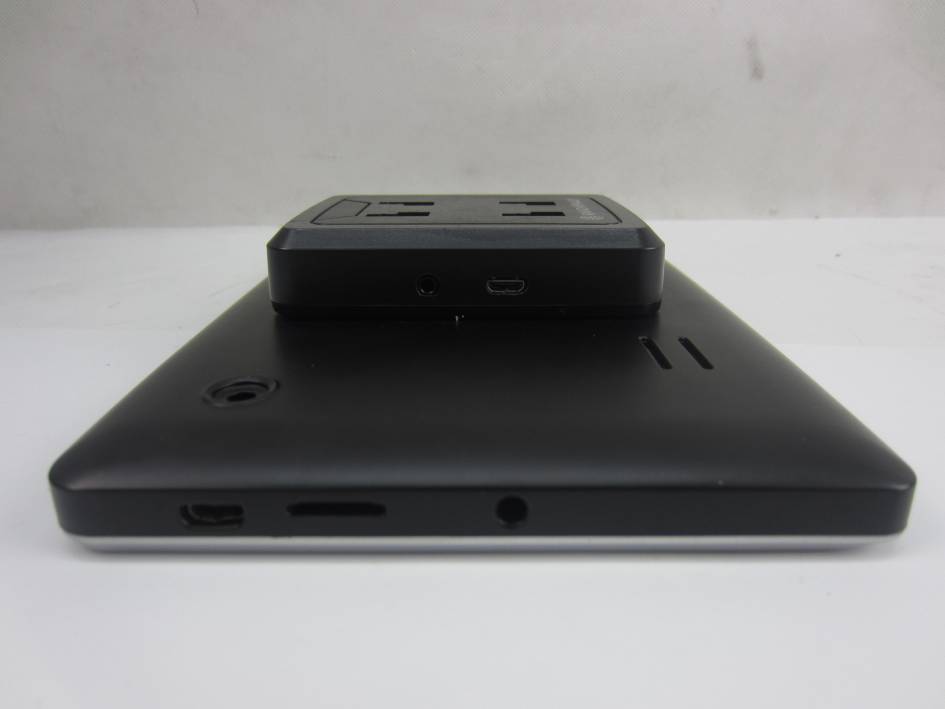

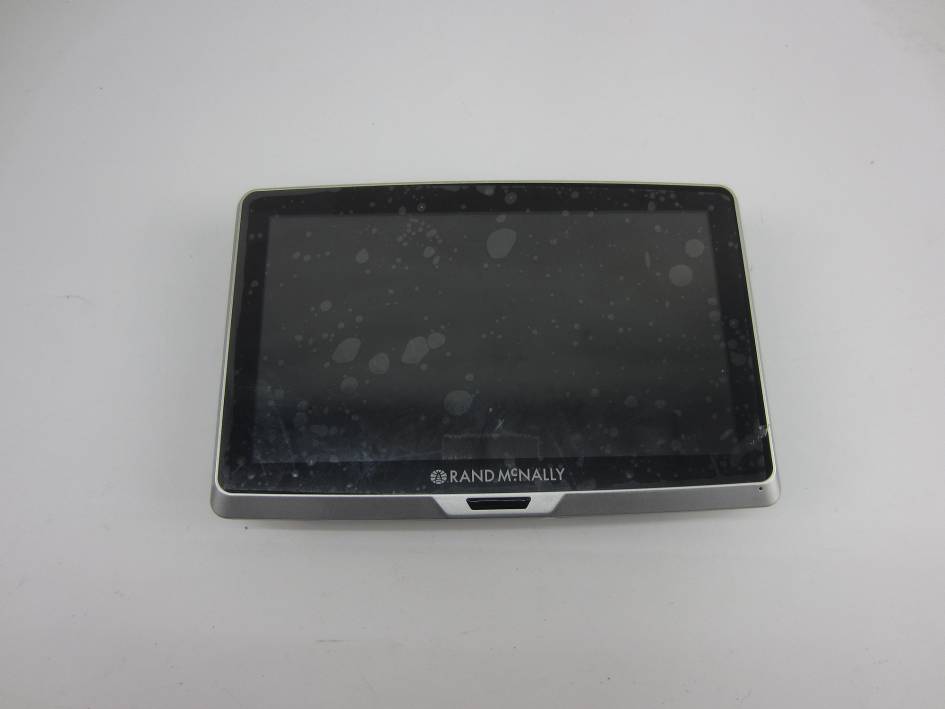

Model No.:RET70 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.:RET70 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Model No.:RET70 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.:RET70 EXTERIOR VIEW OF SAMPLE

FCC Label Location

2015-01-21 客户型号：RET70 工厂型号：M7107 订单号：WS14120035 00 主机贴纸 要求 1.规格：40X11.5mm 2.材质：50番消银龙 3.颜色：单黑 4.工艺：表面过哑胶 5.其他：成品无四周红框 姚佳欢 40.00 mm 1 1 . 5 0 m m

Model No: RET70 Page 1 of 8 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Model No: RET70 Page 2 of 8 INTERNAL PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 Model No: RET70 Page 3 of 8 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 Model No: RET70 Page 4 of 8 INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 8 Model No: RET70 Page 5 of 8 INTERNAL PHOTO OF SAMPLE – 9 INTERNAL PHOTO OF SAMPLE – 10 Model No: RET70 Page 6 of 8 INTERNAL PHOTO OF SAMPLE – 11 INTERNAL PHOTO OF SAMPLE – 12 Model No: RET70 Page 7 of 8 INTERNAL PHOTO OF SAMPLE – 13 INTERNAL PHOTO OF SAMPLE – 14 Model No: RET70 Page 8 of 8 INTERNAL PHOTO OF SAMPLE – 15 INTERNAL PHOTO OF SAMPLE – 16

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid,…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1501042H01 Issued for RM ACQUISITIONS LLC 9855 Woods Drive Skokie. IL 60077 U.S.A Product Name: RoadExplorer 70 Brand Name: Rand Mcnally Model No.: RET70,TNDT70 Series Model: N/A FCC ID: A4C10008A Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Body:0.353 W/kg S T L A B S Page 2 of 37 Report No.: STS1501042H01 Test Report Certification Applicant’s name ................. : RM ACQUISITIONS LLC Address ................................. : 9855 Woods Drive Skokie. IL 60077 U.S.A Manufacture's Name ............ : Apical Technology Research（shenzhen）Co., Ltd Address ................................. : 9/F,B, Building, singhua Unis Infoport, Langshan Road, North District, Hi-tech Industrial park, Nanshan, Shenzhen, China Product description Product name ........................ : RoadExplorer 70 Trademark ........................... : Rand Mcnally Model and/or type reference : RET70,TNDT70 Serial Model： N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2003 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 22 Jan. 2015 Date of Issue .......................................... : 23 Jan. 2015 Test Result.............................................. : Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 37 Report No.: STS1501042H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Antenna Location Sketch 13 8. EUT Test Position 14 8.1 Define Two Imaginary Lines On The Handset 14 8.2 Hotspot mode exposure position condition 15 9. Measurement Uncertainty 16 10. Conducted Power Measurement 18 11.1 EUT Photo 20 11.2 Setup Photo 23 12. SAR Result Summary 27 13. Equipment List 28 Appendix A. System Validation Plots 29 System Performance Check Data(2450MHz) 29 Appendix B. SAR Test Plots 31 Appendix C. Probe C alibration And Dipole Calibration Report 37 Page 4 of 37 Report No.: STS1501042H01 1. General Information 1.1 EUT Description Equipment RoadExplorer 70 Brand Name Rand Mcnally Model No. RET70,TNDT70 Serial Model N/A FCC ID A4C10008A Model Difference N/A Adapter Input: AC100-240V, 0.5 A, 50/60 Hz Output: DC 5V, 2A Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 4000mAh Hardware Version N/A Software Version N/A Frequency Range IEEE 802.11b/g/ n 20: 2412MHz to 2472 MHz IEEE 802.11n40: 2422MHz to 2462 MHz Transmit Power(Average): IEEE 802.11b: 14.78 dBm ;IEEE 802.11g: 11.42 dBm IEEE 802.11n20: 9.85 dBm ; IEEE 802.11n40: 10.99 dBm Max. Reported SAR(1g): Body: 802.11b:0.353 W/kg Operating Mode: Maximum continuous output Antenna Specification: WIFI: PIFA Antenna Test Mode: Maximum continuous output Hotspot Mode: Support DTM Mode: Not Support Page 5 of 37 Report No.: STS1501042H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China FCC Registration No.: 842334; IC Registration No.: 12108A-1 Page 6 of 37 Report No.: STS1501042H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 GHz 7 FCC KDB 941225 D01 SAR Measurement Procedures for 3G Devices 8 FCC KDB 248227 D01 SAR Measurement Procedures for 802.11 a/b/g Transmitters This device belongs to portable device category because its radiating structure is allowed to be used within 20 centimeters of the body of the user. According to EN 50360 and 1999/519/EC the limit for General Population/Uncontrolled exposure should be applied for this device, it is 2.0 W/kg as averaged over any 10 gram of tissue. (A). Limits for Occupational/Controlled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.4 8.0 20.0 (B). Limits for General Population/Uncontrolled Exposure (W/kg) Whole-Body Partial-Body Hands, Wrists, Feet and Ankles 0.08 1.6 4.0 NOTE: Whole-Body SAR is averaged over the entir…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : RM ACQUISITIONS LLC Address : 9855 Woods Drive Skokie. IL 60077 U.S.A Product Name : RoadExplorer 70 Model Name : RET70, TNDT70 Brand Name : Rand Mcnally FCC ID : A4C10008A Report No. : MTE/SAL/A15020189 Date of Issue : Feb. 09, 2015 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8602 6850 Fax : 86-755-2601 3350 The report consists 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: A4C10008A Report No.: MTE/SAL/A15020189 Page 2 of 72 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ....................................................................................... 4 2. GENERAL INFORMATION.................................................................................................... 5 2.1 Product Information.................................................................................................................................. 5 2.2 Objective.................................................................................................................................................... 6 2.3 Test Standards and Results ..................................................................................................................... 6 2.4 Environmental Conditions........................................................................................................................ 6 2.5 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 3. TEST FACILITY ..................................................................................................................... 7 3.2 Test Conditions .......................................................................................................................................... 8 3.3 Channel List................................................................................................................................................ 8 3.4 Description of Test Modes......................................................................................................................... 8 3.5 Table of Parameters of Text Software Setting.......................................................................................... 8 4. TEST EQUIPMENT LIST ....................................................................................................... 9 5. 47 CFR Part 15 C 15.247 Requirements............................................................................ 10 5.1 6dB Bandwidth ........................................................................................................................................ 10 5.1.1 Definition ......................................................................................................................................... 10 5.1.2 Limit................................................................................................................................................. 10 5.1. 3 Test Configuration............................................................................................................................ 10 5.1.4 Test Procedure.................................................................................................................................. 10 5.1.5 Test Result........................................................................................................................................ 10 5.2 Peak Output Power ................................................................................................................................. 17 5.2.1 Definition ......................................................................................................................................... 17 5.2.2 Limit................................................................................................................................................. 17 5.2.3 Test Configuration............................................................................................................................ 17 5.2.4 Test Procedure.................................................................................................................................. 17 5.2.5 Test Result........................................................................................................................................ 17 5.3 Band Edge ............................................................................................................................................... 19 5.3.1 Definition ......................................................................................................................................... 19 5.3.2 Test Description ............................................................................................................................... 19 5.3.3 Test Configuration............................................................................................................................ 19 5.3.4 Test Result........................................................................................................................................ 19 5.4 Power Spectral Density (PSD)................................................................................................................ 36 5.4.1 Definition ......................................................................................................................................... 36 5.4.2 Limit.…

Text truncated - open the document above for the full version.

Model No.: RET70 CE TEST SETUP RE TEST SETUP Model No.: RET70 CONDUCTED TEST SETUP
