BC100 Product Features and Specification Ver. 2.0 Copyright © 2011, Bit Cauldron Corp. All rights reserved. Page 1 of 5 BC100 Transmitter: Product Features and Specification Version 2.0 1. Introduction – BC100 Transmitter BC100 Transmitter is part of ESG6000 system consists of combination of BC100 3D Emitter, BC10 IR sensor (Used only if 3D TV does not provide 3D Glasses Emitter/3D SYNC Out Port), and ESG6000 LCD shutter glasses. The BC100 3D Emitter (transmitter) connects a 3D‐Ready TV to the ESG6000 LCD Shutter Glasses for the ultimate in 3D stereoscopic viewing. BC10 IR sensor allows ESG6000 system to be compatible with multiple 3D displays. BC10 will pick up the IR sync signal from the 3D TVs and provides this signal to the BC100 3D Emitter. BC100 Transmitter: Item ID = 101245‐00 Component ID Description QTY 101101‐00 Glasses‐ RF std active 3D shutter glasses RF 0 101102‐00 Transmitter, RF std for active 3D glasses 1 101103‐00 Sensor, IR std for RF active 3D glasses 0 101104‐00 Cable, 3 ft micro USB cable for 3D glasses or for transmitter power 1 101105‐00 Cable, 3 ft Vesa to TRRS cable for 3D glasses 1 BC100 Product Features and Specification Ver. 2.0 Copyright © 2011, Bit Cauldron Corp. All rights reserved. Page 2 of 5 2. Features  3D synchronization using Radio Frequency Technology  Compatible with 3D Ready TVs equipped with a 3D Emitter Port  IR sync learning capability for use with IR 3D sync based frame sequential 3D Ready TVs  LED indicators assist with IR Sensor placement  Management Software enables Upgrade functionality for compatibility with future 3D TVs  Manual performance adjustment capability  IR signal strength indicator mode.  Manual performance tuning of Glasses mode. o Brightness (Ghosting) adjustment o TV sync timing adjustment o Left/Right polar  Pairing of BC100 with ESG6000 Glasses for multi‐emitter environment.  IR Signal Search and Learning mode.  Restore Factory Defaults mode.  Rechargeable lithium polymer battery o Simple micro USB port charging o 60 hours of continuous use per charge *  Light weight comfortable design, 70 grams  Power On/Off with LED confirmation o On with LED battery fuel gauge o Auto OFF * Battery time depends on many factors including signal quality. 3. Specification Transmitter = Emitter Emitter (BC100)  Temperature range 32 °F – 104 °F, (0 °C – 40 °C)  Power supply VESA Cable from TV or DC 5 V (USB power adapter sold separately)  Dimensions: Width: 1.8” (46mm), Height: 1.3” (32mm), Depth: 0.7” (17mm)  Weight 0.077 lb (35 g)  Micro B ‐ USB cable 3 feet  VESA – TRRS cable 3 feet BC100 Product Features and Specification Ver. 2.0 Copyright © 2011, Bit Cauldron Corp. All rights reserved. Page 3 of 5 4. Individual Component Photos 101102‐00 ‐ Transmitter, RF std for active 3D glasses 101104‐00 ‐ Cable, 3 ft micro USB cable for 3D glasses or for transmitter power 101105‐00 ‐ Cable, 3 ft Vesa to TRRS cable for 3D glasses 5. BC100 PCBA See BC100_Schematic.pdf file. 6. BC100 Gerber files and pick and place See files in folder BC100_PCB\Artwork. 7. BC100 PCBA Component List See BC100_BOM.pdf file. BC100 Product Features and Specification Ver. 2.0 Copyright © 2011, Bit Cauldron Corp. All rights reserved. Page 4 of 5 8. VESA/TRRS cable spec BC100 Product Features and Specification Ver. 2.0 Copyright © 2011, Bit Cauldron Corp. All rights reserved. Page 5 of 5 Copyright @ Bit Cauldron Corporation (2011). All rights reserved. Licensed software products are owned by Bit Cauldron Corporation, and are protected by national copyright laws and international treaty provisions. Bit Cauldron products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved. The information contained in this document is provided “as is.” Bit Cauldron Corporation reserves the right to make corrections, modifications, enhancements, improvements, and other changes to this document and its products and services at any time and to discontinue any product or service without notice. Other names and copyrights are property of their respective owners. Contacting Bit Cauldron Bit Cauldron Corporation. 1411 NW 7 th Road Gainesville, FL 32603 USA For product information, sales, service, and technical support: In North America, [email protected]. Worldwide, visit www.bitcauldron.com to find contacts in your area. FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Information: Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

ESTAR DISPLAY TECH CO., LTD Authorization Letter Number: CF101 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name ESTAR DISPLAY TECH CO., LTD. Addresss 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District City Shenzhen Country China declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 3D Glasses Transmit Type or Model(s) BC100 Tradename or Brand(s) N.A. We also authorize Teleconformity (Mr. M. Koop) to process (sign and apply for) this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen, China 2011-12-5 Minmin Zhan Project Manager

ESTAR DISPLAY TECH CO., LTD FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ESTAR DISPLAY TECH CO., LTD. Addresss 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District City Shenzhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: A4G BC100 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Schematics Diagrams √ Block Diagrams √ Circuit Description User Manual Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen, China 2011-12-5 Minmin Zhan Project Manager

Page 18 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F Figure 1 The EUT-Front View Figure 2 The EUT-Back View Page 19 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F Figure 3 The EUT-Side View

FCC ID Label Sample for FCC ID: A4GBC100 FCC ID: A4GBC100

The proposed Label Location on EUT Proposed FCC ID Label Location Proposed Label Location on EUT The EUT-BottomView/Proposed FCC ID Label Location

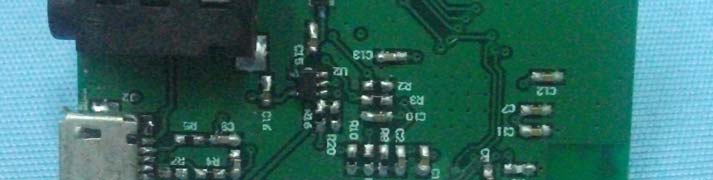

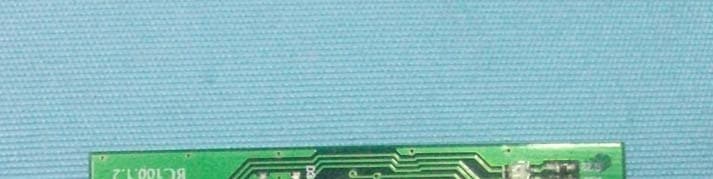

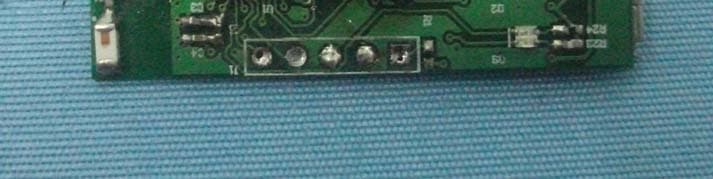

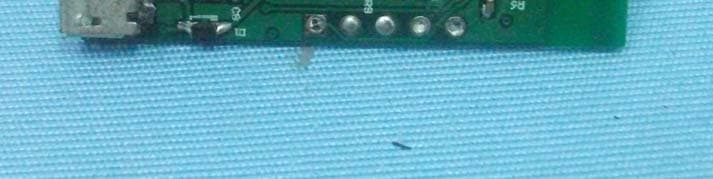

Page 20 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F Figure 4 PCB of the EUT-Front View Figure 5 PCB of the EUT-Back View

Page 1 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F FCC TEST REPORT for ESTAR DISPLAY TECH CO., LTD. 3D Glasses Transmit Model No.: BC100, 3DN-100 Report Number : 201111725F Date of Test : Nov. 17~30, 2011 Date of Report : Dec. 01, 2011 Prepared for : ESTAR DISPLAY TECH CO., LTD. Address : 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District, Shenzhen, P.R.China Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Page 2 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Auxiliary Equipment Used during Test ....................................................................................................4 1.3. Description of Test Facility ......................................................................................................................5 1.4. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. CONDUCTED EMISSION TEST.................................................................................................. 8 4.1. Block Diagram of Test Setup ...................................................................................................................8 4.2. Power Line Conducted Emission Measurement Limits (15.207) .............................................................8 4.3. Configuration of EUT on Measurement ...................................................................................................8 4.4. Operating Condition of EUT ....................................................................................................................8 4.5. Test Procedure ..........................................................................................................................................9 4.6. Power Line Conducted Emission Measurement Results ..........................................................................9 5. RADIATION INTERFERENCE.................................................................................................. 12 5.1. Requirements (15.249, 15.209): .............................................................................................................12 5.2 Test Procedure .........................................................................................................................................12 5.3 Test Results..............................................................................................................................................12 6. OCCUPIED BANDWIDTH..........................................................................................................14 6.1. Requirements (15.249): ..........................................................................................................................14 6.2. Test Procedure ........................................................................................................................................14 6.3. Test Configuration:.................................................................................................................................14 6.4. Test Results.............................................................................................................................................14 7. PHOTOGRAPH............................................................................................................................. 16 7.1. Photo of Conducted Emission Measurement..........................................................................................16 7.2. Photo of Radiation Emission Test ..........................................................................................................16 APPENDIX I (Photos of EUT) (3 Pages) Page 3 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F TEST REPORT Applicant : ESTAR DISPLAY TECH CO., LTD. Manufacturer : ESTAR DISPLAY TECH CO., LTD. EUT : 3D Glasses Transmit Model No. : BC100, 3DN-100 Serial No. : N.A. Rating : 5V , 48mA, 240mW Trade Mark : N.A. Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : Nov. 17~30, 2011 Prepared by : (Engineer / Andy Chen) Reviewer : (Project Manager / Coco Xiang) Approved & Authorized Signer : (Manager / Henry Yang) Page 4 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : 3D Glasses Transmit Model Number : BC100, 3DN-100 (Note: A…

Text truncated - open the document above for the full version.

Page 16 of 20 FCC ID: A4GBC100 Anbotek Compliance Laboratory Limited Report No.201111725F 7. PHOTOGRAPH 7.1. Photo of Conducted Emission Measurement 7.2. Photo of Radiation Emission Test
