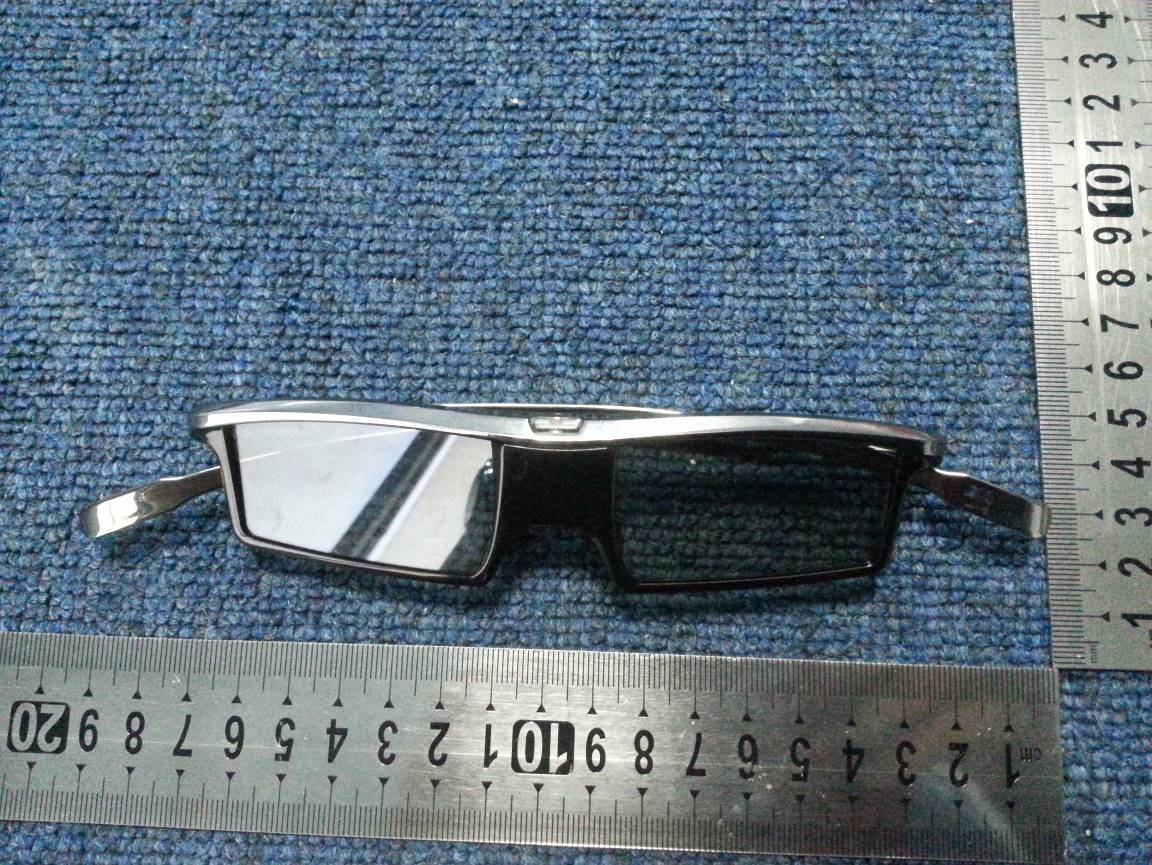

A4GESG8083D Bluetooth Glasses

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help This equipment is portable device. The output power of this device is less than 20mW. The SAR test is not required. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES- 003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

DATE : June 25, 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Mr. Zhang Shangwen from CCIC-SET, address: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China , (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Estar Display Tech., Ltd. address:_ 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District, Shenzhen, China _ _( applicant name and address). __________ Dated this 2013 Day of 06 20 25 Agency agreement expiration date: 2013-06-25 to 2014-06-20 By: Signature Title: Project Manager On behalf of : Estar Display Tech., Ltd. Telephone: +86 755 29651949

DATE : June 25, 2013 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ A4GESG808___________ Product Name:___ _ 3D Bluetooth Glasses _______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2013 Day of 06 20 25 By: Signature Title: Project Manager On behalf of : Estar Display Tech., Ltd. Telephone: +86 755 29651949

ESTAR DISPLAY TECHCO.,LTD Date: June 18, 2013 To:Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The ESTAR DISPLAY TECHCO.,LTD, the undersigned, hereby authorizes Mr. Zhang Shangwen from CCIC-SET to act on the behalf of the ESTAR DISPLAY TECHCO.,LTD, solely in matters relating to the application for an FCC equipment authorization for FCC ID: A4GESG808 including the signing of documents in connection with this Application. Necessary acts carried out by CCIC-SET on our behalf of the ESTAR DISPLAY TECHCO.,LTD, in connection with the Application shall have the same effect as acts of the ESTAR DISPLAY TECHCO.,LTD. The ESTAR DISPLAY TECHCO.,LTD, also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Sales manager declare that the Model No. ESG808 and GX33AB of product 3D Bluetooth Glasses of FCC ID:A4GESG808 are electrically identical .

Internal Photos

Report No.: SET2013-03398 CCIC-SET/T (00) Page 1 of 6 RF Exposure Evaluation Report Product: 3D Bluetooth Glasses FCC ID: A4GESG808 Brand Name: N/A Applicant: ESTAR DISPLAY TECHCO.,LTD Address： 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District, Shenzhen, China Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2013-03398 CCIC-SET/T (00) Page 3 of 6 Table of Contents Test Report ................................................................................................................................. 2 1 .General Information ................................................................................................................. 4 1.1 Description of EUT ............................................................................................................... 4 1.2 Test specifications ................................................................................................................. 4 2 RF Exposure Limit Introduction ........................................................................................... 5 3 Conducted RF Output Power ................................................................................................ 5 4. RF Exposure Evaluation ...................................................................................................... 5 Report No.: SET2013-03398 CCIC-SET/T (00) Page 4 of 6 1 .General Information 1.1 Description of EUT Product Feature & Specification DUT Type 3D Bluetooth Glasses Model Name ESG808, GX33AB FCC ID A4GESG808 Frequency Bluetooth:2402MHz – 2480MHz Antenna Type PCB Antenna Gain 1.87dBi HW Version N.A SW Version N.A Test of Modulation GFSK Remark 1: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 1.2 Test specifications ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3KHz-300GHz.(IEEE Std C95.1-1992) RSS-102 Radio Frequency Exposure Compliance of Radiocommunication Apparatus （All Frequency Bands （Issue 4 of March 2010）） KDB 447498 D01V05 General RF Exposure Guidance Report No.: SET2013-03398 CCIC-SET/T (00) Page 5 of 6 2 RF Exposure Limit Introduction According to 447498 D01 section 4.3.1General RF Exposure Guidance v05, exclusion threshold values at selected frequencies and distances table as following: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3 Conducted RF Output Power Channel 0 39 78 Frequency(MHz) 2402 2441 2480 Power(dBm) -2.57 -2.77 -3.03 Power(mW) 0.553 0.528 0.498 4.RF Exposure Evaluation MPE= [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]=[0.553mW/5mm)]* √2.402GHz=0.171≤ 3.0 Report No.: SET2013-03398 CCIC-SET/T (00) Page 6 of 6 Result:PASS ** END OF REPORT **

Report No.: SET2013-02642 CCIC-SET/T˄00˅ Page 3 of 44 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................4 1.1. EUT Description .......................................................................................................................4 1.2. Test Standards and Results........................................................................................................5 1.3. Facilities and Accreditations .....................................................................................................6 2. 47 CFR PART 15C REQUIREMENTS....................................................................................7 2.1. Antenna requirement.................................................................................................................7 2.2. Number of Hopping Frequency ................................................................................................7 2.3. Peak Output Power..................................................................................................................10 2.4. 20dB Bandwidth .....................................................................................................................13 2.5. Carried Frequency Separation.................................................................................................16 2.6. Time of Occupancy (Dwell time) ...........................................................................................18 2.7. Conducted Spurious Emissions...............................................................................................21 2.8. Band Edge ...............................................................................................................................26 2.9. Conducted Emission ...............................................................................................................32 2.10. Radiated Emission...................................................................................................................36 2.11. RF exposure evaluation...........................................................................................................44 Change History IssueDateReason for change 1.0June 24, 2013First edition Report No.: SET2013-02642 CCIC-SET/T˄00˅ Page 4 of 44 1.General Information 1.1.EUT Description EUT Type ............................. : 3D Bluetooth Glasses Serial No............................... : (n.a, marked #1 by test site) Hardware Version ................. : N.A Software Version .................. : Applicant .............................. : Manufacturer ........................ : N.A ESTAR DISPLAY TECHCO.,LTD 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District, Shenzhen, China ESTAR DISPLAY TECHCO.,LTD 16F Hall A, GDC Building, 9 Gaoxin Central Avenue 3rd, Nanshan District, Shenzhen, China Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK) Antenna Type........................ : PCB Antenna Antenna Gain........................ : 1.87dBi Note 1: The EUT is a 3D Bluetooth Glasses, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit aresponse signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. Note 4: Bluetooth signal has 9 packages DH1, DH3, DH5, DH5 package is largest, we are testing DH5 in the document. Note5: The antenna of EUT is designed with permanent attachment and no consideration of replacement, it is printed on the circuit board with a maximum gain of 1.87dBi, and it is used to radiate the RF emissions Report No.: SET2013-02642 CCIC-SET/T˄00˅ Page 5 of 44 1.2.Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No.IdentityDocument Title 147 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No.Section in CFR 47DescriptionResult 115.203Antenna RequirementPA S S 215.247(a)Number of Hopping FrequencyPASS 315.247(b)Peak Output PowerPASS 415.247(a)20dB BandwidthPASS 515.247(a)Carrier Frequency SeparationPASS 615.247(a)Time of Occupancy (Dwell time)PASS 715.247(d)Conducted Spurious EmissionPASS 815.247(d)Band EdgePASS 915.207Conducted EmissionPASS 1015.209 15.247(c) Radiated EmissionPASS Note 1: The tests were performed according to the method of measurements prescribed in DA-00-705. Note 2: The test of Radiated Emission and Conducted Spurious Emission were performed according to the method of measurements prescribed in ANSI C63.4 2009. Report No.: SET2013-02642 CCIC-SET/T˄00˅ Page 6 of 44 1.3.Facilities and Accreditations 1.3.1.Facilities CNAS-Lab Code: L1659 C…
