A4HMICROS-WBB10Wireless Keypad (MWBB-10)

1 Wireless Keypad 厨房用无线键盘 Model: MWBB-10 MWBB-20 Version 1.0 2 1. Product Overview MWBB-10 and MWBB-20 are wireless keyboard intend to use in kitchens, restaurants, shops for food or goods ordering. MWBB-10 is the model with 10 keys. MWBB-20 is the model with 20 keys. Each keyboard is with an USB dongle (receiver) to attach to POS, PC or whatever ordering machine. MWBB-10 MWBB-20 Dongle Wireless Keyboard Sensor window LED Keypad 3 2. Main Features Features MBB-10 MBB-20 Power (2 AAA batteries) 3V DC 3V DC Rating Current 20mA 20mA Dimension 14.5cm x 7.5cm x 3cm 22.5cm x 7.5cm x 3cm Enclosure material Steel Steel Number of Keys 10 20 Key Definition User Programmable User Programmable Dongle USB port 5V dc powered USB port 5V dc powered RF Working Frequency 2.4GHz 2.4GHz 3. Using the Wireless Keyboard Step 1: Plug the USB dongle to POS / PC / Ordering Machine USB port Step 2: Press the keys on wireless keyboard and see whether can input the information in POS. 4. Safety Cautions CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

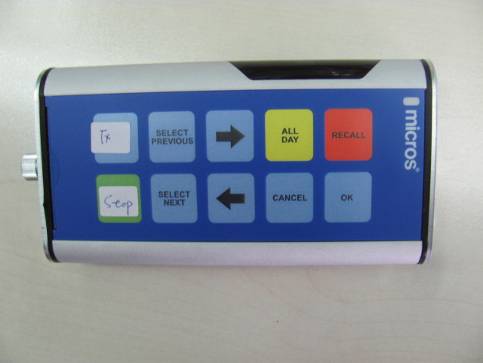

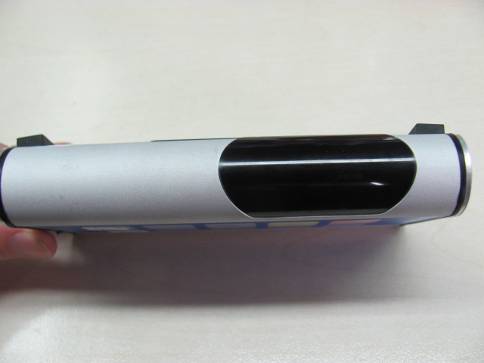

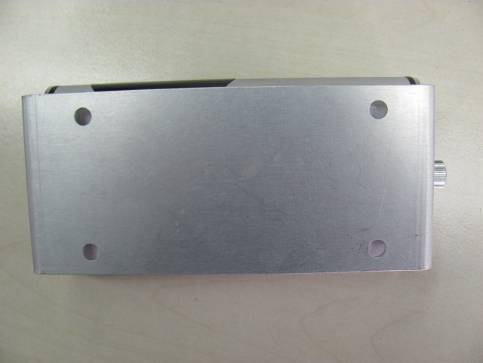

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 1 of 4 External Picture FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 2 of 4 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 3 of 4 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 4 of 4

Product Label for Wireless Keypad, Model: MWBB-10 Dimension: 30mm x 50 mm Round angle Drawing Ratio: 2:1 FCC Statement Label Dimension: 15mm x 50 mm Round angle Drawing Ratio: 2:1 Label Location: MODEL: MWBB-10 厨房用无线键盘-10键 Product Code: 产品代码 Serial No: 生产序号 DC 3V , 20mA Made In Singapore 新 加 坡 制 造 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 1 of 3 Internal Picture FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 2 of 3 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 3 of 3

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Statement of compliance to SAR Equipment : Wireless Keypad Type/Model : MWBB-10 Applicant : Micros Systems, Inc 7031 Columbia Gateway Drive, Columbia, MD 21046-2289, USA According to KDB 447498, KDB 616217 and TCB Exclusion list (July 7, 2002), the output power ≤ 60/f(GHz) mW can follow the test exclusion procedure. As we can see from the test report SH11110118-001: The maximum P = -2.15dBm G = 1.00dBi EIRP = PG = -2.15 + 1.00 = -1.15dBm = 0.77mW The test exclusion limit = 60 / 2.5 = 24mW It is found the EIRP of EUT is lower than the test exclusion limit. Therefore, the EUT complies the requirement of 15.247(I) without test. Date of issue: Dec 26, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer)

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 1 of 31 EMC TEST REPORT No. SH11110118-001 Applicant : Micros Systems, Inc 7031 Columbia Gateway Drive, Columbia, MD 21046-2289, USA Manufacturer : GES Singapore Pte Ltd. 28 Marsiling Lane, Singapore 739152 Equipment : Wireless Keypad Type/Model : MWBB-10 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2010): Radio Frequency Devices ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: Dec 26, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 2 of 31 Description of Test Facility Name: Intertek Testing Services Ltd. Shanghai ETL Semko Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 3 of 31 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1 Applicant Information ..................................................................................................... 5 1.2 Identification of the EUT ................................................................................................ 5 1.3 Technical specification ................................................................................................... 6 1.4 Mode of operation during the test / Test peripherals used .............................................. 6 2. TEST SPECIFICATION .................................................................................................................................. 7 2.1 Instrument list ................................................................................................................. 7 2.2 Test Standard .................................................................................................................. 7 3. MINIMUM 6DB BANDWIDTH ....................................................................................................................... 9 3.1 Limit ................................................................................................................................ 9 3.2 Test Configuration .......................................................................................................... 9 3.3 Test Procedure and test setup .......................................................................................... 9 3.4 Test Protocol ................................................................................................................. 10 4. MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 11 4.1 Test limit ....................................................................................................................... 11 4.2 Test Configuration ........................................................................................................ 11 4.3 Test procedure and test setup ........................................................................................ 11 4.4 Test protocol ................................................................................................................. 12 5. POWER SPECTRUM DENSITY ..................................................................................................................... 13 5.1 Test limit ....................................................................................................................... 13 5.2 Test Configuration ........................................................................................................ 13 5.3 Test procedure and test setup ........................................................................................ 13 5.4 Test Protocol ................................................................................................................. 14 6. RADIATED EMISSION ................................................................................................................................. 15 6.1 Test limit ....................................................................................................................... 15 6.2 Test Configuration ........................................................................................................ 15 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. EMISSION OUTSIDE THE FREQUENCY BAND ............................................................................................. 19 7.1 Limit .............................................................................................................................. 19 7.2 Test Configuration ........................................................................................................ 19 7.3 Test procedure and test setup ..........................…

Text truncated - open the document above for the full version.

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 1 of 26 Test Data FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 2 of 26 1. Minimum 6dB bandwidth Channel L FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 3 of 26 Channel M FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 4 of 26 Channel H FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 5 of 26 2. Maximum peak output power Channel L FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 6 of 26 Channel M FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 7 of 26 Channel H FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 8 of 26 3. Power spectrum density Channel L FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 9 of 26 Channel M FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 10 of 26 Channel H FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 11 of 26 4. Emission outside the frequency band Channel L FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 12 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 13 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 14 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 15 of 26 Channel M FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 16 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 17 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 18 of 26 Channel H FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 19 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 20 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 21 of 26 FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 22 of 26 5. Occupied bandwidth Channel L FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 23 of 26 Channel M FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 24 of 26 Channel H FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 25 of 26 6. Spurious Emission Horizontal 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x x x x x x MES wake1222_H1_red MES wake1222_H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 26 of 26 Vertical 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x x x x x x x x x x MES wake1222_V1_red MES wake1222_V1_pre LIM FCC 15 F 3 QP Field Strength QP

FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 1 of 5 Test Setup FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 2 of 5 1. Radiated Emission 30MHz-1000MHz, X axis FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 3 of 5 30MHz-1000MHz, Y axis FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 4 of 5 Higher than 1GHz, X axis FCC ID: A4HMICROS-WBB10 IC: 9870A-MICROSWBB10 Page 5 of 5 Higher than 1GHz, Y axis
