A4Z-DP200Car Video Recorder

User's Manual Drive Pro Car Video Recorder (Version 0.1) Table of Contents Introduction︱ ︱︱ ︱ .........................................................................................................................2 Package Contents︱ ︱︱ ︱ ...............................................................................................................2 Features︱ ︱ ︱ ︱ ...............................................................................................................................4 System Requirements︱ ︱ ︱ ︱ ........................................................................................................4 Safety Precautions︱ ︱︱ ︱..............................................................................................................5 Getting Started︱ ︱ ︱ ︱ ....................................................................................................................6 Inserting a microSD Memory Card ............................................................................................... 7 Mounting the Drive Pro ................................................................................................................. 8 Connecting to Power .................................................................................................................... 9 Recording Screen ....................................................................................................................... 10 Function Buttons ........................................................................................................................ 11 Set the Date and Time ................................................................................................................. 12 Recording Videos︱ ︱︱ ︱ ............................................................................................................. 13 Loop Recording .......................................................................................................................... 13 Emergency Recording ................................................................................................................ 13 Browse and Playback Videos︱ ︱ ︱ ︱ .......................................................................................... 15 Playing Videos ............................................................................................................................ 15 Deleting Videos ........................................................................................................................... 15 Protecting Videos ....................................................................................................................... 16 VIDEO OUT .................................................................................................................................. 16 Settings︱ ︱︱ ︱ .............................................................................................................................. 17 Installing the Drive Pro App︱ ︱ ︱ ︱ ............................................................................................. 20 Connecting to the Drive Pro using iOS and Android Devices︱ ︱︱ ︱ ...................................... 21 Using the Drive Pro App on iOS and Android Devices︱ ︱︱ ︱ .................................................. 23 Transfer Files to a Computer︱ ︱ ︱ ︱ ........................................................................................... 28 Specifications︱ ︱︱ ︱ ................................................................................................................... 32 Recycling and Environmental Considerations︱ ︱ ︱ ︱ ............................................................... 33 Federal Communications Commission (FCC) Statement .. ............................................... 34 RF Exposure Statement: ...................................................................................................... 34 FCC RF Radiation Exposure Statement: ............... ............................................................. 34 低功率電波輻射性電機管理辦法 低功率電波輻射性電機管理辦法低功率電波輻射性電機管理辦法 低功率電波輻射性電機管理辦法 ............................................................................................. 35 Two-year Limited Warranty︱ ︱ ︱ ︱ .............................................................................................. 36 2 Introduction︱ ︱︱ ︱ Thank you for purchasing Transcend’s Drive Pro, an advanced car video recorder (CVR) that is specifically designed to capture real time video of events happening outside your vehicle while driving. Mounted on your car’s windshield, the Drive Pro uses a 120° Wide Angle Lens for the best field of view and records video in crystal clear Full HD 1080P to ensure all the important details of your trip are recorded. Videos are saved on a microSD memory card as the vehicle is driven. Your Drive Pro comes bundled with a 16GB Transcend microSD memory card, letting you record around 2 hours of Full HD footage without the need to purchase additional storage. Thanks to its built-in Wi-Fi and the use of a free downloadable Drive Pro App, developed for use with Apple iOS and Android devices, you can view live video footage during recording, control Drive Pro functions and playback videos directly from your smartphone or tablet. This User Manual will give you step-by-step instructions and advice to help you get the best experience from your new device. Please read it carefully before using the Drive Pro. Package Contents︱ ︱︱ ︱ The Drive Pro Car Video Recorder package includes the following items: Drive Pro Car Video Recorder Car Mounting Bracket Car Adapter 3 16GB microSD Memory Card Video Cable Quick Start Guide Warranty Card 4 Features︱ ︱︱ ︱ Smooth, detailed Full HD 1080P recording @ 30fps resolution Bright 2.4-inch color LCD screen 120 degree wide angle lens Hi-Speed USB 2.0 connector for easy computer connectivity and fast file transfers Wi-Fi function lets you operate the Drive Pro on your mobi…

Text truncated - open the document above for the full version.

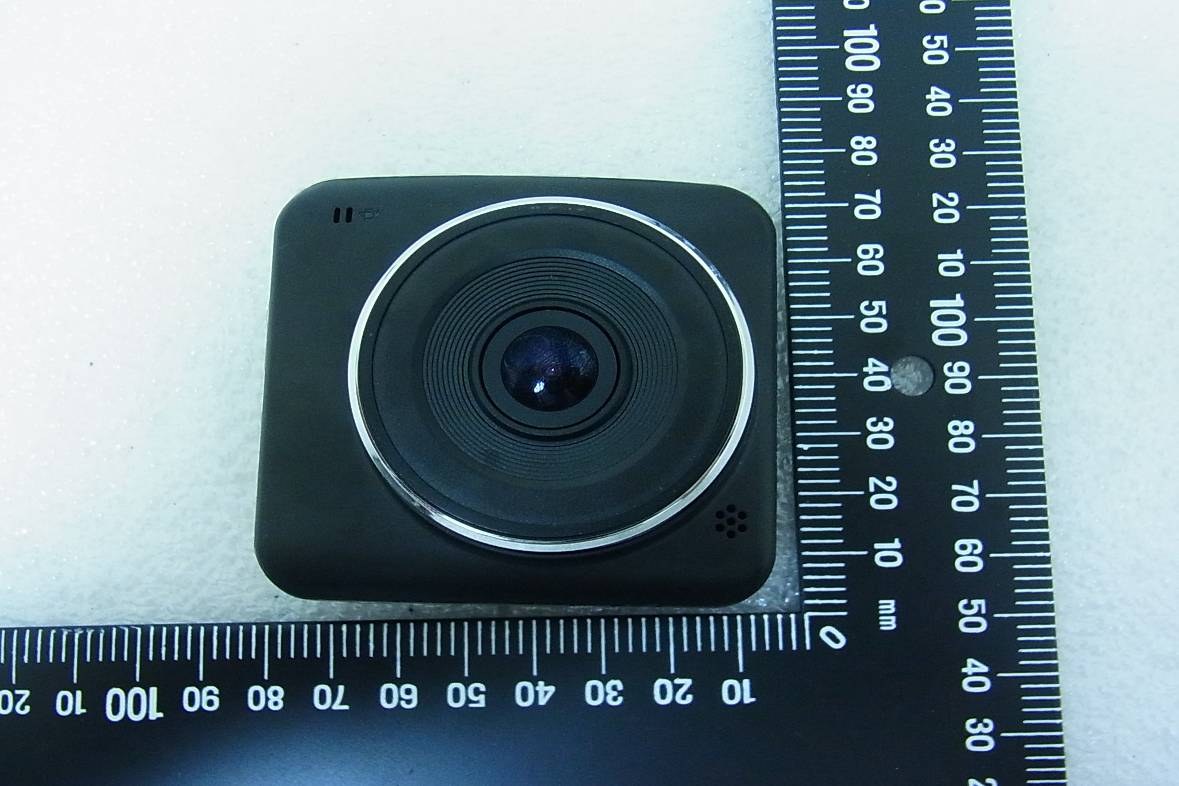

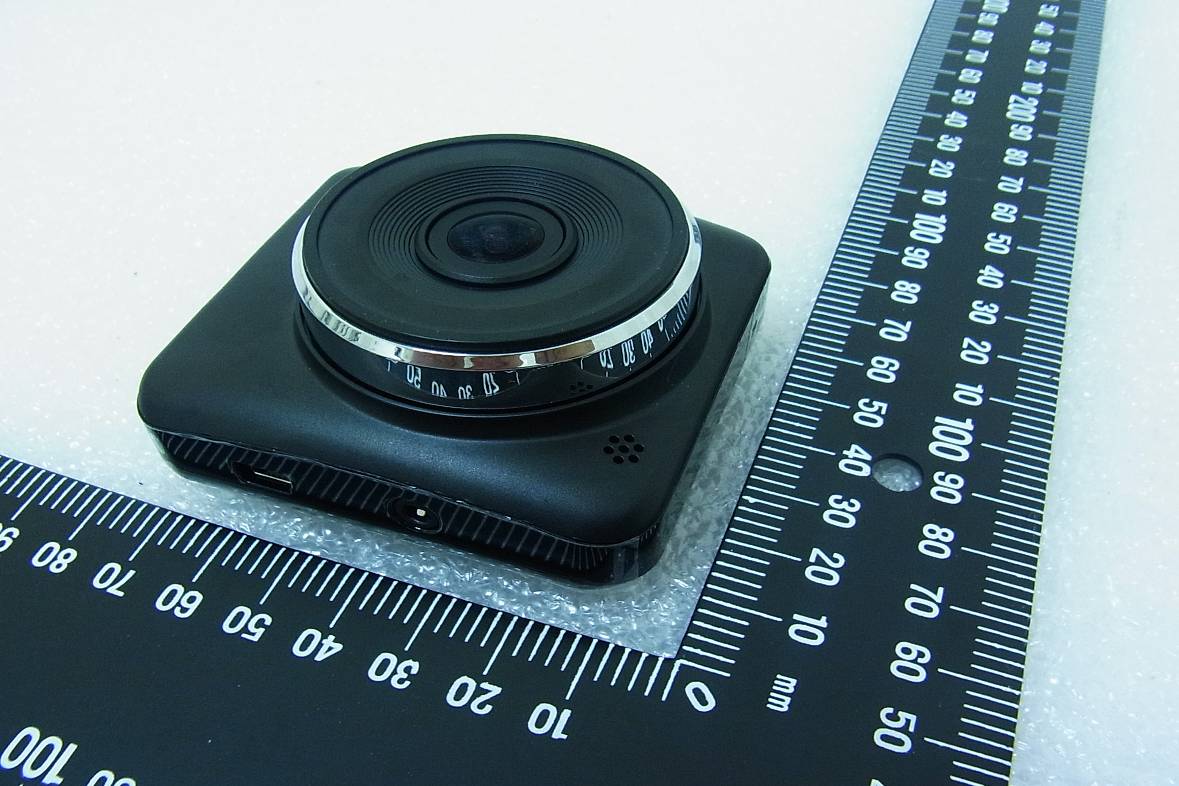

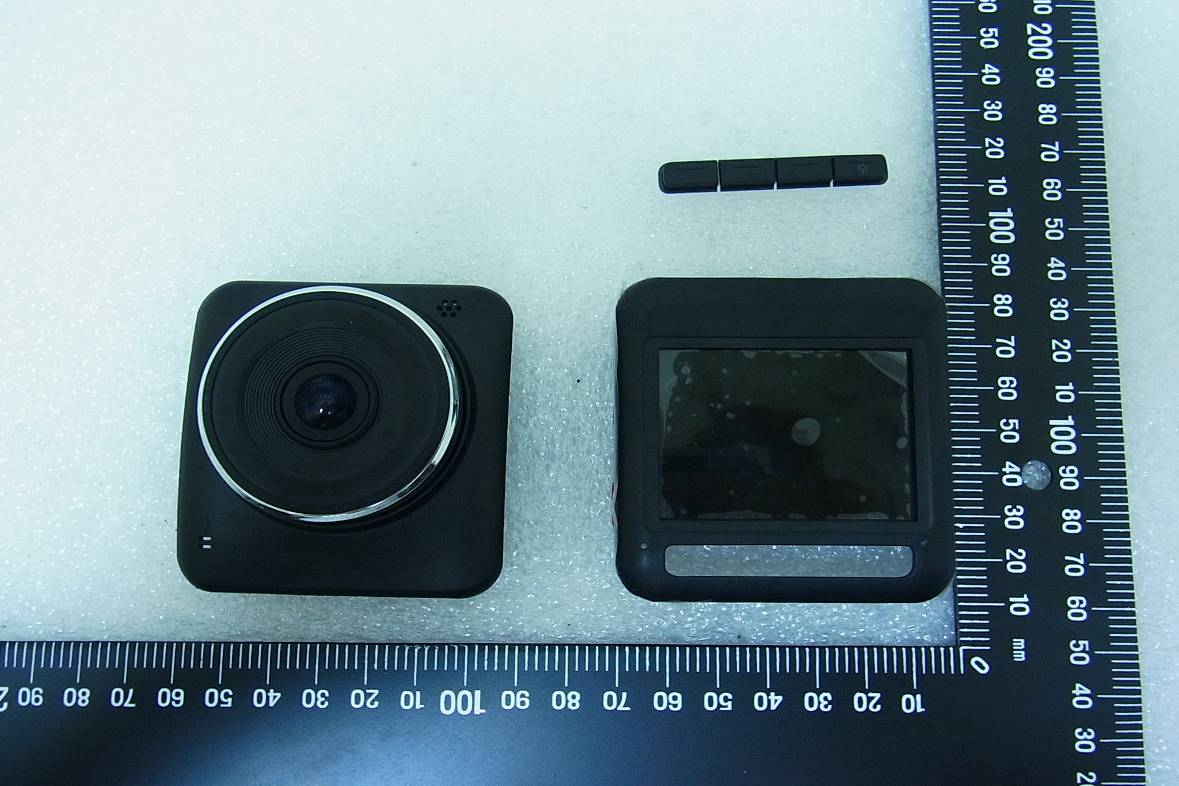

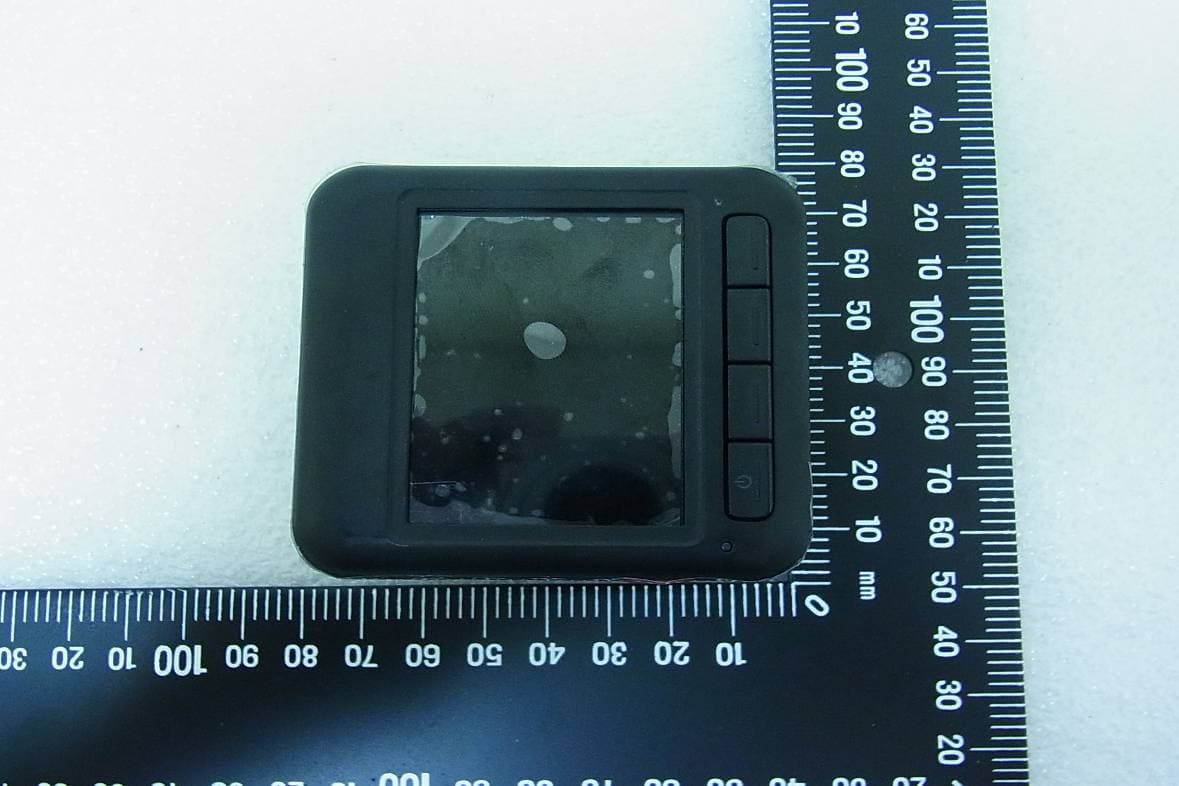

FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EXTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 1 EUT 2 FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 3 EUT 4 FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 5 EUT 6 FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 7 EUT 8

FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC INTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 1 EUT 2 FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC EUT 3 EUT 4 WiFi Antenna

-1 of 2- FCC ID: A4Z-DP200 International Standards Laboratory 1. Maximum Permissible Exposure (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -2 of 2- FCC ID: A4Z-DP200 International Standards Laboratory 1.2 Maximum Permissible Exposure (MPE) Evaluation The worst case of Average power: refer to section 6.5 for detail measurement date. 802.11b Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 15.58 12.75 30 6 2437 15.51 12.51 11 2462 15.14 12.11 MPE Prediction (802.11n 20MHz) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum Average output power at antenna input 12.75 (dBm) Maximum Averger output power at antenna input 18.83649089 (mW) Duty cycle: 99 (%) Maximum Pav : 18.64812599 (mW) An tenn a gain (typical): 2 (dBi) Maximum antenna gain: 1.584893192 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Pred ictio n f req uency: 24 12 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 00 58 82 8 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.0058mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2412MHz.

Page: 1 of 56 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : Car Video Recorder Brand: Transcend Model: DrivePro Model Difference: N/A FCC ID: A4Z-DP200 FCC Rule Part: §15.247, Cat: DTS Applicant: Transcend Information Inc. Address: No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR198FC Issue Date : 2013/10/28 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 56- FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC VERIFICATION OF COMPLIANCE Applicant: Transcend Information Inc. Product Description: Car Video Recorder Brand Name: Transcend Model No.: DrivePro Model Difference: N/A FCC ID: A4Z-DP200 Date of test: 2013/10/08 ~ 2013/10/20 Date of EUT Received: 2013/10/08 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2013/10/28 Dino Chen / Engineer Prepared By: Date: 2013/10/28 Eva Kao / Technical Supervisor Approved By: Date: 2013/10/28 Vincent Su / Technical Manager -3 of 56- FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC Version Version No. Date Description 00 2013/10/28 Initial creation of document -4 of 56- FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE OUTPUT POWER MEASUREMENT................................................. 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 17 7 6dB Bandwidth(EBW) ...............................................................................…

Text truncated - open the document above for the full version.

FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC PHOTOGRAPHS OF SET UP FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC Radiated Emission Set up Photo FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC Conducted Emission Set up Photo FCC ID: A4Z-DP200 International Standards Laboratory Report Number: ISL-13LR198FC
