A4Z-DP200NCar Video Recorder

User'sManual DrivePro200 CarVideoRecorder (Version1.2) TableofContents Introduction︱ ....................................................................................................................................... 2 PackageContents︱ ............................................................................................................................ 2 Features︱..............................................................................................................................................4 SystemRequirements︱ ..................................................................................................................... 4 SafetyPrecautions︱ ........................................................................................................................... 5 GettingStarted︱..................................................................................................................................6 InsertingamicroSDMemoryCard ....................................................................................................... 7 MountingtheDrivePro.............................................................................................................................8 ConnectingtoPower...............................................................................................................................9 RecordingScreen ................................................................................................................................... 10 FunctionButtons....................................................................................................................................11 SettheDateandTime ........................................................................................................................... 12 RecordingVideos︱...........................................................................................................................13 LoopRecording.......................................................................................................................................13 EmergencyRecording ........................................................................................................................... 13 BrowseandPlaybackVideos︱.....................................................................................................15 PlayingVideos.........................................................................................................................................15 DeletingVideos ....................................................................................................................................... 15 ProtectingVideos...................................................................................................................................16 VIDEOOUT ............................................................................................................................................... 16 Settings︱.............................................................................................................................................17 InstallingtheDriveProApp︱.........................................................................................................20 ConnectingtotheDriveProusingiOSandAndroidDevices︱ ............................................ 21 UsingtheDriveProApponiOSandAndroidDevices︱.........................................................22 TransferFilestoaComputer︱......................................................................................................27 Troubleshooting︱ ............................................................................................................................. 30 Specifications︱.................................................................................................................................32 RecyclingandEnvironmentalConsiderations︱......................................................................33 FederalCommunicationsCommission(FCC)Statement ....................................................... 34 Two-yearLimitedWarranty︱.........................................................................................................35 GNUGeneralPublicLicense(“GPL”)Disclosure.....................................................................36 End-UserLicenseAgreement(EULA) .......................................................................................... 36 3 Introduction︱ ThankyouforpurchasingTranscend’sDrivePro–anadvancedcarvideorecorder(CVR)thatisspecifically designedtocapturerealtimevideoofeventshappeningoutsideyourvehiclewhiledriving.Mountedonyour car’swindshield,theDriveProusesa160°WideAngleLensforthebestfieldofviewandrecordsvideoin crystalclearFullHD1080Ptoensurealltheimportantdetailsofyourtriparerecorded.Videosaresavedon amicroSDmemorycardasthevehicleisdriven.YourDriveProcomesbundledwitha16GBTranscend microSDmemorycard,lettingyourecordaround2hoursofFullHDfootagewithouttheneedtopurchase additionalstorage.Thankstoitsbuilt-inWi-FiandtheuseofafreedownloadableDriveProApp,developed forusewithAppleiOSandAndroiddevices,youcanviewlivevideofootageduringrecording,control DriveProfunctionsandplaybackvideosdirectlyfromyoursmartphoneortablet.ThisUserManualwillgive youstep-by-stepinstructionsandadvicetohelpyougetthebestexperiencefromyournewdevice.Please readitcarefullybeforeusingtheDrivePro. PackageContents︱ TheDriveProCarVideoRecorderpackageincludesthefollowingitems: DriveProCarVideoRecorder CarMountingBracket CarAdapter 4 16GBmicroSDMemoryCard VideoCable QuickStartGuide WarrantyCard 5 Features︱ Smooth,detailedFullHD1080Precording@30fpsresolution Bright2.4-inchcolorLCDscreen 160degreewideanglelens Bundled16GBmicroSDmemorycard Wi-FifunctionletsyouoperatetheDriveProonyourmobiledevice Hi-SpeedUSB2.0connectorforeasycomputerconnectivityandfastfiletransfers StreamvideosonaTVscreenviaVIDEOOUTport Recordsvideosin.MOVfileformatwith15Mbpshighvi…

Text truncated - open the document above for the full version.

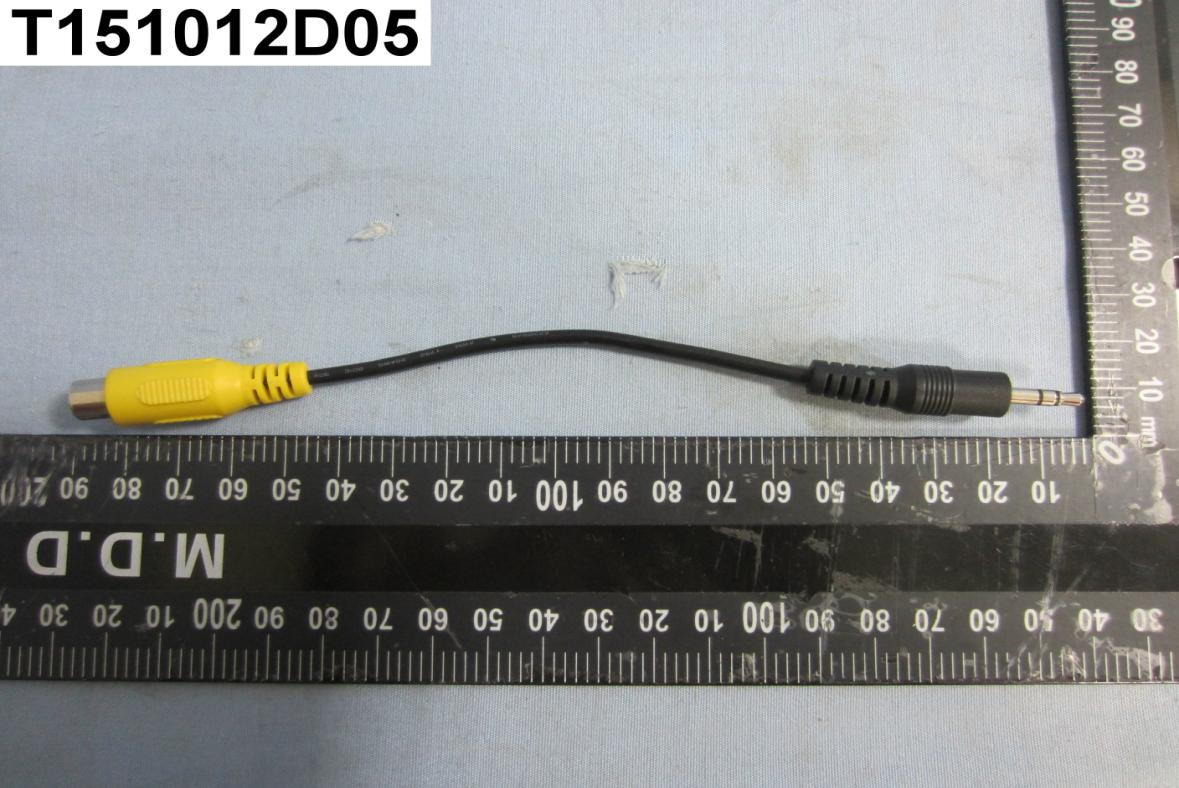

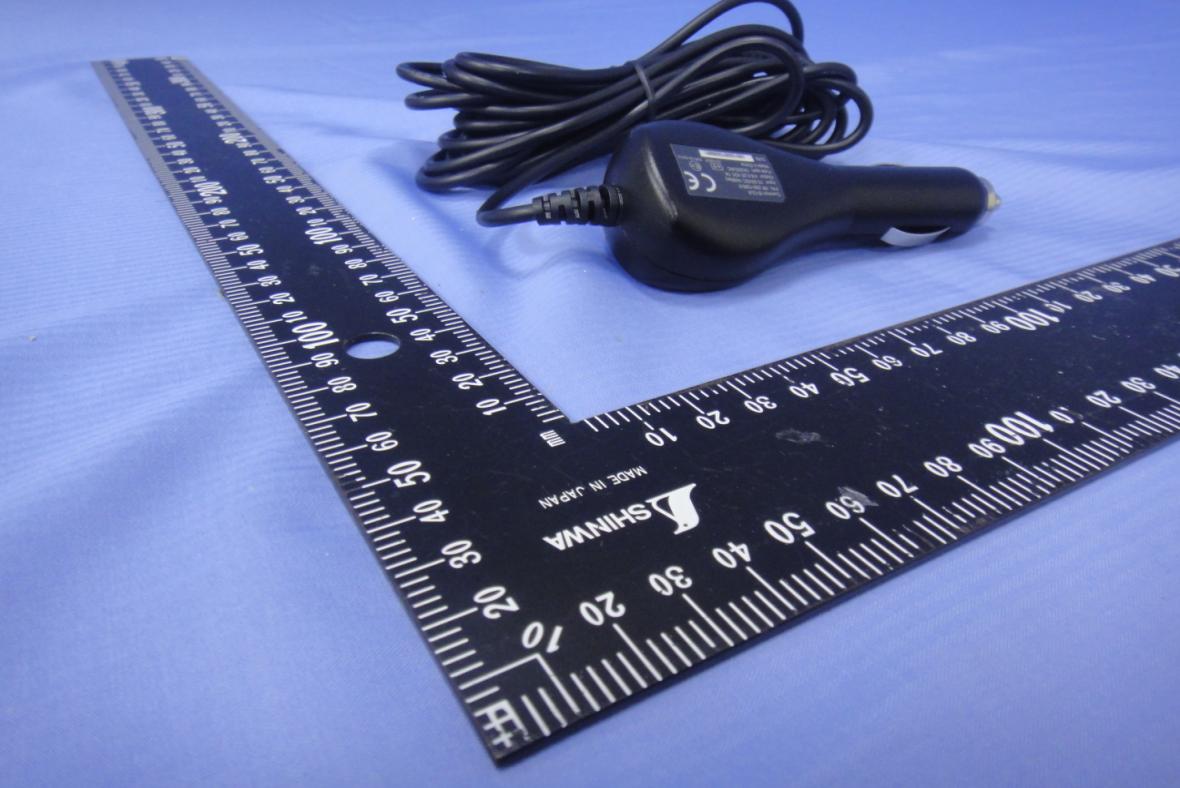

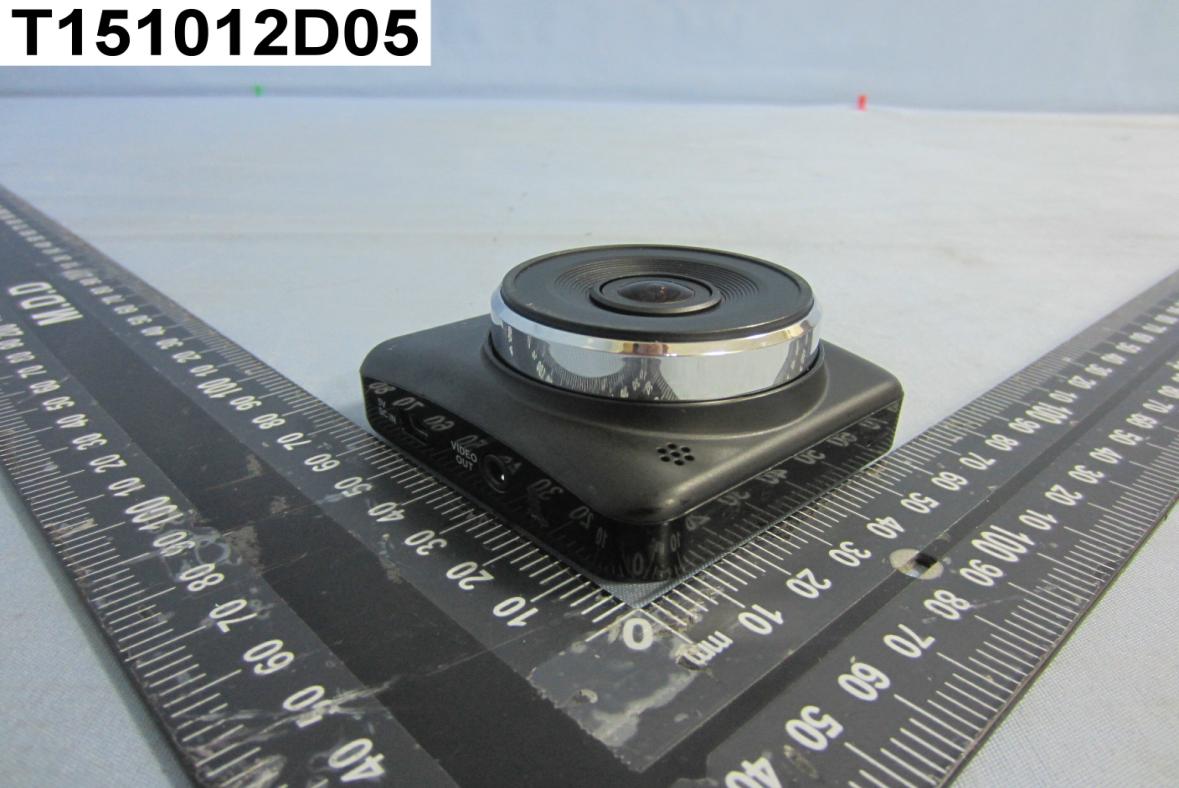

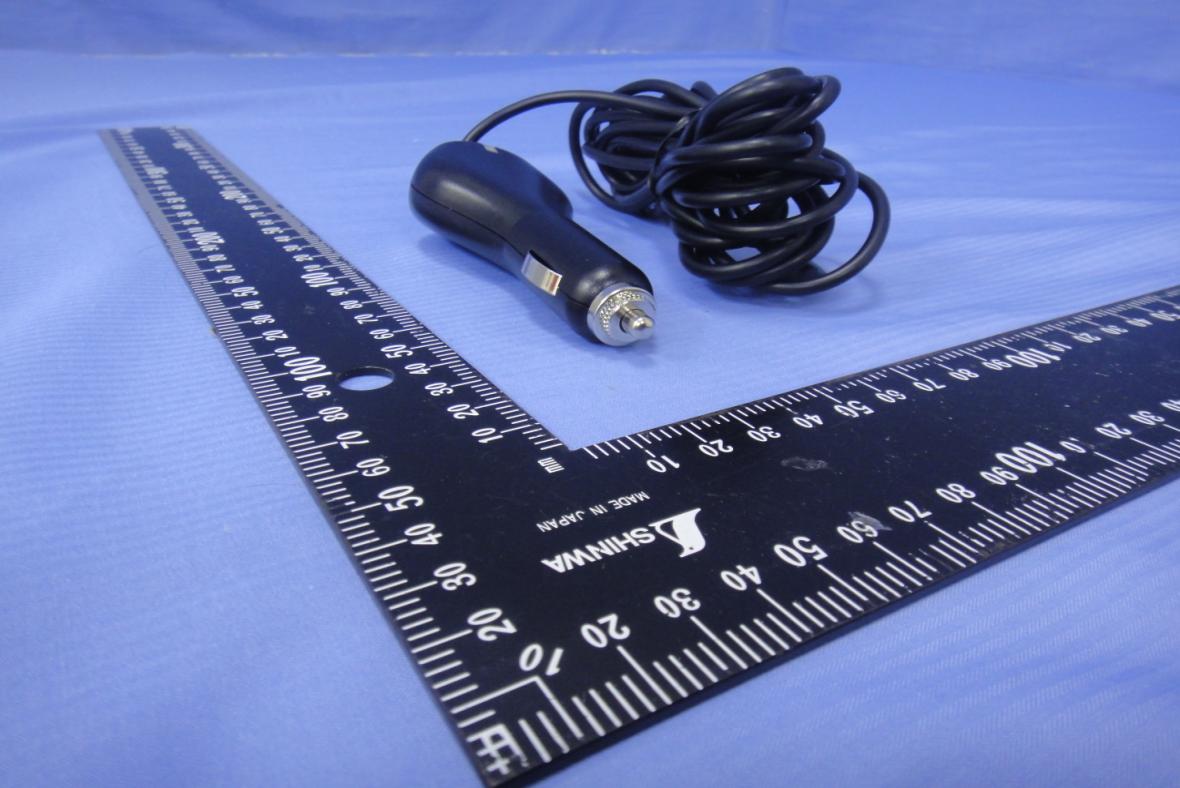

Compliance Certification Services Inc. Report No.: T151012D05 A1 - 1 / 16 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T151012D05 A1 - 2 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 3 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 4 / 16 Rev. 00 Car Charge Compliance Certification Services Inc. Report No.: T151012D05 A1 - 5 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 6 / 16 Rev. 00

Compliance Certification Services Inc. Report No.: T151012D05 A1 - 7 / 16 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T151012D05 A1 - 8 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 9 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 10 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 11 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 12 / 16 Rev. 00 Compliance Certification Services Inc. Report No.: T151012D05 A1 - 13 Rev. 00 Battery Compliance Certification Services Inc. Report No.: T151012D05 A1 - 14 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T151012D05 A1 - 15 Rev. 00 Module Compliance Certification Services Inc. Report No.: T151012D05 A1 - 16 Rev. 00

Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE C95.1 KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Car Video Recorder Model: DrivePro 200 Trade Name: Transcend Issued to Transcend Information Inc No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: November 4, 2015 Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 4, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 5 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 6 Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT Car Video Recorder Model DrivePro 200 Trade Name Transcend Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Chip AntennaAntenna Gain :3.32 dBi (Numeric gain:2.15) Maximum Average output power IEEE 802.11b Mode: 22.28 dBm(169.044 mW) IEEE 802.11g Mode: 17.24 dBm(52.966 mW) IEEE 802.11n HT 20 Mode: 17.19 dBm(52.360 mW) IEEE 802.11n HT 40 Mode: 18.89 dBm(77.446 mW) Maximum Tune up Power IEEE 802.11b Mode: 23.00 dBm(199.526 mW) IEEE 802.11g Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 19.00 dBm(79.433 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: A4Z-DP220N Report No.: T151012D05-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 4. MAXIMUM PERMISSIBLE EXPOSURE Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 112462199.5262.15200.08541 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246263.0962.15200.02701 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246263.0962.15200.02701 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9245279.4332.15200.03401

Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 83 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Video Recorder Model: DrivePro 200 Trade Name: Transcend Issued to Transcend Information Inc No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: October 30, 2015 Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 30, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION ................................................................................................................ 5 3. TEST METHODOLOGY .......................................................................................................... 6 3.1 EUT CONFIGURATION ..................................................................................................... 6 3.2 EUT EXERCISE ................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ...................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5 DESCRIPTION OF TEST MODES ..................................................................................... 8 4. INSTRUMENT CALIBRATION ............................................................................................... 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................... 10 5. FACILITIES AND ACCREDITATIONS ................................................................................. 11 5.1 FACILITIES ...................................................................................................................... 11 5.2 EQUIPMENT .................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS .............................................................. 12 6. SETUP OF EQUIPMENT UNDER TEST .............................................................................. 13 6.1 SETUP CONFIGURATION OF EUT ................................................................................ 13 6.2 SUPPORT EQUIPMENT .................................................................................................. 13 7. FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................ 14 7.2 PEAK POWER ................................................................................................................. 24 7.3 AVERAGE POWER ......................................................................................................... 26 7.4 BAND EDGES MEASUREMENT ..................................................................................... 28 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................. 50 7.6 RADIATED EMISSIONS .................................................................................................. 60 7.7 POWERLINE CONDUCTED EMISSIONS ....................................................................... 77 APPENDIX I PHOTOGRAPHS OF TEST SETUP ...................................................................... 80 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Transcend Information Inc No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Equipment Under Test: Car Video Recorder Trade Name: Transcend Model: DrivePro 200 Date of Test: October 21 ~ 23, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 5 Rev. 00 2. EUT DESCRIPTION Product Car Video Recorder Trade Name Transcend Model Number DrivePro 200 Model Discrepancy N/A Received Date October 12, 2015 Power Ratting 1. Power from power supply (DC12V ~ DC24V) 2. Power from Car Charge I/P: 10-30 VDC, 1A (Max) O/P: 4.6-5.25 VDC, 1A Fuse spec.: 1A / 250…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 80 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 81 Rev. 00 Radiated Emissions Setup Photos Below 1 GHz Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 82 Rev. 00 Above 1 GHz Compliance Certification Services Inc. FCC ID: A4Z-DP200N Report No.: T151012D05-RP Page 83 Rev. 00 Powerline Conducted Emissions Setup Photos
