A4Z-DP220Car Video Recorder

User’sManual DrivePro220 CarVideoRecorder (Version1.5) TableofContents Introduction︱ ....................................................................................................................................... 3 PackageContents︱ ............................................................................................................................ 4 Features︱..............................................................................................................................................6 SystemRequirements︱ ..................................................................................................................... 6 SafetyPrecautions︱ ........................................................................................................................... 7 GettingStarted︱..................................................................................................................................8 InsertingamicroSDMemoryCard ....................................................................................................... 8 MountingtheDrivePro..........................................................................................................................10 ConnectingtoPower.............................................................................................................................11 RecordingScreen ................................................................................................................................... 13 FunctionButtons....................................................................................................................................13 SettingtheDateandTime .................................................................................................................... 14 SettingUTCTimezone...........................................................................................................................15 RecordingVideos︱...........................................................................................................................15 EmergencyRecording ........................................................................................................................... 16 LowBattery..............................................................................................................................................17 BrowseandPlayVideos︱..............................................................................................................18 PlayingVideos/BrowsingPhotos ..................................................................................................... 18 ProtectingVideos...................................................................................................................................19 Settings︱ ............................................................................................................................................. 20 InstallingtheDriveProApp︱ ......................................................................................................... 24 ConnectingtotheDriveProusingiOSandAndroidDevices︱............................................25 UsingtheDriveProApponiOSandAndroidDevices︱ ......................................................... 26 TransferringFilestoaComputer︱ ............................................................................................... 29 Troubleshooting︱.............................................................................................................................32 Specifications︱ ................................................................................................................................. 33 RecyclingandEnvironmentalProtection︱ ................................................................................ 34 FederalCommunicationsCommission(FCC)Statement.......................................................35 Two-yearLimitedWarranty︱ ......................................................................................................... 36 GNUGeneralPublicLicense(GPL)Disclosure ......................................................................... 37 End-UserLicenseAgreement(EULA)..........................................................................................37 低功率電波輻射性電機管理辦法..............................................................................................39 3 Introduction︱ ThankyouforpurchasingTranscendDrivePro220-anadvancedcarvideorecorder(CVR)thatis specificallydesignedtocapturerealtimevideoofeventshappeningoutsideyourvehiclewhiledriving. Mountedonyourcar’swindshield,theDriveProusesa130°WideAngleLensforthebestfieldofview,and recordsvideosincrystalclearFullHD1080Ptoensurealltheimportantdetailsofyourtriparerecorded. DrivePro220hasbuilt-inGPSreceiverstorecordyourdrivinghistory.Inaddition,theWI-FIconnection allowsyoutoadjustthesettingsanddownloadtherecordedvideosfromyourmobiledevices.Videosare savedonamicroSDmemorycardasthevehicleisdriven.TheDriveProbundleswitha16GBTranscend microSDmemorycard,lettingyourecordaround2hoursofaFullHDfootagewithouttheneedtopurchase additionalstorage.Inaddition,itsbuilt-incameraallowsyoutotakephotoswhilerecordingbyjustoneclick. ThisUser’sManualwillgiveyoustep-by-stepinstructionsandadvicestohelpyougetthebestexperience fromyournewdevice.PleasereaditcarefullybeforeusingtheDrivePro. 4 PackageContents︱ TheDriveProCarVideoRecorderpackageincludesthefollowingitems: ADriveProCarVideoRecorder AnAdhesiveMountoraSuctionMount ACarAdapter A16GBmicroSDMemoryCard AQuickStartGuide 5 AWarrantyCard 6 Features︱ Smooth,detailedFullHD1080Precordingat30fpsresolution Built-inGPSreceiverstolocateyourposition Built-inWi-FifunctiontoletyouoperatetheDriveProonyourmobiledevice Bright2.4-inchcolorLCDscreen 130degreewideanglelens Bundledwitha16GBTranscendmicroSDmemorycard Built-incameratocapturereal-timeimageswhilerecording Hi-SpeedUSB2.0connectorforeasycomputerconnectivityandfastfiletransf…

Text truncated - open the document above for the full version.

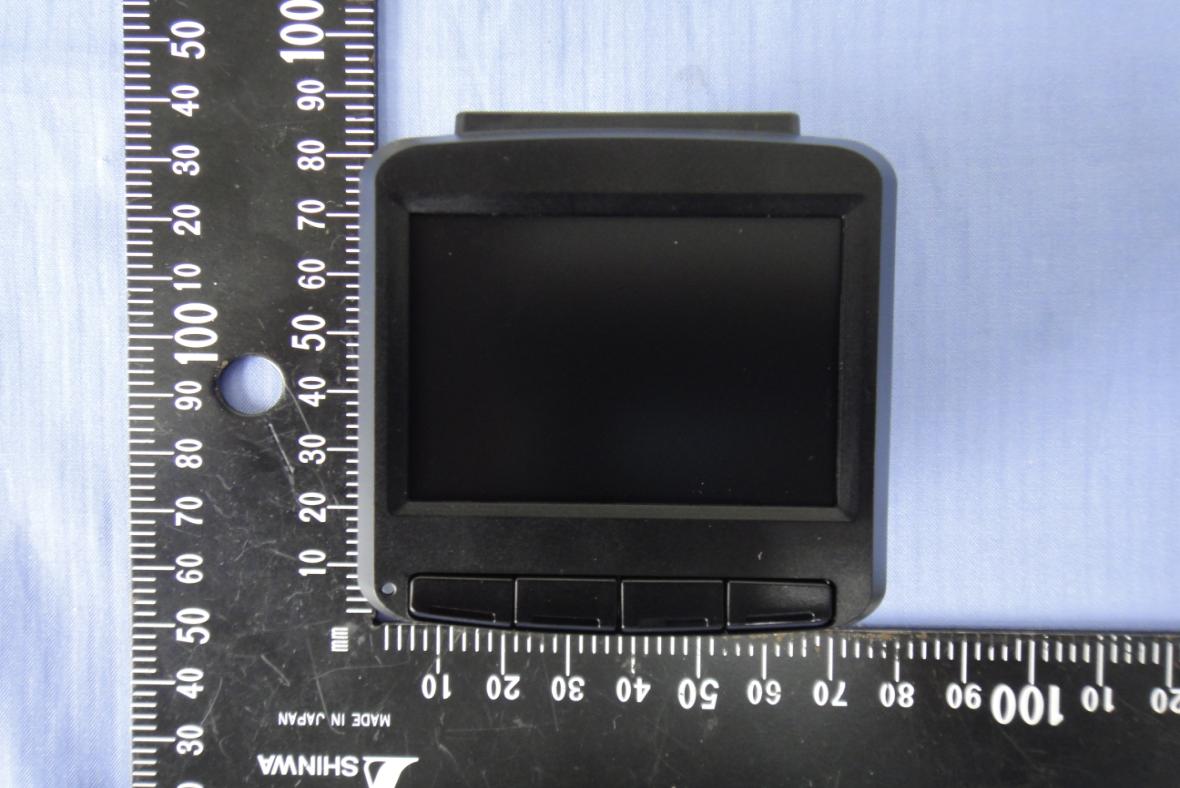

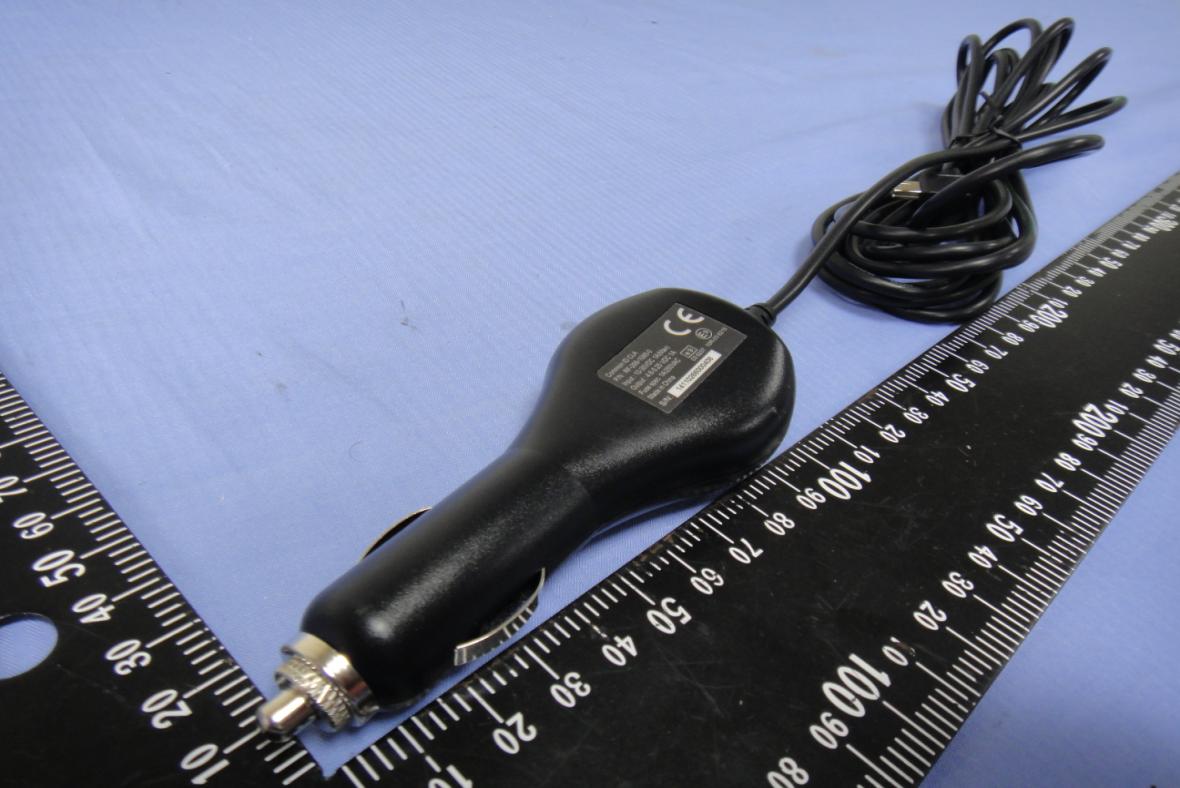

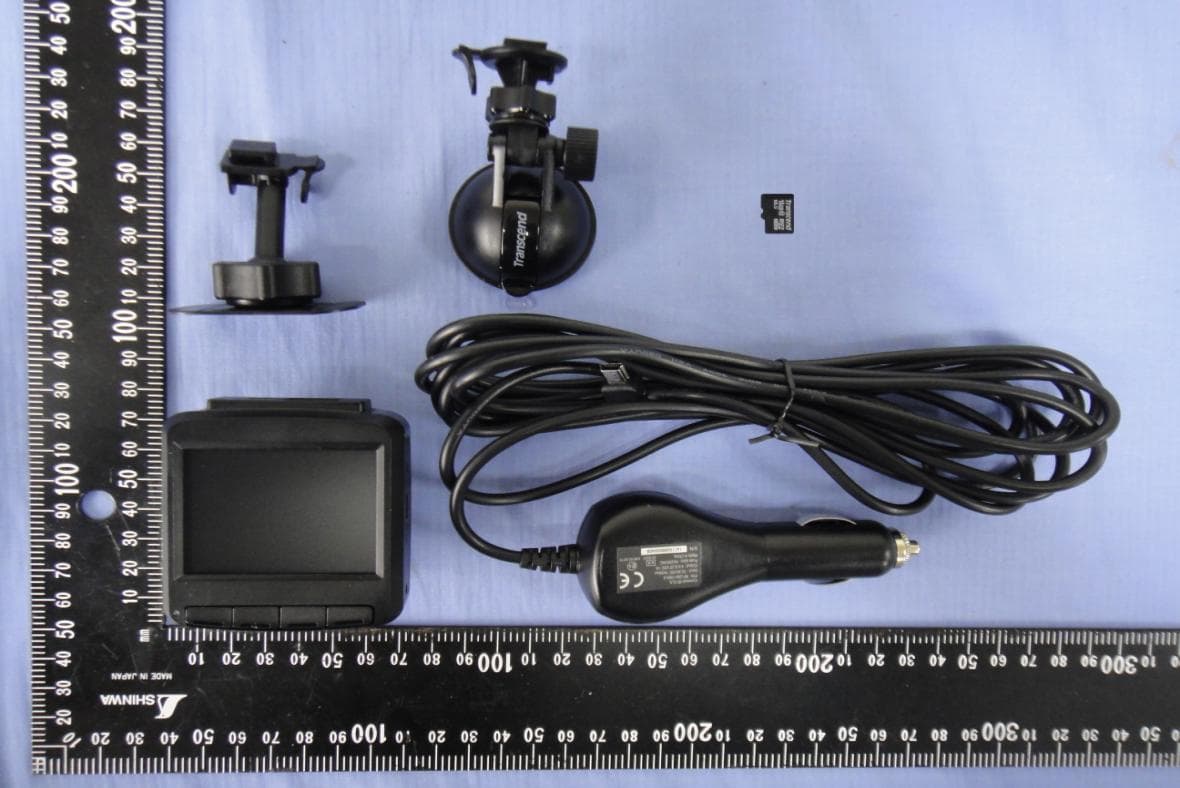

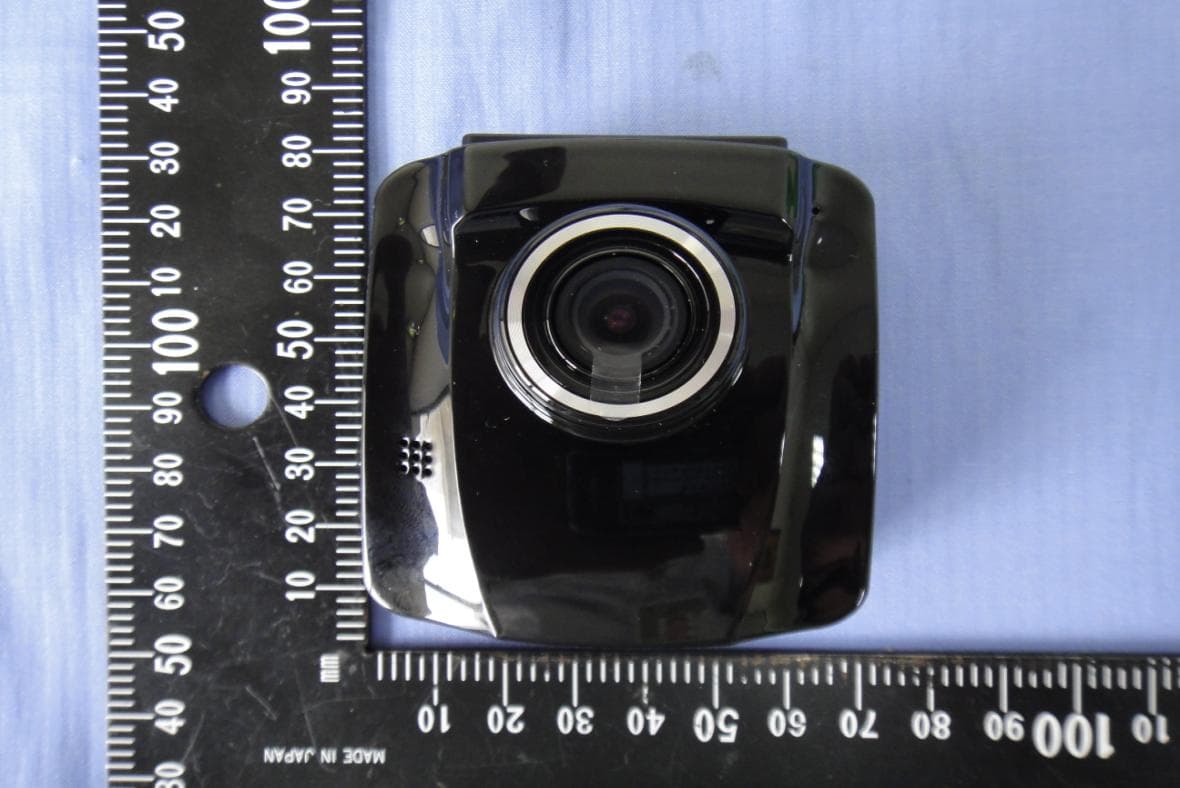

Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 1 / 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 2 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 3 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 4 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 5 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 6 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 7 / 13 Rev. 00

Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 8 / 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 9 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 10 / 13 Rev. 00 RF Module Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 11 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 12 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150204D08 Date of Issue: March 5, 2015 A1 - 13 Rev. 00 Chip Antenna

Compliance Certification Services Inc. Report No.: T150204D08-MF Date of Issue: March 10, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Car Video Recorder Model DrivePro 220 RF Module Broadcom Model: BCM43362 Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :3.32 dBi (Numeric gain:2.15) Maximum Average output power IEEE 802.11b Mode: 13.14 dBm(20.606 mW) IEEE 802.11g Mode: 11.82 dBm(15.205 mW) IEEE 802.11n HT 20 Mode: 10.86 dBm(12.190 mW) Maximum Tune up Power IEEE 802.11b Mode: 15.14 dBm(32.659 mW) IEEE 802.11g Mode: 13.82 dBm(24.099 mW) IEEE 802.11n HT 20 Mode: 12.86 dBm(19.320 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150204D08-MF Date of Issue: March 10, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/03/10 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Report No.: T150204D08-MF Date of Issue: March 10, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150204D08-MF Date of Issue: March 10, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241232.6592.15200.01401 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241224.0992.15200.01031 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241219.322.15200.00831

Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 89 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Car Video Recorder Model: DrivePro 220 Trade Name: Transcend Issued to Transcend Information Inc No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: March 10, 2015 Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 10, 2015 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 25 7.3 AVERAGE POWER ............................................................................................................................ 27 7.4 BAND EDGES MEASUREMENT ................................................................................................ 29 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 49 7.6 SPURIOUS EMISSIONS ................................................................................................................. 60 7.7 RADIATED EMISSIONS .............................................................................................................. 70 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 84 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 87 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Transcend Information Inc No.70, Xing Zhong Rd., NeiHu Dist., Taipei, Taiwan Equipment Under Test: Car Video Recorder Trade Name: Transcend Model: DrivePro 220 Date of Test: February 25 ~ March 5, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT ide…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 87 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 88 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: A4Z-DP220 Report No.: T150204D08-RP Page 89 Rev. 00 Powerline Conducted Emissions Setup Photos
