A4Z-SJC10StoreJet Cloud

User Manual (Version 0.9) Contents Introduction Contents Features System Requirements Getting to Know StoreJet Cloud Charging the Battery Battery Status during Operation Connecting to a Computer Transferring Content to StoreJet Cloud D isconnecting StoreJet Cloud in Windows® 7/Vista/XP Disconnecting StoreJet Cloud in Mac® OSX 10.5 or Later Disconnecting StoreJet Cloud in Linux® Kernel 2.4 or Later Installing the StoreJet Cloud App Co nnecting to StoreJet Cloud using iOS Device Connecting to StoreJet Cloud using Other Devices Using the StoreJet Cloud App Viewing Content in Folders V iewing Photos Viewing Documents Playing Music Playing Videos Downloading Files to Your iOS Device Download to App D ownload to album Deleting Files from StoreJet Cloud M ailing Files from StoreJet Cloud Switch between Cloud/Local Mode StoreJet Cloud Settings Basic Wireless Settings Security Settings Configure WEP C onfigure WPA Configure WPA2 Configure WPA2-Mixed Connect to Wi-Fi Access Point (Bridge Mode) Re store Defaults (Return to Original Settings) Upgrade Firmware Set Administrator Password Troubleshooting Specifications Transcend Limited Warranty Introduction Congratulations on purchasing Transcend’s StoreJet Cloud, a portable storage device that wirelessly streams your digital content to your iPad, iPhone, iPod Touch, or other Wi-Fi enabled devices. Thanks to the use of a free downloadable App, developed for use with Apple iOS devices, StoreJet Cloud is able to organize all of your videos, photos, music and documents ready for easy playback and viewing. Up to 5 devices can stream different media from StoreJet Cloud at the same time making it easier than ever to share your favorite digital files with friends and family. Additionally, the built-in battery enables StoreJet Cloud to continuously stream up to 6 hours of video on a single charge. This User Manual will give you step-by-step instructions and advice to help you get the best experience from your new device. Please read it carefully before using StoreJet Cloud. Contents S toreJet Cloud Quick Start Guide Travel Pouch USB Wall Adapter USB Cable W arranty Card Features • View photos (JPEG, JPG, BMP, PNG) • View documents (PDF, TXT, DOC, PPT, XLS) • Playback music (MP3, WAV) • Playback videos (AVI, MOV, MP4, M4V) • Wi-Fi encryption by WEP/WPA/WPA2/WPA2-Mixed • Stream different content on 5 devices simultaneously • Supports iOS, Android, Windows, and Mac OSX • Special App for iOS devices • 32GB/64GB capacity • Li-Battery supports 6hrs playback and 8hrs standby • Share picture/audio/video/document files wirelessly • USB 2.0 connector for easy computer connectivity and fast file transfers • Email files as attachments • Supports multi-format files • Small-scale dimensions and lightweight S ystem Requirements O perating system requirements for uploading files from your computer to StoreJet Cloud: • Microsoft Windows® XP • Microsoft Windows Vista® • Microsoft Windows® 7 • Mac® OSX 10.5 or later • Linux® Kernel 2.4 or later iOS device requirements for running the StoreJet Cloud App: iPhone(3GS, 4, 4S with iOS4.0+), iPod Touch(Gen3, Gen4) and iPad Getting to Know StoreJet Cloud Power Switch: Switch ON for wireless connectivity (charging is also possible in this mode). Switch OFF for data transfers Wi-Fi Signal LED: Indicates StoreJet Cloud wireless signal status: - Solid green = wireless signal is initiating - Solid blue = wireless connectivity now possible Power LED: During charge: - Solid orange = charging - Blank = fully charged During Operation: - Blank = normal operation - Solid red = 20% charge remaining Mini USB Port: Connect to your computer for fast and easy transfers. Also used for charging with included USB cable or USB Wall adapter Reset Button: Press for 3-5 seconds to restore StoreJet Cloud settings to their factory defaults. No data is lost from StoreJet Cloud by completing this action Charging the Battery Plug the small end of the included USB cable into the Mini USB port on the bottom of StoreJet Cloud, and plug the large end of the cable into the included USB wall adapter. StoreJet Cloud’s internal Li-Polymer battery will automatically begin charging and you will see a solid orange power LED. The power LED will go blank when the battery is fully charged. (StoreJet Cloud may also be charged while connected to an available USB port on your desktop or notebook computer). Battery Status during Operation StoreJet Cloud can provide up to six hours of continuous playback on a single charge. The maximum playback time will depend on how many users are simultaneously streaming content and the resolution of any videos being streamed. The power LED also acts as a battery status indicator: No light indicates 20-100% battery charge remaining. Solid red indicates 20% battery charge remaining. When using the App, a pop-up message will also indicate Low Battery status. Connecting to a Computer Transferring Content to StoreJet Cloud When connected to a computer, StoreJet Cloud acts like a normal hard disk d rive, which means it can store any file but will only stream files supported by StoreJet Cloud and your device. 1. Plug the small end of the included USB cable into the Mini USB port on the bottom of StoreJet Cloud, and plug the large end of the cable into an available USB port on your desktop or notebook computer. 2. StoreJet Cloud can operate in two different modes when connected to a computer depending on the power button position. • Power OFF (USB Data Transfer): For transferring files to and from StoreJet Cloud’s internal memory. This mode will charge the internal battery, however StoreJet Cloud’s wireless functions will not be available. • Power ON (USB Charge & Stream only): For charging the battery via your computer. Data transfer from your computer is not available in this mode, however wireless access is possible. 3. If you are using Windows®, a “Transcend” drive with a newly assigned drive letter will appear in the My Computer window. For Mac® …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Transcend-Info Inc. Address: No.70, XingZhong Rd., NeiHu Dist., City: Taipei Country: Taiwan Declare that: Name Representative of agent: ............. (1) Agent Company name: International Standards Laboratory Address: Lung-Tan Hsiang, Tao Yuan County 325, Taiwan City: Tao Yuan County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: StoreJet Cloud Type designation: TS32GSJC10K, TS64GSJC10K, TS32GSJC10W, TS64GSJC10W Trademark: Transcend on our behalf. Date: 12/09/2011 .. City: Taipei .. Name: Joe Huang  Function: Senior Engineer ............................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: StoreJet Cloud Trademark(s) and Model(s): Transcend / TS32GSJC10K, TS64GSJC10K, TS32GSJC10W, TS64GSJC10W Manufacturer: Transcend-Info Inc. FCC ID in case other parts of this equipment are subject to certification: A4Z-SJC10 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: ISL-11LR090FB 12/09/2011 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Transcend-Info Inc. Name/Title (legal representative): Joe Huang / Senior Engineer Address: No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan Phone: +886-2-2792-8000 Fax: +886-2-2793-2222 E-mail: [email protected] Date: 12/09/2011 Signature: FCC

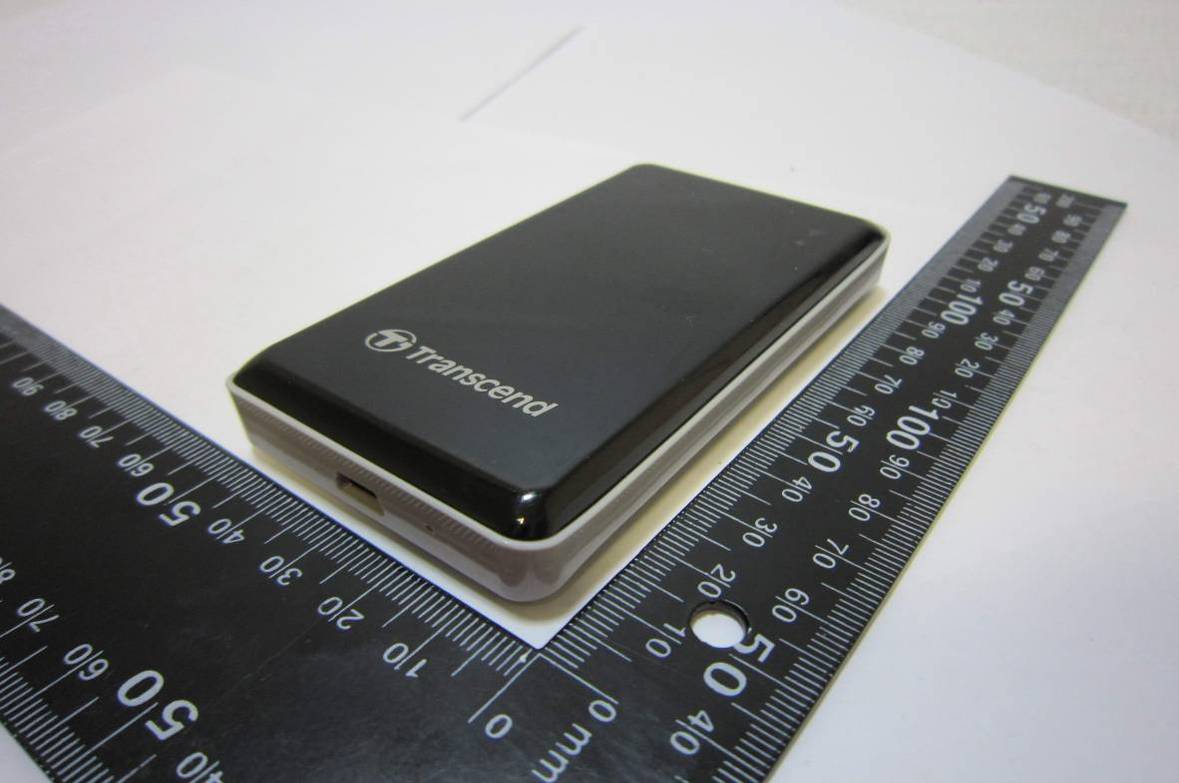

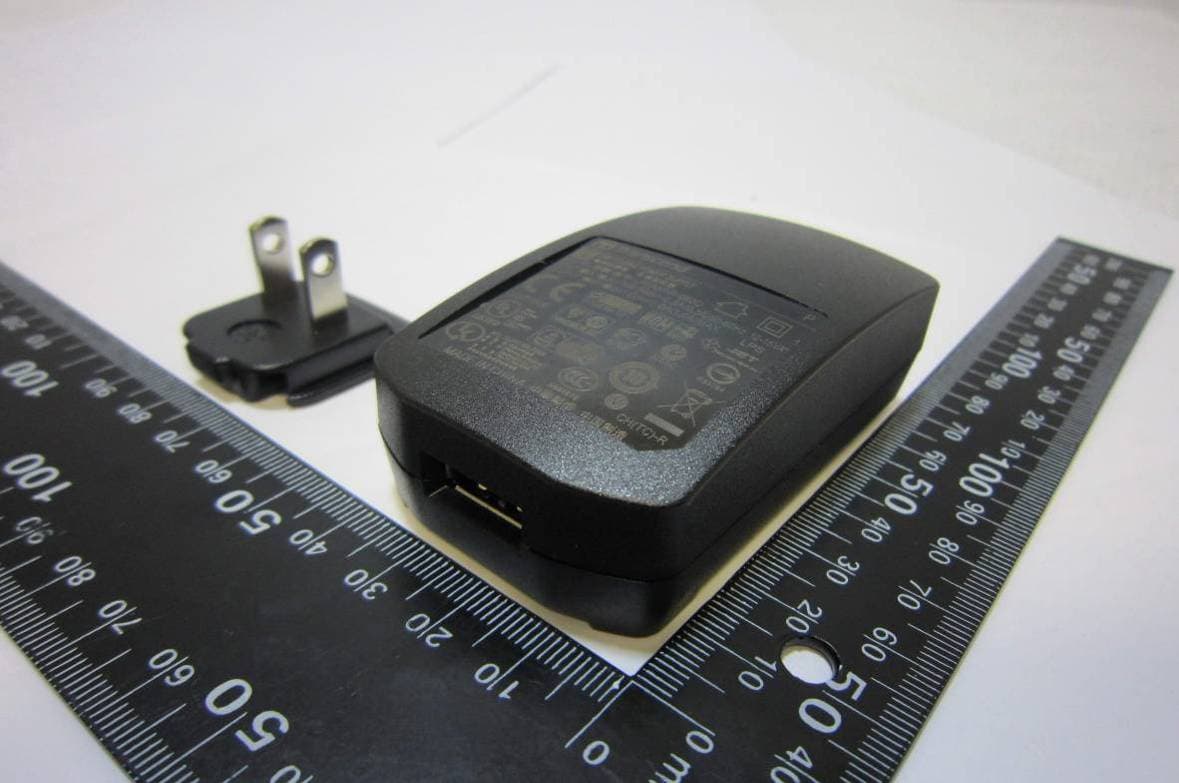

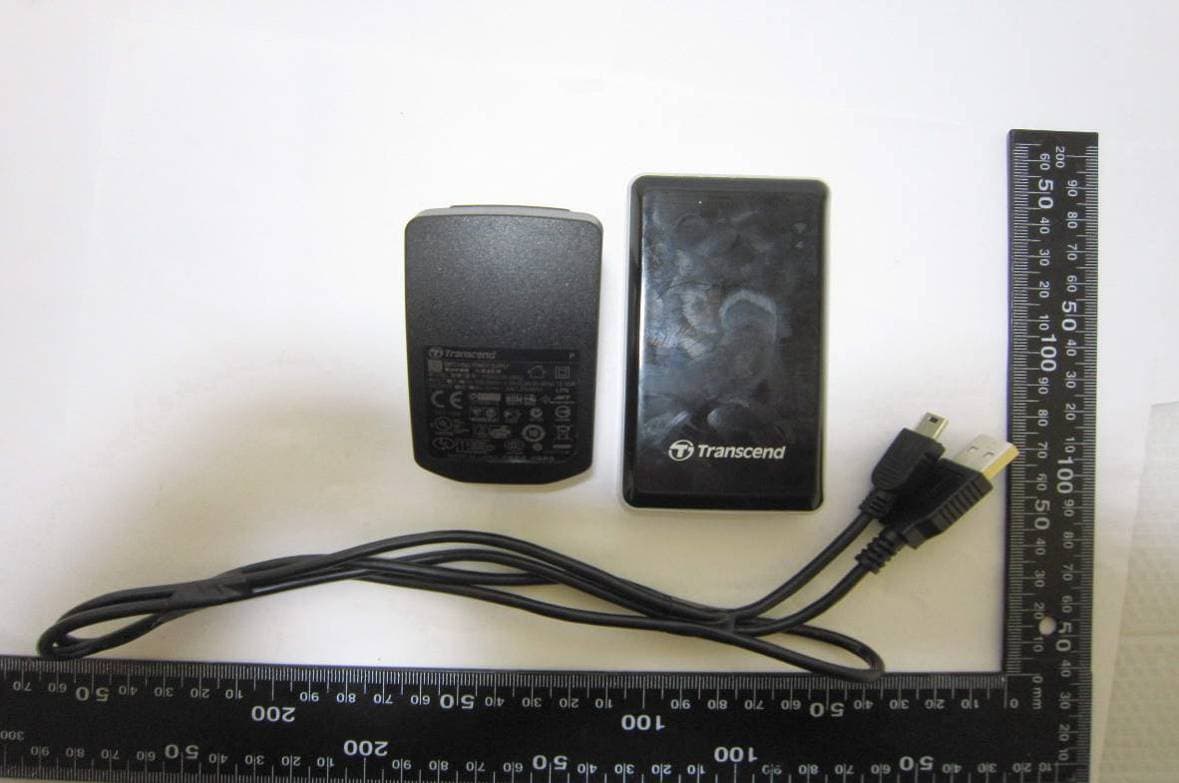

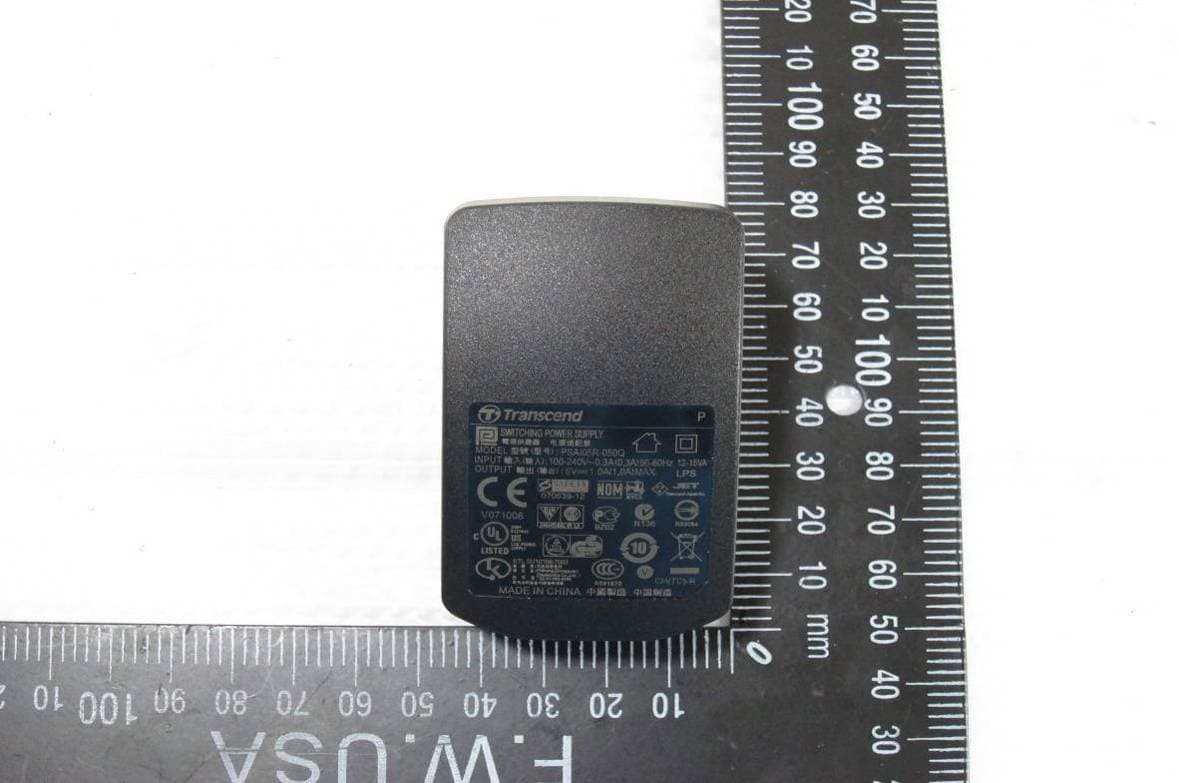

FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC All of EUT External of EUT – 1 FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC External of EUT – 2 External of EUT – 3 FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC External of EUT – 4

FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC Internal of EUT – 1 Internal of EUT-2 WLAN Ant. FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC Internal of EUT – 3 Internal of EUT-4 FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC Internal of EUT – 5 Internal of EUT – 6 FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC Internal of EUT – 7 Internal of EUT – 8 FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FC Internal of EUT – 9 Internal of EUT – 10 (WLAN Antenna)

Page: 1 of 34 TEST REPORT of SAR New Application; Class I PC; Class II PC Product: StoreJet Cloud Brand: Transcend Mode: TS32GSJC10K, TS64GSJC10K, TS32GSJC10W, TS64GSJC10W Model Difference: For different capacities and external color FCC ID: A4Z-SJC10 Standard: FCC 47 CFR Part2(2.1093) IIEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) Applicant: Transcend-Info Inc. Address: No. 70, XingZhong Road., NeiHu Dist., Taipei 114, Taiwan, R.O.C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-11LR090FSAR Issue Date : 2011/12/13 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 34- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR VERIFICATION OF COMPLIANCE Applicant: Transcend-Info Inc. Product Description: StoreJet Cloud Brand Name: Transcend Model No.: TS32GSJC10K, TS64GSJC10K, TS32GSJC10W, TS64GSJC10W Model Difference: For different capacities and external color FCC ID: A4Z-SJC10 Date of Receipt: Dec. 01, 2011 Date of Test: Dec. 01, 2011 – Dec. 09, 2011 Standard: FCC 47 CFR Part2(2.1093) IIEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2011/12/13 Arno Hsieh / Supervisor Prepared By: Date: 2011/12/13 Arno Hsieh / Supervisor Approved By: Date: 2011/12/13 Vincent Su / Technical Manager -3 of 34- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Version Version No. Date Description 00 2011/12/13 Initial creation of document -4 of 34- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Table of Contents 1 STATEMENT OF COMPLIANCE ........................................................................... 5 2 GENERAL INFORMATION ..................................................................................... 6 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) .......................................................................... 6 2.2 DUT PHOTOS ............................................................................................................................. 7 2.3 APPLIED STANDARDS ................................................................................................................ 7 2.4 DEVICE CATEGORY AND SAR LIMITS ....................................................................................... 7 2.5 TEST ENVIRONMENT .................................................................................................................. 7 2.6 TEST CONFIGURATION ............................................................................................................... 8 3 SPECIFIC ABSORPTION RATE (SAR) .................................................................. 8 3.1 INTRODUCTION .......................................................................................................................... 8 3.2 SAR DEFINITION ....................................................................................................................... 8 4 SAR MEASUREMENT SYSTEM ............................................................................. 9 4.1 ALSAS-10U SYSTEM DESCRIPTION ......................................................................................... 9 4.2 E-FIELD PROBE ALS-E-020S .................................................................................................. 10 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ............................................................................................................... 12 4.4 AXIS ARTICULATED ROBOT ALS-F3 ...................................................................................... 14 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ..................................................................... 14 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ................................................................ 15 4.7 UNIVERSAL DEVICE POSITIONER ............................................................................................ 17 4.8 TEST EQUIPMENT LIST ............................................................................................................ 18 5 TISSUE SIMULATING LIQUIDS .......................................................................... 19 6 SAR MEASUREMENT EVALUATION ................................................................. 20 7 DUT TESTING POSITION ...................................................................................... 22 8 SAR MEASUREMENT PROCEDURES ................................................................ 25 9 SAR TEST RESULTS ............................................................................................... 27 9.1 CONDUCTED POWER TABLE: .................................................................................................... 27 9.2 TEST RECORDS FOR BODY SAR TEST .....…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No: DC-961 Project Number: ISLB-D-2450S2-5416 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. WISB Validation Dipole Manufacturer: APREL Laboratories Part number: ALS-D-2450-S-2 Frequency: 2450 MHz Serial No: 2450-220-00753 Customer: WISB Calibrated: 3 rd February 2009 Released on: 5 th February 2009 NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4162 NCL Calibration Laboratories Division of APREL Laboratories. Conditions Dipole 2450-220-00753 was a re-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C We the undersigned attest that to the best of our knowledge the calibration of this device has been accurately conducted and that all information contained within this report has been reviewed for accuracy. This page has been reviewed for content and attested to by signature within this document. NCL Calibration Laboratories Division of APREL Laboratories. Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 51.5 mm Height: 30.4 mm Electrical Specification SWR: 1.01 U Return Loss: -45.3 dB Impedance: 50.6 Ω System Validation Results Frequency 1 Gram 10 Gram Peak 2450 MHz 5.31 2.44 10.18 This page has been reviewed for content and attested to by signature within this document. 3 NCL Calibration Laboratories Division of APREL Laboratories. Introduction This Calibration Report has been produced in line with the SSI Dipole Calibration Procedure SSI-TP-018-ALSAS. The results contained within this report are for Validation Dipole 2450-220-00753. The calibration routine consisted of a three-step process. Step 1 was a mechanical verification of the dipole to ensure that it meets the mechanical specifications. Step 2 was an Electrical Calibration for the Validation Dipole, where the SWR, Impedance, and the Return loss were assessed. Step 3 involved a System Validation using the ALSAS-10U, along with APREL E-020 130 MHz to 26 GHz E-Field Probe Serial Number 212. References SSI-TP-018-ALSAS Dipole Calibration Procedure SSI-TP-016 Tissue Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” Conditions Dipole 2450-220-00753 was a re-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 20 °C +/- 0.5°C This page has been reviewed for content and attested to by signature within this document. 4 NCL Calibration Laboratories Division of APREL Laboratories. Dipole Calibration Results Mechanical Verification APREL Length APREL Height Measured Length Measured Height 51.5 mm 30.4 mm 52.1 mm 31.0 mm Tissue Validation Head Tissue 2450 MHz Measured Dielectric constant, ε r 39.8 Conductivity, σ [S/m] 1.88 This page has been reviewed for content and attested to by signature within this document. 5 NCL Calibration Laboratories Division of APREL Laboratories. Electrical Calibration Test Result S11 R/L -45.3 dB SWR 1.01 U Impedance 50.6 Ω The Following Graphs are the results as displayed on the Vector Network Analyzer. S11 Parameter Return Loss This page has been reviewed for content and attested to by signature within this document. 6 NCL Calibration Laboratories Division of APREL Laboratories. SWR This page has been reviewed for content and attested to by signature within this document. 7 NCL Calibration Laboratories Division of APREL Laboratories. Smith Chart Dipole Impedance This page has been reviewed for content and attested to by signature within this document. 8 NCL Calibration Laboratories Division of APREL Laboratories. System Validation Results Using the Electrically Calibrated Dipole Head Tissue Frequency 1 Gram 10 Gram Peak Above Feed Point 2450 MHz 5.31 2.44 10.18 This page has been reviewed for content and attested to by signature within this document. 9 NCL Calibration Laboratories Division of APREL Laboratories. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2008. This page has been reviewed for content and attested to by signature within this document. 10

NCL CALIBRATION LABORATORIES Calibration File No.: CP-1133 Client.: ISL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 2450 MHz Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 266 Calibration in Body Tissue Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: ISLB-E020-Cal-5513 Calibrated: 23 rd April 2011 Released on: 26 th April 2011 NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 266. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 15 28 “Recommended Practice for Determining the Pe ak Spatia l-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireles s Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure Conditions Probe 266 is a re-calibration. Ambient Temperature of the Laboratory: 22 °C +/- 0.5°C Temperature of the Tissue: 21 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration Results Summary Probe Type: E-Field Probe E-020 Serial Number: 266 Frequency: 2450 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Sensitivity in Body Tissue Measured Frequency: 2450 MHz Epsilon: 50.89 (+/-5%) Sigma: 1.96 S/m (+/-5%) ConvF Channel X: 4.55 Channel Y: 4.55 Channel Z: 4.55 Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary ef fect is les s than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.44mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Receiving Pattern 2450 MHz (Air) Receiving Pattern Probe s/n 266 2450MHz 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1Ch2Ch3Tot NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Isotropy Error 2450 MHz (Air) Isotropy Error Probe s/n 266 2450MHz -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 0100200300 Error [dB] Isotropy Plot Probe s/n 266 2450MHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0100200300 Degrees (x10) Voltage (mV) Ch1Ch2Ch3 Isotropicity in Tissue: 0.10 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Dynamic Range Probe 266 Dynamic Range 0.01 0.1 1 10 100 1000 10000 1.0010.00100.001,000.0010,000.00100,000.00 1,000,000.00 10,000,000.00 Electric Field [(V/m)^2] Voltage [microV] Uncompensated Compensated NCL Calibration Laboratories Division of APREL Laboratories. Page 8 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Video Bandwidth Probe Frequency Characteristics -6 -5 -4 -3 -2 -1 0 1 110100100010000 Frequency (Hz) Video Bandwidth at 500 Hz 1 dB Video Bandwidth at 1.02 KHz: 3 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 9 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conversion Factor Uncertainty Assessment Frequency: 2450MHz Tissue Parameters Measured Epsilon: 50.89 (+/-5%) Sigma: 1.96 S/m (+/-5%) ConvF Channel X: 4.55 7%(K=2) Channel Y: 4.55 7%(K=2) Channel Z: 4.55 7%(K=2) To minimize the uncertainty calc ulation all tissue sensitivity values were c alculated using a load impedance of 5 MΩ. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. NCL Calibration Laboratories Division of APREL Laboratories. Page 10 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2010.

-1 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Appendix D: SAR Measurement Data Dat aNo. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 1 Wifi 802.11b Body Surface Top 0.5 1 0.347 2 Wifi 802.11b Body Surface Bottom 0.5 1 0.001 3 Wifi 802.11b Body Edge Front 0.5 1 0.001 4 Wifi 802.11b Body Edge Lift 0.5 1 0.001 5 Wifi 802.11b Body Surface Top 0.5 6 0.321 6 Wifi 802.11b Body Surface Top 0.5 11 0.293 7 Wifi 802.11g Body Surface Top 0.5 1 0.394 8 Wifi 802.11g Body Surface Top 0.5 6 0.356 9 Wifi 802.11g Body Surface Top 0.5 11 0.324 10 Wifi 802.11n 20M Body Surface Top 0.5 1 0.884 11 Wifi 802.11n 20M Body Surface Top 0.5 6 0.638 12 Wifi 802.11n 20M Body Surface Top 0.5 11 0.631 13 Wifi 802.11n 40M Body Surface Top 0.5 3 0.780 14 Wifi 802.11n 40M Body Surface Top 0.5 6 0.658 15 Wifi 802.11n 40M Body Surface Top 0.5 9 0.580 -2 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Data No. 1: Report Date : 01-Dec-2011 By Operator : Dino Measurement Date : 01-Dec-2011 Starting Time : 01-Dec-2011 01:17:46 PM End Time : 01-Dec-2011 01:35:48 PM Scanning Time : 1082 secs Product Data Device Name : Transcend Serial No. : NA Type : Other Model : NA Frequency : 2450.00 MHz Max. Transmit Pwr : 0.24 W Drift Time : 0 min(s) Length : 55 mm Width : 100 mm Depth : 17 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.524 W/kg Power Drift-Finish: 0.542 W/kg Power Drift (%) : 3.438 Picture : C:\alsas\bitmap\Device-20.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 01-Dec-2011 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 51.91 F/m Sigma : 2.01 S/m Density : 1000.00 kg/cu. m -3 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 01-Dec-2011 Set-up Time : 1:38:50 PM Area Scan : 6x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0.5 Channel : Low -4 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR 1 gram SAR value : 0.347 W/kg 10 gram SAR value : 0.115 W/kg Area Scan Peak SAR : 0.374 W/kg Zoom Scan Peak SAR : 0.840 W/kg -5 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Data No. 2: Report Date : 01-Dec-2011 By Operator : Dino Measurement Date : 01-Dec-2011 Starting Time : 01-Dec-2011 10:19:15 AM End Time : 01-Dec-2011 10:37:43 AM Scanning Time : 1108 secs Product Data Device Name : Transcend Serial No. : NA Type : Other Model : NA Frequency : 2450.00 MHz Max. Transmit Pwr : 0.24 W Drift Time : 0 min(s) Length : 55 mm Width : 100 mm Depth : 15 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-20.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 2450_Body Frequency : 2450.00 MHz Last Calib. Date : 01-Dec-2011 Temperature : 22.00 °C Ambient Temp. : 21.70 °C Humidity : 60.00 RH% Epsilon : 51.91 F/m Sigma : 2.01 S/m Density : 1000.00 kg/cu. m -6 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 4.55 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Set-up Date : 01-Dec-2011 Set-up Time : 1:38:50 PM Area Scan : 6x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0.5 Channel : Low -7 of 46- FCC ID: A4Z-SJC10 International Standards Laboratory Report Number: ISL-11LR090FSAR 1 gram SAR value : 0.001 W/kg 10 gram SAR value : 0.001 W/kg A…

Text truncated - open the document above for the full version.
