A4Z-WSDWi-Fi SD Card

User Manual Wi-Fi SD (Version 0.94) Table of Contents Introduction ...........................................................................................3 Package Contents .................................................................................3 Features .................................................................................................4 System Requirements...........................................................................4 Installing the Wi-Fi SD App...................................................................5 Connecting to the Wi-Fi SD Card using iOS and Android Devices ..6 DIRECT SHARE....................................................................................................................................6 INTERNET MODE..................................................................................................................................7 Connecting to a Smartphone Personal Hotspot ................................9 Using the Wi-Fi SD App on iOS Devices ...........................................10 BROWSE............................................................................................................................................11 SHOOT & VIEW..................................................................................................................................18 Using the Wi-Fi SD App on Android Devices....................................19 BROWSE............................................................................................................................................21 SHOOT & VIEW..................................................................................................................................26 Settings ................................................................................................27 DIRECT SHARE SETTINGS.................................................................................................................29 INTERNET MODE SETTINGS...............................................................................................................30 Set Administrator Password ..............................................................31 Wi-Fi SD Information ...........................................................................32 Connecting to the Wi-Fi SD Card using Other Devices ...................33 Restore Defaults (Return to Original Settings).................................37 Upgrading Firmware ...........................................................................38 Troubleshooting ..................................................................................39 Specifications ......................................................................................41 Get more help ......................................................................................41 Transcend Limited Warranty ..............................................................44 Introduction Congratulations on purchasing Transcend’s Wi-Fi SD card that transforms your digital camera into a wireless device so that you can wirelessly stream digital photos and videos to your iPad, iPhone, Android, and other Wi-Fi enabled devices. Thanks to the use of a free downloadable App, developed for use with Apple iOS and Android devices, the Wi-Fi SD card is able to organize all of your photos and videos ready for easy playback and viewing. Up to 5 devices can access content from the Wi-Fi SD card at the same time, making it easier than ever to share your favorite digital files with friends and family. This User Manual will give you step-by-step instructions and advice to help you get the best experience from your new device. Please read it carefully before using the Wi-Fi SD card. Package Contents Wi-Fi SD Card Quick Start Guide Warranty Card Features  View photos (JPG, BMP, PNG)  Playback videos* (AVI, MOV, WMV, MP4)  Fully compliant with the SD 3.0 standard  SDHC Class 10 speed rating  Supports iOS, Android, Windows, Linux, and Mac OS X  Special App for iOS and Android devices  Instantly share photos and videos wirelessly  Shoot & View on iOS and Android devices *For video streaming, we suggest the following resolution and video bit rate: Resolution: HD-720p 1280x720@30fps, Video bit rate: 1472kbps. System Requirements Operating system requirements for uploading files from your computer to Wi-Fi SD:  Microsoft Windows ® XP  Microsoft Windows Vista ®  Microsoft Windows ® 7  Microsoft Windows ® 8  Mac ® OS X 10.5 or later  Linux ® Kernel 2.4 or later Device requirements for running the Wi-Fi SD App:  iPhone (3GS, 4, 4S with iOS4.0+) and iPad.  Android device requires Android 2.1, or later. Apple, iPhone and iPad are trademarks of Apple Inc. App Store is a service mark of Apple Inc. Wireless performance depends on environment and distance from device or hotspot. To obtain the best possible connection speed, try adjusting the location and orientation of the Wi-Fi SD card. Please DISABLE power saving (automatic power off) on your camera for a better user experience. Installing the Wi-Fi SD App Developed specifically for iOS (iPhone/iPad) and Android devices, the free to download Wi-Fi SD App allows you to wirelessly browse and download photos and videos stored on the Wi-Fi SD card, and customize wireless network settings. Installing the App on an iOS device: 1. Using your iOS device, open the App Store and search for the Wi-Fi SD App. Here is Apple store searching picture 2. Select the suitable Wi-Fi SD App (iPhone or iPad version). 3. Click the FREE button to start the download process. Here is Apple store picture 4. Then click INSTALL APP to complete installation. Here is Apple store picture Installing the App on an Android device: 1. Using your Android device, open Google Play (for Kindle Fire users, please open the Amazon Appstore) and search for the Wi-Fi SD App. Here is Google Play searching picture 2. Select the suitable Wi-Fi SD App. 3. Cli…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Transcend-Info Inc. Address: No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan Country: Taiwan Declare that: Name: International Stantards Laboratory Address: No. 120, Lane 180, San Ho Tsuen,Hsin Ho Rd., Lung-Tan Hsiang, Tao Yuan County, Taiwan City: Lung-Tan Hsiang,Tao Yuan County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: Wi-Fi SD Card . Type designation: TS32GWSDHC10, TS16GWSDHC10, TS8GWSDHC10, TS4GWSDHC10 Trademark: Transcend . on our behalf. Date: 08/08/2012... City: Taipei .. Name: Joe Huang .. (2) Function: ............................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

08/08/2012 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that Declaration of Conformity procedures will be applied to the digital device portion of the following product: Product name: Wi-Fi SD Card Model: TS32GWSDHC10, TS16GWSDHC10, TS8GWSDHC10, TS4GWSDHC10 Test report: ISL-12LR112FB ------------------------------------------------------------------------------------------------- ( Product Identification ) It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4 & FCC PART 15 regulations for the evaluation of electromagnetic compatibility. This Device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. TEST LABORATORY International Standards Laboratory Lung-Tan Hsiang, Tao Yuan County 325, Taiwan FCC Registration Number: TW1036. TAF Accreditation No.: 0997; IC: IC4067B-3, BSMI MRA Test Lab. Sincerely, Joe Huang Transcend-Info Inc.

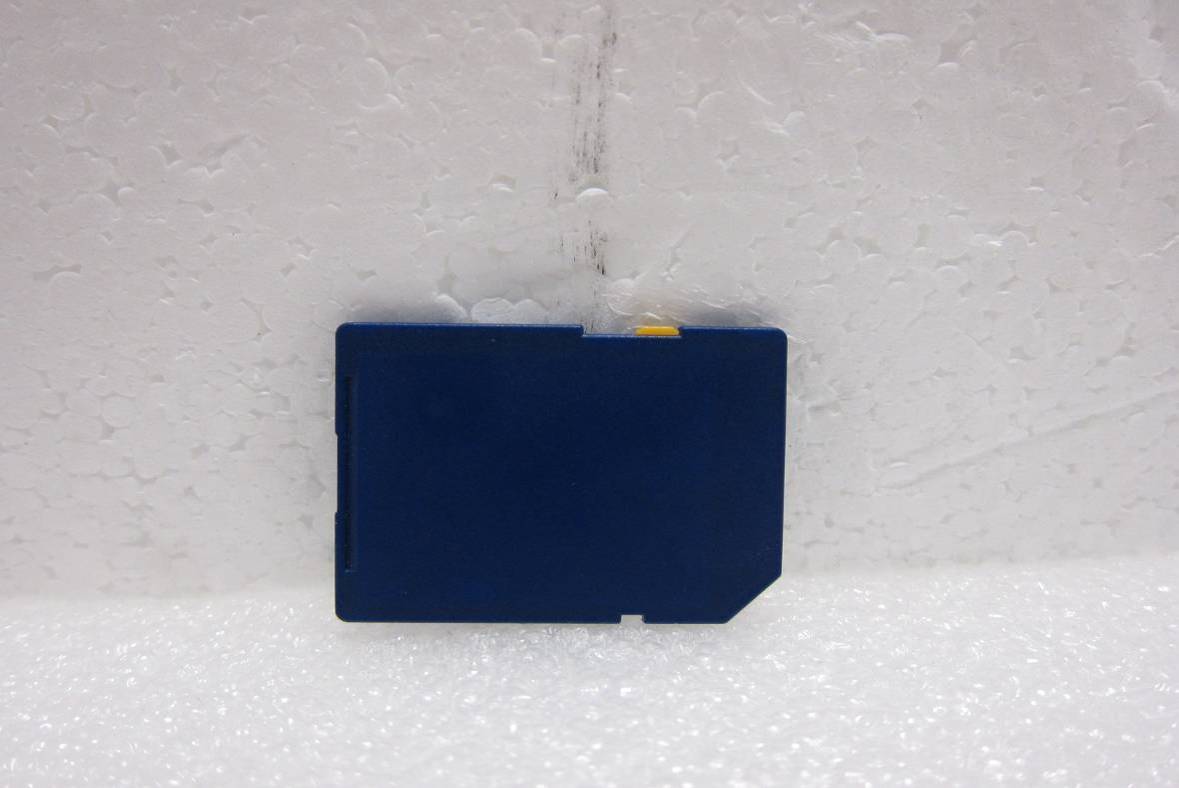

FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC EXTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC External of EUT – 1 External of EUT – 2

FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC INTERNAL PHOTOGRAPHS OF EUT FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Internal of EUT – 1 Internal of EUT-2 FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Internal of EUT – 3 Internal of EUT-4 WLAN Antenna

RF EXPOSURE Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Measurement Result: This is a portable device and the Max average output power is 13.44dBm + antenna gain -4.56dBi = 8.88dBm(7.72mW) lower than low threshold 60/fGHz mW (24.48mW). The SAR measurement is not necessary.

Page: 1 of 73 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : Wi-Fi SD Card Brand: Transcend Model: TS32GWSDHC10, TS16GWSDHC10, TS8GWSDHC10, TS4GWSDHC10 Model Difference: Difference Memory size FCC ID: A4Z-WSD FCC Rule Part: §15.247, Cat: DTS Applicant: Transcend Information, Inc. Address: 70,XingZhong Rd.,NeiHu Dist.,Taipei,Taiwan,R.O.C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR112FC Issue Date : 2012/08/07 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 73- FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC VERIFICATION OF COMPLIANCE Applicant: Transcend Information, Inc. Product Description: Wi-Fi SD Card Brand Name: Transcend Model No.: TS32GWSDHC10, TS16GWSDHC10, TS8GWSDHC10, TS4GWSDHC10 Model Difference: Difference Memory size FCC ID: A4Z-WSD Date of test: 2012/07/10 ~ 2012/07/12 Date of EUT Received: 2012/07/07 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/08/07 Dion Chang / Engineer Prepared By: Date: 2012/08/07 Eva Kao / Technical Supervisor Approved By: Date: 2012/08/07 Vincent Su / Technical Manager -3 of 73- FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Version Version No. Date Description 00 2012/08/07 Initial creation of document -4 of 73- FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE UTPUT POWER MEASUREMENT .................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ............................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC PHOTOGRAPHS OF SET UP FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Radiated Emission Set up Photo FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC FCC ID: A4Z-WSD International Standards Laboratory Report Number: ISL-12LR112FC Conducted Emission Set up Photo
