A5M-M830Lenovo Al Mouse

6 Safety Information 1.Do not use the product in an open flame environment。 2.Do not use the product in an extremely hot (above 40°) or extremely cold (-15°) environment。 3.Do not contact the product with anything flammable, such as gasoline, toners and toners used in printers or photocopies。 4.Do not use the product in clean areas with flammable materials。 5.Do not touch any burning items, such as cigarettes, matches, ashes and other items that may cause fire。 6.Even if the product is seriously damaged, it is prohibited to burn the product, because the electronic components of the product may cause an explosion Please read the following safety instructions and follow all usual safety precautions before using this product. Any operation inconsistent with this instruction manual may cause damage to the product. 1.Only authorized technicians can disassemble this product. It is not recommended that users disassemble this product by themselves. 2.Keep this product away from cigarette butts, lighters and other open flames. 3.Do not place heavy objects or sharp objects on the keyboard. 4.Do not sit on the product. 5.Please carefully check whether the jack is plugged in before use, otherwise it may not be recognized. 6.Please remove the electronic components from the machine before scrapping the product. Attention Warning 54 104 mm 148 mm 128克铜版纸 四色印刷风琴折104*148mm CMYK 0.0.0.80 CMYK 0.0.0.50 CMYK 0.72.100.0 Note: Please read this document carefully before installation and use of the product, and please keep it properly。 Technical Specifications M830 3.2-4.2V ≤5mA(Light Off)≤20mA(Slow Breath Mode) Lenovo Al Mouse Product name Model No Dimension Weight 键盘规格 额定容量 Supply Current Working Current Windows7/8/10/11/ Operating System 111.15*70.17*41.57mm ±5mm 100g±5g Product Formation 2 Product introduction Name and content of harmful substances In order to meet the "Administrative Measures for the Restriction of the Use of Harmful Substances in Electrical and Electronic Products" (Ministry of Industry and Informatio- Technology of the People's Republic of China No. 32 The relevant regulations and requirements of the order), the hazardous substances in this product, classified by component, are declared as follows: The harmful substances contained in this product are caused by the technical restrictions at this stage and no alternative substances can be found. It meets the requirements of China's "Administrative Measures for the Restriction of the Use of Harmful Substances in Electrical and Electronic Products", and is displayed within the scope of EU RoHS exemption. Special consideration has been made in the design of the product to ensure that the appearance parts are made of non-toxic and harmless environmental protection materials. Consumers will not be exposed to harmful substances under normal use and will not cause harm to the human body. Electrical and electronic products sold in the Republic of China will bear the "Environmental Protection Period" (EPuP) symbol, and the letters in the circle represent the product can be recycled. Name and content of harmful substances Plastic parts Hardware Host circuit module Electronic component Plug power cord (Metal part) Part name Harmful substance PbHgCr(VI)PBBPBDECd This form is prepared in accordance with the provisions of SJ/T11364. :Indicates that the content of the harmful substance in all homogeneous materials of the part is under the limit requirements specified in GB/T26572. :Indicates that the content of the hazardous substance in at least one homogeneous material of the part exceeds the limit requirements specified in GB/T26572. M830 Lenovo Al Mouse Mouse*1 Left button Forward button Side buttonl Back button Side button2 RGB light strip AI key Right button Scroll wheel This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’ap…

Text truncated - open the document above for the full version.

Lenovo (Beijing) Limited Date: 6/9/2026 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: A5M-M830 1.Lenovo (Beijing) Limited certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.Lenovo (Beijing) Limited certifies that the device does not have cybersecurity and / or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, identified on the Covered List installed on the device, nor will it be installed by the applicant anytime after certification. 3.Lenovo (Beijing) Limited certifies that the RF device is not a router “produced in a foreign country”. 4.Lenovo (Beijing) Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Yang Liu Job Title: Compliance Engineer Company Name: Lenovo (Beijing) Limited

Grantee FRN: 0032905564

Lenovo (Beijing) Limited Date: 6/9/2026 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: A5M-M830 Grantee FRN: 0021340799 Lenovo (Beijing) Limited as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: Brian Killebrew Company Name: Lenovo (United States) Incorporated Company Address: 8001 Development Drive Morrisville, NC 27560 United States FCC FRN: 0012799359 Email: [email protected] Sincerely yours, Name: Yang Liu Job Title: Compliance Engineer Company Name: Lenovo (Beijing) Limited

Lenovo (Beijing) Limited Date: 6/9/2026 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as act s of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Lenovo (Beijing) Limited Contact Name: Yang Liu Title of Person: Compliance Engineer Address: 201-H2-6, Floor2, Building 2, No. 6 Shangdi West Road, Haidian District, Beijing, China

Lenovo (Beijing) Limited Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A5M-M830 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Lenovo (Beijing) Limited Contact Name: Yang Liu Title of Person: Compliance Engineer Address: 201-H2-6, Floor2, Building 2, No. 6 Shangdi West Road, Haidian District, Beijing, China Date: 6/9/2026

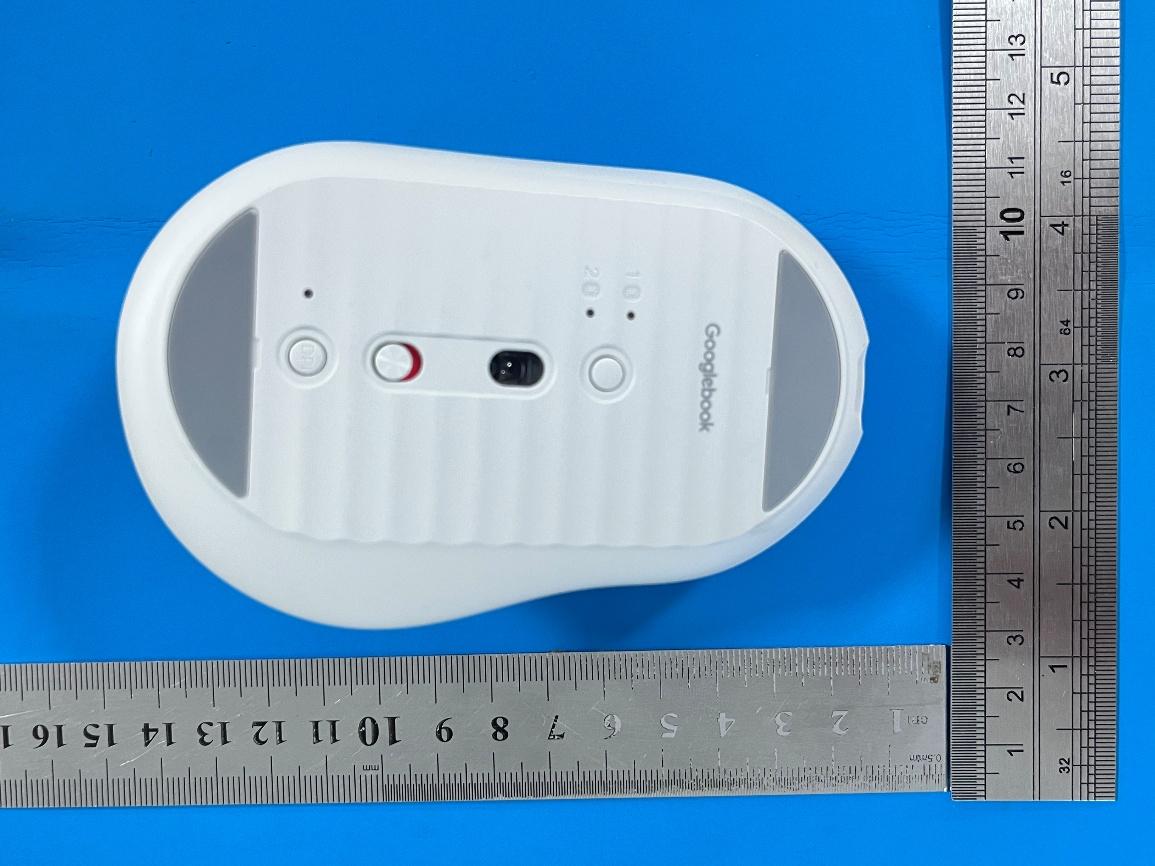

Appendix I External Photographs Project No.: 4792222857 Page 2 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External Page 3 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Page 4 of 4 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch.

SN:1SGY51W38251Z15Q0001 65 Lenovo AI Mouse Model:M830 Input:5.0V 800mA Manufactured for Lenovo FRU P/N:5M51W38253 ASM P/N:SM51W38252 Made in China SN:1SGY51W38251Z15Q0001 65 Lenovo AI Mouse Model:M830 Input:5.0V 800mA Manufactured for Lenovo FRU P/N:5M51W38253 ASM P/N:SM51W38252 Made in China This label will be permanently engraved on the product. The warning information will be added on the user manual This label will be permanently paste on the product Once the customer opens the outer casing by hand, the label is visible.

Appendix II Internal Photographs Project No.: 4792222857 Page 2 of 7 Internal Page 3 of 7 Page 4 of 7 Antenna Page 5 of 7 Page 6 of 7 Page 7 of 7

FCC ID: A5M-M830 According to 447498 D04 Interim General RF Exposure Guidance v01, 2.1.4 MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power.10 For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). B.4 SAR-based Exemption SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time- averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). The example values shown in Table B.2 are for illustration only. 1. SAR test exclusion threshold for 2.4 GHz is 3 mW. -The maximum tune-up power with tolerance is 0.5 dBm = 1.122 mW, the antenna gain is 1.6 dBi, so: the maximum EIRP = 2.1 dBm = 1.622 mW the ERP = EIRP – 2.15 = -0.05 dBm = 0.989 mW. - When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC 47 CFR PART 15 SUBPART C ISED RSS-247 Issue 4 TEST REPORT For Lenovo Al Mouse MODEL NUMBER: M830 REPORT NUMBER: 4792222857-1-RF-1 ISSUE DATE: June 12, 2026 FCC ID: A5M-M830 IC: 5903G-M830 Prepared for FCC: Lenovo (Beijing) Limited IC: LENOVO CHINA FCC Address: 201-H2-6, Floor 2, Building 2, No.6 Shangdi West Road,Haidian District, Beijing, China IC Address: No.6 Chuang Ye Road, Shangdi Information Industry Haidan District, Beijing 100085 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4792222857-1-RF-1 Page 2 of 93 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 June 12, 2026 Initial Issue REPORT NO.: 4792222857-1-RF-1 Page 3 of 93 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) RSS-247 Clause 6.3.2 Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 & 6.9.3 FCC Part 15.247 (a)(2) RSS-247 Clause 6.3.1 (a) RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 6.3.1 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 6.6 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1.For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. 2.For FCC, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <FCC 47 CFR PART 15 SUBPART C, ISED RSS-247 Issue 4> when <Simple Acceptance> decision rule is applied. Decision rule for statement of conformity: The measurement uncertainty is not taken into account for statement of conformity. REPORT NO.: 4792222857-1-RF-1 Page 4 of 93 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. MAXIMUM POWER .................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 15 7.1. CONDUCTED OUTPUT POWER ........................................................................... 15 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 16 7.3. POWER SPECTRAL DENSITY .............................................................................. 18 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION ..................................... 20 7.5. DUTY CYCLE ......................................................................................................... 22 8. RADIATED TEST RESULTS .....................…

Text truncated - open the document above for the full version.

AN91445MIFAAntennaTestReport 1.Antennamanufacturer：InfineonTechnologiesAG 2.AntennaBrand：CypressSemiconductor3. 3.Manufacturer'saddress： AmCampeon1-15,85579Neubiberg,Germany 1.BasicAntennaParameters 1.1AntennaModel:AN91445ReferenceDesignMIFA 1.2AntennaName:MeanderedInvertedFAntenna 1.3AntennaType:PCBOn-boardIntegratedAntenna 1.4ApplicationRange:2.4Gwirelessmice,keyboards,Bluetooth peripherals,andotherHID 1.5PhysicalDimensions:7.2mm × 11.1mm 1.6TraceWidth:20mil(approx.0.5mm 1.7CompatibleBoardMaterial:StandardFR4printedcircuitboard 2.Antenna photo and drawings: 3.Antenna efficiency,frequency,and gain: 4.Antenna 2D 3D drawings： 2400 2440 2480 Phi 0 2D Phi 90 2D Theta 90 2D 5.Antennastandingwaveratio： 6.Correspondingcircuitdrawings: 7.Testingmethodsandstandards NameParameterMethodStandrdno. Antenna performance Radiation efficiency IEEEStandardTest Proceduresfor Antennas ANSI/IEEEStd149-1979 8.InstrumentListandCalibrationDate EquipmentManufacturerModelNo.SerialNo.LastCal.DueDate Network Analyzer KeysightE5071CMY469003932025.10.292028.10.28 ChamberFotekFTMP-24TFS-202010192025.10.282028.10.27 9.Testinglaboratoryinformation LaboratoryName:ShenzhenFeixinWirelessCommunicationCo.,Ltd Address:104HuanguanMiddleRoad,LonghuaDistrict,Shenzhen Testdate:March2026 Testedby:Mr.Huang 10.Testconfigurationdiagram： 11.Testingenvironmentphoto:

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
