A69ETHERNET01PV WEB Data Logger

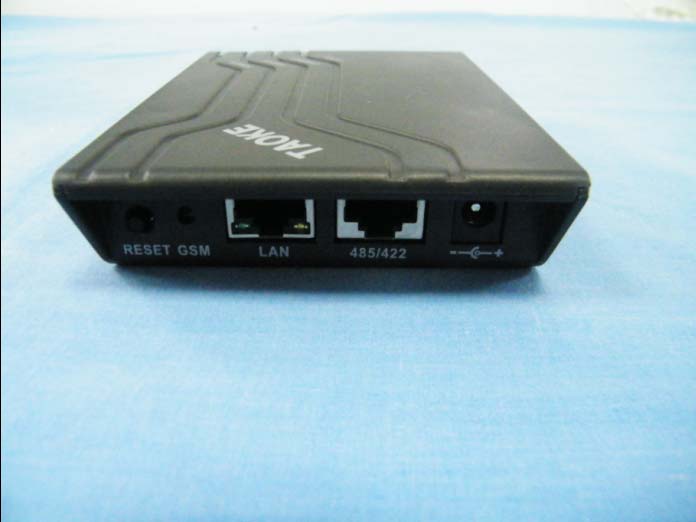

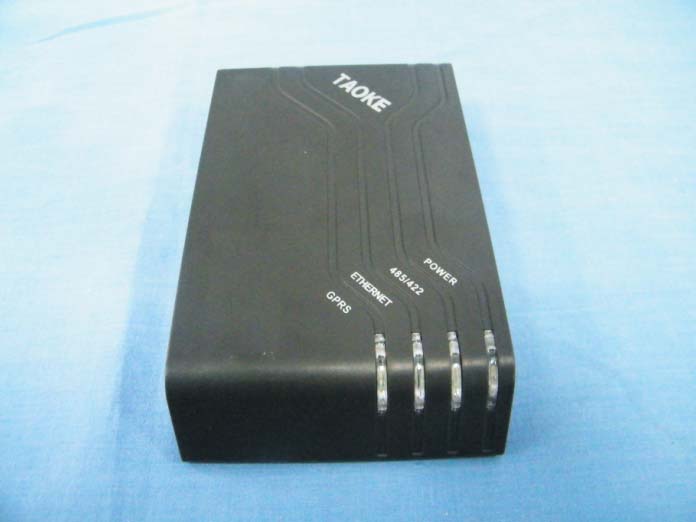

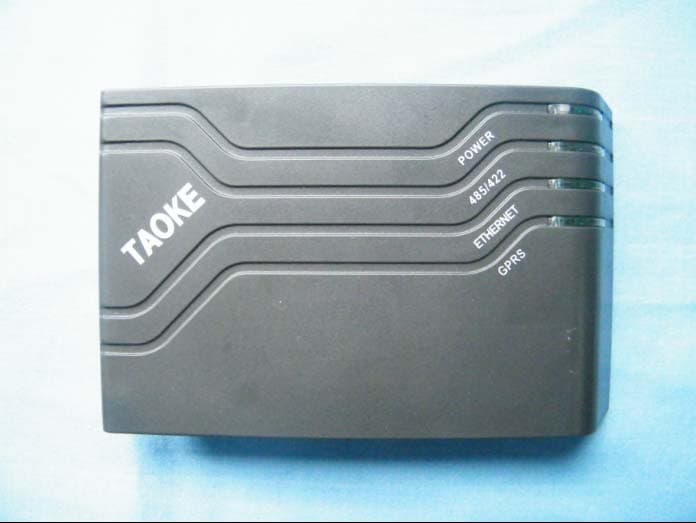

1 2 PV WEB DATA LOGGER TK-E20-01/08/16/08S/16S/32D Instruction 1. General TAOKE web data logger of PV plants collects the operation data, including inverter, radiation, meter data, etc. by RS-485/422, and sends these data to website via ethernet so that user can check the power station running status by logging on to internet website. 2.Scope of supply This logger will be delivered with the following components: 1. TK-E20 PV web data logger 2. Power adapter 220VAC input ,12V DC /1A output 3. Manual 4. CD disk 5. Wall plug and screw 3. Technical data Product parameters Tech-Specifications Power supply 220V AC /12V DC Static power consumption ＜2W Active power consumption ＜5W Indication for status 4(top)+2(rear) LEDs Internet Connection Ethernet Ethernet connection 10BASE-T/100BASE-TX Ethernet interface RJ45-CAT5 PV device(inverter etc.) connectionRS485/422 RS485/422 baudrate 1200～38.4K bps RS485/422 cable length Maxim 1000m RS485/422 interface RJ45 Data collection interval 5~30min(optional) Operation temperature -10～55°C(14～131°F) Protection type IP21(In-door use only) Installation Desktop or Wall-mounting L ×W ×H 135×85×25mm Configration Via computer 4.Ordering information TK-E20-××× Sending data via ethernet to intranet server added Max. number PV devices(inverters,meters,etc.) Sending data via ethernet to internet server 3 4 5.I/O illustration : DC power socket 485/422: RS-485/422 socket LAN: Ethernet socket GSM: No RESET：Key for reset to “IP address allocated via DHCP automatically” 6. Installation Field connection diagram PV web data logger should be installed where dry and ventilation are required in-door. It can be installed by desktop or wall-mounting. Connection the logger via “RS485/422” socket to the PV devices, including inverter, meter, sensor (radiation, temperature etc.) etc., and wiring among each other with CAT5 cable. RS-422/485 foot pin and CAT5 wire correspondence of logger The logger is set to identify network via DHCP automatically. Connection the logger via “LAN” socket to a network router with network cable, the LED-ETHERNET flashes quickly. When the LED is steady on, the IP address is allocated. If the LED flashes slowly after one minute, the IP address is not allocated automatically. You can set a fix IP address via computer. Read the “Logger set tool User Manual” and use the “Logger set tool.exe” in the disk. If you want to reset “IP address allocated via DHCP automatically”, pull out the DC plug, press the reset key and plug in at the same time. The 4 LEDs on top are flashing. When all the LEDs are steady on, release the key. NOTE:Each logger connected to a network has got its own IP RJ45 Pinouts/ Color of wire RS422 RS485 1 NC NC 2 NC NC 3/white green R+ 4/Blue T+ 485+(A) 5/White blue T- 485-(B) 6/Green R- 7/ Brown GND GND 8 GND GND 5 6 address. This address can not be used twice and can not be allocated to another logger, computer, etc. appliance. When the ‘ETHERNET’ indicator is steady on, but there is no data on website or you can not search the logger via computer with “Logger set tool.exe”. If the logger is set a fix IP address, you have set a wrong IP address or the IP address is allocated twice. If the logger is allocated IP address via DHCP automatically, the IP address is allocated twice. 7.Led illustration POWER:steady on when power supply is normal. 485/422:Off,no data is collected. flash 150ms when collection. Steady on,when all the data is collected correctly. 500ms On/500ms Off, some data can not be collected. ETHERNET:Off,cable not connected to a router or a computer. Steady on,the IP address is allocated. 500ms On/500ms Off, obtaining IP address automatically. 500ms On/2500ms Off, IP address can not be allocated. GPRS:Off. LAN: The two LEDs Off, ethernet is no linked. The two LEDs blinking,ethernet is linked. 8. Trouble shooting Symptom Analysis Handling DC power not connects in or get loose. Reconnecting power after checking the circuit. ‘Power’ indicator off Power adaptor malfunction Replace power adaptor. Wiring not connects or get loose Check cable among the logger and PV devices. PV device malfunction Check PV device. ‘RS485/422’ indicator off or flash Parameters’ wrong Contact installing personnel. Network disconnecting when the indicator is off Check the “LAN” socket, if the two LEDs are not blinking, check if the cable get loose. ‘ETHERNET’ indicator off or flash The IP address is something wrong when the indicator flash If the LEDs of “LAN” socket are blinking, the IP address is set wrong, or this address is allocated twice. 7 8 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
