A6H1202132PART 18 SUBPART C RF LIGHTING DEVICES--Fluorescent Lamp Ballast

4.1 FCC Note “This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45 – 30MHz.” If this equipment does cause harmful interference to other electronic equipments (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by using one or more of the following measures: * Reorient or relocated the equipment position * Increase the separation between the equipment and the other electronic equipments * Connect the equipment into other circuit different from other electronic equipments are connected * Consult the dealer or an experienced electronic equipments technician for help 4.2 Caution Disconnect line voltage before installing or replacing. Ballast case must be grounded to avoid possible shock hazard 4.3 Ballast Information 4.3.1 BEB/120/432 Ballast BEB/120/432 Case Dimension： 242×33×26mm Lamps F32/25/17T8 Max. Operate Ambient Tem. 55°C Num. of lamps 4 or 3 Min. Start Ambient Tem. -18°C Input Voltage 120Vac 60Hz Sound Rating Class A Max. Input Current 1.6±10% Net weight 0.5Kg Max. Input Wattage 105W±10% Open Circuit Voltage 600V Min. Starting Voltage 108V Voltage to Ground <600V Normal Factor >0.5 Enclosed and Potted Type 1 Outdoor Class P Type HL No PCB's Instant Start UL and CUL FCC 47.18 Consumer Equipment Total Harmonic Distortion <150% Lamp Operation Parallel Lamp Current 0.170A Current Crest Factor <1.7 Operating Frequency 44.5kHz 4.3.2 BEB/120/332 Ballast BEB/120/332 Case Dimension： 242×33×26mm Lamps F32/25/17T8 Max. Operate Ambient Tem. 55°C Num. of lamps 3 or 2 Min. Start Ambient Tem. -18°C Input Voltage 120Vac 60Hz Sound Rating Class A Max. Input Current 1.3±10% Net weight 0.5Kg Max. Input Wattage 86W±10% Open Circuit Voltage 600V Min. Starting Voltage 108V Voltage to Ground <600V Normal Factor >0.5 Enclosed and Potted Type 1 Outdoor Class P Type HL No PCB's Instant Start UL and CUL FCC 47.18 Consumer Equipment Total Harmonic Distortion <150% Lamp Operation Parallel Lamp Current 0.17A Current Crest Factor <1.7 Operating Frequency 44.5kHz 4.3 Ball Lam Num Inpu Max Max Min Norm To ta Lam Lam Curr Ope 4.3 Ball Lam Num Inpu Max Max Min Norm To ta Lam Lam Curr Ope 4.4 4.4. .3 BEB/120 ast mps m. of lamps ut Voltage x. Input Curr x. Input Watt . Starting Vo mal Factor al Harmonic mp Operation mp Current rent Crest F erating Freq .3 BEB/120 ast mps m. of lamps ut Voltage x. Input Curr x. Input Watt . Starting Vo mal Factor al Harmonic mp Operation mp Current rent Crest F erating Freq Wiring Diag 1 BEB/120/4 0/232 rent tage oltage Distortion n Factor uency 0/32 rent tage oltage Distortion n Factor uency gram 432 BEB/120 F32/25/1 2 or 1 120Vac 6 0.85±10 59W±10 108V >0.5 <150% Parallel 0.17A <1.7 44.5kHz BEB/120 F32/25/1 1 120Vac 6 0.52±10 32W±10 108V >0.5 <150% Parallel 0.17A <1.7 44.5kHz 0/232 C 7T8 M M 60Hz S 0% N 0% O V E T N I U F 0/32 C 7T8 M M 60Hz S 0% N 0% O V E T N I U F Case Dimen Max. Operat Min. Start Am Sound Ratin Net weight Open Circuit Voltage to G Enclosed an Type 1 Outd No PCB's nstant Star t UL and CUL FCC 47.18 C Case Dimen Max. Operat Min. Start Am Sound Ratin Net weight Open Circuit Voltage to G Enclosed an Type 1 Outd No PCB's nstant Star t UL and CUL FCC 47.18 C nsion： te Ambient T mbient Tem. ng t Voltage Ground nd Potted oo r Class P L Consumer E nsion： te Ambient T mbient Tem. ng t Voltage Ground nd Potted oo r Class P L Consumer E 15 Tem. 55 . -18 Cl 0.3 60 <6 P Type HL Equipment 15 Tem. 55 . -18 Cl 0.3 60 <6 P Type HL Equipment 53×40×30mm 5°C 8°C ass A 35Kg 00V 600V 53×40×30mm 5°C 8°C ass A 35Kg 00V 600V m m 4.4. 4.4. 4.4. 2 BEB/120/3 3 BEB/120/2 3 BEB/120/3 332 232 32

1 1 . Block Diagra m m

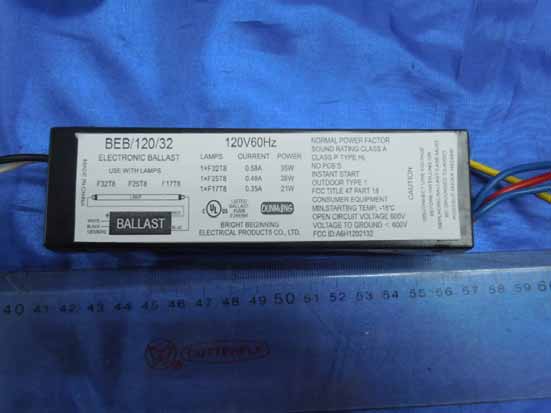

FIGURE 1 FLUORESCENT LAMP BALLAST (M/N: BEB/120/232) GENERAL APPEARANCE F IGURE 2 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32) GENERAL APPEARANCE

Label Location Information Refer to the below red arrow: (For M/N: BEJ/120/232) Label (For M/N: BEJ/120/32) Label Location

FIGURE 1 FLUORESCENT LAMP BALLAST (M/N: BEB/120/232) COVER REMOVED FIGURE 2 FLUORESCENT LAMP BALLAST (M/N: BEB/120/232) MAIN BOARD (COMPONENT SIDE) F IGURE 3 FLUORESCENT LAMP BALLAST (M/N: BEB/120/232) MAIN BOARD (SOLDERED SIDE)

Operation Description AC line voltage is commutated by four rectifying diodes to DC voltage. Electrolytic capacitance keep DC voltage smooth. And the DC voltage is changed to a AC voltage again which is high frequency about 44.5KHz by push-pull circuitry. Then a transformer make a high AC voltage lighting lamp.

1 2 34 A BC D 4 3 2 1 D CB A Ti t le Numb er Re vi si on Si z e A4 Date: 11-Apr-2011 Sheet of File: D:\My Documents\ 我的 文档 \ 开发 资料 \120V232NPIS\232.ddb Dr awn By : D1 C1 D3 D2D4 Q2 B E B/12 0/ 2 32 L2 C2 Q1 C3 R1 R2 L1 D5 C4 C5C6 Fuse R3 LAMP1 LAMP2 L3 B LK W HT G ND 61 5432 911 L3_N1 L3_N2 L3 _N4 L3_N3 BOM list for BEB/120/232 model No. Code Specific Num. Note 1 R1 0.5W 62K±10% P=12.5 1 2 R2,3 0.5W 150 Ω ±10% P=12.5 2 3 C1 CL21 400V 0.22uF J P=10 1 4 C2 CT81 3KV 2200pF 1 5 C3 CD11GH 200V47uF M 105 °C 1 6 C4 CBB81 1.6KV 3.9nF J P=15 1 7 C5,C6 CBB81 1600V 1.5nF J P=15 2 8 D1-4 1N4007 1000V 1A P=12.5 4 9 D5 1N4148 75V 150mA P=10 1 10 Q1,2 BUL741 TO-220 2 11 L1 DT1901 1 12 L2 DT1902 1 13 L3 DT2501 1 14 Fuse 3E 125V 3A 3.6 × 10mm 1 15 J1 Φ 0.6 P=12.5 1 16 Lead AWM11125 105 °C 600V 18AWG / 17 GND AWM11125 105 °C 600V 22AWG / 18 PCB DFD-3 140×28mm 1 19 IP1,2 DX10 V-2 105 °C 0.21mm 1 20 Label ZT4 100 °C 1 21 Potting Potting Compound HF-28P HB / 22 Button PP-HVO V-0 65 °C 3 23 Case Case10 242X32X25mm 1 24 Rivet 1.6X2.5 5 BOM list for BEB/120/32 model No. Code Specific Num. Note 1 R1 0.5W 62K±10% P=12.5 1 2 R2,3 0.5W 150 Ω ±10% P=12.5 2 3 C1 CL21 400V 0.22uF J P=10 1 4 C2 CT81 3KV 2200pF 1 5 C3 CD11GH 200V47uF M 105 °C 1 6 C4 CBB81 1.6KV 3.9nF J P=15 1 7 C5 CBB81 1600V 1.5nF J P=15 1 8 D1-4 1N4007 1000V 1A P=12.5 4 9 D5 1N4148 75V 150mA P=10 1 10 Q1,2 BUL741 TO-220 2 11 L1 DT1901 1 12 L2 DT1902 1 13 L3 DT2501 1 14 Fuse 3E 125V 3A 3.6 × 10mm 1 15 J1 Φ 0.6 P=12.5 1 16 Lead AWM11125 105 °C 600V 18AWG / 17 GND AWM11125 105 °C 600V 22AWG / 18 PCB DFD-3 140×28mm 1 19 IP1,2 DX10 V-2 105 °C 0.21mm 1 20 Label ZT4 100 °C 1 21 Potting Potting Compound HF-28P HB / 22 Button PP-HVO V-0 65 °C 3 23 Case Case10 242X32X25mm 1 24 Rivet 1.6X2.5 5

Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H1202132 Page 1 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11174 Prepared For : Bright Beginning Electrical Products Co., Ltd. A Part Dacheng Industrial Area Anzhen, Xishan, Wuxi, Jiangsu, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F11174 Date of Test : Dec 10, 2011 Date of Report : Dec 12, 2011 Application for FCC Certificate On Behalf of Bright Beginning Electrical Products Co., Ltd. Fluorescent Lamp Ballast Model No. : BEB/120/232 BEB/120/32 Serial No. : E1112130-01/01-- FCC ID : A6H1202132 Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H1202132 Page 2 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11174 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Peripherals .................................................................................................................................. 5 2.3 Description of Test Facility ........................................................................................................ 6 2.4 Measurement Uncertainty .......................................................................................................... 6 3 CONDUCTED EMISSION TEST .................................................................................................. 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limits (FCC Part 18 Consumer Equipment) ............................................ 7 3.4 Test Configuration ...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 8 4 MAGNETIC FIELD EMISSION TEST ...................................................................................... 12 4.1 Test Equipment ......................................................................................................................... 12 4.2 Block Diagram of Test Setup ................................................................................................... 12 4.3 Magnetic Field Emission Limit (FCC Part 18 305(b))............................................................. 13 4.4 Test Configuration .................................................................................................................... 13 4.5 Operating Condition of EUT .................................................................................................... 13 4.6 Test Procedures ........................................................................................................................ 13 4.7 Test Results .............................................................................................................................. 14 5 RADIATED EMISSION TEST ..................................................................................................... 18 5.1 Test Equipment ......................................................................................................................... 18 5.2 Block Diagram of Test Setup ................................................................................................... 18 5.3 Radiated Emission Limit (FCC Part 18.305(c) Consumer Equipment) ................................... 19 5.4 Test Configuration .................................................................................................................... 19 5.5 Operating Condition of EUT .................................................................................................... 19 5.6 Test Procedures ........................................................................................................................ 19 5.7 Test Results .............................................................................................................................. 20 6 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 24 Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H1202132 Page 3 of 24 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11174 TEST REPORT FOR FCC CERTIFICATE Applicant : Bright Beginning Electrical Products Co., Ltd. Manufacturer : Bright Beginning Electrical Products Co., Ltd. EUT Description : Fluorescent Lamp Ballast (A) Model No. BEB/120/232 BEB/120/32 (B) Serial No. E1112130-01/01 -- (C) Power Supply 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 SUBPART C RF LIGHTING DEVICES OCTOBER 2010 AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 Subpart C (RF Lighting Devices) limits both radiate…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test 2. Magnetic Field Emission Test HORIZONTAL POLARIZATION V ERTICAL POLARIZATION 3. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST BACK VIEW OF RADIATED EMISSION TEST SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION
