A6H120FC403222PART 18 SUBPART C RF LIGHTING DEVICES--Fluorescent Lamp Ballast

4.1 FCC Note “This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45 – 30MHz.” * Reorient or relocated the equipment position * Increase the separation between the equipment and the other electronic equipments * Connect the equipment into other circuit different from other electronic equipments are connected * Consult the dealer or an experienced electronic equipments technician for help 4.2 Caution Disconnect line voltage before installing or replacing. Ballast case must be grounded to avoid possible shock hazard 4.3 Ballast Information 4.3.1 BEB/120/40+32/1 Ballast BEB/120/40+32/1 Case Dimension(mm)： 153×40×30 Lamps FC16+12T9(40W+32W) Max. Operate Ambient Tem. 55°C Num. of lamps 1+1 Min. Start Ambient Tem. -18°C Input Voltage 120Vac 60Hz Sound Rating Class A Max. Input Current 0.82±10% Net weight 0.35Kg Max. Input Wattage 58W±10% Open Circuit Voltage 600V Min. Starting Voltage 108V Voltage to Ground <600V Normal Factor >0.5 Enclosed and Potted Type 1 Outdoor Class P Type HL No PCB's Rapid Start UL and CUL Total Harmonic Distortion <150% Lamp Operation In Series Lamp Current 0.23A Current Crest Factor <1.7 Operating Frequency 48kHz Lam 1× +1× Cas mm mps FC16T9(40W FC12T9(32 e Leng 153 Power Supply W) W) 120V 6 gth Mount 144 r y Inpu Curr 60Hz 0.82A Widt 40 t rent Inpu Pow A 58W h High 30 t wer Powe r Factor W >0.5 r r THD <150% Lamp Current 0.23A Operating Frequency 48KHz Lamp CCF <1.7 4. Ball Lam Num Inpu Max Max Min Norm To ta Lam Lam Curr Ope Lam 1× +1× Cas mm 3.2 BEB/120 ast mps m. of lamps ut Voltage x. Input Curr x. Input Watt . Starting Vo mal Factor al Harmonic mp Operation mp Current rent Crest F erating Freq mps FC12T9(32W FC08T9(22 e Leng 153 0/32+22/1 rent tage oltage Distortion n Factor uency Power Supply W) W) 120V 6 gth Mount 144 BEB/120 FC12+08 1+1 120Vac 6 0.68±10 45W±10 108V >0.5 <150% In Series 0.23A <1.7 48kHz r y Inpu Curr 60Hz 0.68A Widt 40 0/32+22/1 8T9(32W+22 60Hz 0% 0% s t rent Inpu Pow A 45W h High 30 Case 2W) Max. Min. S Sound Net w Open Voltag Enclo Type Clas s No PC Rapid UL an t wer Powe r Factor W >0.5 Dimension( Operate Am Start Ambien d Rating weight Circuit Volta ge to Ground osed and Po 1 Outdoo r s P Type HL CB's d Start nd CUL r r THD <150% (mm)： mbient Tem. nt Tem. tage d otted Lamp Current 0.22A 153×40× 55°C -18°C Class A 0.35Kg 600V <600V Operating Frequency 48KHz ×30 Lamp CCF <1.7 4. Ball Lam Num Inpu Max Max Min Norm To ta Lam Lam Curr Ope Lamp 1×F Cas mm 3.3 BEB/120 ast mps m. of lamps ut Voltage x. Input Curr x. Input Watt . Starting Vo mal Factor al Harmonic mp Operation mp Current rent Crest F erating Freq ps C08T9(22W) e Leng 153 0/22 rent tage oltage Distortion n Factor uency Power Supply 120V60Hz gth Mount 144 BEB/120 FC08T9( 1 120Vac 6 0.36±10 20W±10 108V >0.5 <150% Parallel 0.25A <1.7 48kHz Input Current 0.36A Widt 40 0/22 (22W) 60Hz 0% 0% Input Power Po Fa 20W >0 h High 30 Case D Max. O Min. S Sound Net we Open C Voltag Enclos Type 1 Class No P C Rapid UL an d ower actor THD .5 <150% Dimension(m Operate Amb tart Ambient Rating eight Circuit Volta e to Ground sed and Pott Outdoor P Type HL CB's Start d CUL Lamp Voltage % 62V mm)： bient Tem. t Tem. age d ted Lamp Current 0.25A 98×50×2 55°C -18°C Class A 0.35Kg 600V <600V Operating Frequency 48KHz 26 Lamp CCF <1.7

1 1 . Block Diagra m m

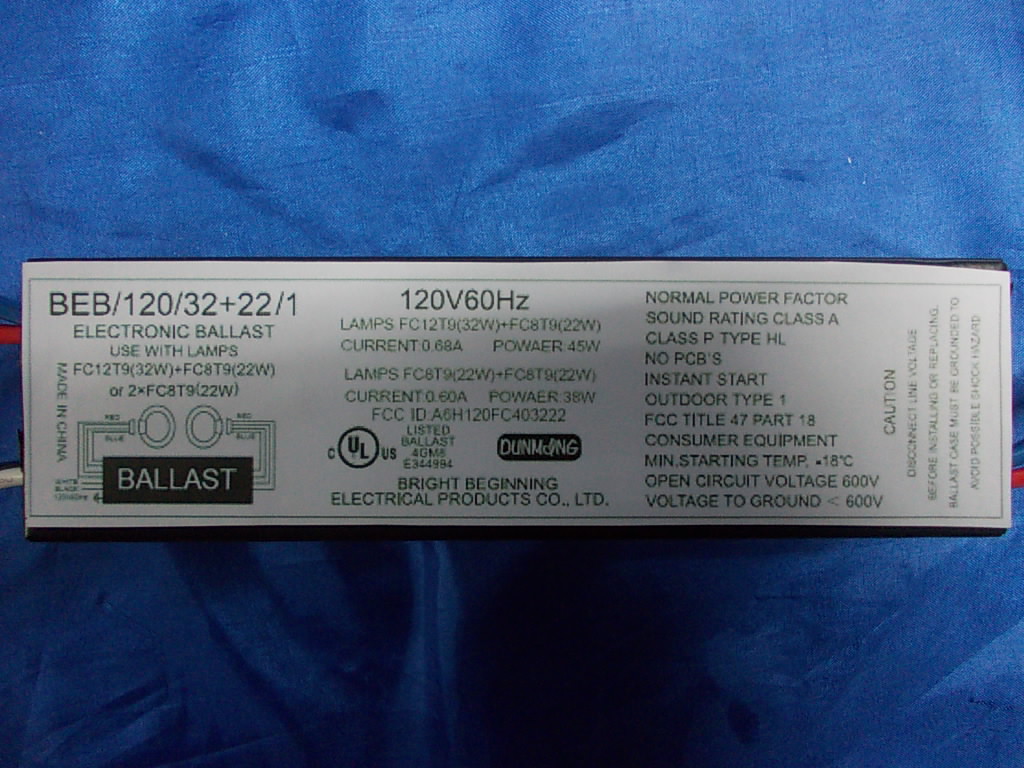

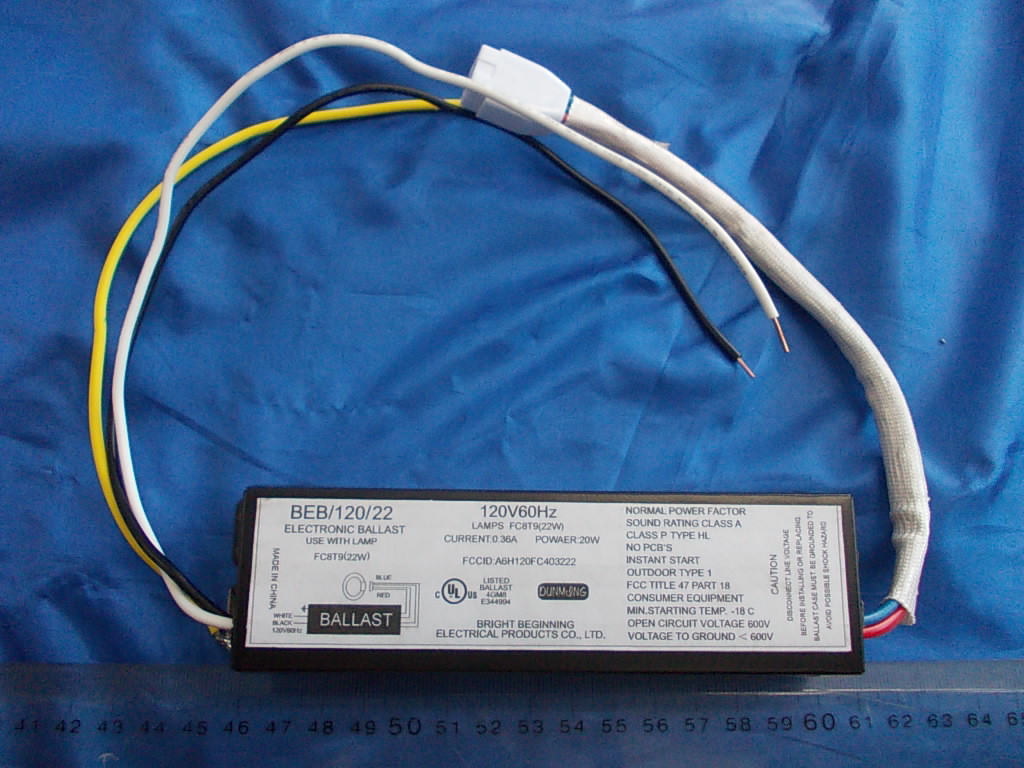

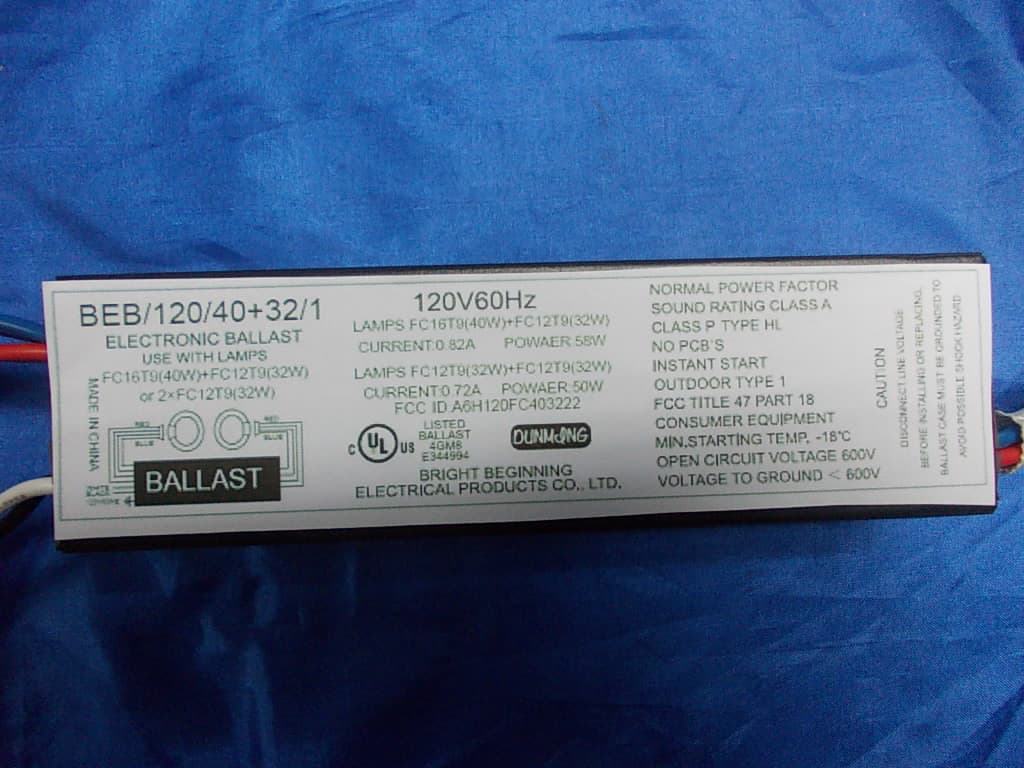

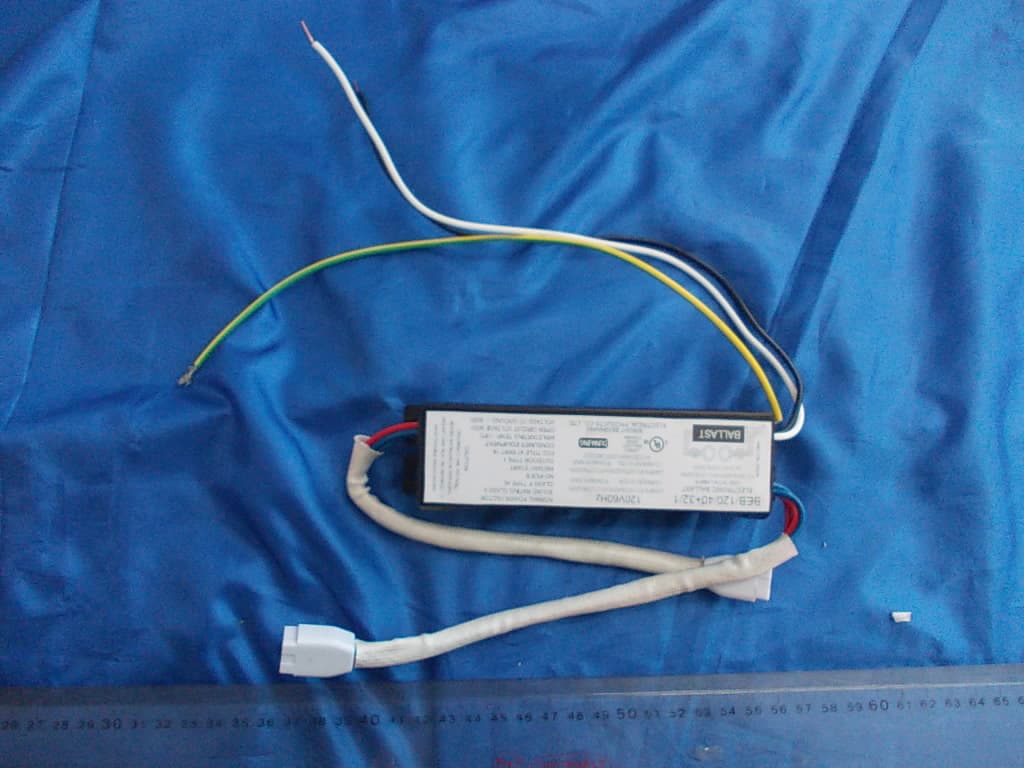

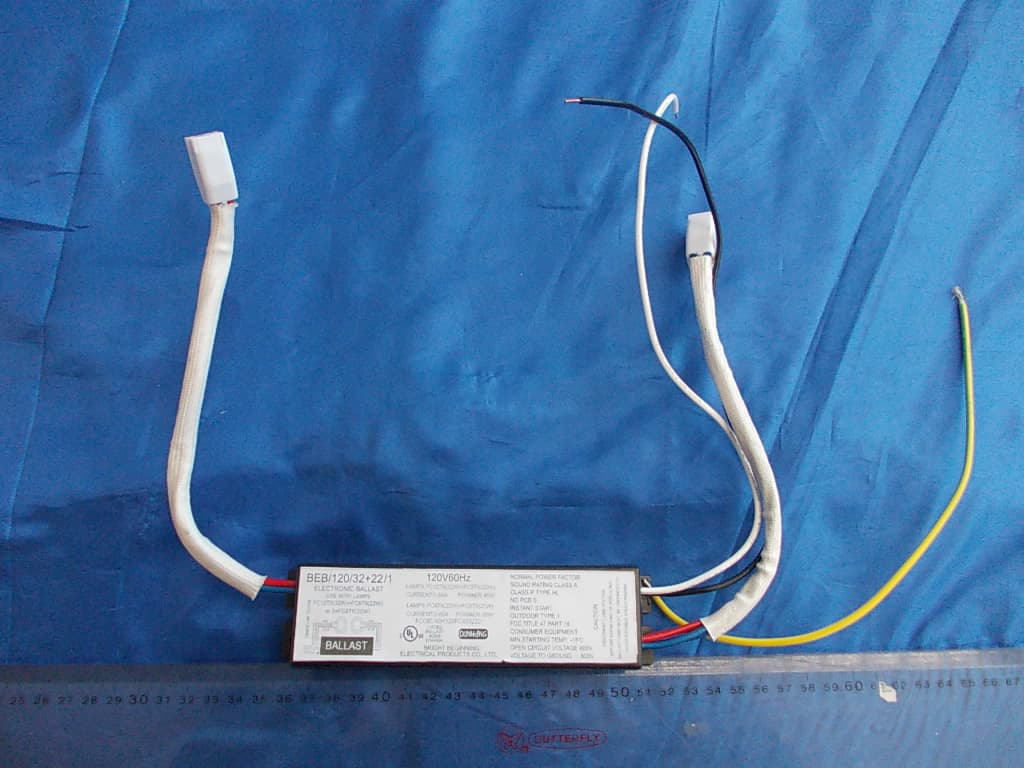

FIGURE 1 FLUORESCENT LAMP BALLAST (M/N: BEB/120/40+32/1) GENERAL APPEARANCE F IGURE 2 FLUORESCENT LAMP BALLAST (M/N: BEB/120/40+32/1) LABEL FIGURE 3 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32+22/1) GENERAL APPEARANCE F IGURE 4 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32+22/1) LABEL FIGURE 5 FLUORESCENT LAMP BALLAST (M/N: BEB/120/22) GENERAL APPEARANCE F IGURE 6 FLUORESCENT LAMP BALLAST (M/N: BEB/120/22) LABEL

Label Location Information Refer to the below red arrow: (For M/N: BEB/120/40+32/1) Label (For M/N: BEB/120/32+22/1) Label (For M/N: BEB/120/22) Label Location

FIGURE 1 FLUORESCENT LAMP BALLAST (M/N: BEB/120/40+32/1) COVER REMOVED FIGURE 2 FLUORESCENT LAMP BALLAST (M/N: BEB/120/40+32/1) MAIN BOARD (COMPONENT SIDE) F IGURE 3 FLUORESCENT LAMP BALLAST (M/N: BEB/120/40+32/1) MAIN BOARD (SOLDERED SIDE) FIGURE 4 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32+22/1) COVER REMOVED FIGURE 5 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32+22/1) MAIN BOARD (COMPONENT SIDE) F IGURE 6 FLUORESCENT LAMP BALLAST (M/N: BEB/120/32+22/1) MAIN BOARD (SOLDERED SIDE) FIGURE 7 FLUORESCENT LAMP BALLAST (M/N: BEB/120/22) COVER REMOVED FIGURE 8 FLUORESCENT LAMP BALLAST (M/N: BEB/120/22) MAIN BOARD (COMPONENT SIDE) F IGURE 9 FLUORESCENT LAMP BALLAST (M/N: BEB/120/22) MAIN BOARD (SOLDERED SIDE)

Operation Description AC line voltage is commutated by four rectifying diodes to DC voltage. Electrolytic capacitance keep DC voltage smooth. And the DC voltage is changed to a AC voltage again which is high frequency about 48KHz by push-pull circuitry. Then a transformer make a high AC voltage lighting lamp.

For BEB/120/40+32/1 & BE B/120/32+22/1 model 1 2 34 A BC D 4 3 2 1 D CB A Title Numb er Re vi si on Si z e A4 Dat e: 10 -Ap r- 201 1 Sh eet of File: D:\My Documents\ 我的 文档 \ 开发 资料 \ 12 0V32 22NPRS\ 32 22. dd b Dr awn By : D1 C1 D3 D2D4 Q2 B E B /1 20/ 32 +22 /RS L2 C2 Q1 C3 R1 R2 L1 D5 C4 C5 C6 Fuse R3 L3 B LK W HT G ND 1 6 5432 89 L3_N1 L3_N2 L3 _N4 L3_N3 101187 1312 L3_N7 L3_N6 L3_N5 B E B/1 20/ 32 +22 /RS For BEB/120/22 model 1 2 34 A BC D 4 3 2 1 D CB A Ti t le Numb er Re vi si on Si z e A4 Dat e: 10 -Ap r- 201 1 Sh eet of File: D:\My Documents\ 我的 文档 \ 开发 资料 \120V3222NPRS\3222.ddb Dr awn By : D1 C1 D3 D2D4 Q2 B E B/120 /3 2/RS L2 C2 Q1 C3 R1 R2 L1 D5 C4 C5 Fuse R3 L3 B LK W HT G ND 1 6 5432 89 L3_N1 L3_N2 L3 _N4 L3_N3 1 0 1 1 87 1312 L3_N7 L3_N6 L3_N5 B E B/120 /2 2/RS BOM list for BEB/120/40+32/1 & BEB/120/32+22/1 model No. Code Name Specific Num. 1 R1 MOS 0.5W 62K J 1 2 R2,3 MOS 0.5W 150Ω J 2 3 C1 CL21 400V0.1uF K P10 1 4 C2 CT81 3KV2200pF M P7.5 1 5 C3 CD11GH 200V47uF105°CM12.5×20 1 6 C4 NPP 1.6KV3.9nF J P15 1 7 C5 NPP 1.6KV1.5nF J P15 1 8 C6 CT81 2KV220pF M P5 1 9 D1-4 RD 1N4007 1000V 1A DO41 4 10 D5 FRD 1N4148 75V 0.15A DO-35 1 11 Q1,2 NPN BUL742C TO-220 2 12 L1 BT1901 EE19 10K 1 13 L2 BT1902 EE19 2.5K 1 14 L3 BT2503 EF25/9 2.5K 1 15 Fuse 3E 125V 3A 3.6×10mm 1 16 J1 JUM Φ0.6 P=15 1 17 Lead AWM 11125 105°C600V 18AWG 3.16m 18 GND AWM 1015 105°C600V 22AWG 0.07 19 RVT RVT 1.6X2.5 10 20 PCB DFD-3 DFD-3 122×34mm 1/6 21 IP1,2 6520 0.15mm 1套 22 Potting HF-28P Potting HF-28P HB 0.2Kg 23 LC LC-1 PP-HVO V-0 65°C 3 24 LH G10Q G10Q 2 25 CASE CS-1 Case153X40X30mm 1 26 Label ZT4 ZT4 100°C 1 27 L0 7447031 1 BOM list for BEB/120/22 model No. Code Name Specific Num. 1 R1 MOS 0.5W 62K J 1 2 R2,3 MOS 0.5W 150Ω J 2 3 C1 CL21 400V0.1uF K P10 1 4 C2 CT81 3KV2200pF M P7.5 1 5 C3 CD11GH 200V47uF105°CM12.5×20 1 6 C4 NPP 1.6KV3.9nF J P15 1 7 C5 NPP 1.6KV1.5nF J P15 1 8 D1-4 RD 1N4007 1000V 1A DO41 4 9 D5 FRD 1N4148 75V 0.15A DO-35 1 10 Q1,2 NPN BUL742C TO-220 2 11 L1 BT1901 EE19 10K 1 12 L2 BT1902 EE19 2.5K 1 13 L3 BT2503 EF25/9 2.5K 1 14 Fuse 3E 125V 3A 3.6×10mm 1 15 J1 JUM Φ0.6 P=15 1 16 Lead AWM 11125 105°C600V 18AWG 2.16m 17 GND AWM 1015 105°C600V 22AWG 0.07 18 RVT RVT 1.6X2.5 10 19 PCB DFD-3 DFD-3 122×34mm 1/6 20 IP1,2 6520 0.15mm 1套 21 Potting HF-28P Potting HF-28P HB 0.2Kg 22 LC LC-1 PP-HVO V-0 65°C 3 23 LH G10Q G10Q 1 24 CASE CS-1 Case153X40X30mm 1 25 Label ZT4 ZT4 100°C 1 26 L0 7447031 1

Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H120FC403222 Page 1 of 22 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12049 Prepared For : Bright Beginning Electrical Products Co., Ltd. A Part Dacheng Industrial Area Anzhen, Xishan, Wuxi, Jiangsu, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F12049 Date of Test : Feb 16 – 28, 2012 Date of Report : Mar 28, 2012 Application for FCC Certificate On Behalf of Bright Beginning Electrical Products Co., Ltd. Fluorescent Lamp Ballast Model No. : BEB/120/40+32/1 BEB/120/32+22/1BEB/120/22 Serial No. : E1202167-02/02 E1202166-01/02 E1202165-01/02 FCC ID : A6H120FC403222 Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H120FC403222 Page 2 of 22 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12049 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Peripherals .................................................................................................................................. 5 2.3 Description of Test Facility ........................................................................................................ 6 2.4 Measurement Uncertainty .......................................................................................................... 6 3 CONDUCTED EMISSION TEST .................................................................................................. 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limits (FCC Part 18 Consumer Equipment) ............................................ 7 3.4 Test Configuration ...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 8 4 MAGNETIC FIELD EMISSION TEST ...................................................................................... 14 4.1 Test Equipment ......................................................................................................................... 14 4.2 Block Diagram of Test Setup ................................................................................................... 14 4.3 Magnetic Field Emission Limit (FCC Part 18 305(b))............................................................. 15 4.4 Test Configuration .................................................................................................................... 15 4.5 Operating Condition of EUT .................................................................................................... 15 4.6 Test Procedures ........................................................................................................................ 15 4.7 Test Results .............................................................................................................................. 16 5 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 22 Bright Beginning Electrical Products Co., Ltd. FCC ID: A6H120FC403222 Page 3 of 22 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12049 TEST REPORT FOR FCC CERTIFICATE Applicant : Bright Beginning Electrical Products Co., Ltd. Manufacturer : Bright Beginning Electrical Products Co., Ltd. EUT Description : Fluorescent Lamp Ballast (A) Model No. BEB/120/40+32/1BEB/120/32+22/1 BEB/120/22 -- (B) Serial No. E1202167-02/02 E1202166-01/02 E1202165-01/02 -- (C) Power Supply 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 SUBPART C RF LIGHTING DEVICES OCTOBER 2010 AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 Subpart C (RF Lighting Devices) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT which was tested in 3m anechoic chamber on Feb 16 – 28, 2012 is technically compliance with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Feb 16 – 28, 2012 Date of Report : Mar 28, 2012 Producer : KATHY WANG/ Assistant Review : DIO YANG / Assistant Manager Signatory : SAMMY CHEN / Deputy Manager Bright Beginning Electrical Products Co…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test 2. Magnetic Field Emission Test HORIZONTAL POLARIZATION V ERTICAL POLARIZATION
