A7D-24NOD-PA100Radio Module

Input excel file Revision 2.2 08/2012 The information in this document is subject to change without notice. 1/5 TALON COMMUNICATIONS 10636 SCRIPPS SUMMIT CT. SUITE 209 SAN DIEGO CA 92131 +1 858.653.0100 WWW.TALONCOM.COM Copyright © 2012 Talon Communications, Inc. +20dBm 2Mbps HiMOD RADIO TRANSCEIVER DESCRIPTION The 24 HiMOD is a low power, high over the air data rate, FCC certified 2.4GHz RF Module with a 100mW PA/LNA for extended range operations. The micro form factor module includes either an SMA antenna connector or a built in trace antenna. The 24 HiMOD is based on the Nordic nRF24L01+ radio incorporating an Enhanced ShockBurst™ hardware protocol accelerator which offloads time critical protocol functions from the application microcontroller enabling the implementation of advanced and robust wireless connectivity with low cost 3rd-party microcontrollers. The 24 HiMOD can be used with the nRFgo SDK for easy code development. The nRFgo SDK is a fully featured Software Development Kit for Nordic nRF24L Series 2.4GHz RF System-on-Chips (SoCs). Used in conjunction with the nRFgo Starter Kit and nRFgo Studio, it contains everything needed for code development and debugging, including integration with Keil μVision™ IDE, a comprehensive library of hardware abstraction layers (HAL), Nordic Gazell 2.4GHz RF protocol stack, USB stack, and example applications. The module brings out all the functional pins of the nRF24L01+ and PA for maximum useability and flexibility including: • SPI Bus • Maskable Interrupt • Power Amplifier Tx and Rx Enable FEATURES • +20dBm (100mW) Maximum Transmit Power • Micro 27mm x 14mm x 10mm form factor (SMA) • Long range-up to ½ mile LOS • Worldwide 2.4GHz ISM band operation • 250Kbps / 1Mbps / 2Mbps selectable data rate • 79 Selectable RF channels • Enhanced ShockBurstTM hardware accelerator • Automatic Packet Handling • Nordic Gazell Protocol Stack • Low power modes (<2 μA in sleep mode) • SMA or trace antenna • Nordic Radio plus PA/LNA • SMT or right angle through-hole mounting • -40C to +85C Operation • 2.0v to 3.6v Operation • 5.0v tolerant inputs • RoHS Compliant • FCC/CE/IC Certified APPLICATIONS • Security • Video / JPEG • M2M • Long Range Monitoring • Industrial Control • Commercial Automation • Lighting Control • Asset Tracking Input excel file Revision 2.2 08/2012 The information in this document is subject to change without notice. 2/5 TALON COMMUNICATIONS 10636 SCRIPPS SUMMIT CT. SUITE 209 SAN DIEGO CA 92131 +1 858.653.0100 WWW.TALONCOM.COM Copyright © 2012 Talon Communications, Inc. +20dBm 2Mbps HiMOD RADIO TRANSCEIVER TALON MC133226 MODULE AND PINOUT TALON HiMOD MODULE PINOUT MODULE PIN # nRF24L01+ PIN # PIN NAME TYPE DESCRIPTION P1 7,15,18,19 VDD POWER 2.0 - 3.6V power supply 3.3v Typical P2 8,14,17,20 GND POWER GROUND P3 1 CE DIGITAL INPUT CHIP ENABLE ACTIVATES TX or RX P4 2 CSN DIGITAL INPUT SPI CHIP SELECT (ACTIVE LOW) P5 3 SCK DIGITAL INPUT SPI SERIAL DATA CLOCK P6 4 MOSI DIGITAL INPUT SPI SLAVE DATA INPUT P7 8,14,17,20 GND POWER GROUND P8 6 IRQ DIGITAL OUTPUT MASKABLE INTERRUPT (ACTIVE LOW) P9 5 MISO DIGITAL OUTPUT SPI SLAVE DATA OUTPUT (TRISTATE OPTION) P10 NC NC N/A DO NOT CONNECT P11 N/A TXEN DIGITAL INPUT POWER AMPLIFIER TRANSMIT ENABLE P12 N/A RXEN DIGITAL INPUT POWER AMPLIFIER RECEIVE ENABLE P13 8,14,17,20 GND POWER GROUND Input excel file Revision 2.2 08/2012 The information in this document is subject to change without notice. 3/5 TALON COMMUNICATIONS 10636 SCRIPPS SUMMIT CT. SUITE 209 SAN DIEGO CA 92131 +1 858.653.0100 WWW.TALONCOM.COM Copyright © 2012 Talon Communications, Inc. +20dBm 2Mbps HiMOD RADIO TRANSCEIVER TALON HiMOD MODULE DIMENSIONS / PADS P1 P13 Input excel file Revision 2.2 08/2012 The information in this document is subject to change without notice. 4/5 TALON COMMUNICATIONS 10636 SCRIPPS SUMMIT CT. SUITE 209 SAN DIEGO CA 92131 +1 858.653.0100 WWW.TALONCOM.COM Copyright © 2012 Talon Communications, Inc. +20dBm 2Mbps HiMOD RADIO TRANSCEIVER Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The se limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a part icular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or re locate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rule s. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TALON HiMOD ORDERING INFORMATION MODULE RF CONNECTOR TCI-24HiMOD-RPSMA RP-SMA TCI-24HiMOD-PCBANT N/A - Trace Antenna FCC OPERATING NOTES Input excel file Revision 2.2 08/2012 The information in this document is subject to change without notice. 5/5 TALON COMMUNICATIONS 10636 SCRIPPS SUMMIT CT. SUITE 209 SAN DIEGO CA 92131 +1 858.653.0100 WWW.TALONCOM.COM Copyright © 2012 Talon Communications, Inc. +20dBm 2Mbps HiMOD RADIO TRANSCEIVER This device complies with Industry Canada licence‐exempt RSS…

Text truncated - open the document above for the full version.

31 July 2012 To whom it may concern, Letter of Agency I, an officer of Talon Communications, Inc. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Scott McDermaid CEO Talon Communications, Inc. www.taloncom.com 858-653-0100

July 31, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: A7D-24NOD-PA100 Request is hereby submitted by Talon Communications, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Talon Communications, Inc. reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Talon Communications, Inc. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Scott McDermaid CEO

Single-modular approval request letter Date Sep 3, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Module Approval Letter, per 47CFR 15.212; FCC ID: A7D-24NOD-PA100 To Whom It May Concern: Pls. be advised that Talon Communications, Inc. Radio Module conforms to the modular definition as stated in 47CFR15.212, as such; a. The modular transmitter with its own shielding. b. This module has data buffer. c. This module has internal power regulation inside the chipset. d. The modular transmitter has an integral PCB antenna or dedicated antenna with reverse SMA connector, it’s fulfil the requirements of 15.203. e. The modular transmitter is tested in a stand-alone configuration via a test fixture powered by PC USB Port. f. The modular transmitter will tape on the Shield with FCC ID: A7D-24NOD-PA100. g. The modular transmitter complies with Section 15.249. h. The modular transmitter complies with any applicable RF exposure requirements. Sincerely Scott McDermaid Talon Communications, Inc. 10636 Scripps Summit Ct. Ste 209, San Diego, California, United States.

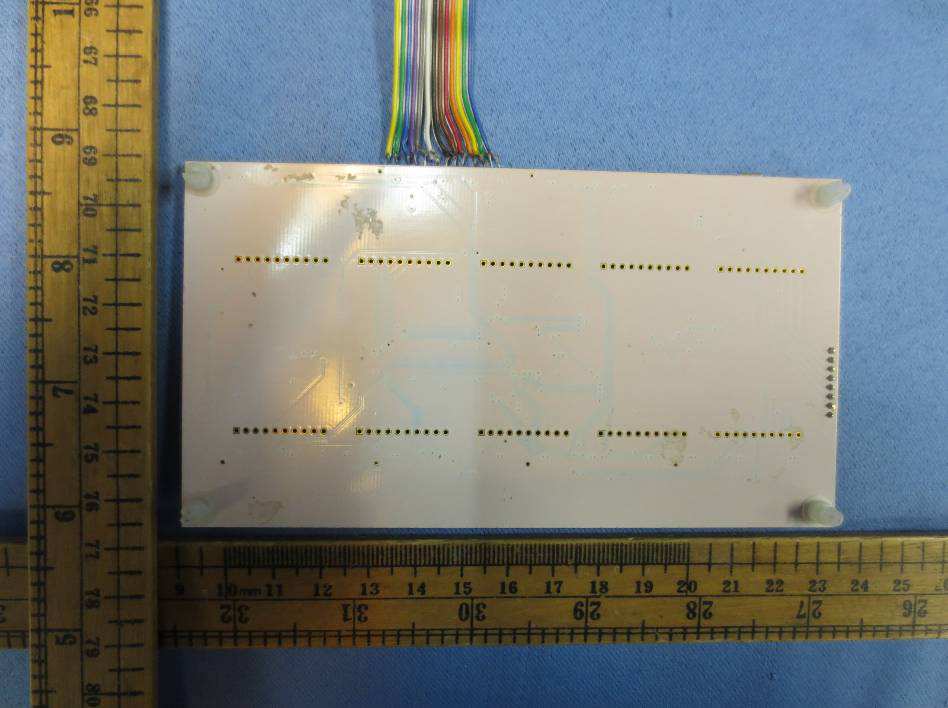

External Photos 24HiMOD-RPSMA 24HiMOD-PCBANT Support Test Fixture

Label Artwork and Location

Internal Photo 24HiMOD-RPSMA 24HiMOD-PCBANT

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. The radiated output power (The worst-case radiated emission is 112.9 dBμV/m with the module 24HiMOD-RPSMA) = [(FS*D) ^2 / 30] mW = 58.479 mW From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The (EIRP) source-based time-averaging output power = 58.479*(T on/ (Ton+Toff))mW < 58.479 mW, since (Ton/ (Ton+Toff)) < 1 The power density at 20 cm from the antenna = EIRP / 4 πR^2 < 0.0116 mW/cm^2 where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.”

Att 20 dB A * Offset 3.5 dB LVL Ref 120.5 dBμV Center 2.4835 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW 30 40 50 60 70 80 90 100 110 120 1 Marker 1 [T1 ] 117.22 dBμV 2.479960000 GHz 1 Delta 1 [T1 ] -59.69 dB 3.600000000 MHz

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF: No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Talon Communications, Inc. Application For Certification FCC ID: A7D-24NOD-PA100 Product Description: Radio Module 2.4GHz Transceiver Module Report No.: SZ12080136-1 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-11] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: 1 November 2012 Model: 24HiMOD-RPSMA Additional Model: 24HiMOD-PCBANT INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: A7D-24NOD-PA100 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: A7D-24NOD-PA100 ii MEASUREMENT/TECHNICAL REPORT Talon Communications, Inc. FCC ID: A7D-24NOD-PA100 1 November 2012 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-11 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0645 Fax: (86 755) 8601 6751 Model: 24HiMOD-RPSMA Additional Model: 24HiMOD-PCBANT INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: A7D-24NOD-PA100 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 5 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1Radiated Test Results.............................................................................9 3.1.1 Field Strength Calculation................................................................................ 9 3.1.2 Radiated Emission Configuration Photograph ................................................ 10 3.1.3 Radiated Emissions....................................................................................... 10 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 13 3.2 Conducted Emission at Mains Terminal................................................... 20 3.2.1 Conducted Emissions Configuration Photograph......................................20 3.2.2 Conducted Emissions........................................................................20 4.0 Equipment Photographs................................................................................... 24 5.0 Product Labelling....................…

Text truncated - open the document above for the full version.

Radiated Photos

Conducted Photos
