A7JEZS1262.4GHz Wireless Memory Card

1/3 ez Share TM ES100 User Guide What You Need ¾ Digital Camera with SD Slot ¾ Wi‐Fi Device (Phone/PAD/Laptop) Camera Steps 3 short beeps(or Flashing light) indicate Share Mode is ready. Intermittent beep or Flashing light reminds Share Mode is On. Note: 1. Switch off the Share Mode you need turn off the Share Switch. 2. Beep or Flashing light reminder is subject to manufacturing process without prior notice. Wa r n i n g : 1. When switching on/off the Share Mode Switch you must power off the camera! 2. Insert/Pull out the ez Share you must power off the camera! 2/3 Wi­Fi Device Steps Default Nickname is ez Share, password is 0000, and you can rename it by yourself. Q&A Q1. ez Share is on Share Mode, but Wi-Fi device can’t access ez Share successfully? A: 1) Make sure device’s Wi-Fi has been turned on. 2) Confirm it is close enough between Wi-Fi device and digital camera. 3) Make sure that the IP setting of Wi-Fi device is “Enable DHCP” or disables “Static IP Address”. Q2. How to view photos in camera by Wi-Fi device when Wi-Fi device successfully access ez Share? A: 1) Confirm web explorer is one of the followings: Safari\ IE\Opera\Chrome\UC. 2) Input the complete website “ez.com“ on the browser address bar. 3) Key in correct password to login. Q3. How to keep ez Share running for a long time? A: Please avoid camera to enter power-saving mode. It will shut down ez Share’s power; It is highly recommended setting camera as non-power-saving mode when you perform “Share” function (See camera’s user manual). Q4. Can ez Share be used as a normal SD card when “Share” mode is turned off? A: Yes, it can be used as a normal SD card when you turn off the Share mode at the bottom of ez Share, which is beneficial to power-saving for a digital camera. Q5. How many users can ez Share support to be accessed? A: ez Share, simultaneously, supports multi-user access. Exceeding maximum of user might result in network jam or abnormal display. Q6. How to reset password? A: The default nickname(SSID) is “ez Share”, and the password is “0000”,you can change the nickname and password by yourself or reset them as following: 3/3 1. Insert the ez Share into SD slot of the computer (By USB to SD converter if no slot in the computer). 2. Delete the file named “ezshare.cfg” in the root directory. 3. Pull out the ez Share by safe mode. Q7: Digital cameras plugged in ez Share display "Cannot create a folder", "The card is not formatted", "Cannot recognize the memory card", "Memory card full" or other information, why? A: For security, some models of digital cameras (such as Fuji) cannot properly recognize the storage card which has been used in other digital cameras. You can format the memory card by digital camera or computer for use. Q8. How to avoid slow speed caused by multi-channel conflict in too many Wi-Fi hot spots environment? A: ez Share allows user to configure the Wi-Fi Channel manually, you can enter "Nickname&Password" webpage to change the "Wi-Fi Channel" (can be set to Channel 1 to 13). Note: Please make sure web explorer’s Java Script is available for ez Share’s normal usage (refer to web explorer’s setting). FCC *This device is to be used only for fixed and mobile applications. z This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. z Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. z Some electronic devices are susceptible to electromagnetic interference sent by this equipment if inadequately shielded. Please use this equipment at least 20cm or as far as you can from TV set, radio and other automated office equipment so as to avoid interference. z This device is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. z This equipment has been tested and found to comply with the limits for a Class B digital device, 4/3 pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. z a minimum separation distance of at least 0.2 m between this equipment and all persons shall be guaranteed to satisfy the RF exposure compliance. More Information, Contact us You are warmly welcome to visit our website http://www.ezshare.com.cn for more details. Email: [email protected] Tel: +86-10-84924650 A BRAND BY 2011 LZeal Information Technology Co, Ltd. All Righ…

Text truncated - open the document above for the full version.

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: 2.4GHz Wireless Memory Card Marketing Name: ez Share Product Model: ES100 FCC ID: A7JEZS126 The following information should be held confidential: All Schematics/block diagrams All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Gang Guo Title: RF Senior Engineer LZeal Information Technology Co., Ltd F18, Unit 2, 530 Building, No.100, Dicui Road, Liyuan Development Zone, Wuxi City, Jiangsu Province, P.R.China 214072 Tel: 086-510-81170199 Fax: 086-510-81170187

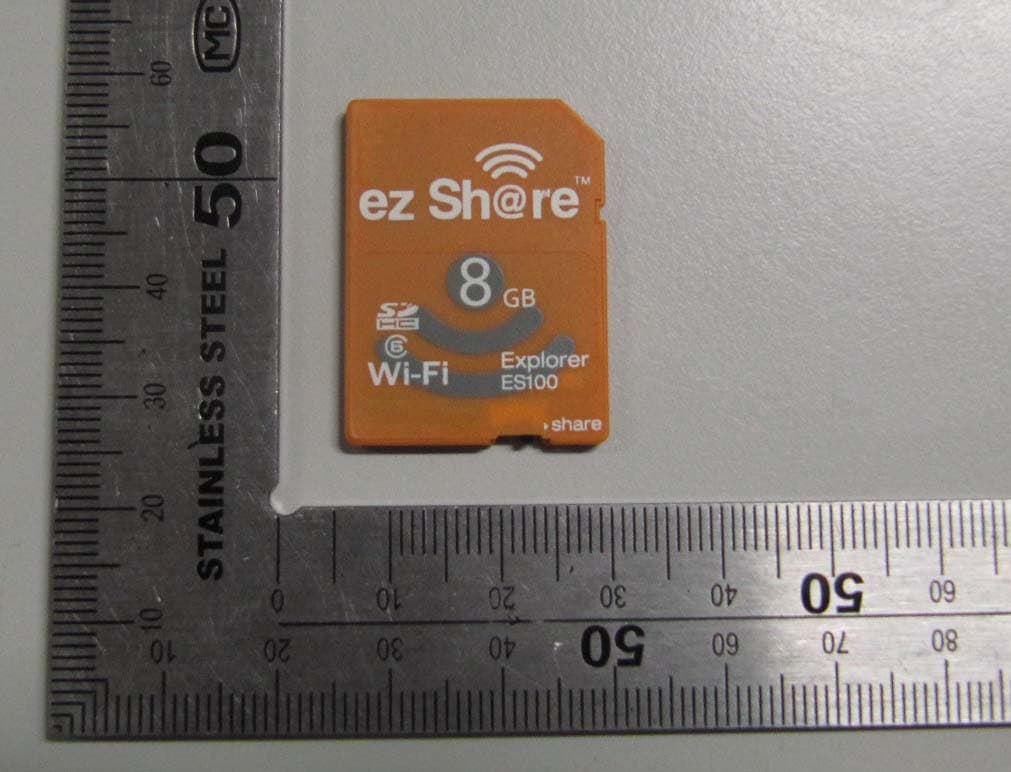

A7JEZS126 External Photo

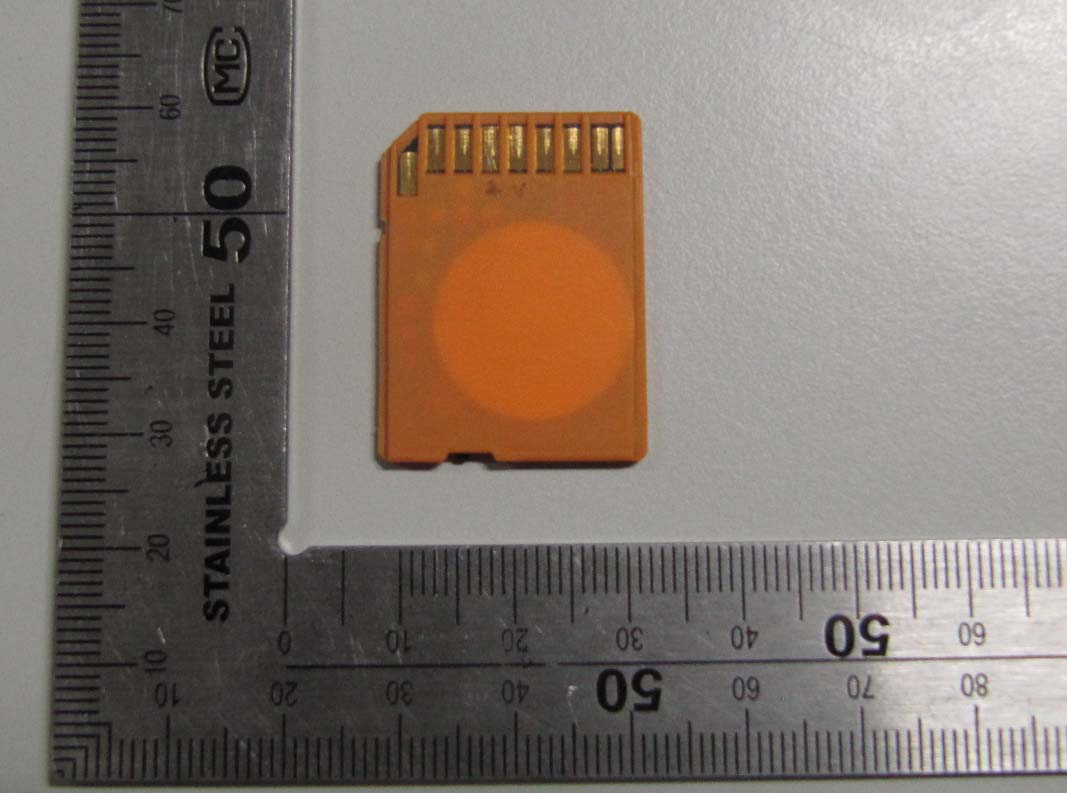

A7JEZS126 Internal Photo

D-PL-12111-01-01 CNAS L0447 Registration No.910917 TEST REPORT Report No.: SRTC2011-H024-E0097 Product Name: 2.4GHz Wireless Memory Card Marketing Name: ez Share Product Model: ES100 Applicant: LZeal Information Technology Co., Ltd. Manufacturer: LZeal Information Technology Co., Ltd. Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2011-H024-E0097 FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 14 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC CONTENTS 1. General information .................................................................................. 3 1.1 Notes of the test report ................................................................................................... 3 1.2 Information about the testing laboratory ....................................................................... 3 1.3 Applicant’s details ............................................................................................................ 3 1.4 Manufacturer’s details ..................................................................................................... 3 1.5 Application details ............................................................................................................ 4 1.6 Reference specification ................................................................................................... 4 1.7 Information of EUT .......................................................................................................... 4 1.7.1 General information .............................................................................................. 4 1.7.2 EUT details ............................................................................................................ 5 1.7.3 Auxiliary equipment details .................................................................................. 5 2. Test information ........................................................................................ 6 2.1 Summary of the test results............................................................................................ 6 2.2 Test result .......................................................................................................................... 7 2.2.1 Conducted Emissions-FCC Part15.107 ............................................................ 7 2.2.2 Radiated Emissions-FCC Part15.109 ............................................................. 10 2.3. List of test equipments ................................................................................................. 13 Appendix .................................................................................................... 14 No.: SRTC2011-H024-E0097 FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 14 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1. General information 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: No.80 Beilishi Road, Xicheng District, Beijing China City: Beijing Country or Region: China Contacted person: Wang Junfeng Tel: +86 10 68009181 +86 10 68009202 Fax: +86 10 68009195 +86 10 68009205 Email: [email protected] / [email protected] 1.3 Applicant’s details Company: LZeal Information Technology Co., Ltd. Address: F18, Unit 2, 530 Building, No. 100, Dicui Road, Liyuan Development Zone, 214072 City: Wuxi City, Jiangsu Province Country or Region: P.R. China Grantee Code: A7J Contacted person: Guo Gang Tel: +86-510-8117 0199 Fax: +86-510-8117 0187 Email: [email protected] 1.4 Manufacturer’s details Company: LZeal Information Technology Co., Ltd. Address: F18, Unit 2, 530 Building, No. 100, Dicui Road, Liyuan Development Zone, 214072 City: Wuxi City, Jiangsu Province Country or Region: P.R. China Contacted person: Guo Gang Tel: +86-510-8117 0199 Fax: +86-510-8117 0187 Email: [email protected] No.: SRTC2011-H024-E0097 FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 14 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.5 Application details Date of reception of test sample: 16 th December 2011 Date of test: 16 th December 2011 to 21 st December 2011 1.6 Reference specification FCC Part 15B October 1, 2009 (Certification) 1.7 Information of EUT 1.7.1 General information Name of EUT 2.4GHz Wireless Memory Card FCC ID A7JEZS126 Frequency range 2.4000GHz~2.4835GHz Number of channel 13 Modulation type DBPSK/DQPSK/CCK/BPSK/QPSK/16QAM/64QAM Duplex mode TDD Channel spacing 5MHz Emission Designator 5M00Q1D Data rate 1Mbps/2Mbps/5.5Mbps/11Mbps/6Mbps/9Mbps/12Mbps/ 18Mbps/24Mbps/36Mbps/48Mbps/54Mbps/6.5Mbps/ 13 Mbps/19.5 Mbps/26 Mbps/39 Mbps/52 Mbps/ 58.5 Mbps/65 Mbps Equipment Class Class B Antenna type Fixed Internal Power Supply USB docking card Rated Power Supply Voltage 3.1V HW Version EZS-P2 SW Version V2.1.0 No.: SRTC2011-H024-E0097 FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 14 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC 1.7.2 EUT details Product Name Marketing Name Product Model Serial Number 2.4GHz Wireless Memory Card ez ShareES100 EZ1448000060AA1 1.7.3 Auxiliary equipment details AE (Auxiliary Equipment) 1#: USB docking card Equipment USB docking card Manufacturer LZeal Information Technology C…

Text truncated - open the document above for the full version.

D-PL-12111-01-01 CNAS L0447 Registration No.910917 Appendix1 TEST SETUP Report No.: SRTC2011-H024-E0097 Product Name: 2.4GHz Wireless Memory Card Marketing Name: ez Share Product Model: ES100 Applicant: LZeal Information Technology Co., Ltd. Manufacturer: LZeal Information Technology Co., Ltd. Specification: FCC Part15B (Certification) (October 1, 2009 edition) FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) No.80 Beilishi Road Xicheng District Beijing, China Tel: 86-10-68009202 Fax: 86-10-68009205 No.: SRTC2011-H024-E0097 FCC ID: A7JEZS126 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2 Tel: 86-10-68009202 68009203 Fax: 86-10-68009195 68009205 Copyright © SRTC Appendix1 Test Setup Radiated Emissions Test Setup Conducted Emissions Test Setup
