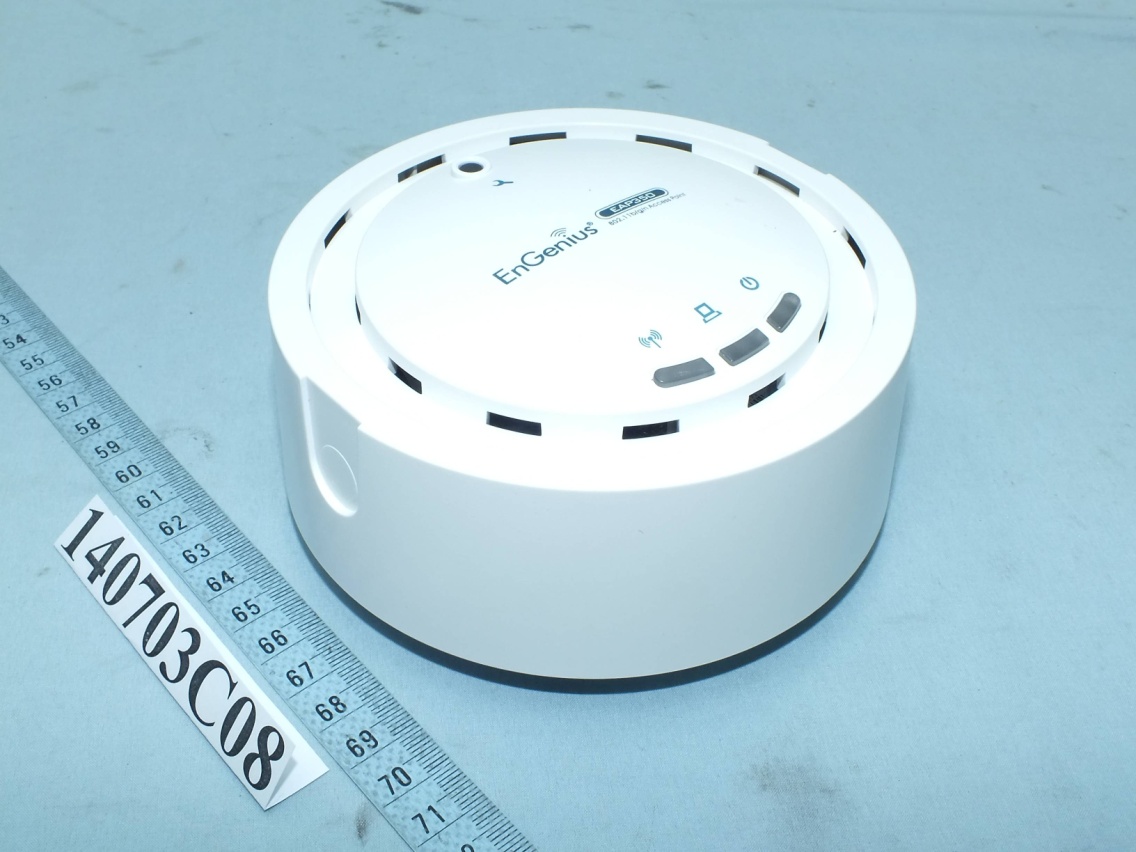

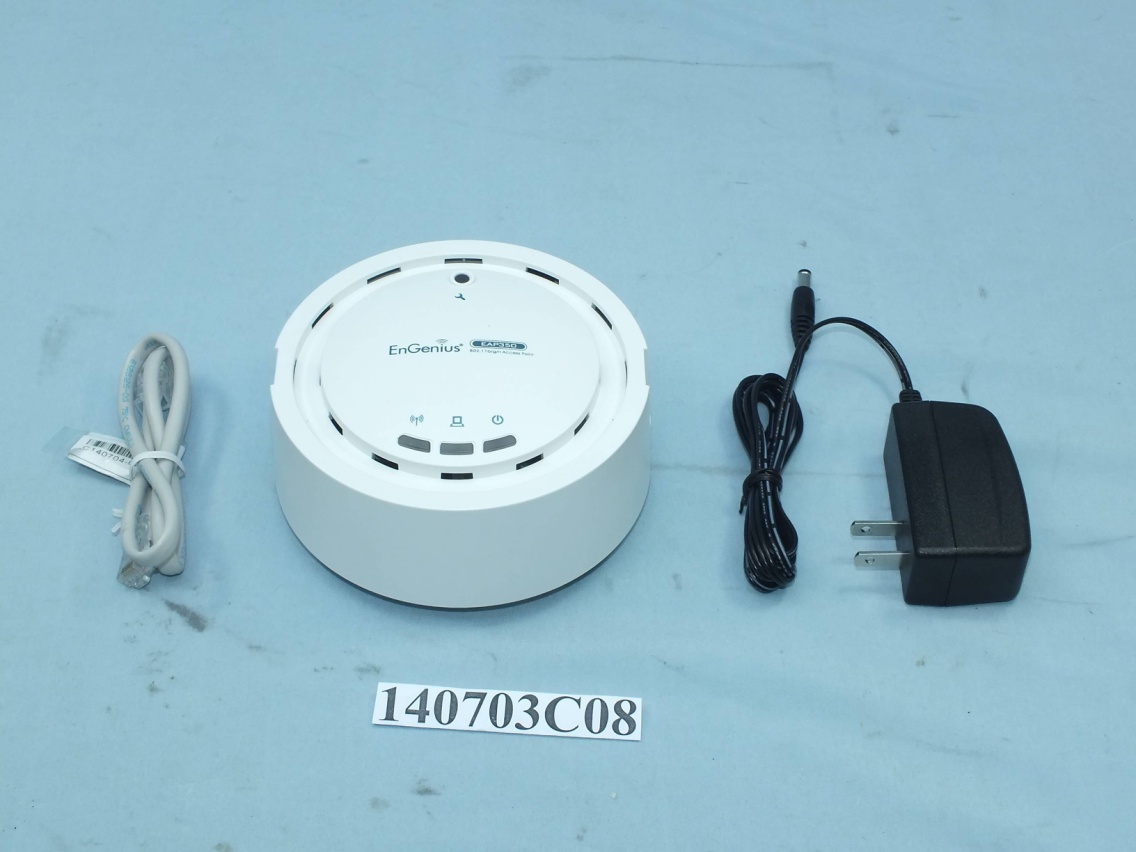

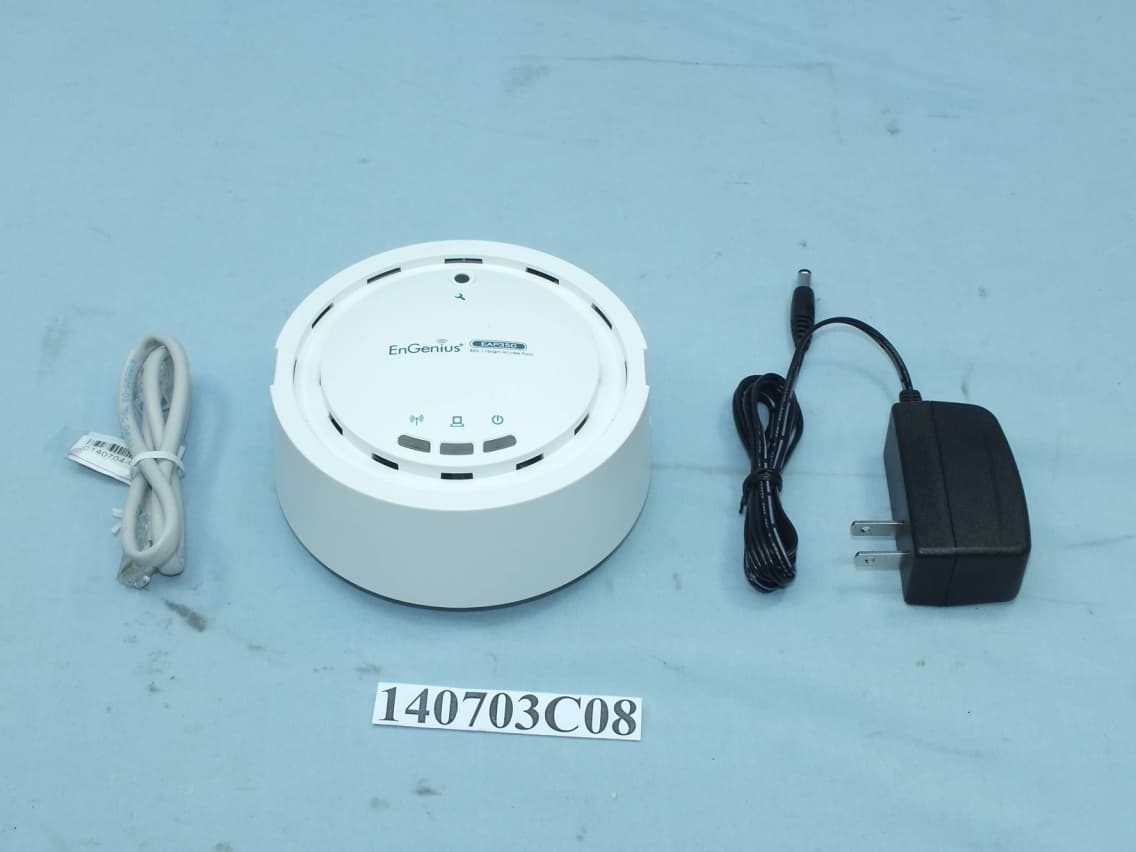

A8J-EAP350Wireless N300 Indoor Access Point

1 Table of Contents 1 Introduction ....................................................................................................................................................................... 5 1.1 Key Features ....................................................................................................................................................................................................... 5 1.2 Package Contents ............................................................................................................................................................................................ 5 1.3 System Requirements ..................................................................................................................................................................................... 6 1.4 Package Contents ............................................................................................................................................................................................ 6 1.5 Applications ....................................................................................................................................................................................................... 6 1.6 Technical Specification .................................................................................................................................................................................. 8 1.7 Physical Interface ............................................................................................................................................................................................. 9 2 Before you Begin ............................................................................................................................................................. 10 2.1 Considerations for Wireless Installation ............................................................................................................................................... 10 2.2 Computer Settings (in Windows XP/Windows 7/Windows 8) ...................................................................................................... 11 2.3 Computer Settings in Apple Mac OS X ................................................................................................................................................. 14 2.4 Hardware Installation................................................................................................................................................................................... 15 2.5 Mounting the EAP350 ................................................................................................................................................................................. 16 3 Configuring Your Access Point ...................................................................................................................................... 17 3.1 Default Settings ............................................................................................................................................................................................. 17 3.2 Web Configuration ....................................................................................................................................................................................... 17 4 Building a Wireless Network ......................................................................................................................................... 19 4.1 Access Point Mode ....................................................................................................................................................................................... 19 4.2 WDS AP Mode ............................................................................................................................................................................................... 19 4.3 WDS Bridge Mode ........................................................................................................................................................................................ 19 4.4 Repeater mode .............................................................................................................................................................................................. 20 5 Status ................................................................................................................................................................................ 21 5.1 Save/Reload .................................................................................................................................................................................................... 21 5.2 Main ................................................................................................................................................................................................................... 21 5.3 Wireless Client List ........................................................................................................................................................................................ 22 5.4 Connection Status......................................................................................................................................................................................... 22 5.5 WDS Link List .................................................................................................................................................................................................. 23 5.6 System Log ...................................................................................................................................................................................................... 23 6 System .................................................................…

Text truncated - open the document above for the full version.

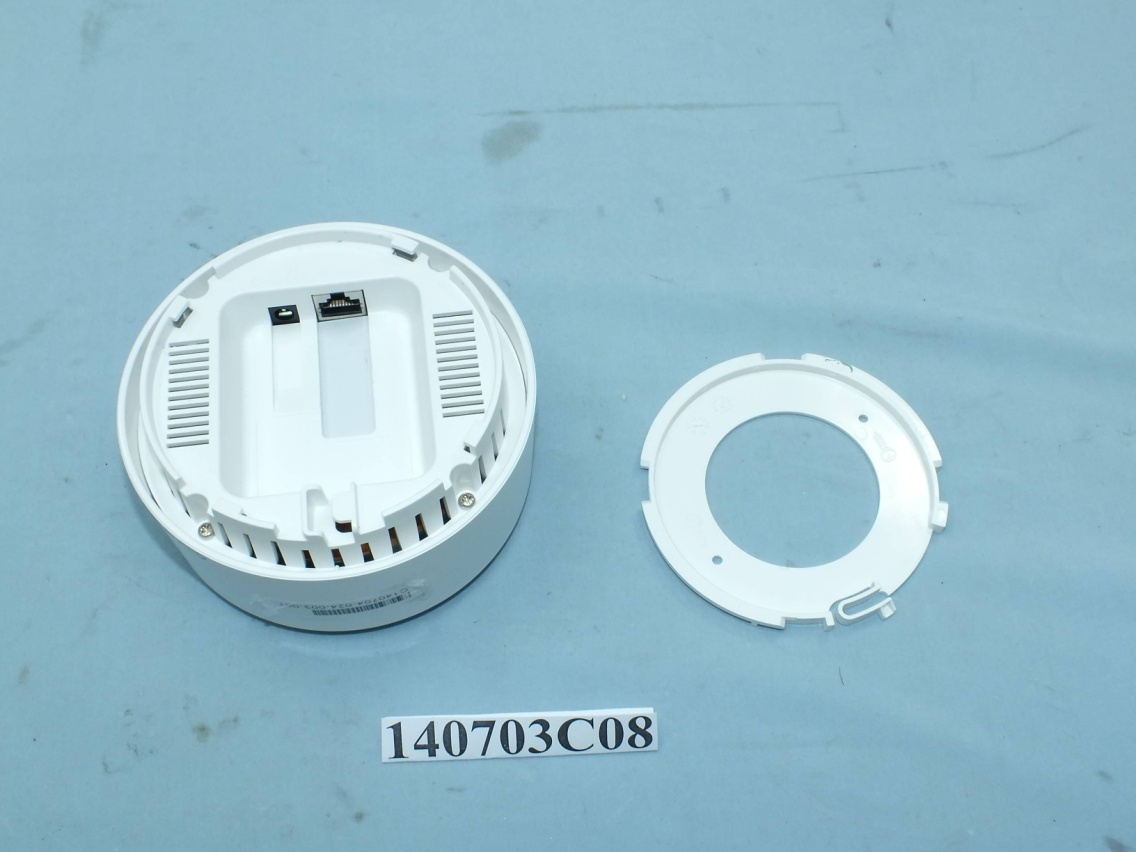

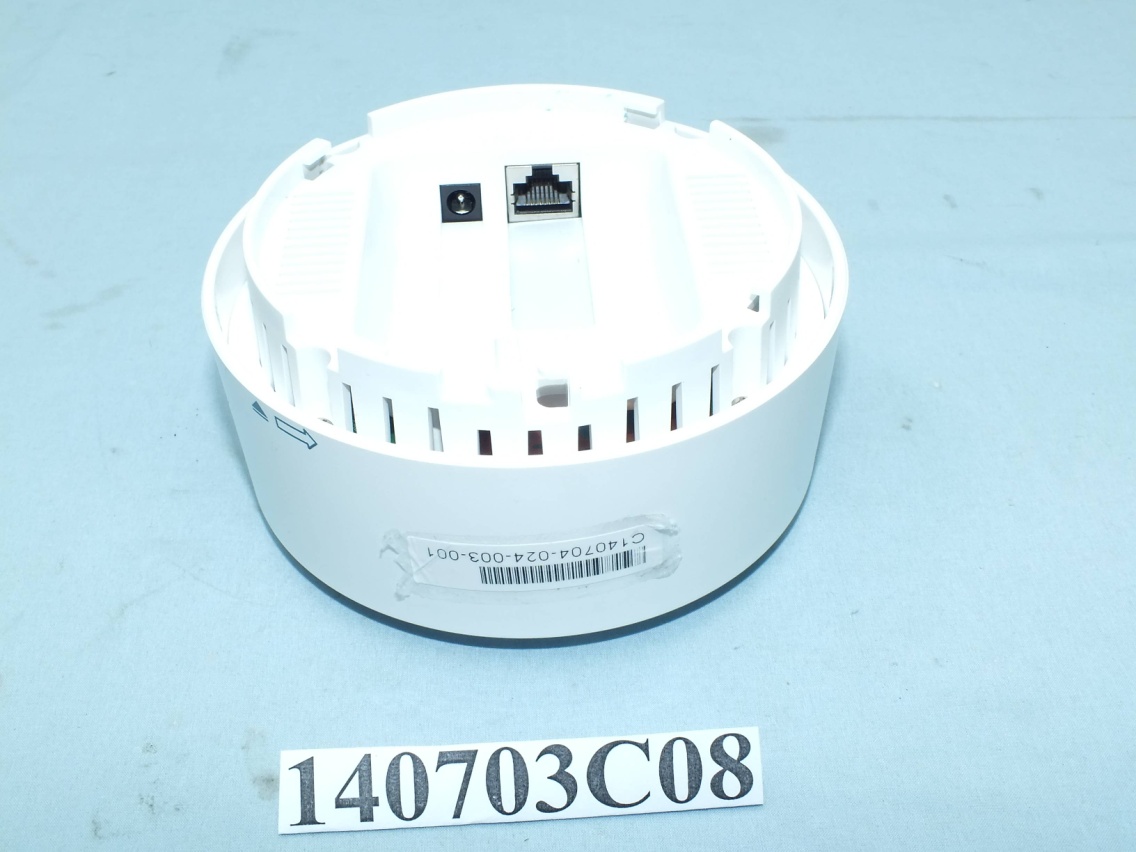

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: A8J-EAP350 Report No.: RF140703C08 Operational Description This device is a Wireless N300 Indoor Access Point, which operates in 2.4GHz; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc adapter or 48Vdc POE. The antenna is PCB antenna with IPEX antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA140703C08 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140703C08 MODEL NO.: EAP350v2 FCC ID: A8J-EAP350 RECEIVED: Jul. 03, 2014 TESTED: Jul. 09 ~ Jul. 29, 2014 ISSUED: Jul. 31, 2014 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA140703C08 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1. CERTIFICATION ............................................................................................................................ 4 2. RF EXPOSURE ............................................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................................. 5 2.3 CLASSIFICATION.......................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................................ 5 Report No.: SA140703C08 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140703C08 Original release Jul. 31, 2014 Report No.: SA140703C08 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless N300 Indoor Access Point MODEL NO.: EAP350v2 BRAND: EnGenius APPLICANT: EnGenius Technologies TESTED: Jul. 09 ~ Jul. 29, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: EAP350v2) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE :Jul. 31, 2014 Celine Chou / Specialist APPROVED BY : , DATE :Jul. 31, 2014 Ken Liu / Senior Manager Report No.: SA140703C08 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20Cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 19.73 6.52 20 0.084 1 NOTE: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ]= 6.52 ---END---
