A8J-ENH1750EXTWireless Access Point

User Manual Business Solutions Dual Band Long Range Wireless AC1750 Outdoor Access Point ENH1750EXT version 1.0 2 IMPORTANT To install this Access Point please refer to the Quick Installation Guide included in the product packaging. 3 Chapter 1 Product Overview ........................................... 4 Key Features/Introduction ................................................... 5 System Requirements ............................................................. 6 Package Contents .................................................................... 7 Technical Specifications ......................................................... 8 Physical Interface ...................................................................... 10 Chapter 2 Before You Begin ............................................... 11 Computer Settings ..................................................................... 12 Hardware Installation ............................................................... 15 Mounting the ENH1750EXT .................................................... 16 Chapter 3 Configuring Your Access Point ........................ 18 Default Settings ......................................................................... 19 Chapter 4 Building a Wireless Network ......................... 20 Access Point Mode .................................................................... 21 WDS AP Mode ............................................................................. 23 WDS Bridge Mode ...................................................................... 24 WDS Station Mode ..................................................................... 25 Client Bridge Mode .................................................................... 26 Chapter 5 Status .................................................................. 27 Main Status ................................................................................... 28 Connection .................................................................................... 30 Chapter 6 Network .............................................................. 31 Basic IP Settings ....................................................................... 32 Spanning Tree Protocol Setting .......................................... 33 Chapter 7 2.4GHz/5GHz Wireless ........................................ 34 Wireless Settings ........................................................................... 35 2.4GHz/5GHz Wireless Network .......................................... 36 2.4GHz/5GHz SSID Profile ..................................................... 38 Wireless Security ......................................................................... 39 Wireless MAC Filtering ............................................................. 40 Wireless Advanced ..................................................................... 41 WPS Mixed-Enterprise: AP/WDS AP Mode .......................... 42 WDS Link Settings ....................................................................... 43 Guest Network Settings ............................................................ 44 Chapter 8 Management ........................................................ 45 Management VLAN Settings ................................................. 46 Advanced Settings ...................................................................... 47 CLI/SSH/HTTPS/Email Alert Settings .................................. 48 Time Zone ....................................................................................... 50 Auto Reboot Settings ............................................................ 51 Wi-Fi Scheduler .............................................................................. 52 Tools ................................................................................................. 53 Account/Firmware ....................................................................... 55 Backup/Restore ............................................................................. 56 Log ..................................................................................................... 57 Logout/Reset ................................................................................ 58 Appendix ................................................................................ 59 FCC Interference Statement .................................................. 60 CE Interference Statement ..................................................... 61 Professional Installation Instruction ................................ 64 Table of Contents 4 Chapter 1 Product Overview 5 Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved. Key Features • Up to 29dBm transmit power enabling long range connectivity • Supports IEEE802.11 ac/a/b/g/n wireless standards with up to 450 Mbps data rate on 2.4GHz and 1300Mbps on on 5GHz band. • Three detachable 5dBi 2.4GHz omni-directional antennas • Three detachable 7dBi 5GHz omni-directional antennas • Can be monitored after deployment with EnGenius EZ Controller™ software for Windows (Free online download) • Can be used with included power adapter or via PoE with PoE 802.3at capable switches or injectors • Dual Band/Three Stream • Band Steering shifts dual band clients to 5GHz for better throughput performance • Secured Guest Network option available Introduction The ENH1750EXT is a high-powered, long-range 3x3 Dual- Band Wireless 802.11 ac/a/b/g/n Outdoor Access Point with speeds up to 450 Mbps on 2.4GHz and 1300Mbps on 5GHz band. It can …

Text truncated - open the document above for the full version.

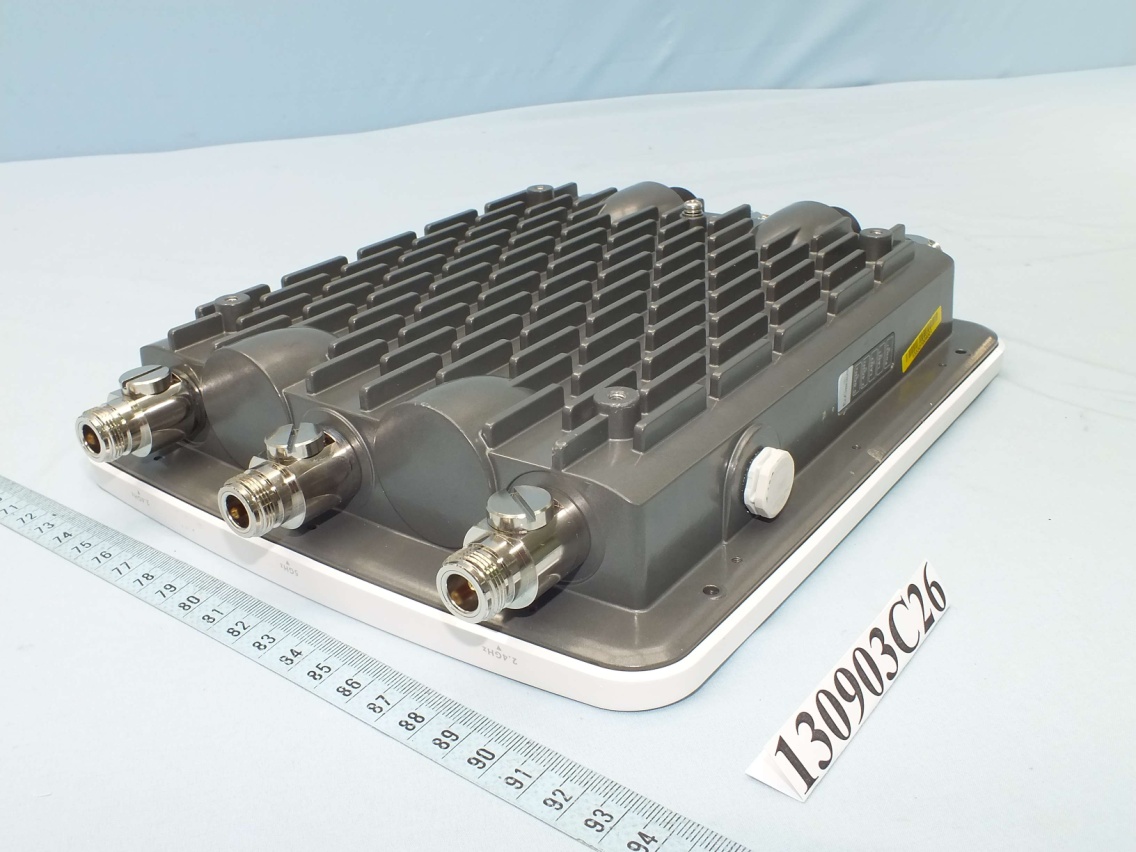

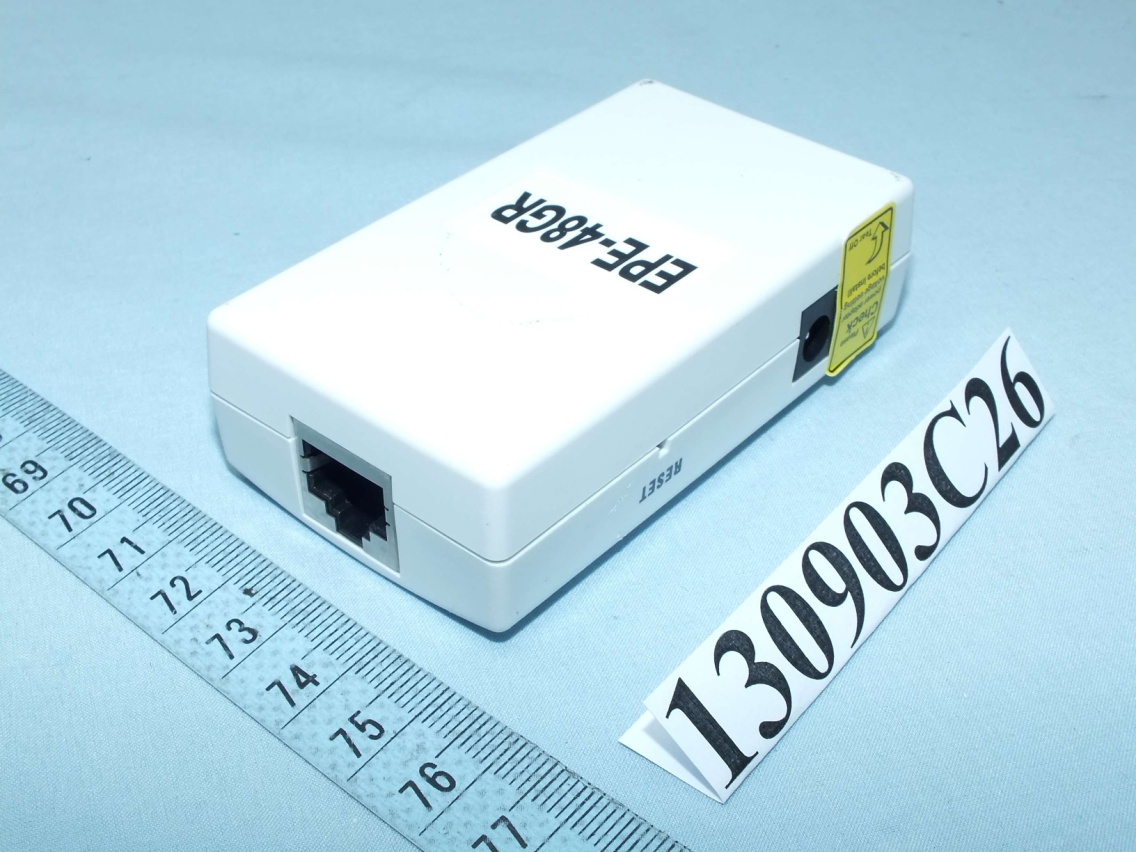

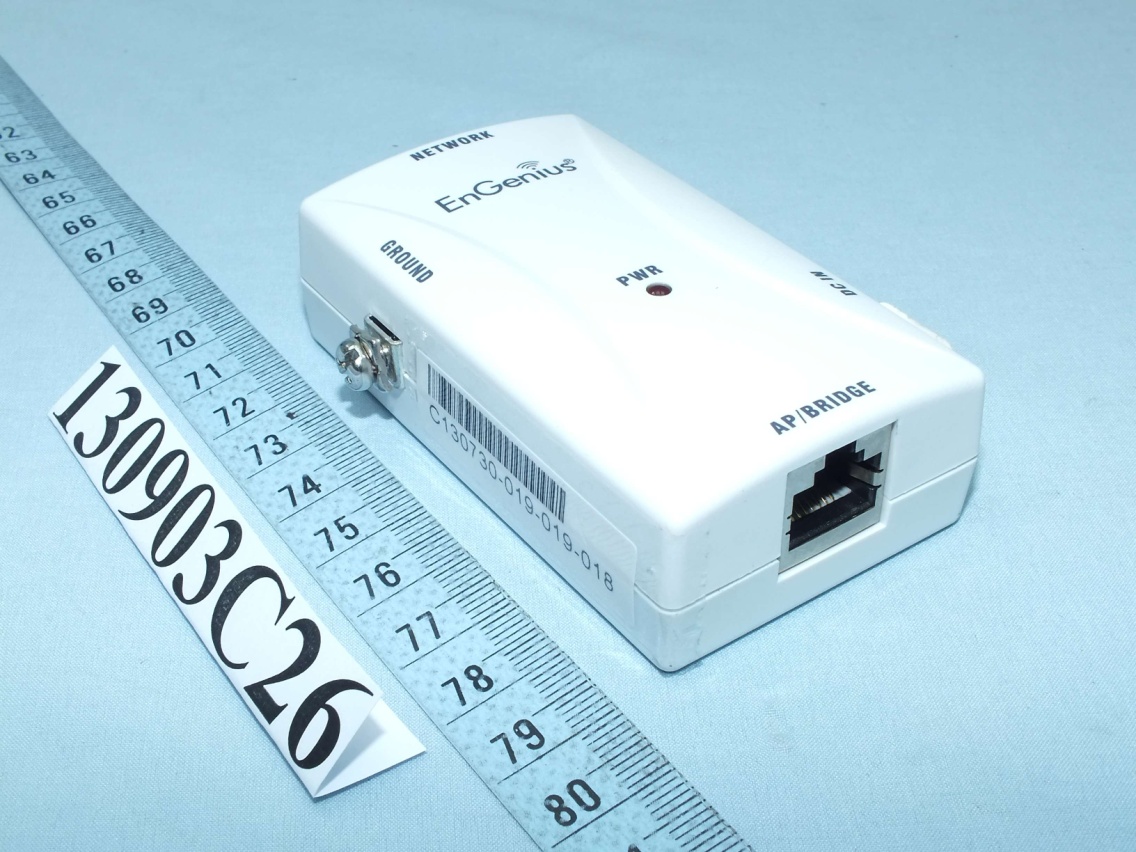

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: A8J-ENH1750EXT Report No.: RF130903C26 Operational Description This device is a Wireless Access Point, which operates in both 2.4GHz and 5GHz bands; the maximum data rate could be up to 1300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 1300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 48Vdc POE. The antenna is Dipole antenna with N-Type antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA130903C26 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130903C26 MODEL NO.: ENH1750EXT FCC ID: A8J-ENH1750EXT RECEIVED: Sep. 03, 2013 TESTED: Sep. 06 ~ Oct. 07, 2013 ISSUED: Oct. 31, 2013 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA130903C26 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. RF EXPOSURE ........................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................... 5 2.2 MPE CALCULATION FORMULA................................................................................. 5 2.3 CLASSIFICATION ....................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .............................. 6 Report No.: SA130903C26 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130903C26 Original release Oct. 31, 2013 Report No.: SA130903C26 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless Access Point MODEL NO.: ENH1750EXT BRAND: EnGenius APPLICANT: EnGenius Technologies TESTED: Sep. 06 ~ Oct. 07, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: ENH1750EXT) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Oct. 31, 2013 Ivy Lin / Specialist APPROVED BY: , DATE :Oct. 31, 2013 Ken Liu / Senior Manager Report No.: SA130903C26 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 41cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130903C26 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 29.83 9.80 41 0.435 1 5745-5825 28.75 11.77 41 0.534 1 NOTE: 1. 2.4GHz Band: Directional gain = 5dBi + 10log(3) = 9.80dBi 2. 5GHz Band: Directional gain = 7dBi + 10log(3) = 11.77dBi CONCULSION: Both of the WLAN 2.4G & WLAN 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.435 + 0.534 = 0.969 < 1 Therefore, the maximum calculation of this situation is 0.969, which is less than the “1” limit. ---END---

Report No.: RF130903C26-1 1 of 25 Report Format Version 5.0.0 FCC TEST REPORT (CO-LOCATED) REPORT NO.: RF130903C26-1 MODEL NO.: ENH1750EXT FCC ID: A8J-ENH1750EXT RECEIVED: Sep. 03, 2013 TESTED: Oct. 07, 2013 ISSUED: Oct. 14, 2013 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130903C26-1 2 of 25 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 5 3. GENERAL INFORMATION .......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 6 3.2 DESCRIPTION OF TEST MODES .............................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 12 4. TEST TYPES AND RESULTS ................................................................................... 13 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................... 13 4.1.2 TEST INSTRUMENTS ............................................................................................... 14 4.1.3 TEST PROCEDURES ............................................................................................... 15 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 15 4.1.5 TEST SETUP ............................................................................................................. 16 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 16 4.1.7 TEST RESULTS ........................................................................................................ 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 19 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 19 4.2.2 TEST INSTRUMENTS ............................................................................................... 19 4.2.3 TEST PROCEDURES ............................................................................................... 20 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 20 4.2.5 TEST SETUP ............................................................................................................. 20 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 20 4.2.7 TEST RESULTS ........................................................................................................ 21 5. PHOTOGRAPHS OF THE TEST CONFIGURATION ................................................ 23 6. INFORMATION ON THE TESTING LABORATORIES .............................................. 24 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ........................................................................................ 25 Report No.: RF130903C26-1 3 of 25 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF130903C26-1 Original release Oct. 14, 2013 Report No.: RF130903C26-1 4 of 25 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless Access Point MODEL NO.: ENH1750EXT BRAND: EnGenius APPLICANT: EnGenius Technologies TESTED: Oct. 07, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC P…

Text truncated - open the document above for the full version.

Report No.: RF130903C26 1 of 107 Report Format Version 5.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF130903C26 MODEL NO.: ENH1750EXT FCC ID: A8J-ENH1750EXT RECEIVED: Sep. 03, 2013 TESTED: Sep. 06 ~ Oct. 07, 2013 ISSUED: Oct. 31, 2013 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130903C26 2 of 107 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 15 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 17 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 18 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 19 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 19 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 19 4.1.2 TEST INSTRUMENTS ............................................................................................... 20 4.1.3 TEST PROCEDURES ............................................................................................... 21 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 21 4.1.5 TEST SETUP ............................................................................................................. 22 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 23 4.1.7 TEST RESULTS ........................................................................................................ 24 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 38 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 38 4.2.2 TEST INSTRUMENTS ............................................................................................... 38 4.2.3 TEST PROCEDURES ............................................................................................... 39 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 39 4.2.5 TEST SETUP ............................................................................................................. 39 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 39 4.2.7 TEST RESULTS ........................................................................................................ 40 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 42 4.3.2 TEST SETUP ............................................................................................................. 42 4.3.3 TEST INSTRUMENTS ............................................................................................... 42 4.3.4 TEST PROCEDURE .................................................................................................. 42 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 42 4.3.6 EUT OPERATING CONDITIONS ..…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
