A8J-EWS377APV311ax Indoor Managed Access Point, 11ax Cloud Managed Access Point

User Manual Business Solutions 11ax Indoor / Cloud Managed Access Point EWS377AP v3/ECW230 v3 Indoor Access Point User Manual version 1.0 2 IMPORTANT To install this Access Point please refer to the Quick Installation Guide included in the product packaging. 3 Chapter 1 Product Overview............................................... 4 Key Features/Introduction........................................................ 5 System Requirements............................................................... 6 Package Contents......................................................................... 6 Technical Specifications.............................................................. 7 Physical Interface........................................................................... 9 Chapter 2 Before You Begin................................................. 10 Computer Settings....................................................................... 11 Hardware Installation ................................................................. 15 Mounting the AP................................................................. 16 Chapter 3 Configuring Your Access Point......................... 18 Default Settings./Web Configuration................................ 19 Chapter 4 Building a Wireless Network........................... 20 Access Point Mode...................................................................... 21 Chapter 5 Status.................................................................... 22 Main Status..................................................................................... 23 Connection...................................................................................... 25 Chapter 6 Network .............................................................. 27 Basic IPv4/IPv6 Settings.......................................................... 28 Spanning Tree Protocol Setting............................................. 29 Chapter 7 2.4 GHz/5 GHz Wireless....................................... 30 Wireless Settings........................................................................... 31 Band Steering................................................................................ 31 2.4 GHz/5 GHz Wireless Network........................................... 32 2.4GHz/5 GHz SSID Profile...................................................... 33 Wireless Security.......................................................................... 34 Wireless Traffic Shaping........................................................... 36 Wireless MAC Filtering............................................................... 37 Fast Roaming................................................................................ 38 Guest Network Settings............................................................ 39 Chapter 8 Management ........................................................ 40 Management VLAN Settings.................................................. 41 Advanced Settings....................................................................... 42 CLI Settings/Email Alert............................................................. 42 Time Zone........................................................................................ 45 Auto Reboot Settings................................................................ 46 Wi-Fi Scheduler............................................................................... 47 Tools.................................................................................................. 48 Account/Firmware........................................................................ 51 Backup/Restore ............................................................................. 52 Log.................................................................................................... 54 Logout/Reset................................................................................. 55 Chapter 9 Connecting the APs................................................. 56 Managed Access Point Installation with Wireless Management Switch ......................................................... 57 Managed Access Point Installation with ezMaster................ 60 Appendix................................................................................. 61 FCC Interference Statement................................................... 62 IC Interference Statement...................................................... 63 CE Interference Statement................................................... 65 Table of Contents 4 Chapter 1 Product Overview 5 Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2020 EnGenius Technologies, Inc. All rights reserved. Key Features • Supports IEEE802. ax/ac/a/b/g/n wireless standards with up to 1,148 Mbps data rate on 2.4GHz band and 2.400 Mbps on 5GHz bands. • Support MU-MIMO function on both 2.4GHz and 5GHz radio. • Support Tx Beamforming to enlarge the transmitting distance. • Perform 1024-QAM to increase 25% better throughput compare to 802.11ac 256-QAM. • Systemic and distributed management over EnGenius ezMaster and EWS Management switch without licensing or subscribed fee. • More customized items on Band Steering for intellgent Management. • Perform one-click update to deliver a configuration over multi- segments for these managed Access Points. Introduction EWS managed AP are dual-band wireless 802.11 ax/ac/a/b/ g/n wireless Access Point that built in powerful interfaces to achieve great performance and evenly coverage under a pervasive environment. It can be…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 EnGenius Technologies 1580 Scenic Avenue, Costa Mesa, California 92626, United States July16, 2020 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, EnGenius Technologies hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: A8J-EWS377APV3 Product Description: (1)11ax Indoor Managed Access Point (2)11ax Cloud Managed Access Point Model: (1)EWS377AP v3 Series model: (2)ECW230 v3 Sincerely, Signature: Name/Title: Meng Chee Leo/General Manager Company Name: EnGenius Technologies Address: 1580 Scenic Avenue, Costa Mesa, California 92626, United States TEL：888.735.7888 Ext: 888 FAX：714.432.8667 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 EnGenius Technologies 1580 Scenic Avenue, Costa Mesa, California 92626, United States July 20, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: A8J-EWS377APV3 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - SDR software and security information - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name/Title: Meng Chee Leo/General Manager Company Name: EnGenius Technologies Address: 1580 Scenic Avenue, Costa Mesa, California 92626, United States TEL：888.735.7888 Ext: 888 FAX：714.432.8667 Email: [email protected]

EnGenius Technologies 1580 Scenic Avenue, Costa Mesa, California 92626, United States UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : A8J-EWS377APV3 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , █ N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5150-5250 █Yes , No Yes , █ No Yes , █No █Yes , No 5725-5850 █Yes , No Yes , █ No Yes , █No █Yes , No (3) Country code selection ability - █ Yes , No If no, pls explain how it was implemented : (4) Meet 15.202 requirement - █Yes , No , pls check below : █A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , █ No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Signature: Date: July 20, 2020 Name/Title: Meng Chee Leo/General Manager Company Name: EnGenius Technologies Address: 1580 Scenic Avenue, Costa Mesa, California 92626, United States TEL：888.735.7888 Ext: 888 FAX：714.432.8667 Email: [email protected]

EnGenius Technologies 1580 Scenic Avenue, Costa Mesa, CA 92626 Date: July 21, 2020 Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of (1)11ax Indoor Managed Access Point (2) 11ax Cloud Managed Access Point Model: (1) EWS377AP v3 Serial model: (2) ECW230 v3 is identical with main model and the difference is for marketing. An\ qXeVWionV regarding WhiV declaraWion, pleaVe don¶W heViWaWe to contact us. Sincerely, Signature___________________________________ Name/Title: Meng Chee Leo/General Manager Company Name: EnGenius Technologies TEL：888.735.7888 Ext: 888 FAX：714.432.8667 Email: [email protected]

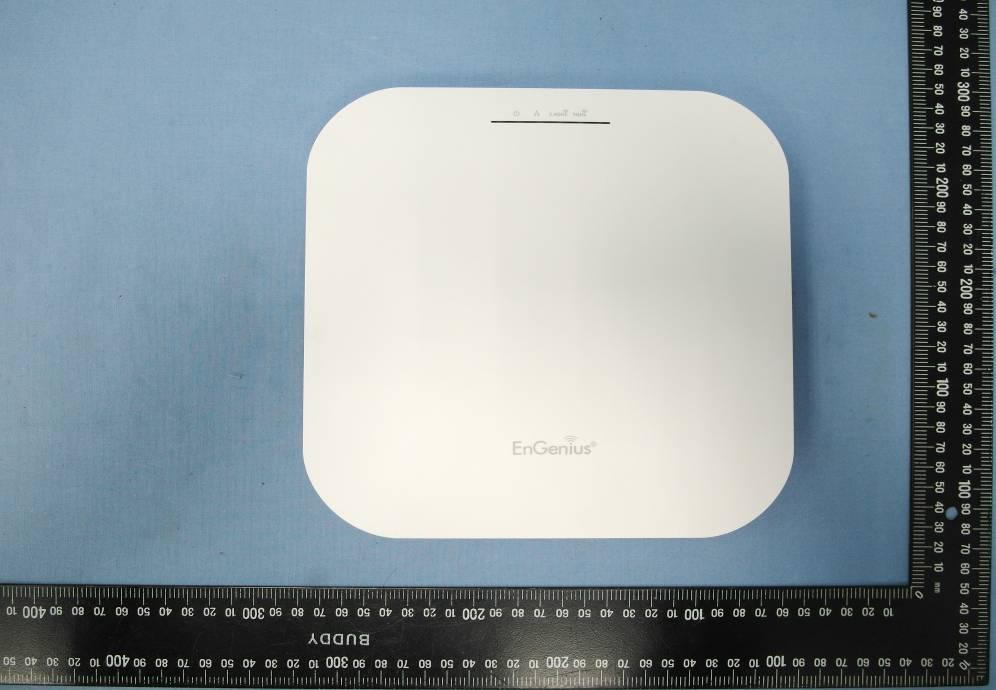

Page 1 of 5 External Photos Model Number: EWS377AP v3, ECW230 v3 Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7)

Label Info. Location Label Info. Location

Page 1 of 10 Internal Photos Model Number: EWS377AP v3, ECW230 v3 Page 2 of 10 EUT Photo (1) EUT Photo (2) WLAN 2.4G ANT-0. WLAN 2.4G ANT-1. WLAN 2.4G ANT-2. WLAN 2.4G ANT-3. WLAN 5G ANT-3. WLAN 5G ANT-2. WLAN 5G ANT-1. WLAN 5G ANT-0. Page 3 of 10 EUT Photo (3) EUT Photo (4) Page 4 of 10 EUT Photo (5) EUT Photo (6) Page 5 of 10 EUT Photo (7) EUT Photo (8) Page 6 of 10 EUT Photo (9) EUT Photo (10) Page 7 of 10 EUT Photo (11) EUT Photo (12) Page 8 of 10 EUT Photo (13) EUT Photo (14) Page 9 of 10 EUT Photo (15) EUT Photo (16) Page 10 of 10 EUT Photo (17) EUT Photo (18)

MPE Report Applicant ： EnGenius Technologies Product Type ： 11ax Indoor Managed Access Point (For：EWS377AP v3) 11ax Cloud Managed Access Point (For：ECW230 v3) Trade Name ： EnGenius Model Number ： EWS377AP v3, ECW230 v3 Applicable Standard ： IEEE Std.C95.1 47 CFR § 2.1091 / 47 CFR § 1.1310 Received Date ： May 19, 2020 Te s t Period ： Jun. 10 ~ Jun. 20, 2020 Issue Date ： Aug. 17, 2020 Issued by Approved By ： (Kris Pan) A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Report Number: 2007FS17 Rev.01 Page 1 of 13 Revision History Re v. Issued Date Revisions Revised By 00 Jul. 29, 2020 Initial Issue Nicole Chu 01 Aug. 17, 2020 P06 Revised RF Evaluation Nicole Chu Report Number: 2007FS17 Rev.01 Page 2 of 13 Contents 1. Reference Applicable Standard .......................................................................................................... 4 2. Description of Equipment under Test (EUT) ....................................................................................... 5 3. Human Exposure Assessment ............................................................................................................ 7 4. Power Density Limit – RF Exposure Evaluation ................................................................................. 8 4.1 Conducted Power ............................................................................................................................... 9 5. Test Result ........................................................................................................................................ 13 Report Number: 2007FS17 Rev.01 Page 3 of 13 1. Reference Applicable Standard Standard Description Version ANSI/IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR Part §2.1091 Radiofrequency radiation exposure evaluation: mobile devices. - 47 CFR Part §1.1310 Radiofrequency radiation exposure limits. - Report Number: 2007FS17 Rev.01 Page 4 of 13 2. Description of Equipment under Test (EUT) Applicant EnGenius Technologies 1580 Scenic Avenue, Costa Mesa, CA 92626 Manufacturer EnGenius Networks. Inc. No.500, Fusing 3rd Rd., Hwa-Ya Technology Park Kuei-Shan Dist., Taoyuan City, Taiwan (R.O.C.) Product Type 11ax Indoor Managed Access Point (For：EWS377AP v3) 11ax Cloud Managed Access Point (For：ECW230 v3) Trade Name EnGenius Model Number EWS377AP v3, ECW230 v3 FCC ID A8J-EWS377APV3 Frequency Range Operate Band Frequency Range (MHz) IEEE 802.11b / 802.11g 2412 - 2462 IEEE 802 11n 2.4 GHz 20 MHz(256-QAM) IEEE 802 11ax 2.4 GHz 20 MHz 2412 - 2462 IEEE 802.11n 2.4 GHz 40 MHz (256-QAM) IEEE 802.11ax 2.4 GHz 40 MHz 2422 - 2452 IEEE 802.11a U-NII Band I 5180 - 5240 IEEE 802.11a U-NII Band III 5745 - 5825 IEEE 802.11ac 5 GHz 20 MHz U-NII Band I IEEE 802.11ax 20 MHz U-NII Band I 5180 - 5240 IEEE 802.11ac 5 GHz 20 MHz U-NII Band III IEEE 802.11ax 20 MHz U-NII Band III 5745 - 5825 IEEE 802.11ac 5 GHz 40 MHz U-NII Band I IEEE 802.11ax 40 MHz U-NII Band I 5190 - 5230 IEEE 802.11ac 5 GHz 40 MHz U-NII Band III IEEE 802.11ax 40 MHz U-NII Band III 5755 - 5795 IEEE 802.11ac 80 MHz IEEE 802.11ax 80 MHz 5210 5775 Antenna Information Model Type Max. Gain (dBi) 5718A0514300 PIFA Antenna 2412 - 2472 3.70 5718A0515300 PIFA Antenna 2412 - 2472 4.08 5718A0516300 PIFA Antenna 2412 - 2472 4.12 5718A0517300 PIFA Antenna 2412 - 2472 5.01 G ANT 4.25 Directional 10.26 Report Number: 2007FS17 Rev.01 Page 5 of 13 5718A0518300 PIFA Antenna 5150~5250 5.13 5725~5850 5.19 5718A0522300 PIFA Antenna 5150~5250 4.26 5725~5850 3.81 5718A0520300 PIFA Antenna 5150~5250 4.03 5725~5850 4.56 5718A0521300 PIFA Antenna 5150~5250 5.04 5725~5850 5.04 G ANT 5150~5250 4.64 5725~5850 4.68 Directional 5150~5250 10.65 5725~5850 10.69 Antenna Delivery IEEE 802.11b: 1TX / 1RX (Diversity) IEEE 802.11g : 4TX / 4RX (CDD) IEEE 802.11n 2.4 GHz 20 MHz / 40 MHz: 4TX / 4RX (STBC / Beamforming on) IEEE 802.11 ax 2.4 GHz 20 MHz / 40 MHz: 4TX / 4RX (STBC / Beamforming on) IEEE 802.11a: 4TX / 4RX(CDD) IEEE 802.11ac 20 MHz / 40 MHz / 80 MHz: 4TX / 4RX (STBC / Beamforming on) IEEE 802.11ax 20 MHz / 40 MHz / 80 MHz: 4TX / 4RX (STBC / Beamforming on) RF Evaluation 0.443 mW/cm 2 Operate Temp. Range 0 ~ +40°C The above equipment was tested by A Test Lab T echno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 / 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. EUT Modify Description： Modify Description: (1)The differences between the original EUT and new one: a. Remove a USB Port, a Ethernet RJ45 Port, HW Watchdog IC, Scanning Radio, Flash NOR and Bluetooth LE function. b. In new one, DDR4 RAM is 1 GB. (2)Update applicant name, applicant address, manufacture name, manufacture address, product type, model number, trade name and product’s appearance. Af ter our evaluation, the retest of worst channel of Receiver Spurious Emissions is required. The other test data refer to the original report and showed in this report. Original Report : 2007FS 16 Rev.01 M…

Text truncated - open the document above for the full version.

RF Test Report Applicant ： EnGenius Technologies Product Type ： 11ax Indoor Managed Access Point (For：EWS377AP v3) 11ax Cloud Managed Access Point (For：ECW230 v3) Trade Name ： EnGenius Model Number ： EWS377AP v3, ECW230 v3 Applicable Standard ： FCC 47 CFR PART 15 SUBPART E ANSI C63.10:2013 Received Date ： May 13, 2020 Test Period ： Jun. 03 ~ Jul. 10, 2020 Issued Date ： Aug. 26, 2020 Issued by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+86-3-2710188 / Fax：+86-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range : 9 kHz to 40 GHz Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Report Number: 2007FR29 Rev.01 Page 1 of 597 Revision History Rev. Issued Date Revisions Revised By 00 Jul. 28, 2020 Initial Issue Snow Wang 01 Aug. 26, 2020 Page 9 Revised Original Report number. Page 10 Revised EUT model. Page 22 Revised Note. Page 42-43 Add Conducted Emission Test Data. Page 228-229 Revised Test Data. Yu Chiang Report Number: 2007FR29 Rev.01 Page 2 of 597 Ve r i f i c a t i o n o f C o m p l i a n c e Applicant : EnGenius Technologies Product Type : 11ax Indoor Managed Access Point (For：EWS377AP v3) 11ax Cloud Managed Access Point (For：ECW230 v3) Trade Name : EnGenius Model Number : EWS377AP v3, ECW230 v3 FCC ID : A8J-EWS377APV3 EUT Rated Voltage : DC 12 V, 2.5 A (DC Power Adapter) DC 54 V, 0.6 A (PoE injector (802.3af/at)) Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART E ANSI C63.10:2013 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+86-3-2710188 / Fax：+86-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： (Manager) (Fly Lu) Report Number: 2007FR29 Rev.01 Page 3 of 597 TABLE OF CONTENTS 1 General Information .............................................................................................................. 5 1.1. Summary of Test Result ............................................................................................... 5 1.2. Measurement Uncertainty ............................................................................................ 6 2 EUT Description .................................................................................................................... 7 3 Test Methodology .................................................................................................................10 3.1. Mode of Operation ......................................................................................................10 3.2. EUT Test Step .............................................................................................................20 3.3. Configuration of Test System Details ..........................................................................21 3.4. Test Instruments .........................................................................................................23 3.5. Test Site Environment .................................................................................................24 4 Measurement Procedure ......................................................................................................25 4.1. AC Power Conducted Emission Measurement ...........................................................25 4.2. Transmitter Radiated Emissions Measurement ...........................................................27 4.3. Maximum Conducted Output Power Measurement .....................................................32 4.4. 26 dB RF Bandwidth Measurement & 99 % Occupied Bandwidth Measurement ........33 4.5. 6 dB RF Bandwidth Measurement ..............................................................................34 4.6. Maximum Power Spectral Density Measurement ........................................................35 4.7. Automatically discontinue transmission .......................................................................37 4.8. Antenna Requirement .................................................................................................37 5 Test Results ..........................................................................................................................40 Annex A. Conducted Emission ...............................................................................................40 Annex B. Radiated Emission Measurement ...........................................................................44 Annex C. Conducted Test Results ........................................................................................ 376 Report Number: 2007FR29 Rev.01 Page 4 of 597 1 General Information 1.1. Summary of Test Result Standard Item Result Remark 15.407(b)(6) 15.207 AC Power Conducted Emission PASS --- 15.407(b) 15.205 / 15.209 Transmitter Radiated Emissions PASS --- 15.407(a) Maximum Conducted Output Power PASS --- 15.407(a) 26…

Text truncated - open the document above for the full version.

Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-2 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 416 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-2 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-2 5210 MHz Report Number: 2007FR29 Rev.01 Page 417 of 597 Mode 2: IEEE 802.11a Continuous TX mode_ ANT-3 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 418 of 597 Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode_ ANT-3 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 419 of 597 Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode_ ANT-3 5190 MHz 5230 MHz Mode 5: IEEE 802.11ac 80 MHz Continuous TX mode_ ANT-3 5210 MHz Report Number: 2007FR29 Rev.01 Page 420 of 597 Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-3 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 421 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-3 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-3 5210 MHz Report Number: 2007FR29 Rev.01 Page 422 of 597 Beamforming on Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode_ ANT-0 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 423 of 597 Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode_ ANT-0 5190 MHz 5230 MHz Mode 5: IEEE 802.11ac 80 MHz Continuous TX mode_ ANT-0 5210 MHz Report Number: 2007FR29 Rev.01 Page 424 of 597 Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-0 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 425 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-0 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-0 5210 MHz Report Number: 2007FR29 Rev.01 Page 426 of 597 Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode_ ANT-1 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 427 of 597 Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode_ ANT-1 5190 MHz 5230 MHz Mode 5: IEEE 802.11ac 80 MHz Continuous TX mode_ ANT-1 5210 MHz Report Number: 2007FR29 Rev.01 Page 428 of 597 Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-1 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 429 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-1 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-1 5210 MHz Report Number: 2007FR29 Rev.01 Page 430 of 597 Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode_ ANT-2 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 431 of 597 Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode_ ANT-2 5190 MHz 5230 MHz Mode 5: IEEE 802.11ac 80 MHz Continuous TX mode_ ANT-2 5210 MHz Report Number: 2007FR29 Rev.01 Page 432 of 597 Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-2 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 433 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-2 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-2 5210 MHz Report Number: 2007FR29 Rev.01 Page 434 of 597 Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode_ ANT-3 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 435 of 597 Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode_ ANT-3 5190 MHz 5230 MHz Mode 5: IEEE 802.11ac 80 MHz Continuous TX mode_ ANT-3 5210 MHz Report Number: 2007FR29 Rev.01 Page 436 of 597 Mode 6: IEEE 802.11ax 20 MHz Continuous TX mode_ ANT-3 5180 MHz 5200 MHz 5240 MHz Report Number: 2007FR29 Rev.01 Page 437 of 597 Mode 7: IEEE 802.11ax 40 MHz Continuous TX mode_ ANT-3 5190 MHz 5230 MHz Mode 8: IEEE 802.11ax 80 MHz Continuous TX mode_ ANT-3 5210 MHz Report Number: 2007FR29 Rev.01 Page 438 of 597 6 dB RF Bandwidth Measurement Test Mode Mode 2: IEEE 802.11a Continuous TX mode Frequency (MHz) ANT-0 Limit (kHz) 5745.0 16350 ≥ 500 5785.0 16050 ≥ 500 5825.0 16380 ≥ 500 Frequency (MHz) ANT-1 Limit (kHz) 5745.0 16360 ≥ 500 5785.0 16340 ≥ 500 5825.0 16340 ≥ 500 Frequency (MHz) ANT-2 Limit (kHz) 5745.0 16370 ≥ 500 5785.0 16360 ≥ 500 5825.0 15940 ≥ 500 Frequency (MHz) ANT-3 Limit (kHz) 5745.0 16350 ≥ 500 5785.0 16090 ≥ 500 5825.0 16370 ≥ 500 Report Number: 2007FR29 Rev.01 Page 439 of 597 Test Mode Mode 3: IEEE 802.11ac 20 MHz Continuous TX mode Frequency (MHz) ANT-0 Limit (kHz) 5745.0 17660 ≥ 500 5785.0 17560 ≥ 500 5825.0 17780 ≥ 500 Frequency (MHz) ANT-1 Limit (kHz) 5745.0 16930 ≥ 500 5785.0 16950 ≥ 500 5825.0 17670 ≥ 500 Frequency (MHz) ANT-2 Limit (kHz) 5745.0 17610 ≥ 500 5785.0 17620 ≥ 500 5825.0 17620 ≥ 500 Frequency (MHz) ANT-3 Limit (kHz) 5745.0 17670 ≥ 500 5785.0 17680 ≥ 500 5825.0 17320 ≥ 500 Report Number: 2007FR29 Rev.01 Page 440 of 597 Test Mode Mode 4: IEEE 802.11ac 40 MHz Continuous TX mode Frequency (MHz) ANT-0 Limit (kHz) 5755.0 35760 ≥ 500 5795.0 35730 ≥ 500 Frequency (MHz) ANT-1 Limit (kHz) 5755.0 36330 ≥ 500 5795.0 36430 ≥ 500 Frequency (MHz) ANT-2 Limit (kHz) 5755…
