A8JEIR900Dual Band 3T3R Router

EnGenius ® EIR900Wireless-N Dual Band Media Router with Security VPN Support V1.0 T ABLE OF C ONTENTS I T ABLE OF C ONTENTS Product Overview Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Product Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Installation System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 EnGenius Quick Start Connecting Network Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Setup Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Accessing the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Accessing the Firmware from a CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Accessing the Firmware from a Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Logging In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Web Configuration Viewing the Dash Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 T ABLE OF C ONTENTS II Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Web Menus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Wireless 2.4GHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 Wireless 5GHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 Virtual Private Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10 Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12 Installation Setup Wizard Detecting the Internet Connection Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Basic Network Settings System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 T ABLE OF C ONTENTS III Viewing System Status . . . . . . . .…

Text truncated - open the document above for the full version.

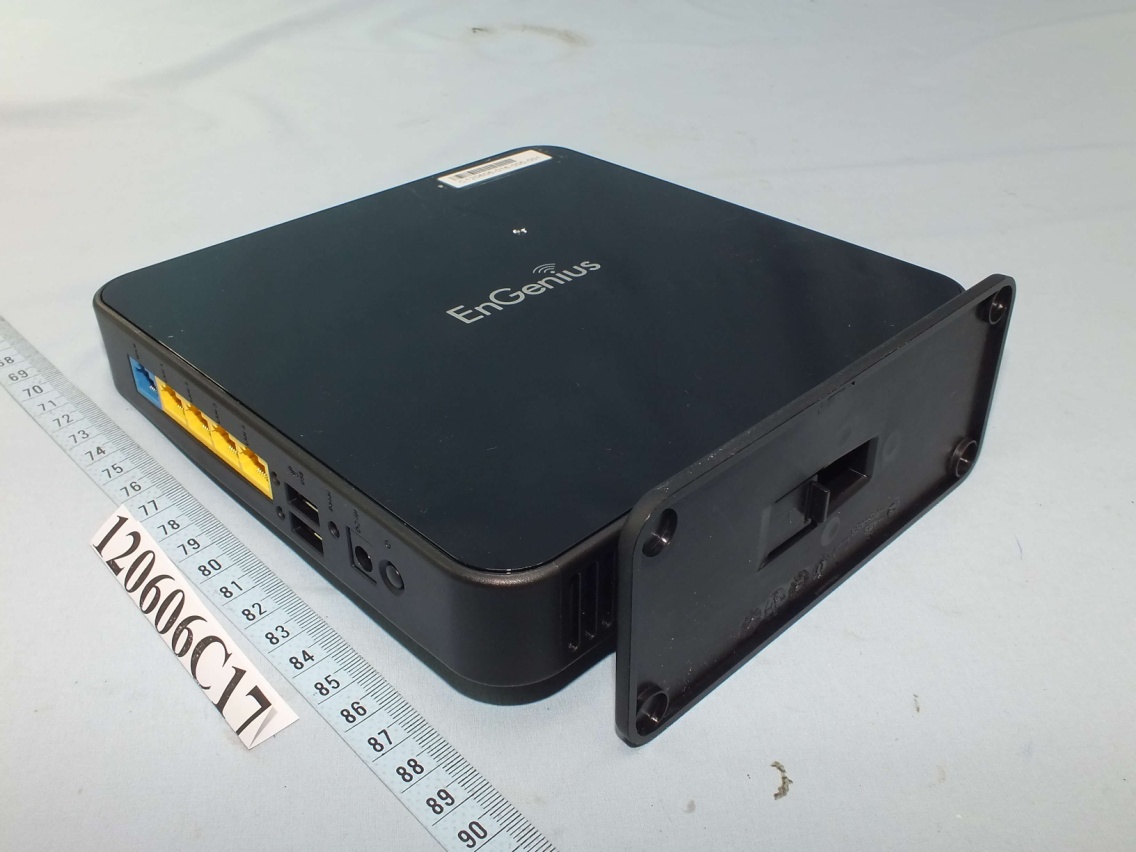

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

DUAL BAND CONCURRENT WIRELESS-N INTELLIGENT ROUTER Model No. EIR900 FCC ID : A8JEIR900 IC : 10103A-EIR900 Default IP: 192.168.0.1 User Name/Password: admin [2.4GHz / 5GHz WPS] > 5 secs

Page 4 Page 5 Page 6

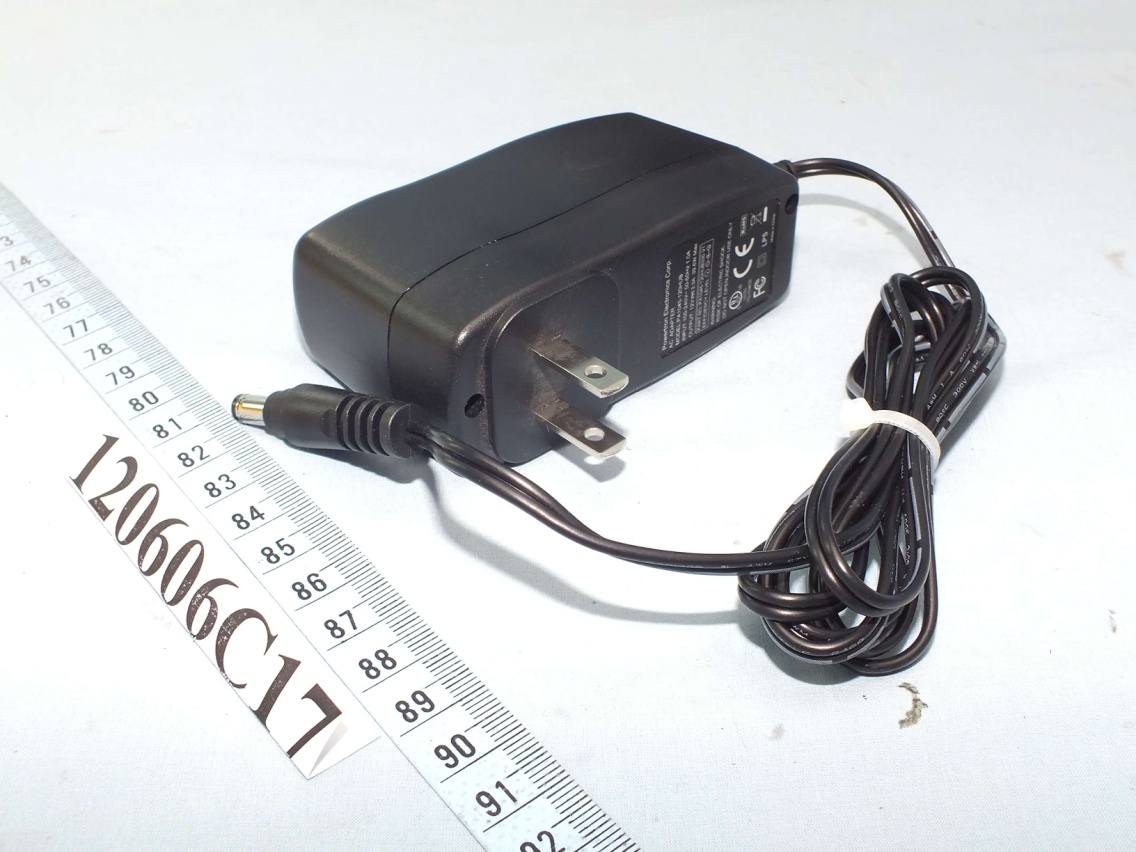

FCC ID: A8JEIR900 Report No.: RF 120606C17 Operational Description This device is an 802.11abgn Router, which operates in both of the 5GHz and 2.4GHz bands; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc adapter. The antennas are PCB Dipole with IPEX antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA111207C05A 1 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 RF EXPOSURE REPORT REPORT NO.: SA111207C05A MODEL NO.: EIR900 FCC ID: A8JEIR900 RECEIVED: Nov. 03, 2011 TESTED: Nov. 03 ~ Dec. 08, 2011 ISSUED: Jun. 18, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA111207C05A 2 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA111207C05A 3 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA111207C05A Original release Jun. 18, 2012 Report No.: SA111207C05A 4 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 1. CERTIFICATION PRODUCT: Dual Band 3T3R Router MODEL: EIR900 BRAND: EnGenius APPLICANT: EnGenius Technologies TESTED: Nov. 03 ~ Dec. 08, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: EIR900) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jun. 18, 2012 Pettie Chen / Specialist APPROVED BY : , DATE :Jun. 18, 2012 Gary Chang / Technical Manager Report No.: SA111207C05A 5 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 23cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA111207C05A 6 of 6 Report Format Version 5.0.0 Reference No.: 120606C17 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 23.0 7.8 23 0.181 1 802.11g 28.0 7.8 23 0.572 1 802.11n (20MHz) 28.0 7.8 23 0.572 1 802.11n (40MHz) 28.0 7.8 23 0.572 1 5180-5240 802.11a 15.0 6.8 23 0.023 1 802.11n (20MHz) 15.0 6.8 23 0.023 1 802.11n (40MHz) 15.0 6.8 23 0.023 1 5745-5825 802.11a 27.5 6.8 23 0.405 1 802.11n (20MHz) 27.1 6.8 23 0.369 1 802.11n (40MHz) 27.3 6.8 23 0.387 1 NOTE: For 2.4GHz Band: Directional gain =3.1dBi + 10log(3)=7.8dBi For 5.0GHz Band: Directional gain =2.0dBi + 10log(3)=6.8dBi CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.572 + 0.405 = 0.977 Therefore, the maximum calculation of this situation is 0.977, which is less than the “1” limit.

Report No.: RF111207C05A 1 of 90 Report Format Version 5.0.0 Reference No.: 120606C17 FCC TEST REPORT (15.247) REPORT NO.: RF111207C05A MODEL NO.: EIR900 FCC ID: A8JEIR900 RECEIVED: Nov. 03, 2011 TESTED: Nov. 03 ~ Dec. 08, 2011 ISSUED: Jun. 18, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF111207C05A 2 of 90 Report Format Version 5.0.0 Reference No.: 120606C17 TABLE OF CONTENTS RELEASE CONTROL RECORD .......................................................................................... 5 1. CERTIFICATION ....................................................................................................... 6 2. SUMMARY OF TEST RESULTS .............................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 11 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 16 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ............................................. 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 17 4.1.2 TEST INSTRUMENTS ........................................................................................... 18 4.1.3 TEST PROCEDURES ............................................................................................ 19 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 19 4.1.5 TEST SETUP ......................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 20 4.1.7 TEST RESULTS ..................................................................................................... 21 4.2 CONDUCTED EMISSION MEASUREMENT ......................................................... 34 4.2.1 LIMITS OF CONDUCT ED EMISSION MEASUREMENT....................................... 34 4.2.2 TEST INSTRUMENTS ........................................................................................... 34 4.2.3 TEST PROCEDURES ............................................................................................ 35 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 35 4.2.5 TEST SETUP ......................................................................................................... 36 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 36 4.2.7 TEST RESULTS ..................................................................................................... 37 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 39 4.3.2 TEST SETUP ......................................................................................................... 39 4.3.3 TEST INSTRUMENTS ........................................................................................... 39 4.3.4 TEST PROCEDURE .............................................................................................. 39 4.3.5 DEVIATION FROM TEST STANDARD .................................................................. 39 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 39 4.3.7 TEST RESULTS .....................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF111207C05A-1 1 of 52 Report Format Version 5.0.0 Reference No.: 120606C17 FCC TEST REPORT (15.407) REPORT NO.: RF111207C05A-1 MODEL NO.: EIR900 FCC ID: A8JEIR900 RECEIVED: Nov. 03, 2011 TESTED: Nov. 03 ~ Dec. 08, 2011 ISSUED: Jun. 18, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF111207C05A-1 2 of 52 Report Format Version 5.0.0 Reference No.: 120606C17 TABLE OF CONTENTS RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ....................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 6 3. GENERAL INFORMATION ....................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 7 3.2 DESCRIPTION OF TEST MODES ........................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 12 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 12 4. TEST TYPES AND RESULTS ................................................................................ 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 13 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .......... 13 4.1.3 TEST INSTRUMENTS ........................................................................................... 14 4.1.4 TEST PROCEDURES ............................................................................................ 15 4.1.5 DEVIATION FROM TEST STANDARD .................................................................. 15 4.1.6 TEST SETUP ......................................................................................................... 16 4.1.7 EUT OPERATING CONDITION ............................................................................. 16 4.1.8 TEST RESULTS ..................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ......................................................... 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 28 4.2.2 TEST INSTRUMENTS ........................................................................................... 28 4.2.3 TEST PROCEDURES ............................................................................................ 29 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 29 4.2.5 TEST SETUP ......................................................................................................... 30 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 30 4.2.7 TEST RESULTS ..................................................................................................... 31 4.3 PEAK TRANSMIT POWER MEASUREMENT ....................................................... 33 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ..................................... 33 4.3.2 TEST SETUP ......................................................................................................... 33 4.3.3 TEST INSTRUMENTS ........................................................................................... 33 4.3.4 TEST PROCEDURE .............................................................................................. 34 4.3.5 DEVIATION FROM TEST STANDARD .................................................................. 34 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 34 4.3.7 TEST RESULTS …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
