A8JESR750H802.11abgn Router

EnGenius ® X-TRA RANGE ESR600H/ESR750H Dual Concurrent Wireless Media Router V1.0 ESR600H/ESR750H USER GUIDETABLE OF CONTENTS I TABLE OF CONTENTS Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-xi Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-xiii Product Overview Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Product Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Installation System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 EnGenius Quick Start Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Setup Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Connecting Network Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Web Configuration ESR600H/ESR750H USER GUIDETABLE OF CONTENTS II Logging In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Viewing the Dash Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Web Menus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 Wireless 2.4G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Wireless 5G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 Virtual Private Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 Installation Setup Wizard Detecting the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Basic Network Settings System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 ESR600H/ESR750H USER GUIDETABLE OF CONTENTS III Viewing System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

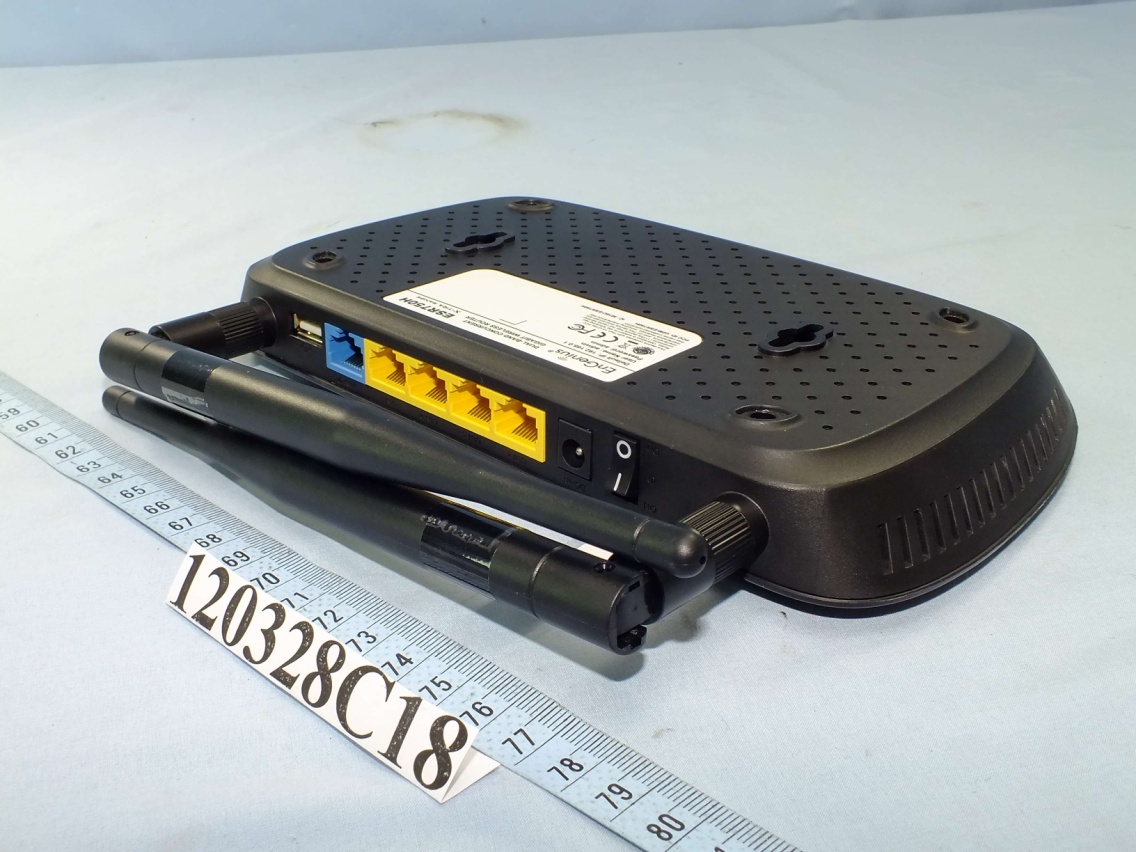

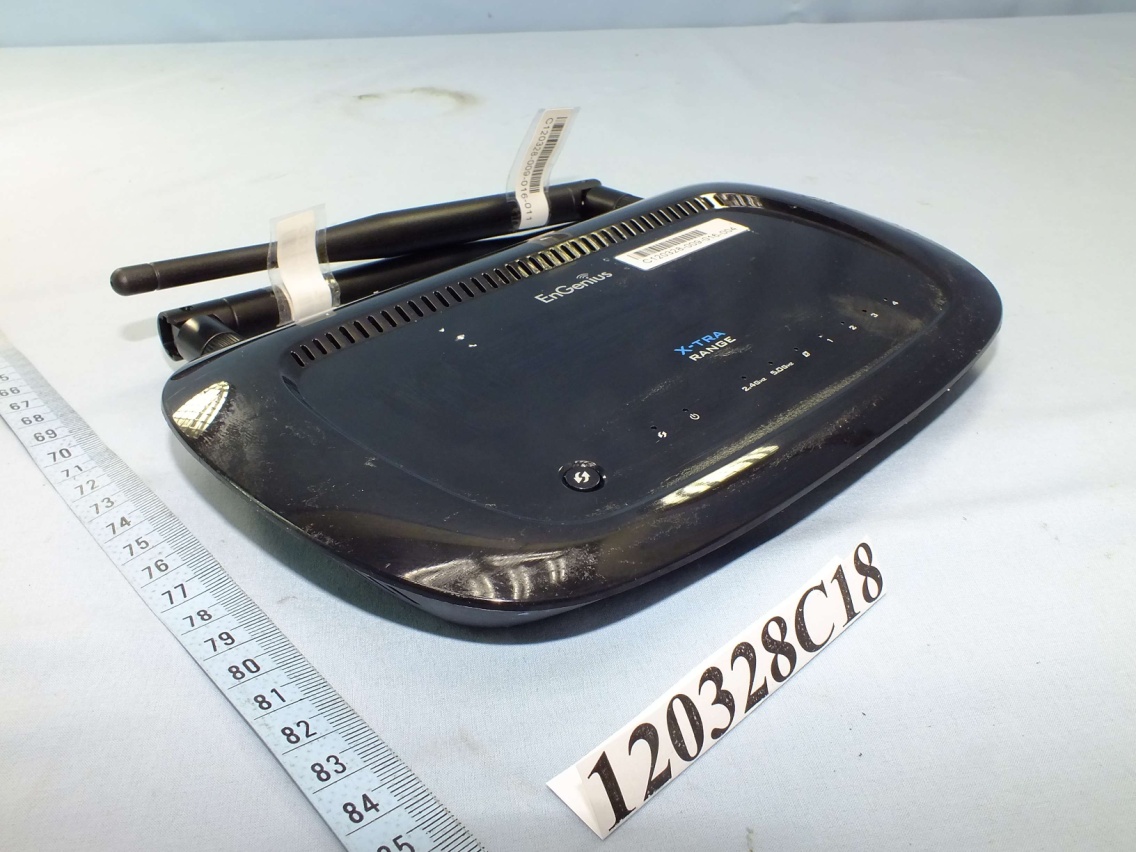

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Model No. ESR600H Default IP: 192.168.0.1 User Name/Password: admin ESR600H FCC : A8JESR750HIC : 10103A-ESR750H DUAL CONCURRENT WIRELESS MEDIA ROUTER [2.4GHz WPS] 0 ~ 5 secs [5GHz WPS] 5 ~ 10 secs [Reboot] 10 ~ 15 secs [Reset to Default] 15+ secs

Model No. ESR750H Default IP: 192.168.0.1 User Name/Password: admin ESR750H FCC : A8JESR750HIC : 10103A-ESR750H DUAL CONCURRENT WIRELESS LIVE MEDIA ROUTER [2.4GHz WPS] 0 ~ 5 secs [5GHz WPS] 5 ~ 10 secs [Reboot] 10 ~ 15 secs [Reset to Default] 15+ secs

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

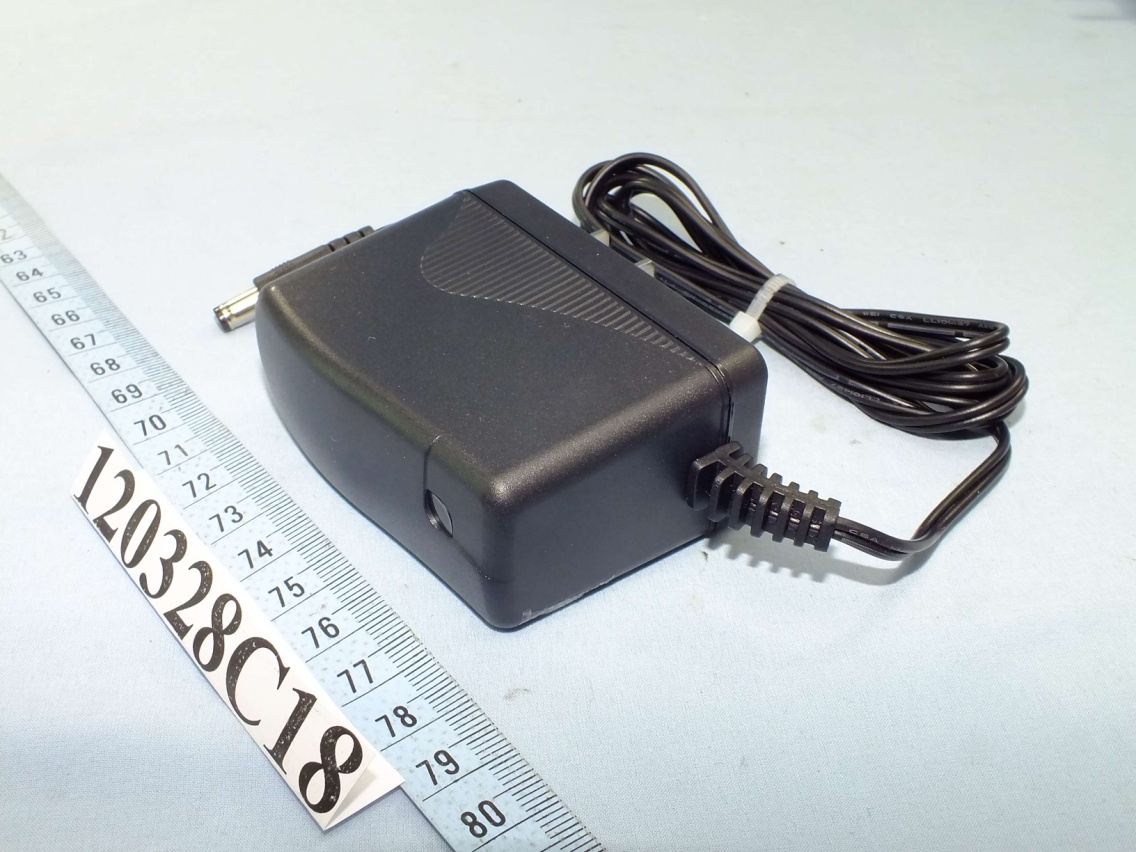

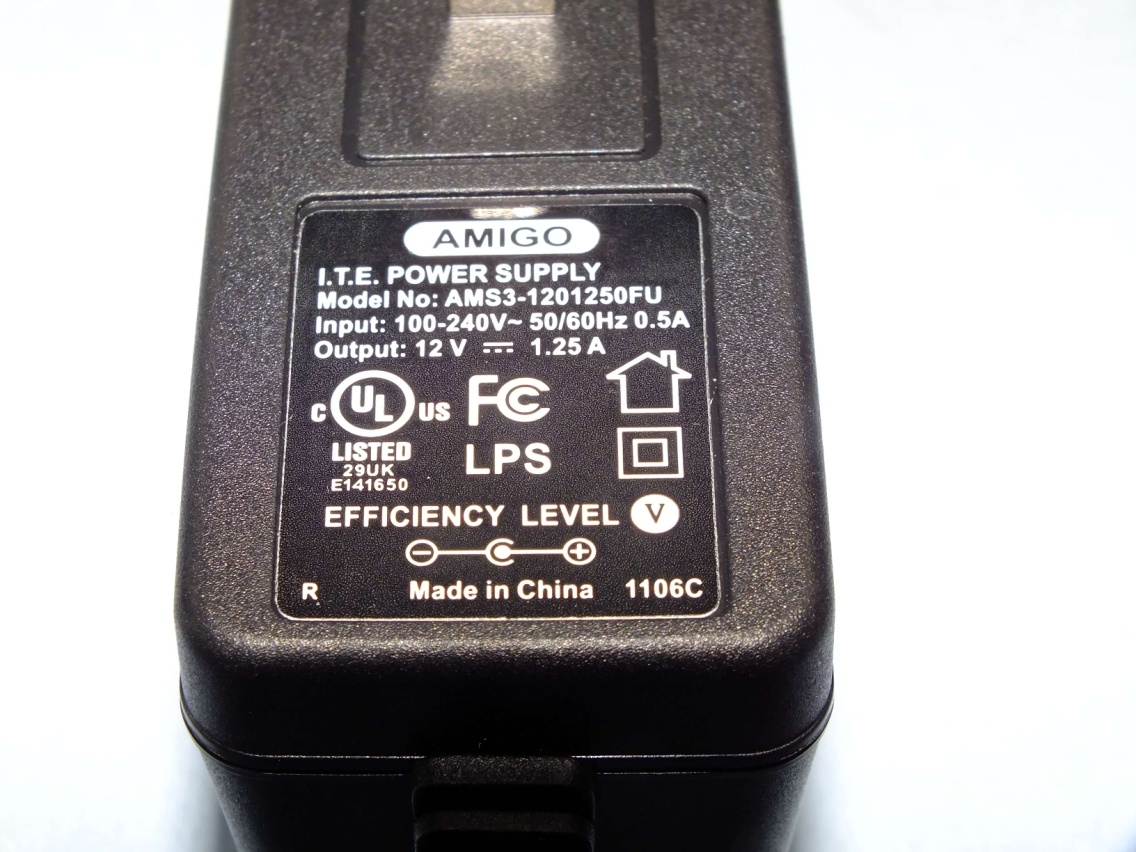

FCC ID: A8JESR750H Report No.: RF120328C18 Operational Description This device is an 802.11abgn Router, which operates in both of the 5GHz and 2.4GHz bands; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc adapter. The antennas are Dipole and PIFA antenna with IPEX (2.4GHz) and UFL (5GHz) antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120328C18 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120328C18 MODEL NO.: ESR750H, ESR600H FCC ID: A8JESR750H RECEIVED: Mar. 28, 2012 TESTED: Mar. 31 ~ Apr. 11, 2012 ISSUED: Apr. 16, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120328C18 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA120328C18 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120328C18 Original release Apr. 16, 2012 Report No.: SA120328C18 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 802.11abgn Router MODEL NO.: ESR750H, ESR600H BRAND: EnGenius APPLICANT: EnGenius Technologies TESTED: Mar. 31 ~ Apr. 11, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: ESR750H) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Apr. 16, 2012 Andrea Hsia / Specialist APPROVED BY : , DATE :Apr. 16, 2012 Gary Chang / Technical Manager Report No.: SA120328C18 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120328C18 Report Format Version 4.0.0 6 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 18.30 5 20 0.043 1 802.11g 25.65 5 20 0.231 1 802.11n (20MHz) 25.40 5 20 0.218 1 802.11n (40MHz) 25.90 5 20 0.245 1 5180-5240 802.11a 13.71 3.5 20 0.010 1 802.11n (20MHz) 14.30 3.5 20 0.012 1 802.11n (40MHz) 16.20 3.5 20 0.019 1 5745-5825 802.11a 24.43 3.5 20 0.124 1 802.11n (20MHz) 28.00 3.5 20 0.281 1 802.11n (40MHz) 28.00 3.5 20 0.281 1 NOTE: CONCULSION: Only 2.4 and 5GHz can transmit simultaneously, 2.4 and 2.4GHz does not. The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.245 + 0.281 = 0.526 Therefore, the maximum calculation of this situation is 0.526, which is less than the “1” limit.

Report No.: RF120328C18 1 Report Format Version 4.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF120328C18 MODEL NO.: ESR750H (refer to item 3.1 for more detail) FCC ID: A8JESR750H RECEIVED: Mar. 28, 2012 TESTED: Mar. 31 ~ Apr. 11, 2012 ISSUED: Apr. 16, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120328C18 2 Report Format Version 4.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 DESCRIPTION OF SUPPORT UNITS ...................................................................... 11 3.2.2 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 11 3.2.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 16 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 17 4.1.2 TEST INSTRUMENTS ............................................................................................... 18 4.1.3 TEST PROCEDURES ............................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 19 4.1.5 TEST SETUP ............................................................................................................. 20 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 20 4.1.7 TEST RESULTS ........................................................................................................ 21 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 34 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 34 4.2.2 TEST INSTRUMENTS ............................................................................................... 34 4.2.3 TEST PROCEDURES ............................................................................................... 35 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 35 4.2.5 TEST SETUP ............................................................................................................. 35 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 35 4.2.7 TEST RESULTS ........................................................................................................ 36 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 38 4.3.2 TEST SETUP ............................................................................................................. 38 4.3.3 TEST INSTRUMENTS ............................................................................................... 38 4.3.4 TEST PROCEDURE .................................................................................................. 38 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 38 4.3.6 EUT OPERATING CONDITIONS .............................................................................. 38 4.3.7 TEST RESULTS ........................................................................................................ 39 4.4 CONDUCTED OUTPUT POWER .............................................................................. 40 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT .............................. 40 4.4.2 TEST SETUP ............................................................................................................. 40 4.4.3 TEST INSTRUMENTS ............................................................................................... 40 4.4.4 TEST PROCEDURES ............................................................................................... 40 4.4.5 DEVIATION FROM TEST STANDARD...................................................................... 40 4.4.6 EUT OPERATING CONDITIONS .............................................................................. 40 4.4.7 TEST RESULTS ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: RF120328C18-1 1 Report Format Version 4.2.0 FCC TEST REPORT (15.407) REPORT NO.: RF120328C18-1 MODEL NO.: ESR750H (refer to item 3.1 for more detail) FCC ID: A8JESR750H RECEIVED: Mar. 28, 2012 TESTED: Mar. 31 ~ Apr. 11, 2012 ISSUED: Apr. 16, 2012 APPLICANT: EnGenius Technologies ADDRESS: 1580 Scenic Avenue, Costa Mesa, CA92626 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120328C18-1 2 Report Format Version 4.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 DESCRIPTION OF SUPPORT UNITS ......................................................................... 9 3.2.2 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 DUTY CYCLE OF TEST SIGNAL ............................................................................... 12 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 12 4. TEST TYPES AND RESULTS .................................................................................... 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 13 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 13 4.1.3 TEST INSTRUMENTS ................................................................................................ 14 4.1.4 TEST PROCEDURES ................................................................................................ 15 4.1.5 DEVIATION FROM TEST STANDARD ...................................................................... 15 4.1.6 TEST SETUP .............................................................................................................. 16 4.1.7 EUT OPERATING CONDITION .................................................................................. 16 4.1.8 TEST RESULTS ......................................................................................................... 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 26 4.2.2 TEST INSTRUMENTS ................................................................................................ 26 4.2.3 TEST PROCEDURES ................................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................... 27 4.2.5 TEST SETUP .............................................................................................................. 27 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 27 4.2.7 TEST RESULTS ......................................................................................................... 28 4.3 PEAK TRANSMIT POWER MEASUREMENT ........................................................... 30 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ......................................... 30 4.3.2 TEST SETUP .............................................................................................................. 30 4.3.3 TEST INSTRUMENTS ................................................................................................ 30 4.3.4 TEST PROCEDURE ................................................................................................... 31 4.3.5 DEVIATION FROM TEST STANDARD ...................................................................... 31 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 31 4.3.7 TEST RESULTS ......................................................................................................... 32 4.4 PEAK POWER SPECTRAL DENSITY MEASUREMENT .......................................... 34 4.4.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT ........................ 34 4.4.2 TEST SETUP .............................................................................................................. 34 4.4.3 TEST INSTRUMENTS ................................................................................................ 34 4.4.4 TEST PROCEDURES ................................................................................................ 34 4.4.5 DEVIATION FROM TEST STANDARD ..............................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
