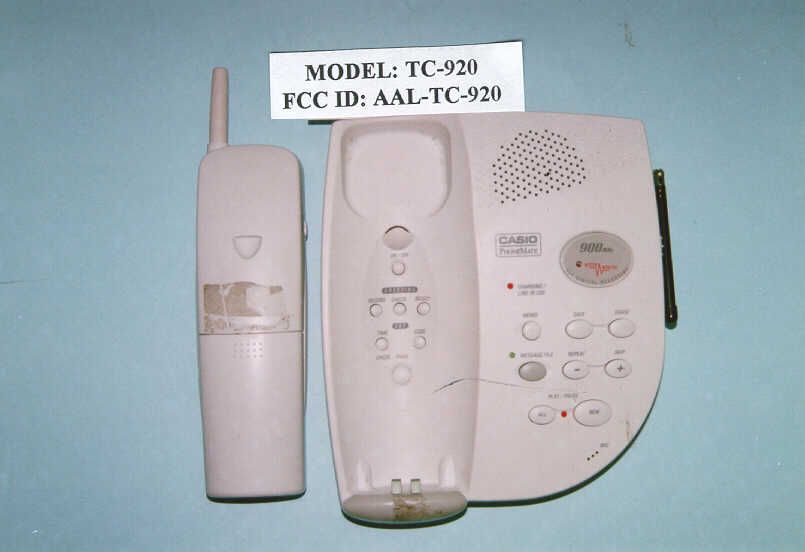

AAL-TC-920900 MHz Cordless Telephone

1 2 3 2 3 3 B The answering machine is shipped with the RingSelect Switch set to 4 rings. Set the RING SELECT SWITCH (labeled RINGS) to 4, 2, or TS (Tollsaver) to select the number of rings beforethe TC-920 answers.4 = The TC-920 will answer on the fourth ring. 2 = The TC-920 will answer on the second ring. TS = When calling to retrieve messages from a remote location, Tollsaver will helpeliminate toll charges by letting you knowif there are any new messages before theTC-920 answers. When set to TS, theTC-920 answers on: Second ring = NEW messages Fourth ring = NO new messages Hang up after three rings to avoid tollcharges. NOTE:n After you have retrieved messages, (from a remotelocation or at the machine) Tollsaver will reset toanswer on the fourth ring until a new message isrecorded. 1 1 You can record one or two customized greetingsup to 20 minutes in length. The greeting isrecorded on a digital chip.NOTE:n The sound level is automatically adjusted when thegreeting is played over the phone line. 3 4 BASE MESSAGE PLAYBACK 1 Press GREETING RECORD again after you have finished speaking. The greetingreplays automatically and the TC-920resets to answer phone calls with GreetingOne. RECORD GREETING TWO To record Greeting Two, pressGREETING SELECT to set the TC-920 to answer with Greeting 2, then follow thesteps noted above in the section "RECORDGREETING ONE." You can listen to either greeting anytime whenthe TC-920 is turned on. 1 Press TIME SET (located in the cradle ). Press TIME SET again after hearing " Sunday, 12:00 a.m. " You will hear, "Sunday." Set the current time and day. The TC-920 willstamp each message with the time and day. Press TIME SET again. The TC-920 will announce the hour. 4 Press SKIP/+ to advance or REPEAT/- to reverse the hour. “a.m.” and “p.m.” willbe announced for each hour. 1 Press ON/OFF (located in the cradle ) to turn the answering machine on and off.The PLAY/PAUSE INDICATOR on the basewill light when the TC-920 answeringmachine is on. ON/OFF The PLAY/PAUSE INDICATOR on the base hasfour settings:1. OFF = the answering machine is off. 2. ON = the machine is on but no messages have been recorded. 3. Light flashes quickly = new messages have been received and not yet played. 4. Light flashes slowly = messages have been played and saved. NOTE:n Slow flashing also indicates active recording mode. 1 2 Adjust the base unit VOLUME CONTROL (located on the right side). Press NEW on the base. The number of new messages will be announced. 1 The PLAY/PAUSE INDICATOR on the base willflash slowly when messages have been playedand saved. PLAY ALL MESSAGES Adjust the VOLUME CONTROL (located on the right side of the base). 2 Press ALL (on the base) to replay all new plus saved messages. The total number ofmessages will be announced. 3 You can repeat the current message. REPEAT MESSAGES 1 Skip backward, message by message. SKIP BACKWARD 1 During playback of messages, pressREPEAT twice to skip backward to the previous message. Press REPEAT each time you want to skip backward throughmessages. 1 NOTE:n Messages that were individually erased duringplayback will be saved. Press SKIP once to skip forward to the next message. SKIP FORWARD 1 You can temporarily pause message playback upto five minutes. The TC-920 will not answer callsin the Pause Mode. PAUSE MESSAGE PLAYBACK Press ALL or NEW during message playback. REPLAY ALL MESSAGES You can erase specific messages while savingothers. 1 E Message File offers a convenient way to store important messages, long messages or to separatemessages for business, personal use or for other users. The green MESSAGE FILE INDICATOR on thebase has three settings when the answeringmachine is turned on:1. OFF = No messages have been filed. 2. Quickly flashes = New messages have been transferred and not yet played. 3. Slowly flashes = File messages were played and saved. You can record a memo for another household member or as a reminder for yourself up to fiveminutes in length. The memo will be stamped with the time and day it was recorded. You will hear " Please record message. " Begin speaking into the Microphone(located at the bottom right-hand corner)about 7" from the base unit. Press MEMO to end the recording. You can play new and saved messages privatelythrough the handset. Make sure the handset is inthe Standby Mode and the answering machine ison. 1 Press REMOTE/SCREEN and then PLAY ( 3 on the keypad). You will hear a beep and the MESSAGES LED on thehandset will light solid. 2 Return the handset to the base cradle. 1 Press ERASE ( 4 on the keypad) after hearing “ End of messages. ” 2 The specific message will be erased 7seconds after hearing “ End of Messages ” unless SAVE ( 1 on the keypad) is pressed. If you do not press SAVE ( 1 on the keypad) or ERASE ( 4 on the keypad) while listening to messages or after hearing “ End of messages, ” the TC-920 will automatically save all messages. 31 After listening to messages, return thehandset to the base or wait seven secondsto exit the Playback Mode.Press REMOTE/SCREEN on the handset and then PLAY ( 3 on the handset keypad) to playback your messages. 2 Press MSG FILE ( 6 on the handset key- pad) during message playback. The greenMESSAGE FILE INDICATOR on the base willflash quickly to show that a message hasbeen transferred to Message File. NOTE:n If SAVE is pressed at the end of message playback, then all messages will be saved in the main location,and the messages that were transferred duringplayback will also be saved in Message File. 11 H Be sure the TALK INDICATOR on thehandset is not lit. (The handset must be inStandby Mode.) 2 Press REMOTE/SCREEN on the handset. 3 Press MEMO ( 2 on the handset keypad). 4 The LOW BATT/RECORD INDICATORabove the 2 button will light solid and youwill hear “Please record a message” through the earpiece. The TC-920 willbegin recording. 5 Press MEMO or REMOTE/SCREEN again to end the recording and return toStandby Mode. In the Standby Mode, the handset is inactive andre…

Text truncated - open the document above for the full version.

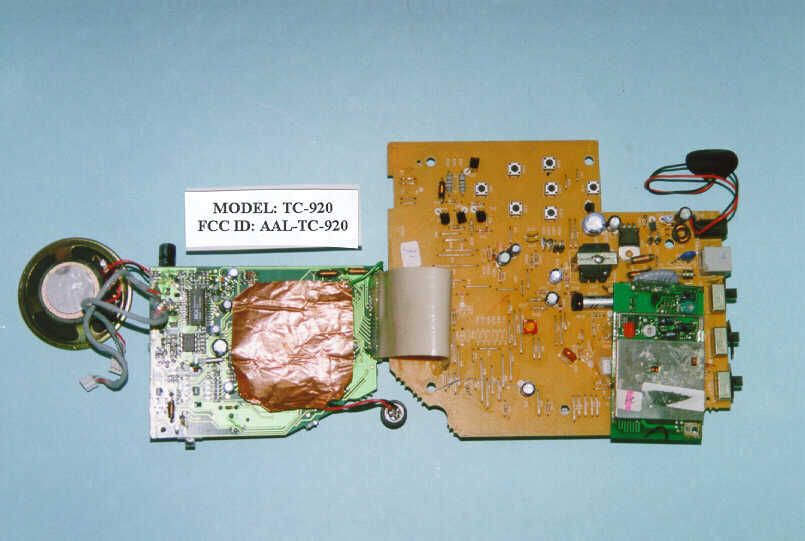

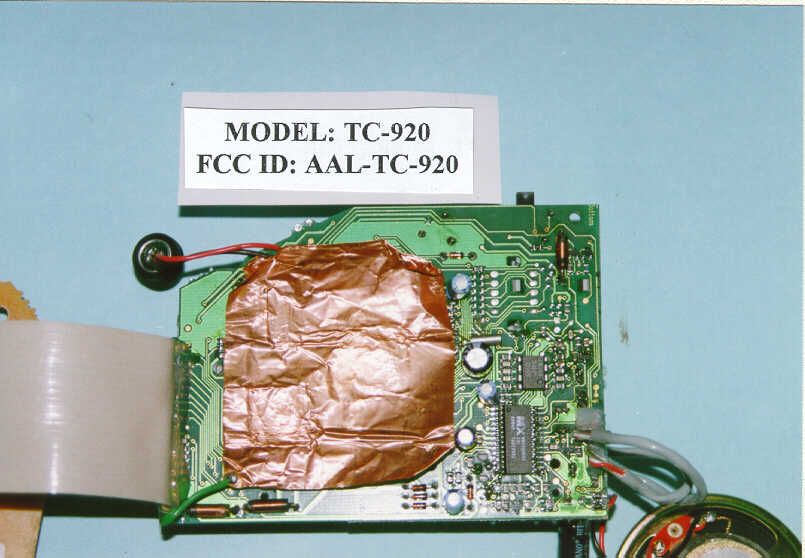

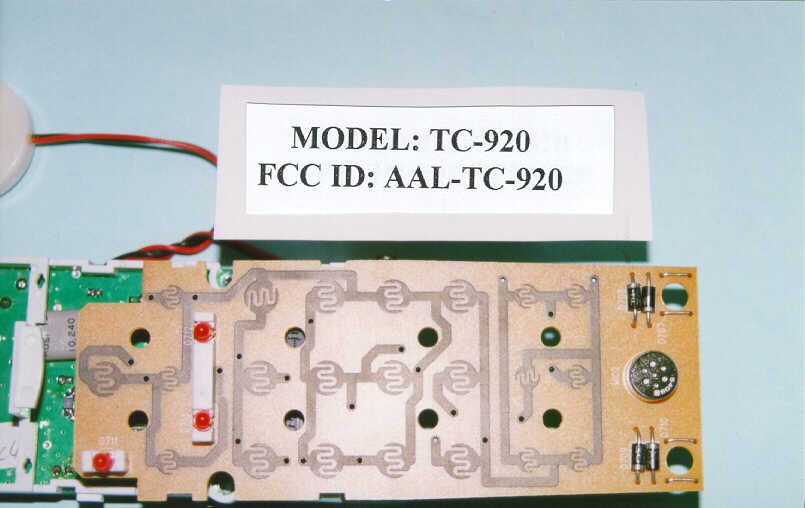

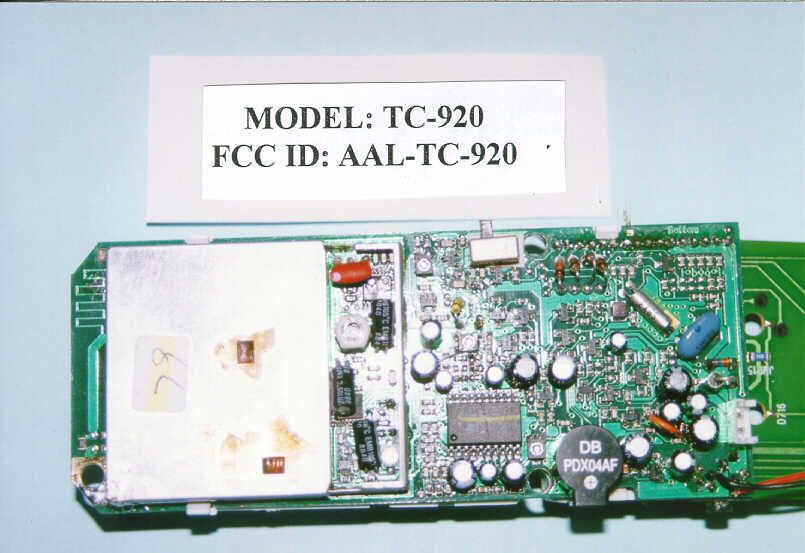

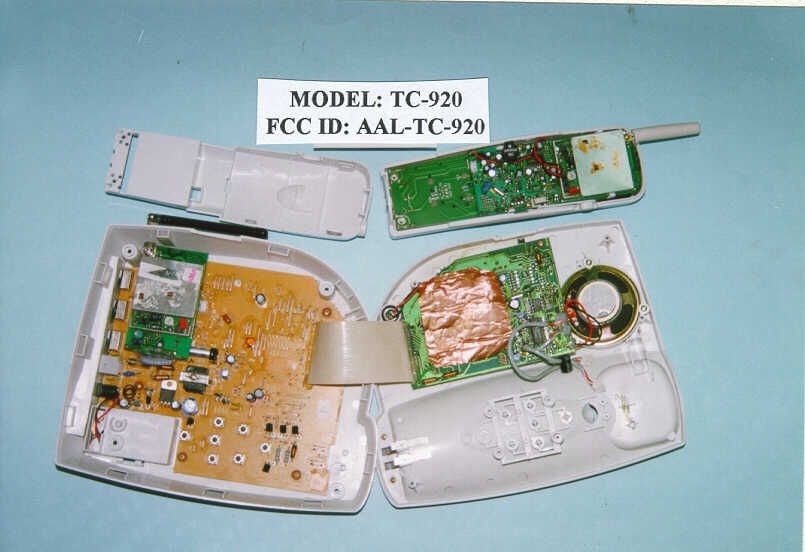

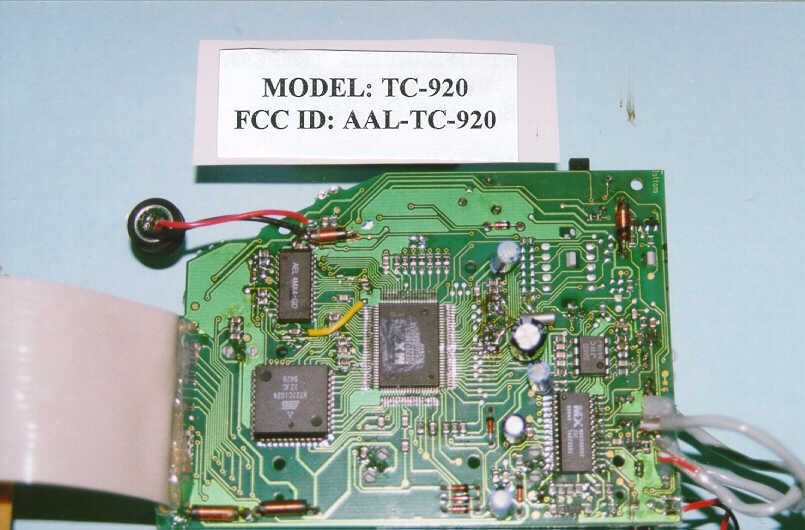

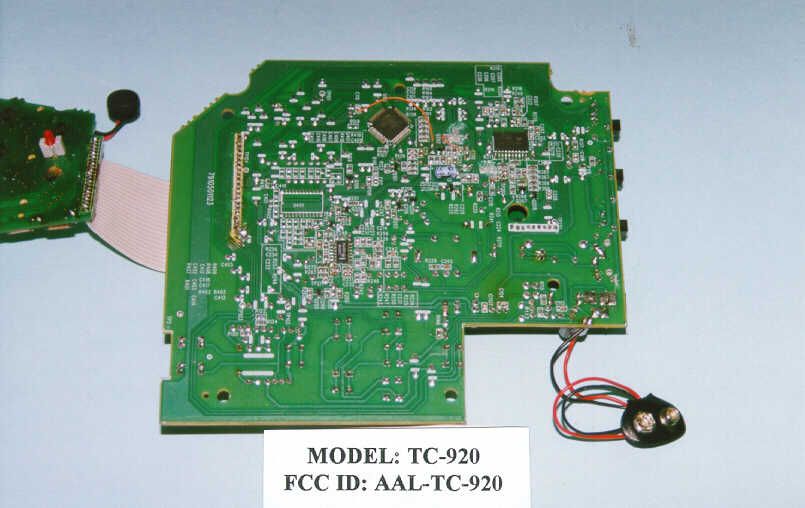

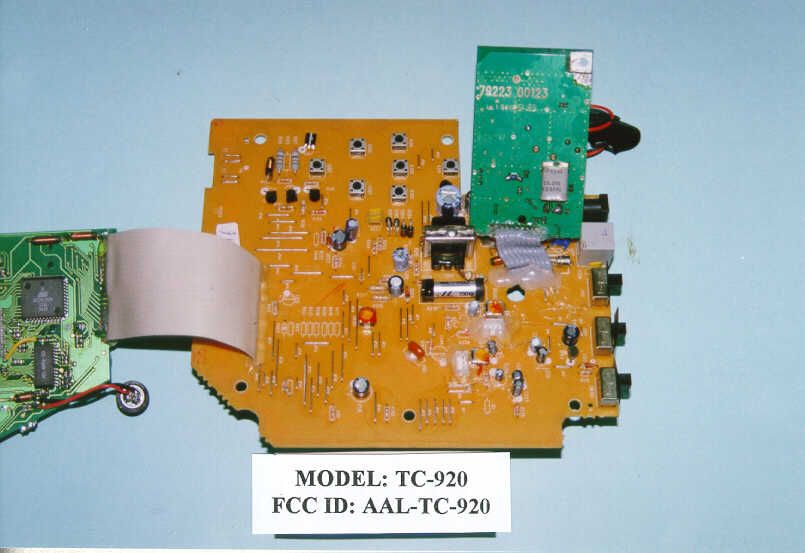

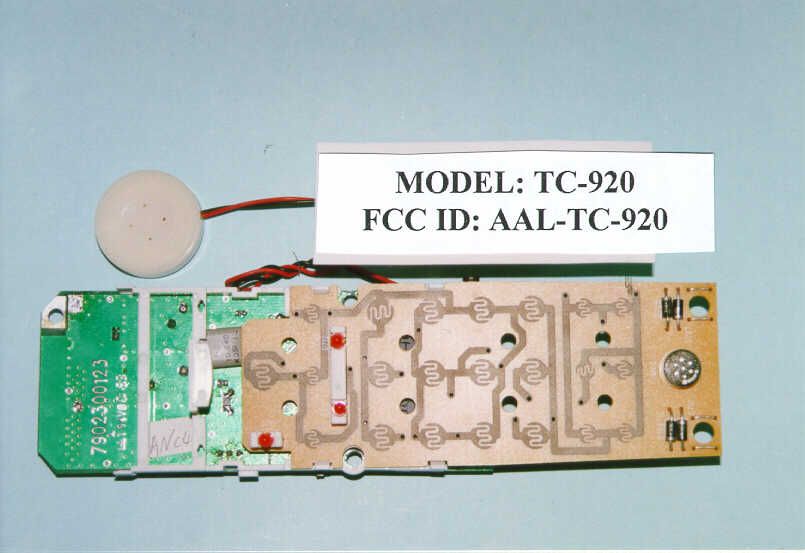

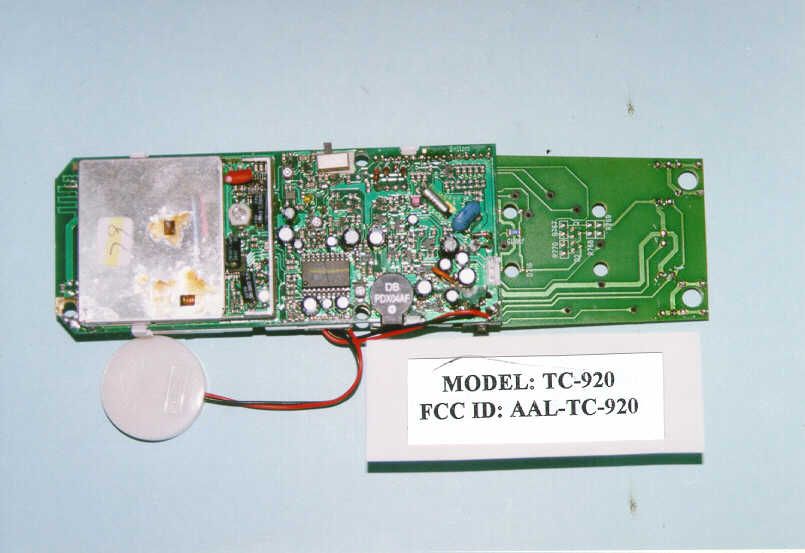

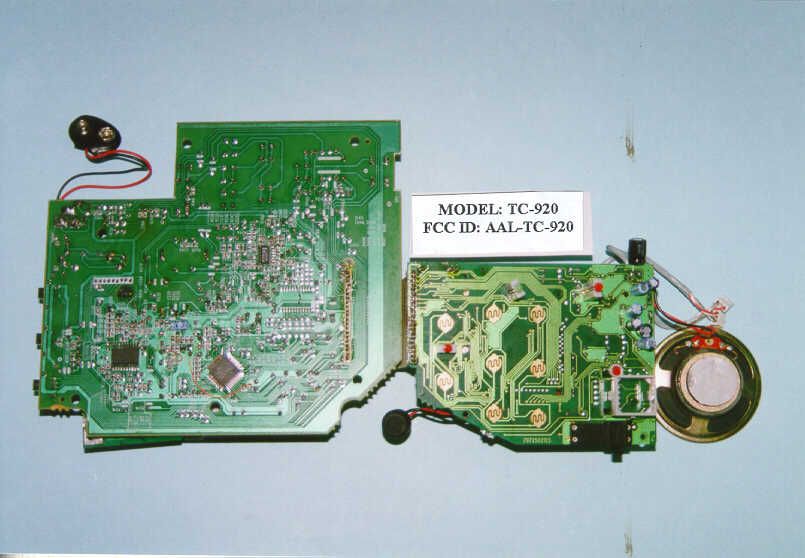

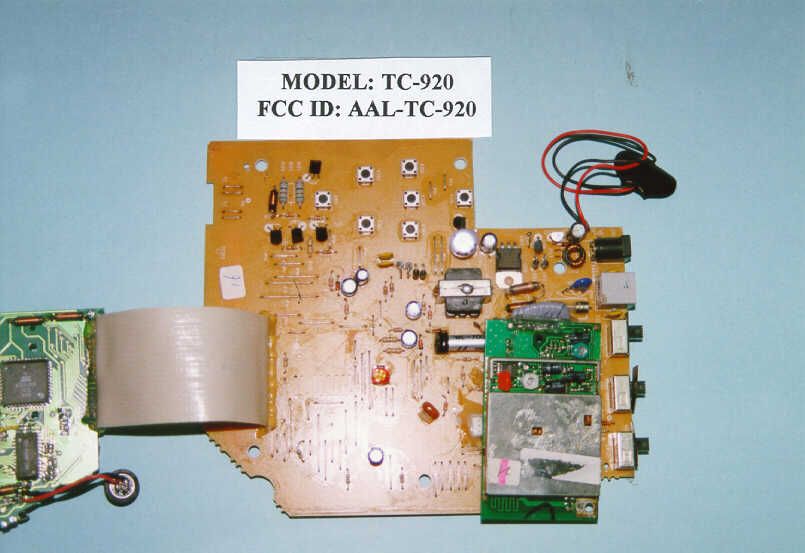

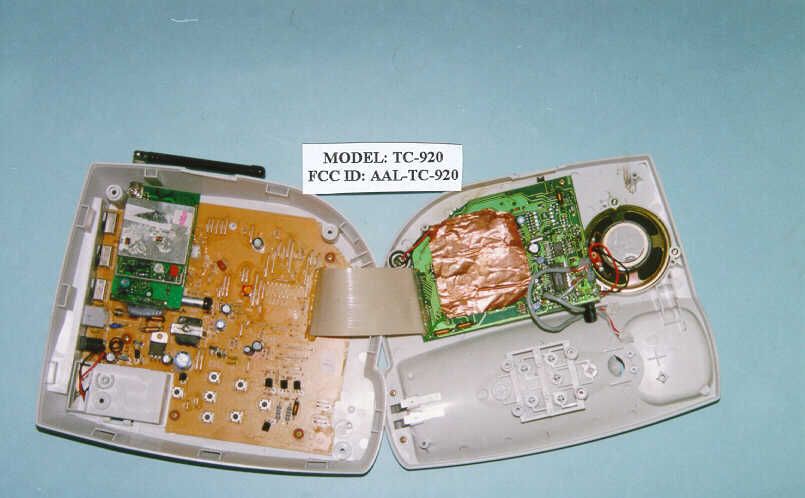

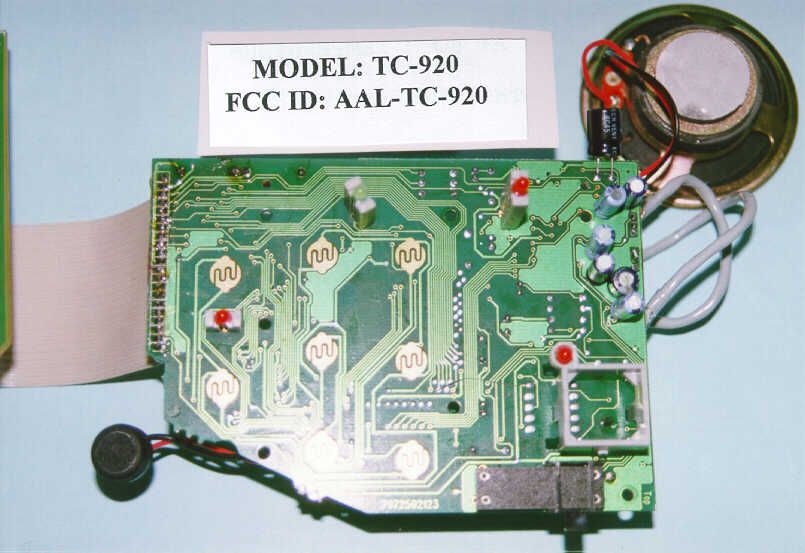

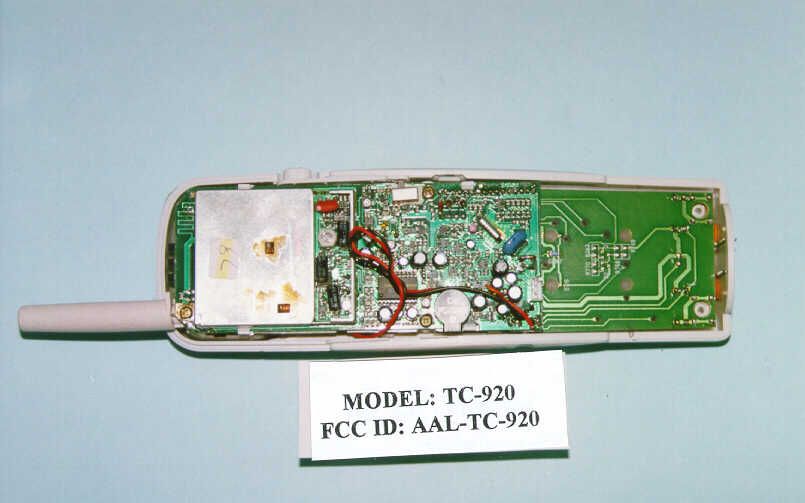

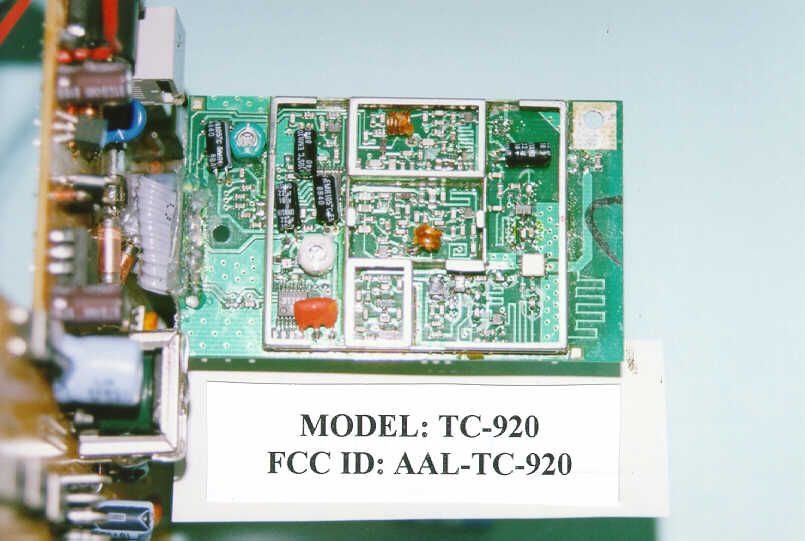

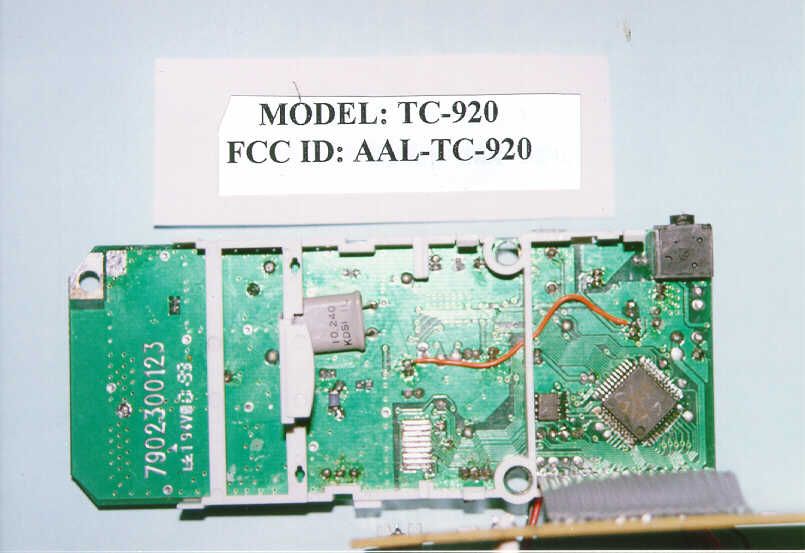

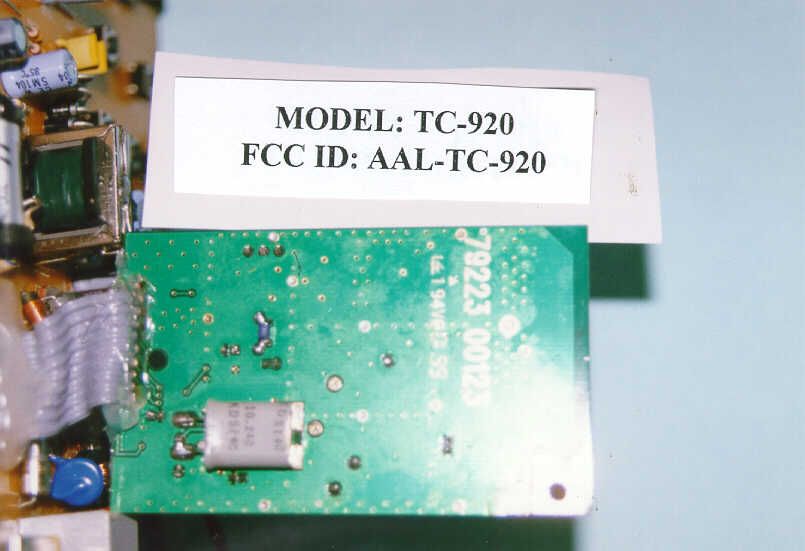

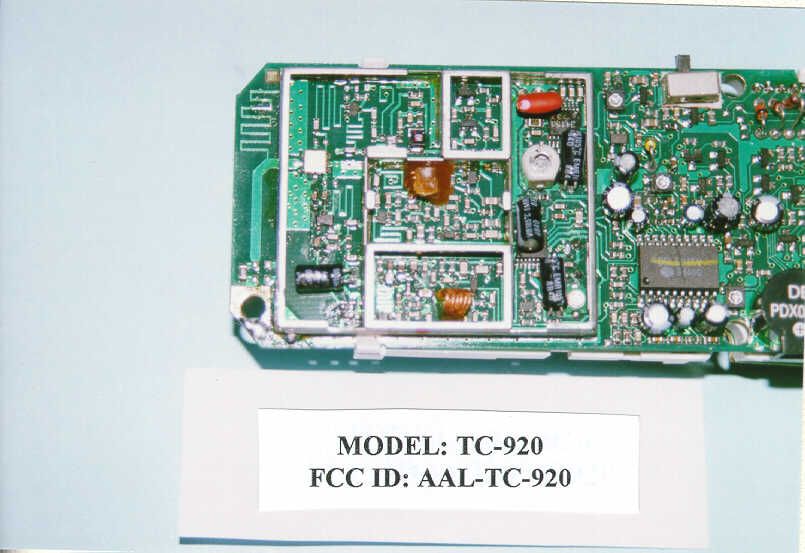

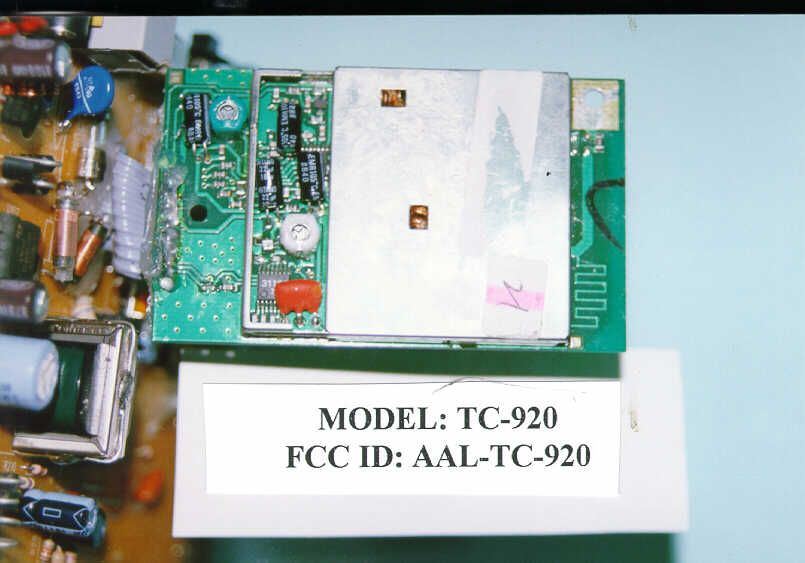

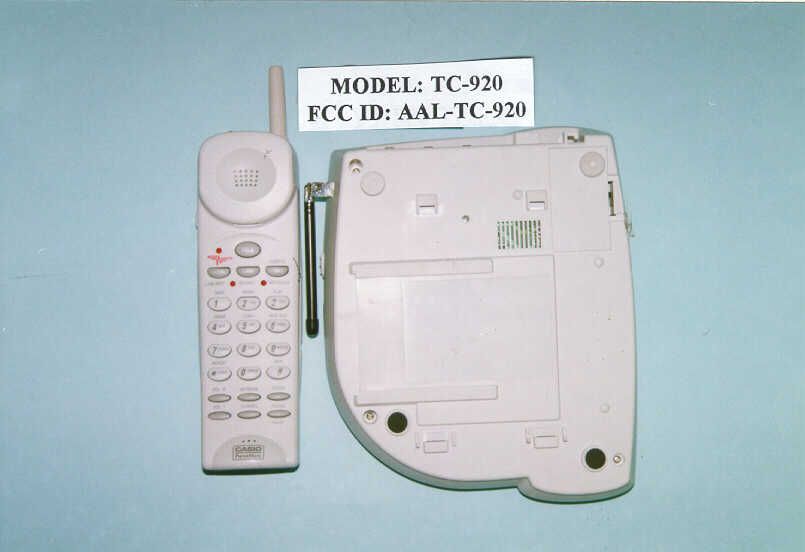

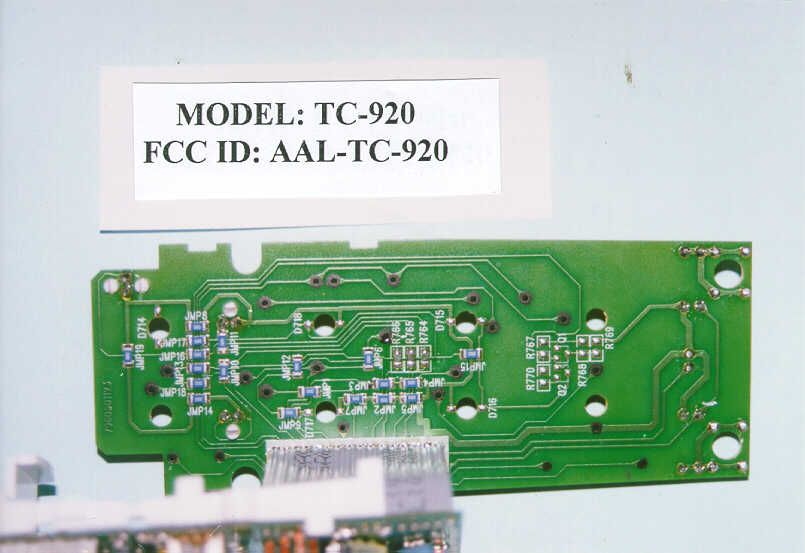

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: AAL-TC-920 Casio PhoneMate Inc. Application For Certification 900MHz 40 Channel Analog Modulation Cordless Telephone with Answering Machine (FCC ID: AAL-TC-920) WO# 99011802 ALO/at April 14, 1999 INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 ii MEASUREMENT/TECHNICAL REPORT Casio PhoneMate Inc. - MODEL: Casio PhoneMate TC-920, Casio Phone Mate TC-919 FCC ID: AAL-TC-920 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Alfred Lo Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone:852-2746-8217 Fax:852-2785-5487 INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 iii Table of Contents 1.0 General Description ................................................................................................................. 2 1.1 Product Description ................................................................................................................ 2 1.2 Related Submittal(s) Grants .................................................................................................... 3 1.3 Test Methodology ................................................................................................................... 3 1.4 Test Facility ............................................................................................................................ 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification............................................................................................................................. 5 2.2 EUT Exercising Software ....................................................................................................... 5 2.3 Support Equipment List and Description ................................................................................ 6 2.4 Equipment Modification ......................................................................................................... 7 3.0 Emission Results ....................................................................................................................... 9 3.1 Field Strength Calculation..................................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Base Unit.................................................... 11 3.3 Radiated Emission Data - Base Unit..........................................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .........................................................17 3.5 Radiated Emission Configuration Data - Handset ................................................................. 18 3.6 Radiated Emission on the bandedge...................................................................................... 21 3.7 Line Conducted Configuration Photograph - Base Unit ....................................................... 23 3.8 Line Conducted Data - Base Unit ..............................................................................................24 4.0 Equipment Photographs ........................................................................................................ 26 5.0 Product Labelling ................................................................................................................... 28 6.0 Technical Specifications ......................................................................................................... 30 7.0 Instruction Manual ......................................................................................................................32 8.0 Security Code Information .........................................................................................................34 INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Basebase1.jpg, base2.jpg Test Setup PhotoRadiated Emission for Handsethandset1.jpg, handset2.jpg Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconduct1.jpg to conduct3.jpg Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoophoto1.jpg, ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto21.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: AAL-TC-920 2 1.0 General Description 1.1Product Description The TC-920, TC-919 are 900MHz 40 Channel Analo…

Text truncated - open the document above for the full version.
