ACJ-11BT1301Transmitter Module

YRXMP  Owner¶s Manual Home Theater Audio System Model No. SC-HTB370 4 Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. If you have any questions, contact: U.S.A. and Puerto Rico: 1-800-211-PANA (7262) Canada: 1-800-561-5505 RQT9777-P 4' 2 RQT977 7 IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1Read these instructions. 2K eep these instr uctions. 3Heed all warnings. 4Follow all instructi ons. 5Do not use this apparatus near water. 6Clean only with dry cloth. 7Do not block any ventilation openings. Install in accordan ce with the manufacturer¶s instructions. 8Do not install near a ny heat sources such as radiators, heat registers, stoves, o r other a pparatus (including amplifiers) that produce heat. 9Do not defeat the safety purpose of the polarized or groundin g-type plug. A polarized plug has two blades with one wider th an the o ther. A grounding-type plug has two blades and a third groundin g prong. The wi de blade or the thi rd prong are pr ovided for your safety. If the provided pl ug does not fit into your ou tlet, consult a n electri cian for replacement of the obsolete outlet. 10 P rotect th e power cord fro m being walked on or pinched pa rticularly at plugs, conven ience receptacles, and the point where they exit fr om the apparatus. 11 O nly use attachmen ts/accesso ries sp ecified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table sp ecified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-o ver. 13 Unplug thi s apparatu s during lightnin g storms or when unu sed for long periods of time. 14 Refer all servicing to qualified service personnel. Servicin g is requ ired when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled o r objects have fallen into th e apparatus, the apparatus has been exp osed to rain or moisture , does not operate normally, or has been dropped. Unit To reduce the risk of fire, el ectric shock or product damage, Do not expose this unit to rain, mo isture, dripping or splashing . Do not place objects filled with liquids, such a s vases, on this un it. Use only the recommende d accessories. Do not re move covers. Do not repa ir this unit by yourself. Refer servicing to qualified service personnel. Power cord Install th is unit so that the power cord can be unpl ugged from the socket outlet immediately if any p roblem occurs. Button-type battery (Lithium battery) Risk of fire, explosion and burns. Do not di sassemble, heat above 60 o C (140 o F) or incinerate. WARNING DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD This product contains a coin/butto n cell ba ttery. If the coin/button cell b attery is swall owed, i t can cause severe internal bu rns in ju st 2 hours and can lea d to death. Keep new and used batte ries away from children. If the battery compartment does no t close securely, stop using the product and keep it away fro m children. If you think batteries might have been swallowed or placed insi de any par t of the body, seek immedi ate med ical attention. If any electrolyte should come into contact with your hands or clothes, wash it off thorough ly with water. If any electrolyte should come into contact with your eyes, ne ver rub the eyes. Rinse eyes thoro ughly wi th water, and then consult a doctor. <For USA-California o nly> This product co ntains a CR Coin Cell Lithium Batte ry which co ntains Perchlorate Material special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate . RQT977 7 3 Unit Do not pl ace sour ces of n aked fla mes, su ch as lighted candles, on this unit. Placement To reduce the risk of fire, electric shock o r product damage, Do not install or place this unit in a bookcase, bui lt-in cabinet or in an other confined space. Ensure this unit is well ventilated . Do not o bstruct this unit¶s ve ntilation openings with newspaper s, tablecloths, curtains, and similar items. Button-type battery (Lithium battery) Danger o f explosion if battery is in correctl y replace d. Replace only with the typ e recommende d by the manufacturer. Keep out of reach of child ren. Insert with poles aligned. Mishand ling of b atteries can cause electr olyte leakage and may cause a fire. Remove the battery if you do not intend to use the remote control fo r a long period o f time. Store in a cool, dark place. Do not heat or expose to flame. Do not l eave the battery(ies) in a car exp osed to direct sunlight for a long p eriod of time with doors a nd windows closed. Do not touch the terminals ( and) with meta l objects. Do not r echarge, disassemble, r emodel, heat or throw into fire. When disposing the batterie s, please contact yo ur local authoritie s or dea ler and ask for the correct method of disposal. μ CAUTION 8LIPMKLXRMRKJPEWL[MXLEVVS[LIEH W]QFSP[MXLMRERIUYMPEXIVEPXVMERKPI MWMRXIRHIHXSEPIVXXLIYWIVXSXLI TVIWIRGISJYRMRWYPEXIHwHERKIVSYW ZSPXEKIx[MXLMRXLITVSHYGXvW IRGPSWYVIXLEXQE]FISJWYJJMGMIRX QEKRMXYHIXSGSRWXMXYXIEVMWOSJ IPIGXVMGWLSGOXSTIVWSRW 8LII\GPEQEXMSRTSMRX[MXLMRER IUYMPEXIVEPXVMERKPIMWMRXIRHIHXSEPIVX XLIYWIVXSXLITVIWIRGISJMQTSVXERX STIVEXMRKERHQEMRXIRERGI WIVZMGMRK MRWXVYGXMSRWMRXLIPMXIVEXYVI EGGSQTER]MRKXLIETTPMERGI '%98-32836)(9')8,)6-7/3*)0)'86-' 7,3'/(32386)13:)7'6);7 2397)67)6:-')%&0)4%687 -27-() 6)*)67)6:-'-2+8359%0-*-)( 7)6:-')4)67322)0 '%98-32 6-7/3*)0)'86-'7,3'/ (323834)2 THE FOLLOWING APPLIES ONLY IN THE U.S.A. FC C Note: This equipment has been tested and found to comply with th e limits fo r a Cla ss B dig ita l d e…

Text truncated - open the document above for the full version.

YRXMP  Owner¶s Manual Home Theater Audio System Model No. SC-HTB770 4 Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. If you have any questions, contact: U.S.A. and Puerto Rico: 1-800-211-PANA (7262) Canada: 1-800-561-5505 RQT9778-P 4' 2 RQT977 8 IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1Read these instructions. 2K eep these instr uctions. 3Heed all warnings. 4Follow all instructi ons. 5Do not use this apparatus near water. 6Clean only with dry cloth. 7Do not block any ventilation openings. Install in accordan ce with the manufacturer¶s instructions. 8Do not install near a ny heat sources such as radiators, heat registers, stoves, o r other a pparatus (including amplifiers) that produce heat. 9Do not defeat the safety purpose of the polarized or groundin g-type plug. A polarized plug has two blades with one wider th an the o ther. A grounding-type plug has two blades and a third groundin g prong. The wi de blade or the thi rd prong are pr ovided for your safety. If the provided pl ug does not fit into your ou tlet, consult a n electri cian for replacement of the obsolete outlet. 10 P rotect th e power cord fro m being walked on or pinched pa rticularly at plugs, conven ience receptacles, and the point where they exit fr om the apparatus. 11 O nly use attachmen ts/accesso ries sp ecified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table sp ecified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-o ver. 13 Unplug thi s apparatu s during lightnin g storms or when unu sed for long periods of time. 14 Refer all servicing to qualified service personnel. Servicin g is requ ired when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled o r objects have fallen into th e apparatus, the apparatus has been exp osed to rain or moisture , does not operate normally, or has been dropped. Unit To reduce the risk of fire, el ectric shock or product damage, Do not expose this unit to rain, mo isture, dripping or splashing . Do not place objects filled with liquids, such a s vases, on this un it. Use only the recommende d accessories. Do not re move covers. Do not repa ir this unit by yourself. Refer servicing to qualified service personnel. Power cord Install th is unit so that the power cord can be unpl ugged from the socket outlet immediately if any p roblem occurs. Button-type battery (Lithium battery) Risk of fire, explosion and burns. Do not di sassemble, heat above 60 o C (140 o F) or incinerate. WARNING DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD This product contains a coin/butto n cell ba ttery. If the coin/button cell b attery is swall owed, i t can cause severe internal bu rns in ju st 2 hours and can lea d to death. Keep new and used batte ries away from children. If the battery compartment does no t close securely, stop using the product and keep it away fro m children. If you think batteries might have been swallowed or placed insi de any par t of the body, seek immedi ate med ical attention. If any electrolyte should come into contact with your hands or clothes, wash it off thorough ly with water. If any electrolyte should come into contact with your eyes, ne ver rub the eyes. Rinse eyes thoro ughly wi th water, and then consult a doctor. <For USA-California o nly> This product co ntains a CR Coin Cell Lithium Batte ry which co ntains Perchlorate Material special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate . RQT977 8 3 Unit Do not pl ace sour ces of n aked fla mes, su ch as lighted candles, on this unit. Placement To reduce the risk of fire, electric shock o r product damage, Do not install or place this unit in a bookcase, bui lt-in cabinet or in an other confined space. Ensure this unit is well ventilated . Do not o bstruct this unit¶s ve ntilation openings with newspaper s, tablecloths, curtains, and similar items. Button-type battery (Lithium battery) Danger o f explosion if battery is in correctl y replace d. Replace only with the typ e recommende d by the manufacturer. Keep out of reach of child ren. Insert with poles aligned. Mishand ling of b atteries can cause electr olyte leakage and may cause a fire. Remove the battery if you do not intend to use the remote control fo r a long period o f time. Store in a cool, dark place. Do not heat or expose to flame. Do not l eave the battery(ies) in a car exp osed to direct sunlight for a long p eriod of time with doors a nd windows closed. Do not touch the terminals ( and) with meta l objects. Do not r echarge, disassemble, r emodel, heat or throw into fire. When disposing the batterie s, please contact yo ur local authoritie s or dea ler and ask for the correct method of disposal. μ CAUTION 8LIPMKLXRMRKJPEWL[MXLEVVS[LIEH W]QFSP[MXLMRERIUYMPEXIVEPXVMERKPI MWMRXIRHIHXSEPIVXXLIYWIVXSXLI TVIWIRGISJYRMRWYPEXIHwHERKIVSYW ZSPXEKIx[MXLMRXLITVSHYGXvW IRGPSWYVIXLEXQE]FISJWYJJMGMIRX QEKRMXYHIXSGSRWXMXYXIEVMWOSJ IPIGXVMGWLSGOXSTIVWSRW 8LII\GPEQEXMSRTSMRX[MXLMRER IUYMPEXIVEPXVMERKPIMWMRXIRHIHXSEPIVX XLIYWIVXSXLITVIWIRGISJMQTSVXERX STIVEXMRKERHQEMRXIRERGI WIVZMGMRK MRWXVYGXMSRWMRXLIPMXIVEXYVI EGGSQTER]MRKXLIETTPMERGI '%98-32836)(9')8,)6-7/3*)0)'86-' 7,3'/(32386)13:)7'6);7 2397)67)6:-')%&0)4%687 -27-() 6)*)67)6:-'-2+8359%0-*-)( 7)6:-')4)67322)0 '%98-32 6-7/3*)0)'86-'7,3'/ (323834)2 THE FOLLOWING APPLIES ONLY IN THE U.S.A. FC C Note: This equipment has been tested and found to comply with th e limits fo r a Cla ss B dig ita l d e…

Text truncated - open the document above for the full version.

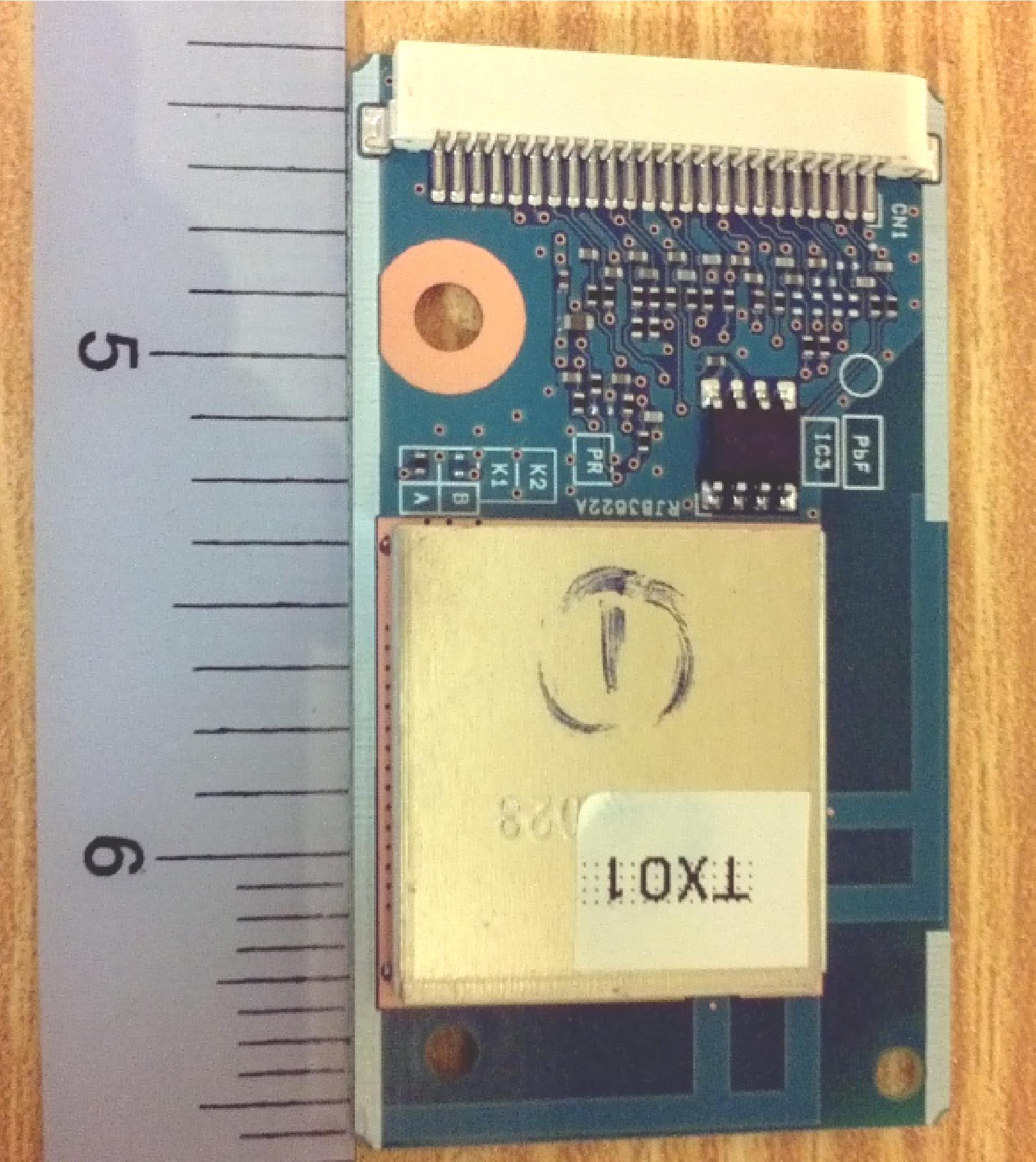

Model: RJB3622A FCC ID: ACJ-11BT1301 External Photos EUT PHOTOGRAPHS Ma in-BoardPCB Component Side Model: RJB3622A FCC ID: ACJ-11BT1301 External Photos Main-BoardPCB Trace Side

Model: RJB3622A FCC ID: ACJ-11BT1301 Label and Location Sample Label Physical Location ofLabel on EUT

Model: RJB3622A FCC ID: ACJ-11BT1301 Internal Photo RF Module Circuit with RF Shield Removed RF Module RF Antenna

Test Report No. 7191044465-EEC12/01 dated 24 Oct 2012 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜDGroup and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 92 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2011 OF A RF TRANSMITTER MODULE [ Model : RJB3622A ] [ FCC ID : ACJ-11BT1301 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 FCC REG. NO. 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) IND. CANADA REG. NO. 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) PREPARED FOR Panasonics AVC Networks Singapore 202, Bedok South Avenue 1 Singapore 469332 Tel : +65 6240 1891Fax : +65 6445 3168 QUOTATION NUMBER 219159811 JOB NUMBER 7191044465 TEST PERIOD 11 Oct 2012 - 23 Oct 2012 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Higher Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Panasonics AVC Networks SingaporePage 2 of 92 RF Transmitter Module [ Model : RJB3622A ] [ FCC ID : ACJ-11BT1301 ] Test Report No. 7191044465-EEC12/01 dated 24 Oct 2012 TABLE OF CONTENTS TEST SUMMARY ........................................................................................................................................ 3 PRODUCT DESCRIPTION .......................................................................................................................... 5 SUPPORTING EQUIPMENT DESCRIPTION ............................................................................................... 6 EUT OPERATING CONDITIONS ................................................................................................................. 7 CONDUCTED EMISSION TEST .................................................................................................................. 8 RADIATED EMISSION TEST ..................................................................................................................... 12 SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST ................................................... 17 MAXIMUM PEAK POWER TEST ............................................................................................................... 23 RF CONDUCTED SPURIOUS EMISSIONS (NON-RESTRICTED BANDS) TEST ...................................... 25 RF CONDUCTED SPURIOUS EMISSIONS (RESTRICTED BANDS) TEST ............................................... 30 BAND EDGE COMPLIANCE (CONDUCTED) TEST................................................................................... 66 BAND EDGE COMPLIANCE (RADIATED) TEST ....................................................................................... 70 PEAK POWER SPECTRAL DENSITY TEST .............................................................................................. 78 MAXIMUM PERMISSIBLE EXPOSURE (MPE) TEST ................................................................................ 84 ANNEX A EUT PHOTOGRAPHS / DIAGRAMS ......................................................................................... 86 ANNEX B USER MANUALTECHNICAL DESCRIPTION BLOCK & CIRCUIT DIAGRAMS .......................... 90 ANNEX C FCC LABEL & POSITION .......................................................................................................... 91 Panasonics AVC Networks SingaporePage 3 of 92 RF Transmitter Module [ Model : RJB3622A ] [ FCC ID : ACJ-11BT1301 ] Test Report No. 7191044465-EEC12/01 dated 24 Oct 2012 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2011 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247(b)(3)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious Emissions (Non- Restricted Bands) Pass 15.247(d)RF Conducted Spurious Emissions (Restricted Bands) Pass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Pass Panasonics AVC Networks SingaporePage 4 of 92 RF Transmitter Module [ Model : RJB3622A ] [ FCC ID : ACJ-11BT1301 ] Test Report No. 7191044465-EEC12/01 dated 24 Oct 2012 TEST SUMMARY Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit Channel Frequency (GHz) Channel 1(lower ch) 2.40335 Channel 20(mid ch) 2.44135 Channel 38(upper ch) 2.47735 2. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 3. All test measurement procedures are according to ANSI C63.4: 2003 and KDB 558074 D01 DTS Measurement Guidance V01. 4. The maximum measured RF power of the Equipment Under Test is -0.4576dBm. Modifications No…

Text truncated - open the document above for the full version.

Model: RJB3622A FCC ID: ACJ-11BT1301 Test Setup Photos Conducted Emissions Test Setup (Front View) Conducted Emissions Test Setup (Rear View) Model: RJB3622A FCC ID: ACJ-11BT1301 Test Setup Photos TransmitterRadiated Emissions Test Setup (Front View) TransmitterRadiated Emissions Test Setup (Rear View)
