ACJ932AM2301Car AV Control Unit for CDC

Short Term Confidential 180 days 短期機密保持 180日 Panasonic User Manual Since this device is always used with vehicle, it is not sold to general end users separately. The following statements must be described on the user manual of the vehicle; [for FCC] NOTE : Properly shielded and grounded cables and connectors must be used for connection to host computers and / or peripherals in order to meet FCC emission limits. WARNING : RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. [for ISED] NOTE : This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAUTION: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain.

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Covered Equipment CFR 47 §2.911 (d)(5) Attestation December 9, 2024 PAS-24-F009 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: FCC ID: ACJ932AM2301 To whom it may concern: Panasonic Corporation of North America certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Panasonic Corporation of North America certifies that, , the device does not have cybersecurity and / or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, identified on the Covered List installed on the device, nor will it be installed by the applicant anytime after certification. Panasonic Corporation of North America certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of N orth America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Agent Designation Attestation CFR 47 §2.911 and §2.909 Date: January 17, 2025 PAS-24-F009 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(7) Filing - FCC Grantee Code ACJ Panasonic Corporation of North America (“the applicant”) certifies that, Panasonic Corporation of North America is our designated U.S. agent for service of process for the above referenced FCC Grantee Code ACJ. Panasonic Corporation of North America accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Panasonic Corporation of North America accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for Grantee Code ACJ. Designated U.S. Agent Information: Name: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, New Jersey, United States Contact Person: Ben Botros Tel.: 201-348-7760 Email: [email protected] This agreement applies to all products applied by Panasonic Corporation of North America for FCC Grantee Code ACJ and is valid within the product life. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America FRN 0003762242

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America FCC Agent Authorization Letter December 9, 2024 PAS-24-F009 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Car Navigagtion, Model AM2301 under FCC ID: ACJ932AM2301 To whom it may concern: The undersigned hereby authorize UL Japan, Inc. (UL Japan) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that I am not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Japan as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal a udit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America k) Document the actions taken. This Authorization is valid for a twelve (12) month period from the date of this letter. This application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention in this matter. Authorized by, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Request for Permanent Confidentiality January 19, 2025 PAS-24-F009 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Car Navigagtion, Model AM2301 under FCC ID: ACJ932AM2301 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagrams • Block Diagram • Operation Description Thank you for your attention to this matter. Authorized by, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Request for Short Term Confidentiality January 17, 2025 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Car Navigagtion, Model AM2301 under FCC ID: ACJ932AM2301 To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization based on the FCC rules 0.457 and 0.459: • External Photos • Internal Photos • Test Setup Photos • User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. . Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

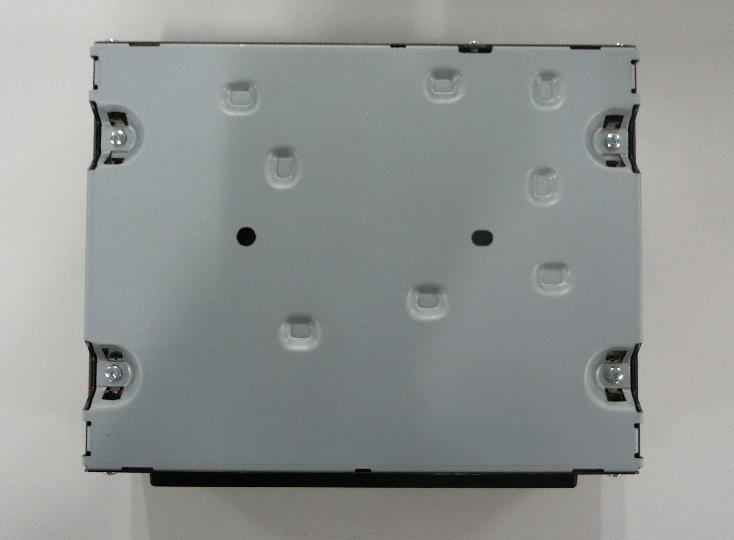

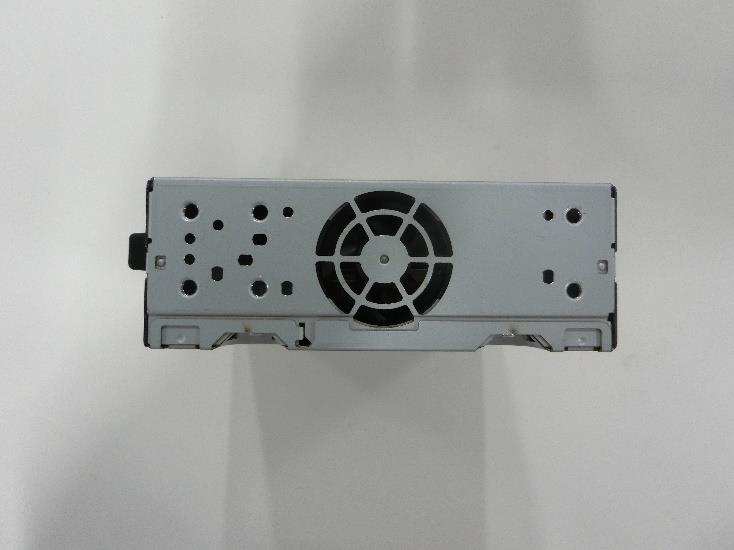

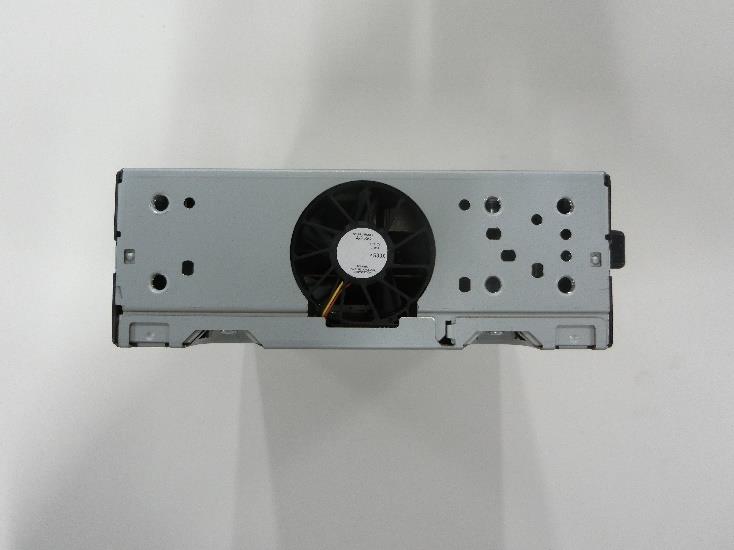

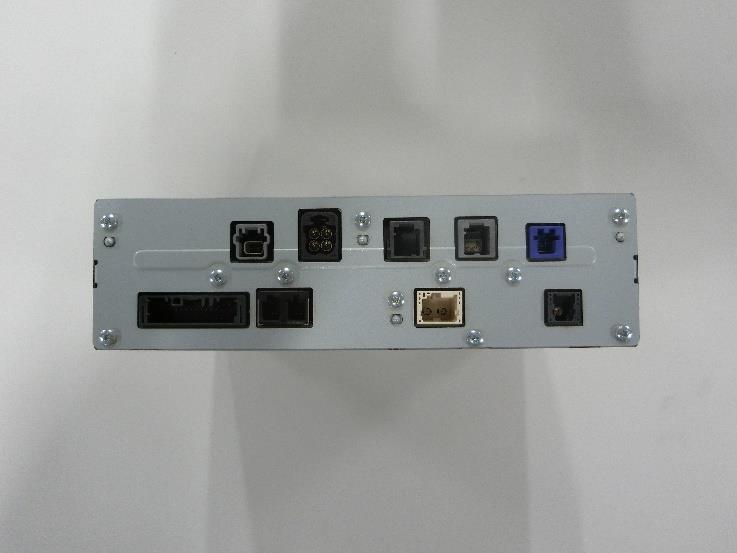

MODEL:AM2301 RIGHTLEFT External Photos FRONTREAR BOTTOMTOP 178mm 138mm 50mm 13mm 150mm 11mm ShortTerm Confidential 180days 短期機密保持 180日 Panasonic

Label position and Label drawings Model：AM2301 Label position Label drawings C o n f i d e n t i a l P e r i o d : U n l i m i t e d 秘 ： 無 期 限 P a n a s o n i c “Set No.” described in Label means “Model No.” The label will be affixed on product with a permanent adhesive. And it is confirmed that the label has been held on product through the environmental test and the scratch test based on IEC standard. AM2301 FCC ID : ACJ932AM2301 IC : 216J-AM2301

MODEL:AM2301 ※Please see Figure5～8 for the enlarged image Internal Photos CPU PCB ※Please see Figure 1～4 for the enlarged image AUDIO PCB Antenna Position Chassis Open CPUPCB AUDIOPCB CPUPCB AUDIOPCBRemoved AntennaCover Open BOTTOMCoverOpen 2ndAntenna RFBlock FMReceiver Block 1stAntenna FrontVIEW RearVIEW FMAntenna connector ShortTerm Confidential 180days 短期機密保持 180日 Panasonic 【Figure 1】 CPU_PCB (Surface Side） CK-LMNFA1JT, CK-LMNFA0JT,CK-LMNFE1JT, CK-LMNFE0JT, 【Figure 2】 CPU_PCB (Back Side） RFBlock (BackSide) 2ndAntenna 1stAntenna RFModule 【Figure 3】 RF Block and 2nd Antenna Zoom Up CK-LMNFA1JT, CK-LMNFA0JT,CK-LMNFE1JT, CK-LMNFE0JT, 【Figure 4】 1st Antenna Zoom Up 1stAntenna RFModule 2ndAntenna 【Figure 5】 AUDIO_PCB (Surface Side） CK-LMNFA1JT, CK-LMNFA0JT,CK-LMNFE1JT, CK-LMNFE0JT, 【Figure 6】 AUDIO_PCB (Back Side） FMReceiver Block FMReceiver Block (BackSide) FMAntenna connector 【Figure 7】 FM Receiver Block (Surface Side） 【Figure 8】 FM Receiver Block (Back Side） FMReceiver Block FMReceiver Block (BackSide) FMAntenna connector

UL Japan, Inc. Shonan EMC Lab 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan T:: +81.463.50.6400 / W:: japan.ul.com January 16, 2025 FCC ID: ACJ932AM2301 To whom it may concern, We, UL Japan, Inc, hereby declare that Car AV Control Unit for CDC, model: AM2301 (FCC ID: ACJ932AM2301) of Panasonic Automotive Systems Co., Ltd. is exempt from RF exposure SAR evaluation because the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(i)(B). This method is used at separation distances d (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive) for single RF sources. P th is given by: 푃 ௧௛ ሺ mW ሻ ൌ൜ 퐸푅푃 ଶ଴ ୡ୫ ሺ푑 / 20 cmሻ ௫ 퐸푅푃 ଶ଴ ୡ୫ 푑൑20 cm 20 cm ൏ 푑 ൑ 40 cm Where 푥ൌെlog ଵ଴ ቆ 60 퐸푅푃 ଶ଴ ୡ୫ ඥ 푓 ቇand 푓 is in GHz 퐸푅푃 ଶ଴ ୡ୫ ሺ mW ሻ ൌቊ 2040푓 3060 0.3 GHz൑푓൏1.5 GHz 1.5 GHz൑푓൑6 GHz When the minimum separation distance is shorter than 0.5 cm, 0.5 cm is applied. The SAR evaluation exemption threshold is calculated as below. [WLAN 2.4 GHz band part] Pth (mW)3060(dBm)13.50 f (GHz)2.462(mW)22.39 ERP 20 cm (mW)30604.00 d (cm)20.017.50 (dBm)15.36 (mW)34.36 The Maximum time-averaged power or ERP whichever greater is 34.4 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP [WLAN 5 GHz band part] Pth (mW)3060(dBm)7.00 f (GHz)5.825(mW)5.01 ERP 20 cm (mW)30606.00 d (cm)20.013.00 (dBm)10.86 (mW)12.19 The Maximum time-averaged power or ERP whichever greater is 12.2 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP UL Japan, Inc. Shonan EMC Lab 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan T:: +81.463.50.6400 / W:: japan.ul.com [ Bluetooth (LE) part] Pth (mW)3060(dBm)5.00 f (GHz)2.48(mW)3.16 ERP 20 cm (mW)30604.00 d (cm)20.09.00 (dBm)6.86 (mW)4.85 The Maximum time-averaged power or ERP whichever greater is 4.9 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP [Bluetooth (BR / EDR) part] Pth (mW)3060(dBm)5.00 f (GHz)2.48(mW)3.16 ERP 20 cm (mW)30604.00 d (cm)20.09.00 (dBm)6.86 (mW)4.85 The Maximum time-averaged power or ERP whichever greater is 4.9 mW. (Rounded up to two decimals place) Conducted Power Antenna Gain (dBi) EIRP (dBm) ERP Tran smitters used in mobile exposure conditions for simultaneous transmission operations according to KDB447498 D04. Value is calculated using the following formula according to the Code of Federal Regulation title 47 section 1.1307(b)(3)(ii)(B). ෎ 푃 ௜ 푃 ௧௛,௜ ௔ ௜ୀଵ ൅ ෎ 퐸푅푃 ௝ 퐸푅푃 ௧௛,௝ ௕ ௝ୀଵ ൅ ෎ 퐸푣푎푙푢푎푡푒푑 ௞ 퐸푥푝표푠푢푟푒 퐿푖푚푖푡 ௞ ௔ ௞ୀଵ ൑1 WLAN 5 GHz, WLAN 2.4 GHz, 12.2 / 3060 + 34.4 / 3060=0.0040 +0.0112= 0.0152 <1 WL AN 5 GHz, Bluetooth (BR/EDR) 12.2 / 3060 +4.9 / 3060=0.0040 +0.0016= 0.0056 <1 WL AN 5 GHz, Bluetooth (LE) 12.2 / 3060 +4.9 / 3060=0.0040 +0.0016= 0.0056 <1 Thank you for your attention to this matter. Shinichi Takano Engineer

AntennaTestReport CompanyPanasonicAutomotiveSystemsCo.,Ltd. SignatureMasahikoIshimoto Date2025/1/24 1.AntennaDescription ItemDescription MODELAM2301 ManufacturerPanasonic Automotive Systems Co.,Ltd. AntennaTypePCBAntenna WirelesstypeBluetooth/WiFi FrequencyRange 2.4GHz ： 2400MHz - 2484MHz 5GHz ： 5180MHz - 5825MHz PeakGain 1 st Antenna2.4GHz ： 4.0dBi5GHz ： 6.0dBi 2 nd Antenna2.4GHz ： 4.0dBi5GHz ： 6.0dBi VSWR ＜ 4.0 Impedance50Ω Please refer to Photo1 in 【Appendix for ”AM2301_Antenna Test Report”】. 【remarks】 1st antenna is used for Bluetooth and WiFi 2.4GHzand5GHz , 2nd antenna is used for WiFi 2.4GHz and WiFi 5GHz ◆AntennaPhoto ◆AntennaDescription 3 2.MeasurementResult ◆VSWR＆SmithChart◆AntennaPeakGain AntennaBandFrequency[MHz]PeakGain[dBi] 1st Antenna 2.4GHz 24001.1 24422.0 24842.0 5GHz 51803.7 55803.5 58253.2 2nd Antenna 2.4GHz 2400-0.7 24421.1 24841.7 5GHz 51801.1 55803.6 58254.9 １.02.0 １ ３ ５ ７ Frequency[GHz] 4.03.05.06.0 ＶＳＷＲ 【1st Antenna】 ＶＳＷＲ 6.0 Frequency[GHz] 4.0１.0 3.0 5.02.0 １ ３ ５ ７ 【2ndAntenna】 4 3.AntennaRadiationPattern(2D)～2.4GHz～ 1 St Antenna2 nd Antenna X-YPlaneX-ZPlaneX-YPlaneX-ZPlane 2400MHz 2442MHz 2484MHz V-Plane H-Plane Ｘ Ｙ Ｘ Ｙ ０ [ｄBd] －４０ Ｚ Ｘ Ｚ Ｘ Ｚ Ｘ ＸＸ Ｙ ０ [ｄBd] Ｘ Ｘ Ｙ Ｘ Ｘ Ｙ Ｚ Ｚ －４０ Ｚ Ｘ Ｙ 5 4.AntennaRadiationPattern(2D)～5GHz～ 1 St Antenna2 nd Antenna X-YPlaneX-ZPlaneX-YPlaneX-ZPlane 5180MHz 5580MHz 5825MHz V-Plane H-Plane Ｘ Ｘ Ｙ ０ [ｄBd] ＸＸ Ｙ ＸＸ Ｙ Ｚ Ｚ －４０ Ｚ ＸＸ Ｙ ０ [ｄBd] ＸＸ Ｙ ＸＸ Ｙ Ｚ Ｚ －４０ Ｚ 6 5.Test Equipment＆Conditions Position Controller Network Analyzer Turn Table Anechoic Chamber TxRx Horn Antenna RF-AMP V/H Controller PC Coaxial Cable DUT Styrofoam Optical Fiber Cable Port2 Port1 NoInstrumentManufacturerSerial No Last Calibration Date CalInt 1Anechoic ChamberTDK--- 2Horn AntennaSCHWARZBECKBBHA 9120 E-- 3Network AnalyzerAgilent TechnologiesE5071C2024/212 4Position ControllerDeviceDCAN23004/DM-- 5RF-AMPR&KLA151-RS-- ◆TestSetup photo ◆List of equipment ◆Test method for antenna gain measurement Location of measurement(company name)Panasonic Automotive Systems Co.,Ltd. TestDatesSeptember,2024 Please refer to Photo2 in 【Appendix for ”AM2301_Antenna Test Report”】.

Test Report No. 15263628S-A-R1 Page 1 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 RADIO TEST REPORT Test Report No. 15263628S-A-R1 Customer Panasonic Automotive Systems Co., Ltd. Description of EUT Car AV Control Unit for CDC Model Number of EUT AM2301 FCC ID ACJ932AM2301 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date January 27, 2025 Remarks Wireless LAN (2.4 GHz band) and Bluetooth Low Energy part(s) Representative Test Engineer Approved By Miku Ikudome Engineer Shinichi Takano Engineer CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Rep ort Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 Test Report No. 15263628S-A-R1 Page 2 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 15263628S-A This report is a revised version of 15263628S- A. 15263628S-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 15263628S-A December 20, 2024 - 1 15263628S-A-R1 January 27, 2025 P.14 Correction of position comment. From “-30, 0dg and -30 deg” To “-30, 0 deg. and +30 deg.” Correction of position table. From “30 de g.” To “+30 deg.” P.102, 104 Addition of Reference Plot for band-edge. P.136 Addition of Pre-Check Worst Case Position photos.  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided b y the customer for this report is identified in SECTION 1.  The laboratory is not responsible for information provided by the customer which can impact the validit y of the results.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 15263628S-A-R1 Page 3 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 15263628S-A-R1 Page 4 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 CONTENTS PAGE SECTION 1: Customer Information ......................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .......................................…

Text truncated - open the document above for the full version.

Test Report No. 15263628S-A-R1 Page 63 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Radiated Spurious Emission Test place Shonan EMC Lab. Semi Anechoic Chambe r WAC1 WAC1 WAC1 WAC1 Date August 10, 2024 August 14, 2024 August 16, 2024 August 20, 2024 Temperature / Humidity 22 deg. C / 55 % RH 22 deg. C / 41 % RH 24 deg. C / 54 % RH 24 deg. C / 59 % RH Engineer Takahiro Suzuki Akihiro Oda Akihiro Oda Yuta Shiba (1 GHz to 2.8 GHz) (2.8 GHz to 10 GHz) (10 GHz to 18 GHz) (18 GHz to 26.5 GHz) Mode Tx 11b 2412 MHz (* PK: Peak, AV: Av erage, QP: Quasi-Peak) PolarityFrequencyDetectorReadingAnt.Fac.LossGainDistanceResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB][cm][deg] Hori.2390.000 PK47.6827.85-28.23-2.2649.5673.924.3142349 - Hori.4824.000 PK46.6932.07-35.74-2.2645.2873.928.6166271 - Hori.7236.000 PK44.7836.38-34.07-2.2649.3573.924.515092 - Hori.9648.000 PK46.0537.93-31.62-2.2654.6273.919.21500 - Hori.2390.000 AV35.4527.85-28.23-2.2637.3353.916.5142349 - Hori.4824.000 AV35.0432.07-35.74-2.2633.6353.920.2166271 - Hori.7236.000 AV35.1136.38-34.07-2.2639.6853.914.215092 - Hori.9648.000 AV34.6337.93-31.62-2.2643.2053.9 10.7 1500 floor noise Vert.2390.000 PK46.7927.85-28.23-2.2648.6773.925.213627 - Vert.4824.000 PK46.9632.07-35.74-2.2645.5573.928.319241 - Vert.7236.000 PK46.2836.38-34.07-2.2650.8573.923.0150184 - Vert.9648.000 PK46.7337.93-31.62-2.2655.3073.918.61500 - Vert.2390.000 AV35.8527.85-28.23-2.2637.7353.916.113627 - Vert.4824.000 AV35.9732.07-35.74-2.2634.5653.919.319241 - Vert.7236.000 AV34.8736.38-34.07-2.2639.4453.914.4150184 - Vert.9648.000 AV33.8737.93-31.62-2.2642.4453.911.41500 floor noise 10 GHz - 40 GHz : 20log (1.0 m / 3.0 m ) = -9.54 dB 20 dBc Data Sheet (RBW 100 k Hz, VBW 300 k Hz) PolarityFrequencyDetectorReadingAnt.Fac.LossGainDistanceResultLimitMargin Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB] Hori.2412.000 PK87.2927.89-28.23-2.2689.21-- Carrier Hori.2400.000 PK38.2527.89-28.22-2.2640.1869.229.0 - Vert.2412.000 PK90.5727.89-28.23-2.2692.49-- Carrie r Vert.2400.000 PK40.7527.89-28.22-2.2642.6872.429.7 - 1 GHz to 18 GHz: Result [dBuV/m] = Reading + Ant.Fac. + Loss (Cable+(Attenuator or Filter)(below 18 GHz)- Gain(Amplifier)) + Distance factor Distance factor : 1 GHz - 10 GHz : 20log (3.89 m / 3.0 m) = 2.26 dB Other bands : Result = Reading + Ant.Fac + Loss (Cable+(Attenuator or Filter)(below 18 GHz)) - Gain(Amplifier) + Distance facto r Distance factor : 1 GHz - 10 GHz : 20log (3.89 m / 3.0 m) = 2.26 dB 1 GHz to 18 GHz: Result [dBuV/m] = Reading + Ant.Fac. + Loss (Cable+(Attenuator or Filter)(below 18 GHz)- Gain(Amplifier)) + Distance factor Other bands : Result = Reading + Ant.Fac + Loss (Cable+(Attenuator or Filter)(below 18 GHz)) - Gain(Amplifier) + Distance facto r 10 GHz - 40 GHz : 20log (1.0 m / 3.0 m ) = -9.54 dB Test Report No. 15263628S-A-R1 Page 64 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Radiated Spurious Emission (Reference Plot for band-edge) Test place Shonan EMC Lab. Semi Anechoic Chambe r WAC1 Date August 10, 2024 Temperature / Humidity 22 deg. C / 55 % RH Engineer Takahiro Suzuki (1 GHz to 2.8 GHz) Mode Tx 11b 2412 MHz Horizontal Restricted-band band-edge Plot Authorized-band band-edge Plot Trace Green : Peak Plot Trace Purple : Avera ge Plot 20dBc Plot Vertical Restricted-band band-edge Plot Authorized-band band-edge Plot Trace Green : Peak Plot Trace Purple : Avera ge Plot 20dBc Plot * The measurement was conducted for a sufficiently long enough time to detect any possible spurious emissions. Final result of restricted band edge and authorized band edge were shown in tabular data. Test Report No. 15263628S-A-R1 Page 65 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Radiated Spurious Emission Test place Shonan EMC Lab. Semi Anechoic Chambe r WAC1 WAC1 WAC1 WAC1 Date August 10, 2024 August 14, 2024 August 16, 2024 August 20, 2024 Temperature / Humidity 23 deg. C / 52 % RH 22 deg. C / 41 % RH 24 deg. C / 54 % RH 24 deg. C / 59 % RH Engineer Yosuke Murakami Akihiro Oda Akihiro Oda Yuta Shiba (1 GHz to 2.8 GHz) (2.8 GHz to 10 GHz) (10 GHz to 18 GHz) (18 GHz to 26.5 GHz) Mode Tx 11b 2437 MHz (* PK: Peak, AV: Av erage, QP: Quasi-Peak) PolarityFrequencyDetectorReadingAnt.Fac.LossGainDistanceResultLimitMarginHeightAngle Remark [MHz][dBuV][dB/m][dB][dB]Factor [dB] [dBuV/m][dBuV/m][dB][cm][deg] Hori.4874.000 PK46.5032.30-35.80-2.2645.2673.928.6177278 - Hori.7311.000 PK46.3336.61-33.94-2.2651.2673.922.6150334 - Hori.9748.000 PK46.2937.93-31.51-2.2654.9773.918.91500 - Hori.4874.000 AV35.2432.30-35.80-2.2634.0053.919.9177278 - Hori.7311.000 AV35.2436.61-33.94-2.2640.1753.913.7150334 - Hori.9748.000 AV34.3837.93-31.51-2.2643.0653.9 10.8 1500 floor noise Vert.4874.000 PK46.1632.30-35.80-2.2644.9273.928.9219197 - Vert.7311.000 PK46.6636.61-33.94-2.2651.5973.922.3150333 - Vert.9748.000 PK46.8337.93-31.51-2.2655.5173.918.31500 - Vert.4874.000 AV35.1232.30-35.80-2.2633.8853.920.0219197 - Vert.7311.000 AV35.2336.61-33.94-2.2640.1653.913.7150333 - Vert.9748.000 AV33.9337.93-31.51-2.2642.6153.911.21500 floor noise 10 GHz - 40 GHz : 20log (1.0 m / 3.0 m ) = -9.54 dB 1 GHz to 18 GHz: Result [dBuV/m] = Reading + Ant.Fac. + Loss (Cable+(Attenuator or Filter)(below 18 GHz)- Gain(Amplifier)) + Distance factor Other bands : Result = Reading + Ant.Fac + Loss (Cable+(Attenuator or Filter)(below 18 GHz)) - Gain(Amplifier) + Distance facto r Distance factor : 1 GHz - 10 GHz : 20log (3.89 m / 3.0 m) = 2.26 dB Test Report No. 15263628S-A-R1 Page 66 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Radiated Spurious Emission Test place Shonan EMC Lab. Semi Anechoic Chambe r WAC1 WAC1 WAC1 WAC1 Date August 10, 2024 August 14, 2024 August …

Text truncated - open the document above for the full version.

Appendix for ”AM2301_Antenna Test Report” ◆Photo1 Antenna Photos ◆Photo2 Test Setup photos DUT Horn Antenna Confidential Period:Unlimited 秘：無期限 Panasonic 1st Antenna 2ndAntenna

Test Report No. 15263628S-A-R1 Page 135 of 143 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumi…
