ACJ-DKBDP13Electronic Pen for Interactive Plasma Display

Model No. TH-50PB2U TH-65PB2U Operating Instructions Electronic Pen Operations Interactive Plasma Display Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. English Electronic Pen Model No. DKB-DP13 Electronic Pen Adapter Model No. SSR-RFNANO Charger Model No. N0HZZY000003 2 Introduction Abbreviations Windows ® refers to the Microsoft ® Windows ® operating system. Windows ® XP refers to the Microsoft ® Windows ® XP operating system. Windows Vista ® refers to the Microsoft ® Windows Vista ® operating system. Windows ® 7 refers to the Microsoft ® Windows ® 7 operating system. Windows ® 8 refers to the Microsoft ® Windows ® 8 operating system. Trademarks Microsoft, Microsoft• ® .NET Framework, Windows, Windows XP, Windows Vista, Windows RT, Windows 7, Windows 8, PowerPoint, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. IBM is a trademark of International Business Machines Corporation in the United States, other countries, or • both. Intel and Intel Core 2 are trademarks of Intel Corporation in the U.S. and other countries.• All other trademarks identifi ed herein are the property of their respective owners.• System Requirements Computer IBM PC/AT compatible CPUIntel Core 2 processor or later Operating System Windows XP Service Pack 3 (except for Media Center and Tablet PC versions) Windows Vista Service Pack 2 (except for Starter and Home Basic versions) Windows 7 Service Pack 1 (except for Starter and Home Basic versions) Windows 8 (except for Windows RT version) Language: Japanese, English, German, French, Italian, Spanish, Chinese, and Russian Interface USB 2.0 Memory 32-bit version: 2GB or more 64-bit version: 4GB or more Disk Space 250MB or more of free space (Additional 1.5 GB may be necessary for installing Microsoft .NET Framework.) Display Resolution: XGA (1024x768) - FHD (1920x1080) Colors: 32 bit or more • Only the primary monitor is supported when using multiple monitors. Web BrowserInternet Explorer 8.0 or later Microsoft .NET Framework .NET Framework 3.5.1 or later Microsoft Offi ce PowerPointPowerPoint 2007, PowerPoint 2010 (32bit) Note Even when the system requirements are met, the Interactive Plasma Display response may be delayed or • the electronic pen may malfunction if other applications, anti-virus software, etc. are active. 3 FCC and IC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 and Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the Panasonic Service Center or an experienced radio/TV technician for help.• FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cable when connecting to computer or peripheral devices. Any changes or modifi cations not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. FCC Declaration of Conformity Models:DKB-DP13, SSR-RFNANO, N0HZZY000003 Responsible Party:Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Contact Source: Panasonic System Communications Company of North America Panasonic North America 3 Panasonic Way 7D-6, Secaucus NJ 07094 Telephone:+1-855-772-8324 http://panasonic.com/business/fl at-panel-displays/ This device complies with Part 15 and Part 18 of the FCC Rules and all applicable IC RSS standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 Table of Contents Safety Precautions ..............................................................................................5 Requests regarding handling .............................................................................7 Accessories Supplied .........................................................................................8 Names and Uses of the Parts .............................................................................9 How to Charge ................................................................................................... 11 About Electronic Pen ........................................................................................13 Using Electronic pen with “Easy WhiteBoardˮ ..............................................15 Using Electronic Pen with Panasonic WhiteBoard Software ........................19 Registering Electronic Pen .............................................................................…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality March 19, 2013 PDBU-13-FM01 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD. 21046 Re: Request for Permanent and Short Term Confidentiality for Electronic Pen for Interactive Plasma Display, Model DKB-DP13 FCC ID: ACJ-DKBDP13 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Block Diagram • Schematic Diagram • Parts List • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Letter of Agency March 19, 2013 PDBU-13-FM01 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD. 21046 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes TUV Rheinland Japan Ltd. to act on our behalf in all matters relating to this Certification approval for portable equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by them on our behalf shall have the same effect as acts of our own. Equipment Name: Electronic Pen for Interactive Plasma Display, Model DKB-DP13 1 Equipment Classification: Digital Transmission System / Classification Code DTS FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 FCC ID: ACJ-DKBDP13 Transmitter Frequency Range: 2425 ~ 2475 MHz Compatibility Spec: IEEE 802-15.4 (ZigBee) / Usage on 3 Channels Wireless Personal Area Network (WPAN) RF Output Power: Rated RF Output Power is 0.0004 Watts (0.4 mW) Type Antenna: Printed Loop Antenna with 0.8 dBi antenna gain Remarks: The subject Electronic Pen is for portable usage with Panasonic Interactive Plasma Display 2 and has no minimum spacing requirements between antenna and person’s body to satisfy RF exposure evaluation Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 USA 1 The subject Electronic Pen will be marketed with Charger, with 120 kHz inductive charger circuitry, and will be DoC authorized under FCC Part 18. Also, this Electronic Pen will be used with SMK ZigBee Electronic Pen Adaptor, Model SSR-RFNANO, which was certified under FCC ID: GT3FC015. 2 End-product Interactive Plasma Display will be FCC Part 15B authorized under DoC to demonstrate compliance with Class B limits. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division March 19, 2013 PDBU-13-FM01 This authorization is valid for one year period or sooner if provided with written notice from the applicant. This application for the subject equipment has not been submitted to another TCB for certification. We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Toru Ando / AVC/PDBU / [email protected] Panasonic Corporation AVC Networks Company Display Devices Business Group Professional Display Business Unit

Model: DKB-DP13 FCC ID:ACJ-DKBDP13 IC ID: 216A-DKBDP13 External Photos Top view Side view Pen tip Bottom view Eraser tip

LABEL DESIGN 10.5 35 0 5 mm 5 6.5 1.4

Model: DKB-DP13 FCC ID: ACJ-DKBDP13 Picture of Label Position Label is attached outside the pen body. Users can easy to see the Label, when they use the pen every time. Label Position Label Position 35 x 10.5mm

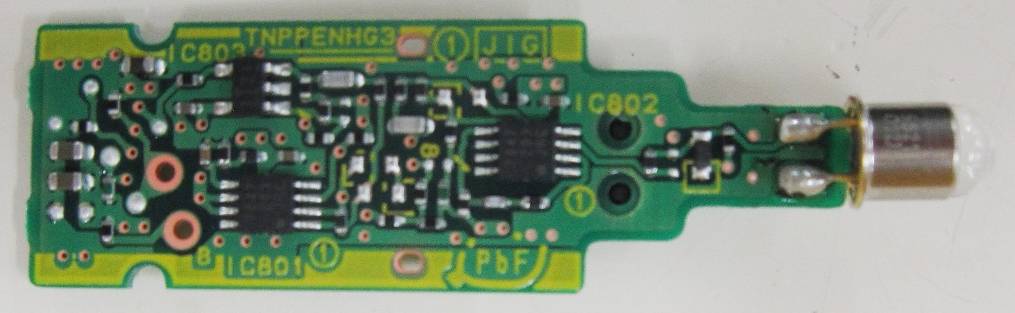

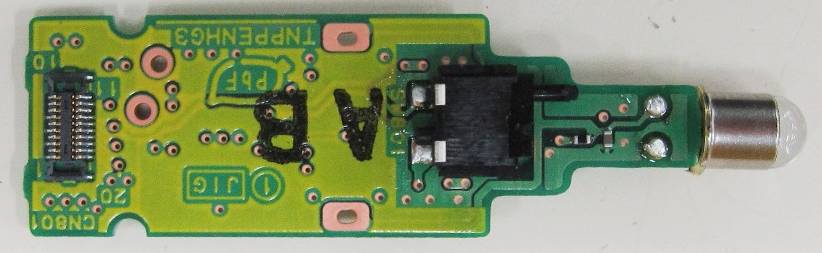

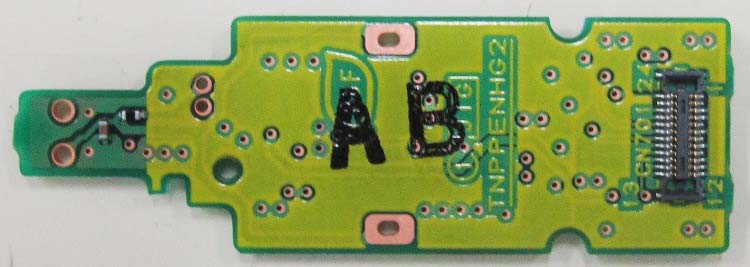

Model: DKB-DP13 FCC ID:ACJ-DKBDP13 IC ID: 216A-DKBDP13 Internal Photos 1) Pen tip parts 3)-1 Main body with half case 3)-2 Circuitry overview - top 3)-3 Circuitry overview - bottom 2) Eraser tip parts Photo diode Photo diode Li ion batteryRecharger inductor 4)-1 Circuit Pen Top (top) 4)-3 Circuit Pen Top (bottom) 4)-4 Circuit Pen Top (bottom, without shielding) Photo diode 4)-2 Circuit Pen Top (top, without shielding) Writing pressure sensor Connector Model: DKB-DP13 FCC ID:ACJ-DKBDP13 IC ID: 216A-DKBDP13 Internal Photos 5)-1 Circuit Eraser Top (top) 5)-3 Circuit Eraser Top (bottom) 5)-4 Circuit Eraser Top (bottom, without shielding) 5)-2 Circuit Eraser Top (top, without shielding) Switch Switch Photo diode Model: DKB-DP13 FCC ID:ACJ-DKBDP13 IC ID: 216A-DKBDP13 Internal Photos 6)-1 Circuit Main (top) 6)-2 Circuit Main (bottom) Switch Switch Antenna Connector MCUMCU Antenna Antenna USB Connector Model: DKB-DP13 FCC ID:ACJ-DKBDP13 IC ID: 216A-DKBDP13 Internal Photos

FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products RF Exposure Statement: 12029422 002 Page 1 of 1 Client: Panasonic Corporation 1-1 Matsushita-cho, Ibaraki-shi, Osaka 567-0026, Japan Test item: Electronic Pen for Interactive Plasma Display Identification: DKB-DP13 FCC Requirement According to KDB 447498 D01 v05, SAR evaluation specified in FCC 2.1093 is not required for portable equipment if the transmitter power is below the following threshold for 100MHz to 6GHz: Highest Frequency of Transmitter Tunable Range F [GHz] Min. Test Separation Distance D [mm] 1-g SAR Test Exclusion Threshold (3.0 · D / √ F) + X [mW] 10-g SAR Test Exclusion Threshold (7.5 · D / √ F) + X [mW] 2.475 59.523.8 Note: X = 0 for D (in mm) ≤ 50mm: X = (D – 50mm) · (1000 · F / 150) for D (in mm) > 50mm and F (in GHz) ≤ 1.5GHz X = (D – 50mm) · 10 for D (in mm) > 50mm and F (in GHz) > 1.5GHz IC Requirement According to RSS-102 (Issue 4), clause 2.5.1, no SAR evaluation is required if the transmitter has a minimum separation distance to the user less than or equal to 20cm and has an output power (both conducted and e.i.r.p.) below the following threshold: Equipment Use Frequency Range SAR Evaluation Threshold [mW] General Public Use 2.2 – 3GHz 20 Measurement Result The maximum measured transmitter power is given in the following table: Conducted Output Power [mW] Maximum Antenna Gain [dBi] EIRP Output Power [mW] 0.4 0.8 0.471 Conclusion SAR evaluation is not required since the maximum transmitter output power (both conducted and e.i.r.p.) is below the FCC and IC thresholds. Refer to test report 12029422 001 for more details. TÜV Rheinland Japan Ltd. – Global Technology Assessment Center 4-25-2 Kita-Yamata, Tsuzuki-ku, Yokohama 224-0021, Japan

FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 2 von 46 Page 2 of 46 TEST SUMMARY 5.1.1 SUPPLY VOLTAGE REQUIREMENTS RESULT: PASS 5.1.2 ANTENNA REQUIREMENTS RESULT: PASS 5.1.3 RESTRICTED BANDS OF OPERATION RESULT: PASS 5.2.1 CONDUCTED OUTPUT POWER RESULT: PASS 5.2.2 6DB BANDWIDTH RESULT: PASS 5.2.3 99% BANDWIDTH 5.2.4 CONDUCTED SPURIOUS EMISSIONS RESULT: PASS 5.2.5 PEAK POWER SPECTRAL DENSITY RESULT: PASS 5.3.1 RADIATED SPURIOUS EMISSIONS OF TRANSMITTER RESULT: PASS 5.4.1 AC POWER LINE CONDUCTED EMISSION OF TRANSMITTER RESULT: PASS FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 3 von 46 Page 3 of 46 Contents 1. GENERAL REMARKS ................................................................................................. 5 1.1 COMPLEMENTARY MATERIALS .................................................................................. 5 2. TEST SITES .............................................................................................................. 5 2.1 TEST FACILITIES ....................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ....................................................... 6 2.3 MEASUREMENT UNCERTAINTY ................................................................................... 7 3. GENERAL PRODUCT INFORMATION ............................................................................ 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................... 8 3.2 SYSTEM DETAILS ...................................................................................................... 8 3.3 CLOCK FREQUENCIES ............................................................................................... 8 3.4 NOISE SUPPRESSING PARTS ..................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ...................................................................... 9 4.1 TEST METHODOLOGY ................................................................................................ 9 4.2 OPERATION MODES .................................................................................................. 9 4.3 PHYSICAL CONFIGURATION FOR TESTING .................................................................. 9 4.4 TEST SOFTWARE .................................................................................................... 10 4.5 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................ 10 4.6 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ............................................... 10 5. TEST RESULTS R AD I O ......................................................................................... 11 5.1 TECHNICAL REQUIREMENTS .................................................................................... 11 5.1.1 Supply Voltage Requirements ................................................................................................. 11 5.1.2 Antenna Requirements ............................................................................................................ 11 5.1.3 Restricted Bands of Operation ................................................................................................. 12 5.2 CONDUCTED MEASUREMENTS AT ANTENNA PORT .................................................... 13 5.2.1 Conducted Output Power ......................................................................................................... 13 5.2.2 6dB Bandwidth......................................................................................................................... 17 5.2.3 99% Bandwidth ........................................................................................................................ 20 5.2.4 Conducted Spurious Emissions ............................................................................................... 23 5.2.5 Peak Power Spectral Density .................................................................................................. 33 5.3 RADIATED MEASUREMENTS..................................................................................... 36 5.3.1 Radiated Spurious Emissions of Transmitter ........................................................................... 36 5.4 AC POWER LINE CONDUCTED MEASUREMENTS ....................................................... 40 5.4.1 AC Power Line Conducted Emission of Transmitter ................................................................ 40 6. PHOTOGRAPHS OF THE TEST SETUP ........................................................................ 42 FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 4 von 46 Page 4 of 46 7. LIST OF TABLES ...................................................................................................... 45 8. LIST OF FIGURES .................................................................................................... 45 9. LIST OF PHOTOGRAPHS .......................................................................................... 46 FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 5 von 46 Page 5 of 46 1. General Remarks 1.1 Complementary Materials There is no attachment to this test report. 2. Test Sites 2.1 Test Facilities TÜV Rheinland Japan Ltd. – Global Technology Assessment Center 4-25-2 Kita-Yamata, Tsuzuki-ku, Yokohama 224-0021, Japan The used test equipment is in accordance with CISPR 16 for measurement of radio interference. The Federal Communications Commission has reviewed the technical characteristics of the radiated and conducted emission facilities and has found these test sites to be in compliance with the requirements of section 2.948 of …

Text truncated - open the document above for the full version.

FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 42 von 46 Page 42 of 46 6. Photographs of the Test Setup Photograph 1: Set-up for Conducted Emissions at Antenna Port Photograph 2: Set-up for AC Power Line Conducted Emission of Transmitter FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 43 von 46 Page 43 of 46 Photograph 3: Set-up for Radiated Emission of Transmitter Photograph 4: Set-up for Radiated Emission, EUT Configuration X-Axis FCC ID: ACJ-DKBDP13 IC: 216A-DKBDP13 Produkte Products Prüfbericht - Nr.: Test Report No.: 12029422 001 Seite 44 von 46 Page 44 of 46 Photograph 5: Set-up for Radiated Emission, EUT Configuration Y-Axis Photograph 6: Set-up for Radiated Emission, EUT Configuration Z-Axis
