ACJ-DY-WL10Wireless LAN Adaptor

PZML0004 F1109BL0 Operating Instructions Manuel d’utilisation Wireless LAN Adaptor Adaptateur de réseau local sans fil Model No. DY-WL10 Modèle DY-WL10 Panasonic Consumer Electronics Company,Division of Panasonic Corporation of North AmericaOne Panasonic Way Secaucus, New Jersey 07094http://www.panasonic.comPanasonic Canada Inc.5770 Ambler Drive, Mississauga, Ontario L4W 2T3www.panasonic.caC Panasonic Corporation 2009 Printed in JapanImprimé au Japon PP Dear customerThank you for purchasing this product.For optimum performance and safety, plea se read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely.Please keep this manual for future reference. This wireless LAN adaptor is intended for use with Panasonic wireless LAN-compatib le televisions, players, recorders, etc. 1 USB extension cable (K2KYYYY00064) ≥ Use according to the connection status of the device to be connected. Please refer to the appropriate instruction manual for details on how to use. ≥ Do not use any other USB extension cables except the supplied one. ≥ Product numbers correct as of November 2009. These may be subject to change. ≥ Only for U.S.A. and Puerto Rico: To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on the reverse.For other areas: To order accessories, call the de aler from whom you have made your purchase. The following limits are in place regarding the usage of this device. You must be aware of these limits before using this device.Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this device.≥ This device is to be used as a wireless LAN device. ≥ Do not use this device to connect to any wireless network for which you do not have usage rights. During automatic searches in a wireless network environment, wireless networks (SSID*) for which you do not have usage rights may be displayed; however, usi ng these networks may be regarded as illegal access. ≥ Data transmitted and received over radio waves may be intercepted and monitored. ≥ This wireless LAN adaptor contains delicate electronic components.Please use this adaptor in the manner in which it was intended and follow the following points:j Do not expose the adaptor to high temperatures or direct sunlight. j Do not bend, or subject the adaptor to strong impacts. j Keep the adaptor away from moisture. j Do not disassemble or alter the adaptor in any way. j Do not attempt to install the adaptor in any incompatible device. * An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices. ≥ Please refer to the appropriate instruction manual for details on how to use this wireless LAN adaptor. ≥ Please refer to the Panasonic website for information on devices confirmed for use with this wireless LAN adaptor.http://www.panasonic.net/products/(This site is in English only.) Accessory THE FOLLOWING APPLIES IN THE U.S.A. AND CANADAThis device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.Operation is subject to the following two conditions:(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range.FCC and IC require this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz a nd 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this product.The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects.Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. Wireless LAN adaptor (DY-WL10) has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. ENGLISH THE FOLLOWING APPLIES ONLY IN THE U.S.A.FCC Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encoura ged to try to correct the interference by one or more of the following measures:≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit d…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Permanent Confidentiality November 11, 2009 AVG-09-U070 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: Certification Application FCC ID: ACJ-DY-WL10 To Whom It May Concern; Please be advised that Panasonic Corporation of North America hereby requests the following filed information to be held confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act. This transmitter is not user adjustable and does not have a Tune-Up Procedure. • Block Diagram • Schematic Diagram • Parts List • Theory of Operation These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. If this technical information were made public, it might be used to our disadvantage in the market place. Thank you for your attention to this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Short-Term Confidentiality November 11, 2009 AVG-09-U070 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland ills Road Columbia, Maryland 21046 Re: Request for Short-Term Confidentiality FCC ID: ACJ-DY-WL10 To Whom It May Concern; Please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of forty- five days, starting from the original issued Certification grant date. • External Photos • Internal Photos* • Test Setup Photos • Operating Instructions (Users Manual) Panasonic also acknowledges that we will provide appropriate notice to ATCB should either of the following occur: • if we require additional 45 day extension period, we will notify ATCB with a new request letter at least seven days prior to the short-term confidentiality expiration date [Note: up to a maximum of 3 extensions only are allowed], or • we will immediately notify ATCB in the event the information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure, pursuant to FCC Public Notice DA 04-1705. Thank you for your attention to this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney November 11, 2009 AVG-09-U070 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern; Please be advised that Panasonic Corporation of North America authorizes Naoki Sakamoto of UL Japan, Inc. to act on our behalf for the below described Certification application, which will be submitted to American Telecommunications Certification Body, Inc. (ATCB). Any and all acts carried out by them on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Product Name: Panasonic Wireless LAN Adaptor, Model DY-WL10 1 FCC Rule Part/Type Equip: FCC Part 15, Subpart D, Section 15.247 / Digital Transmission System FCC Rule Part/Type Equip: FCC Part 15, Subpart E, Section 15.407 / Unlicensed National Information Infrastructure FCC ID: ACJ-DY-WL10 Responsible Applicant Panasonic Corporation of North America & Grantee: One Panasonic Way, 4B-8, Secaucus, NJ 07094 FRN Number: 0003762242 We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This Certification application has not been submitted to any other TCB for Certification. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 This transmitter complies with IEEE 802.11(a+b+g+n) specifications and is intended for exclusive use with Panasonic audio/video products that are provided with WLAN compatibility for use in portable configuration with no minimum spacing requirements between antenna-to-user and the provided Operating Instruction will be provided with required RF Exposure Warning information. Further, this transmitter with USB 2.0 interface will not be marketed for connection to host PC and therefore, is not subject to DoC authorization under FCC Part 15B.

Mar./2009

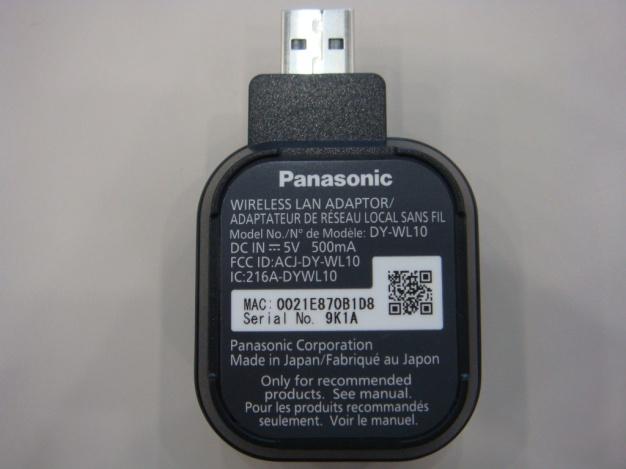

Mar./2009 Back side of products

Mar./2009 Antenna Substrate Mar./2009 With Shield Case (Top side) Mar./2009 Without Shield Case Mar./2009 With Shield Case (Back side) Mar./2009 Without Shield Case

Test report No. : 29LE0211-HO-02-G Page : 2 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information...................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 4 2.1 Identification of E.U.T.................................................................................................4 2.2 Product Description....................................................................................................5 SECTION 3 : Test standard information .............................................................................................. 6 3.1 Requirements for compliance testing defined by the FCC...................................................6 3.2 SAR Test online.........................................................................................................7 3.3 Procedure and result....................................................................................................7 3.4 Exposure limit...........................................................................................................7 3.5 Test Location............................................................................................................8 3.6 Confirmation before SAR testing...................................................................................8 3.7 Confirmation after SAR testing...................................................................................11 3.8 Measurement procedure.............................................................................................12 3.9 Test setup of EUT....................................................................................................13 3.10 Radiated pattern.......................................................................................................13 SECTION 4 : Operation of E.U.T. during testing .............................................................................. 14 4.1 Operating modes for SAR testing................................................................................14 SECTION 5 : Test surrounding ........................................................................................................... 16 5.1 Measurement uncertainty...........................................................................................16 SECTION 6 : Confirmation before testing ......................................................................................... 17 6.1 Correlation of Output Power between EMC and SAR tests...............................................17 6.2 Power check for SAR testing......................................................................................23 SECTION 7 : Measurement results ..................................................................................................... 29 7.1 Body SAR 5GHz (with USB cable).............................................................................29 7.2 Body SAR 5GHz (without USB cable).........................................................................33 APPENDIX 1 : Photographs of test setup .........................................................................................................................34 1. Photograph of EUT......................................................................................................................... 35 2. Photograph of test setup.................................................................................................................. 37 APPENDIX 2 : SAR Measurement data ...........................................................................................................................42 1. Evaluation procedure ...................................................................................................................... 43 2. Measurement data (Low/Middle band(5180-5320MHz), ant 0) ..................................................... 44 3. Measurement data (Low/Middle band (5180-5320MHz), ant 1) .................................................... 60 4. Measurement data (Upper band (5745-5825MHz, ant 0) ............................................................... 75 5. Measurement data (Upper band (5745-5825MHz), ant 1).............................................................. 89 6. Measurement data (Low/Middle band(5180-5320MHz), ant 0, without USB cable)................... 104 Test report No. : 29LE0211-HO-02-G Page : 3 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3 : Test instruments .......................................................................................................................................105 1. Equipment used ............................................................................................................................ 106 2. Dosimetry assessment setup ......................................................................................................... 107 3. Configuration and peripherals ...................................................................................................... 108 4. System components ...................................................................................................................... 109 5. Test system specifications ............................................................................................................ 111 6. Simulated Tissues Composition (5GHz) ...................................................................................... 112 7. Simulated Tissue Liquid Pa…

Text truncated - open the document above for the full version.

Test report No. : 29LE0211-HO-02-G Page : 42 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2 : SAR Measurement data Test report No. : 29LE0211-HO-02-G Page : 43 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was 15 mm x 15 mm . Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 28mm x 28mm x 22.5mm was assessed by measuring 8 x 8 x 10 points for IEEE802.11a/n(5G) and for any secondary peaks found in the Step2 which are within 2dB of maximum peak (level more than ambient noise (> 0.012 W/kg)) and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1). The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm. Therefore minimum distance of probe sensor from surface was set to the 2mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2). The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1 g or 10 g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. (3). All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1. Test report No. : 29LE0211-HO-02-G Page : 44 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2. Measurement data (Low/Middle band(5180-5320MHz), ant 0) DY-WL10/ ant 0/ Horizontal-Front/ Default radiation/ 11a BPSK/ 5240MHz Crest factor: 1 Medium: M5200 Medium parameters used: f = 5200 MHz; σ = 5.56 mho/m; ε r = 45.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3507; ConvF(4.58, 4.58, 4.58); Calibrated: 2009/02/12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (101x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.509 mW/g Zoom Scan (8x8x10)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 8.78 V/m; Power Drift = 0.061 dB Peak SAR (extrapolated) = 0.957 W/kg SAR(1 g) = 0.312 mW/g; SAR(10 g) = 0.132 mW/g Maximum value of SAR (measured) = 0.550 mW/g Test Date = 10/23/09 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 23.6 degree.C , After 23.6 degree.C Test report No. : 29LE0211-HO-02-G Page : 45 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 DY-WL10/ ant 0/ Horizontal-Front/ Front radiation/ 11a BPSK/ 5240MHz Crest factor: 1 Medium: M5200 Medium parameters used: f = 5200 MHz; σ = 5.56 mho/m; ε r = 45.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3507; ConvF(4.58, 4.58, 4.58); Calibrated: 2009/02/12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (101x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.715 mW/g Zoom Scan (8x8x10)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 12.3 V/m; Power Drift = -0.108 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.404 mW/g; SAR(10 g) = 0.177 mW/g Maximum value of SAR (measured) = 0.700 mW/g Test Date = 10/23/09 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 23.6 degree.C , After 23.6 degree.C Test report No. : 29LE0211-HO-02-G Page : 46 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 DY-WL10/ ant 0/ Horizontal-Front/ Rear radiation/ 11a BPSK/ 5240MHz Crest factor: 1 Medium: M5200 Medium parameters used: f = 5200 MHz; σ = 5.58 mho/m; ε r = 45.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3507; ConvF(4.58, 4.58, 4.58); Calibrated: 2009/02/12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (101x121x1): Measurement grid: dx=10mm, dy=10mm Ma…

Text truncated - open the document above for the full version.

Test report No. : 29LE0211-HO-02-G Page : 105 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3 : Test instruments Test report No. : 29LE0211-HO-02-G Page : 106 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 1. Equipment used Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAT-23 Attenuator(10dB) DC- 18GHz Orient Microwave BX10-0476-00 - Power Measurement 2009/03/24 * 12 MPM-09 Power Meter Anritsu ML2495A 6K00003348 Power Measurement 2009/09/09 * 12 MPSE-12 Power sensor Anritsu MA2411B 011598 Power Measurement 2009/09/09 * 12 MOS-04 Digital Humidity Indicator N.T NT-1800 MOS04 Power Measurement 2009/02/04 * 12 MPM-01 Power Meter Agilent E4417A GB41290639 SAR 2009/02/17 * 12 MPSE-01 Power Sensor Agilent E9300B US40010300 SAR 2009/02/17 * 12 MPSE-03 Power sensor Agilent E9327A US40440576 SAR 2009/02/17 * 12 MAT-15 Attenuator(30dB) Agilent 8498A US40010300 SAR 2009/02/24 * 12 MSG-10 Signal Generator Agilent N5181A MY47421098 SAR 2009/06/30 * 12 MRFA-08 Pre Amplifier TSJ TCBP0206 - SAR 2009/03/25 * 12 MHDC-12 Dual Directional Coupler Hewlett Packard 772D 2839A0016 SAR - MNA-01 Network Analyzer Agilent/HP E8358A US41080381 SAR 2009/08/28 * 12 MDPK-01 Dielectric probe kit Agilent 85070D - SAR Pre Check MNCK-01 Type N Calibration Kit Agilent 85032F MY41495257 SAR 2009/08/28 * 12 MPB-03 Dosimetric E-Field Probe Schmid&Partner Engineering AG EX3DV3 3507 SAR 2009/02/12 * 12 MDAE-01 Data Acquisition Electronics Schmid&Partner Engineering AG DAE3 V1 509 SAR 2009/07/08* 12 COTS-MSTW-16 DASY4 Schmid&Partner Engineering AG DASY4 V4.7 Build71 - SAR - COTS-MSTW-17 S-Parameter Network Analyzer Agilent - - SAR - MDA-08 Dipole Antenna Schmid&Partner Engineering AG D5GHzV2 1020 SAR 2009/08/19 * 24 MPF-02 2mmOval Flat Phantom ERI 4.0 Schmid&Partner Engineering AG QD VA 001B (ERI4.0) 1045 SAR - MOS-05 Thermo-Hygrometer Custom CTH-190 810201 SAR 2009/04/28 * 12 MOS-10 Digtal thermometer HANNA Checktemp-2 MOS-10 SAR 2009/01/15 * 12 MBM-13 Barometer Sunoh SBR121 873 SAR 2007/12/27 * 36 Muscle 5800MHz Daily check Target value ± 5 to 10% SAR room Daily check Ambient Noise<0.012W/kg The expiration date of the calibration is the end of the expired month. As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibrations Test report No. : 29LE0211-HO-02-G Page : 107 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2. Dosimetry assessment setup These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than +/- 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetry probe EX3DV3, SN: 3507(manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [2] with accuracy of better than +/-10%. The spherical isotropy was evaluated with the procedure described in [3] and found to be better than +/-0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEEE P1528 and CENELEC EN50361. Test report No. : 29LE0211-HO-02-G Page : 108 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3. Configuration and peripherals The DASY4 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. An arm extension for accommodating the data acquisition electronics (DAE). 2. A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. 3. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 4. The Electro-optical converter (EOC) performs the conversion between optical and electrical of the signals for the digital communication to the DAE and for the analog signal from the optical surface detection. The EOC is connected to the measurement server. 5. The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts. 6. A probe alignment unit which improves the (absolute) accuracy of the probe positioning. 7. A computer operating Windows 2000. 8. DASY4 software. 9. Remote control with teaches pendant and additional circuitry for robot safety such as warning lamps, etc. 10. The 2mm Flat phantom ERI4.0 11. The device holder for handheld mobile phones. 12. Tissue simulating liquid mixed according to the given recipes. 13. Validation dipole kits allowing to validate the proper functioning of the system. Test report No. : 29LE0211-HO-…

Text truncated - open the document above for the full version.

Test report No. : 29LE0211-HO-02-G Page : 136 of 145 Issued date : November 16, 2009 FCC ID : ACJ-DY-WL10 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 12. Dosimetric E-Field Probe Calibration (EX3DV3,S/N: 3507) Test report No. : 29LE0211-HO-02-G Page : 137 of 1…

Text truncated - open the document above for the full version.
