ACJ-EYADASewing Machine for household use

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Feb 07, 2024
Application Purpose: Original Equipment
Date of Application: Feb 05, 2024
Equipment Note: Sewing Machine for household use
Frequency Range: 5180.00000000 - 5240.00000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America Agent Designation Attestation CFR 47 §2.911 (d)(7) Federal Communications Commission Date: September 6, 2023 Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: FRN 0003762242 with FCC Grantee Code ACJ - Attestation Statements Part 2.911(d)(7) Panasonic Corporation of North America (“the applicant”) certifies that, Panasonic Corporation of North America is our designated U.S. agent for service of process for the above referenced FCC Grantee Code ACJ. Panasonic Corporation of North America accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Panasonic Corporation of North America accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for Grantee Code ACJ. Designated U.S. Agent Information: Name: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, New Jersey, United States Contact Person: Ben Botros Tel.: 201-348-7760 Email: [email protected] This agreement applies to all products applied by Panasonic Corporation of North America for FCC Grantee Code ACJ and is valid within the product life. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America FRN 0003762242

Attestation Statements

Covered Equipment CFR 47 §2.911 (d)(5) Attestation December 6, 2023 ESPT-23-1146 American Certification Body, Inc. 313 Park Avenue, Suite 300, Falls Church, VA 22046 Re: Original System Application for Panasonic Screwdriver, Models: EYADA112WA, EYADA112WB, EYADA212WA, EYADA212WB, EYADA218WA, EYADA218WB, EYADA407WA, EYADA407WB under FCC ID: ACJ-EYADA To whom it may concern: Statement for 47 CFR section 2.911(d)(5)(i) Panasonic Corporation of North America certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Statement for 47 CFR section 2.911(d)(5)(ii) Panasonic Corporation of North America certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List a s an entity producing “covered” equipment. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Attestation Statements

Cover Letter(s)

Difference declaration

Cover Letter(s)

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Agent Authorization Letter December 6, 2023 ESPT-23-1146 American Certification Body, Inc. 313 Park Avenue, Suite 300, Falls Church, VA 22046 Re: Original System Application for Panasonic Screwdriver, Models: EYADA112WA, EYADA112WB, EYADA212WA, EYADA212WB, EYADA218WA, EYADA218WB, EYADA407WA, EYADA407WB under FCC ID: ACJ-EYADA To whom it may concern: The undersigned hereby authorize Intertek Testing Service Shanghai to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Intertek Testing Service Shanghai on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Further, no party as defined in 47 CFR 1.2002 (b), to the applicant is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. In authorizing Intertek Testing Service Shanghai as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the

Cover Letter(s)

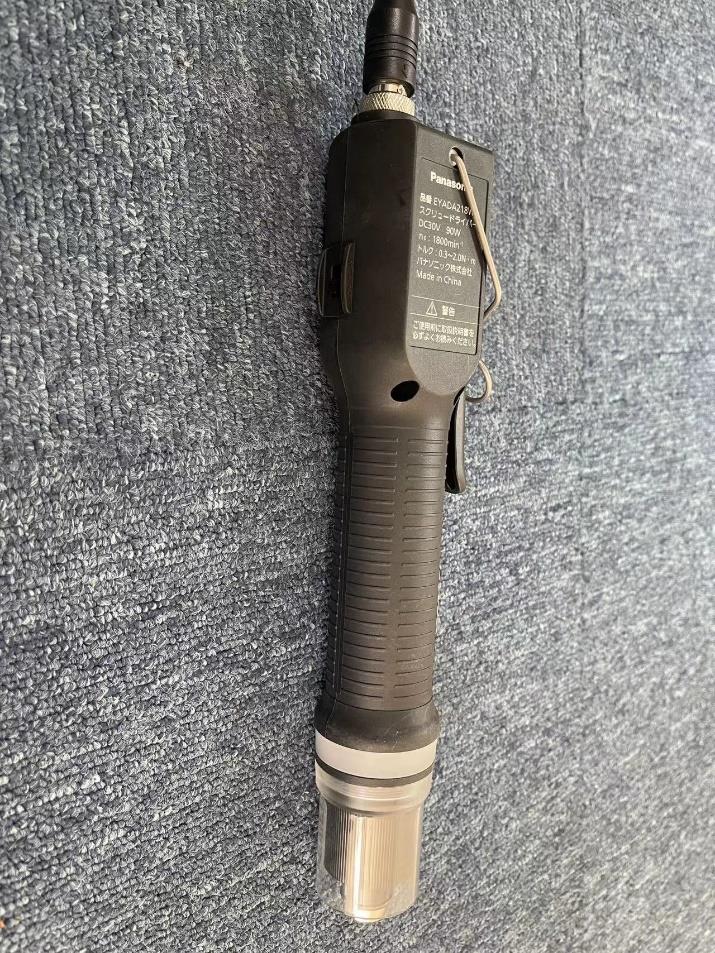

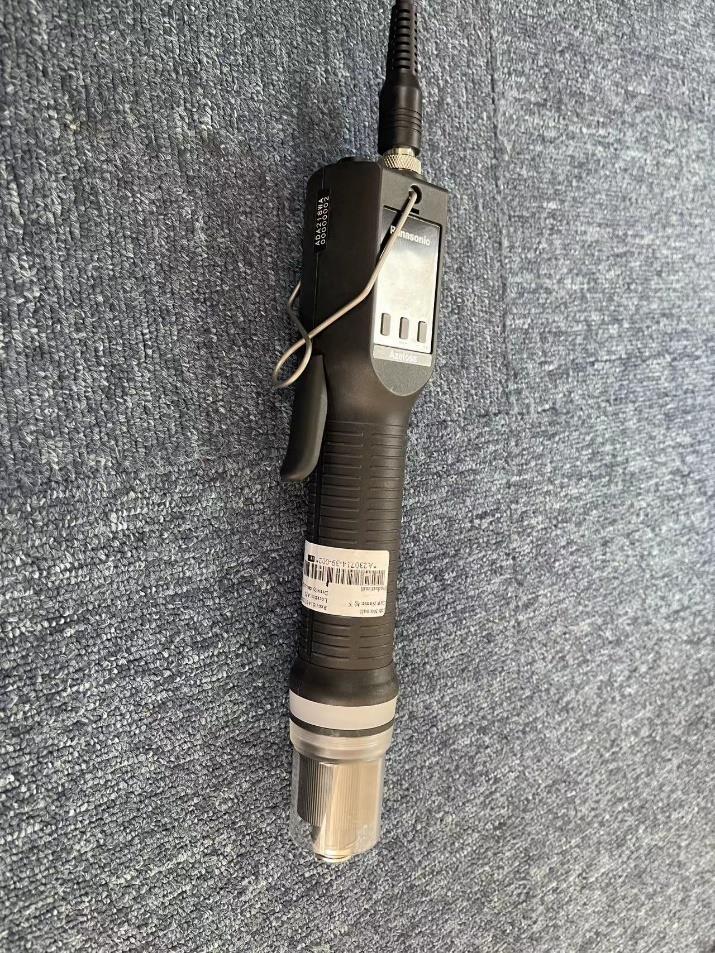

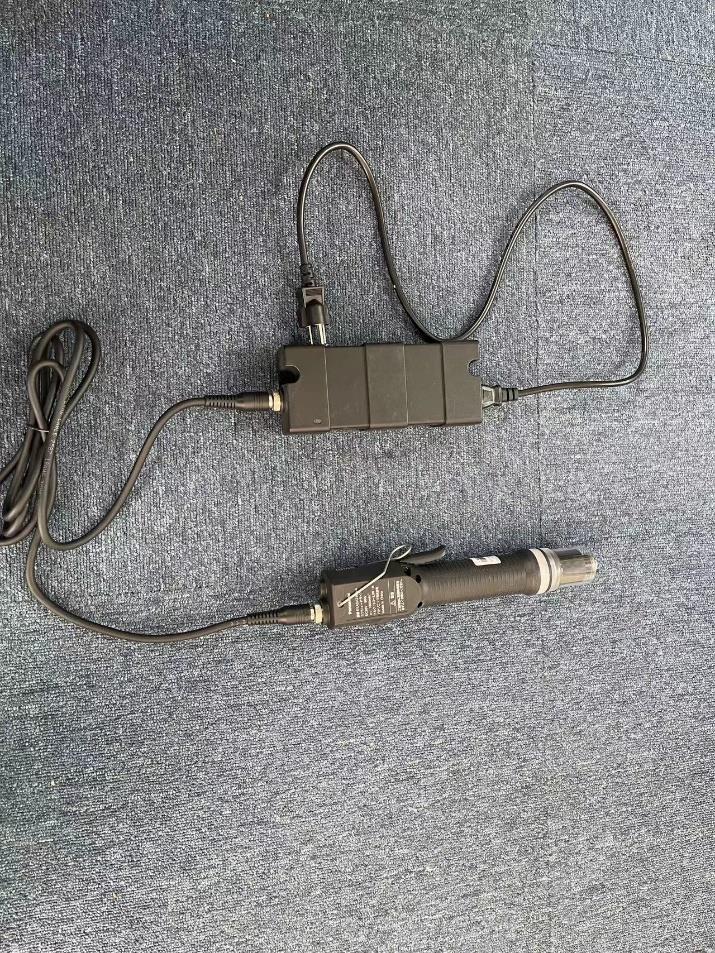

External Photos

ID Label/Location Info

Label Panasonic Corporation Osaka Japan Torque：0.1～1.0N・ｍ -1 SCREWDRIVER ｎ0：1200min 90W30V Model No.EYADA112WA Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：0.1～1.0N・ｍ -1 SCREWDRIVER ｎ0：1200min 90W30V Model No.EYADA112WB Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：0.3～2.5N・ｍ -1 SCREWDRIVER ｎ0：1200min 90W30V Model No.EYADA212WA Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：0.3～2.5N・ｍ -1 SCREWDRIVER ｎ0：1200min 90W30V Model No.EYADA212WB Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：0.3～2.0N・ｍ -1 SCREWDRIVER ｎ0：1800min 90W30V Model No.EYADA218WA Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：0.3～2.0N・ｍ -1 SCREWDRIVER ｎ0：1800min 90W30V Model No.EYADA218WB Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：1.5～4.4N・ｍ -1 SCREWDRIVER ｎ0：650min 90W30V Model No.EYADA407WA Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277 Panasonic Corporation Osaka Japan Torque：1.5～4.4N・ｍ -1 SCREWDRIVER ｎ0：650min 90W30V Model No.EYADA407WB Made in China FCC ID:ACJ-EYADA IC:216A-EYADA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 3136277

Internal Photos

Internal Photos Antenna

RF Exposure Info

Panasonic Corporation of North America SAR TEST REPORT SCOPE OF WORK: SAR report for FCC Model: EYADA112WA, EYADA112WB, EYADA212WA, EYADA212WB, EYADA218WA, EYADA218WB, EYADA407WA, EYADA407WB REPORT NUMBER 230700847SHA-003 ISSUE DATE December 21, 2023 DOCUMENT CONTROL NUMBER TTRFFCCSAR_V1 © 2020 Intertek Report no. 230700847SHA-003 Page 2 of 31 APPLICANT: Panasonic Corporation of North America Two Riverfront Plaza, NEWARK NJ 07102 MANUFACTURER: Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan Factory: Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan FCC ID: ACJ-EYADA Summary The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR § 2.1093: Radio frequency Radiation Exposure Evaluation: Portable Device IEC/IEEE 62209-1528: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques FCC KDB Publication 865664 D01: SAR measurement 100 MHz to 6 GHz v01r04 describes SAR measurement procedures for devices operating between 100 MHz to 6 GHz; PREPARED BY: REVIEWED BY: Project Engineer Damon Ding Reviewer Eric Li Report No. 230700847SHA-003 TEST REPORT Page 3 of 31 Contents REVISION HISTORY................................................................................................................................................ 4 SAR SUMMARY ..................................................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 RF TECHNICAL INFORMATION ................................................................................................................................ 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 1.4 INSTRUMENT LIST ................................................................................................................................................ 8 2 MEASUREMENT UNCERTAINTY .................................................................................................................... 9 3 TISSUE DIELECTRIC PARAMETER MEASUREMENTS .................................................................................... 10 3.1 TARGET FOR TISSUE DIELECTRIC PARAMETER .......................................................................................................... 10 3.2 VERIFICATION RESULTS ........................................................................................................................................ 12 4 SYSTEM VERIFICATION ............................................................................................................................... 13 4.1 SYSTEM PERFORMANCE CHECK ............................................................................................................................ 13 4.2 SYSTEM PERFORMANCE CHECK RESULT .................................................................................................................. 14 4.3 WCDMA MEASUREMENT PROCEDURES FOR SAR .................................................................................................. 15 4.4 SAR MEASUREMENT FOR LTE ............................................................................................................................. 16 4.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................................... 18 4.6 POWER DRIFT ................................................................................................................................................... 18 5 MEASUREMENT PROCEDURES ................................................................................................................... 19 5.1 RF EXPOSURE LIMIT ........................................................................................................................................... 19 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 5.3 TEST CONDITIONS AND TEST METHOD .................................................................................................................. 21 6 CONDUCTED RF OUTPUT POWER .............................................................................................................. 22 6.1 GSM MEASUREMENT RESULT .............................................................................................................................. 22 6.2 WCDMA CONDUCTED OUTPUT POWER ............................................................................................................... 23 6.3 LTE CONDUCTED PEAK OUTPUT POWER ................................................................................................................. 24 6.4 WIFI CONDUCTED POWER.................................................................................................................................. 27 6.5 BLUETOOTH OUTPUT POWER .............................................................................................................................. 27 7 SCALING FACTOR CALCULATION ................................................................................................................ 28 8 SAR TEST EXCLUSION CONSIDERATION AND SAR MEASUREMENT POSITIONS ........................................... 28 8.1 SAR TEST EXCLUSION CONSIDERATION .........................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Justification for Extended SAR Dipole Calibrations Dipole Date of Measurement Return Loss (dB) Delta (%) Impedance (ohm) Delta (ohm) Head 2450MHz May 19, 2021 -28.3 -2.71 53.8 -4.17 May 17, 2022 -27.5 49.7 Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification results meet the requirement of extended calibration. Justification for Extended SAR Dipole Calibrations Dipole Date of Measurement Return Loss (dB) Delta (%) Impedance (ohm) Delta (ohm) Head 2450MHz May 19, 2021 -28.3 5.66 53.8 -0.72 May 20, 2023 -29.9 53.1 Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification results meet the requirement of extended calibration. Justification for Extended SAR Dipole Calibrations Dipole Date of Measurement Return Loss (dB) Delta (%) Impedance (ohm) Delta (ohm) Head 5250MHz May 17, 2021 -27.7 -4.98 50.3 -3.13 May 17, 2022 -26.4 47.1 Head 5600MHz May 17, 2021 -33.8 -0.21 51.4 -2.94 May 17, 2022 -33.7 48.4 Head 5800MHz May 17, 2021 -24.7 8.14 53.3 -2.43 May 17, 2022 -26.7 50.8 Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification results meet the requirement of extended calibration. Justification for Extended SAR Dipole Calibrations Dipole Date of Measurement Return Loss (dB) Delta (%) Impedance (ohm) Delta (ohm) Head 5250MHz May 17, 2021 -27.75 0.77 50.25 -2.64 May 08, 2023 -27.96 47.61 Head 5600MHz May 17, 2021 -33.81 -3.59 51.38 -2.82 May 08, 2023 -32.60 48.56 Head 5800MHz May 17, 2021 -24.73 10.12 53.28 -3.74 May 08, 2023 -27.23 49.54 Note: The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification results meet the requirement of extended calibration.

RF Exposure Info

Test Laboratory: UnionTrust Date/Time: 2023/11/7 WIFI 5G_802.11a_Rear Face_0mm_36 DUT: EUT Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1.08 Medium: H5250 Medium parameters used: f = 5180 MHz; σ = 4.63 mho/m; ε r = 36; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN7506; ConvF(5.48, 5.48, 5.48); Calibrated: 2023/6/29 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.745 mW/g Zoom Scan (8x8x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 2.14 V/m; Power Drift = -0.162 dB Peak SAR (extrapolated) = 1.78 W/kg SAR(1 g) = 0.393 mW/g; SAR(10 g) = 0.118 mW/g Maximum value of SAR (measured) = 0.810 mW/g 0 dB = 0.810mW/g

RF Exposure Info

Test Laboratory: UnionTrust Date/Time: 2023/11/7 WIFI 5G_802.11a_Rear Face_0mm_48 DUT: EUT Communication System: 802.11a; Frequency: 5240 MHz;Duty Cycle: 1:1.08 Medium: H5250 Medium parameters used: f = 5240 MHz; σ = 4.7 mho/m; ε r = 35.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN7506; ConvF(5.48, 5.48, 5.48); Calibrated: 2023/6/29 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.774 mW/g Zoom Scan (8x8x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 2.08 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 0.414 mW/g; SAR(10 g) = 0.120 mW/g Maximum value of SAR (measured) = 0.855 mW/g 0 dB = 0.855mW/g

Test Report

Panasonic Corporation of North America RF TEST REPORT Report Type: FCC Part 15.407 RF report Model: EYADA112WA, EYADA112WB, EYADA212WA, EYADA212WB, EYADA218WA, EYADA218WB, EYADA407WA, EYADA407WB REPORT NUMBER: 230700847SHA-002 ISSUE DATE: December 21, 2023 DOCUMENT CONTROL NUMBER: TTRF15.407_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.407_V1 © 2018 Intertek Page 2 of 37 Report no.: 230700847SHA-002 APPLICANT: Panasonic Corporation of North America Two Riverfront Plaza, NEWARK NJ 07102 MANUFACTURER: Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan Factory: Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan FCC ID: ACJ-EYADA SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2021): Radio Frequency Devices (Subpart C) ANSI C63.10 (2020): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Damon Ding Reviewer Eric Li Report No.: 230700847SHA-002 TEST REPORT TTRF15.407_V1 © 2018 Intertek Page 3 of 37 Contents REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 8 1.3 ANTENNA INFORMATION....................................................................................................................................... 8 1.4 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 9 2 TEST SPECIFICATIONS ................................................................................................................................. 10 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................. 10 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................. 10 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 13 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 13 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 13 2.6 INSTRUMENT LIST .............................................................................................................................................. 14 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 15 3 26 DB BANDWIDTH & 99% OCCUPIED BANDWIDTH .................................................................................. 16 3.1 LIMIT .............................................................................................................................................................. 16 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 16 3.3 TEST CONFIGURATION ........................................................................................................................................ 17 3.4 THE RESULTS OF 26 DB BANDWIDTH & 99% OCCUPIED BANDWIDTH.......................................................................... 17 4 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 18 4.1 LIMIT .............................................................................................................................................................. 18 4.2 MEASUREMENT PROCEDURE ............................................................................................................................... 18 4.3 TEST CONFIGURATION ........................................................................................................................................ 18 4.4 THE RESULTS OF MINI…

Text truncated - open the document above for the full version.

Test Report

Antenna report Index 1. Introduction 1.1 Antenna information 1.2 Test equipment 1.3 Test setup 2. Test result 2.1 Maximum gain 2.2 Test data for 2,4 GHz 2.3 Test data for 5 GHz 1. Introduction This document describes the design verification test in order to determine the antenna gain. 1.1 Antenna information This antenna is PCB antenna, and it’s formed as a part of the PCB board pattern when the WLAN module shown in Fig 1 is fabricated. Thus, the manufacturer of the antenna is same as that of the module. The manufacturer of the module is: Company: Panasonic Electric Works Electrical Construction Materials Mie Co., Ltd. Address: 1668, Fujikata, Tsu Mie 514-8555, Japan The antenna itself is not assigned model name, but the module name is: Module name: KY0000-ADAWA (when it’s incorporated in EYADA screwdriver) KY0010-FMH1(when it’s incorporated in EYFMH impact wrench) *Both modules are identical, but two product name is assigned for production management purpose. Fig. 1 PCB antenna on WLAN module Fig. 2 PCB board pattern 1.2 Test equipment Following equipment were used. ⚫ Anritsu MT8852B ⚫ Agilent N9322C 1.3 Test Setup Fig. 3 Photo of test setup Fig. 4 Antenna location 2 Test result 2.1 Maximum gain Antenna max gain is: 2,4GHz: 1.25dBi 5GHz: -0.97dBi 2.2 Test data for 2,4 GHz Test data for 2,4GHz is shown Fig. 5 through 8. Fig. 5 Maximum antenna gain for 2,4 GHz (dBi) Fig. 6 Antenna gain for 2,4 GHz (dBi) Fig. 7 Field intensity for 2,4 GHz (dBV/m) -16.52 0.25 -9.23 1.25 0.28 -14.5 X-Y X-Z Y-Z (deg) 0 -20.41 -8.41 -9.59 -22.21 -2.45 -19.08 45 -17.73 -6.74 -12.4 -3.63 -3.53 -14.55 90 -31.89 -0.59 -15.02 -2.72 -3.46 -21.91 135 -18.8 -1.84 -11.63 -7.29 -4.29 -28.35 180 -20.54 -15.41 -9.69 -26.36 -1.74 -20.31 225 -22.33 -9.54 -12.2 -4.09 0.02 -17.21 270 -27.32 -0.66 -16 1.15 0.28 -24.82 315 -21.33 -1.69 -13.23 -4.52 -0.39 -15.54 Ave -20.99 -3.52 -11.97 -3.97 -1.64 -18.43 X-Y X-Z Y-Z (deg) 0 85.93 97.93 96.75 84.13 103.89 87.26 45 88.61 99.6 93.94 102.71 102.81 91.79 90 74.45 105.75 91.32 103.62 102.88 84.43 135 87.54 104.5 94.71 99.05 102.05 77.99 180 85.8 90.93 96.65 79.98 104.6 86.03 225 84.01 96.8 94.14 102.25 106.36 89.13 270 79.02 105.68 90.34 107.49 106.62 81.52 315 85.01 104.65 93.11 101.82 105.94 90.8 Ave 84.73 101.97 94.12 100.96 104.55 87.13 X-Y X-Z Y-Z Fig. 8 Antenna gain for 2,4 GHz (dBi) 2.3 Test data for 5 GHz Test data for 5 GHz is shown Fig. 9 through 12. Fig. 9 Maximum antenna gain for 5 GHz (dBi) Fig. 10 Antenna gain for 5 GHz (dBi) Fig. 11 Field intensity for 5 GHz (dBV/m) -15.72 -1.37 -0.97 -3.1 -2.61 -6.32 X-Y X-Z Y-Z (deg) 0 -23.21 -4.27 -2.79 -19.14 -24.46 -7.19 45 -20.24 -18.81 -3.52 -5.24 -10.29 -8.75 90 -17.25 -2.4 -5.99 -6.84 -4.31 -26.99 135 -21.51 -8.72 -2.9 -12.41 -6.08 -11.98 180 -15.75 -1.37 -1.01 -30.85 -22.96 -7.14 225 -18.11 -4.41 -2.73 -13.03 -5.01 -12.7 270 -24.11 -3.81 -5.84 -16.2 -2.81 -33.92 315 -18.24 -8.47 -3.41 -9.43 -5.44 -11.5 Ave -18.99 -4.64 -3.26 -10.2 -6.37 -10.53 X-Y X-Z Y-Z (deg) 0 82.26 101.2 102.68 86.33 81.01 98.28 45 85.23 86.66 101.95 100.23 95.18 96.72 90 88.22 103.07 99.48 98.63 101.16 78.48 135 83.96 96.75 102.57 93.06 99.39 93.49 180 89.72 104.1 104.46 74.62 82.51 98.33 225 87.36 101.06 102.74 92.44 100.46 92.77 270 81.36 101.66 99.63 89.27 102.66 71.55 315 87.23 97 102.06 96.04 100.03 93.97 Ave 86.09 100.14 102…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ben Botros(Manager - Regulatory & Compliance)

[email protected]201-348-7760Fax: 00000

Technical Contact

Intertek Testing Services Limited ShanghaiDamon Ding

[email protected]+862161278265

Building No.86, 1198 Qinzhou Road(North) · Shanghai · China

Test Firm

Intertek Testing Services (Shanghai FTZ) Co., Ltd.Leah Xu

[email protected]86-21-61278200

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.24 GHz	12.00 mW

Confidentiality

Long Term

Grant Notes

Power Output listed is conducted. End-users must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The highest reported SAR value is: Body: 0.54 W/kg. This device has a 20 MHz bandwidth mode and contains a 2.4GHz WLAN transmitter.
