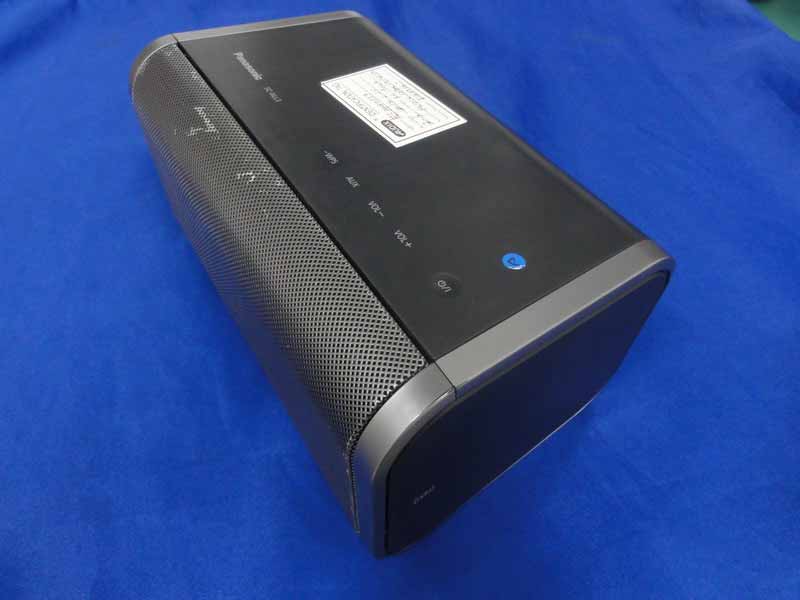

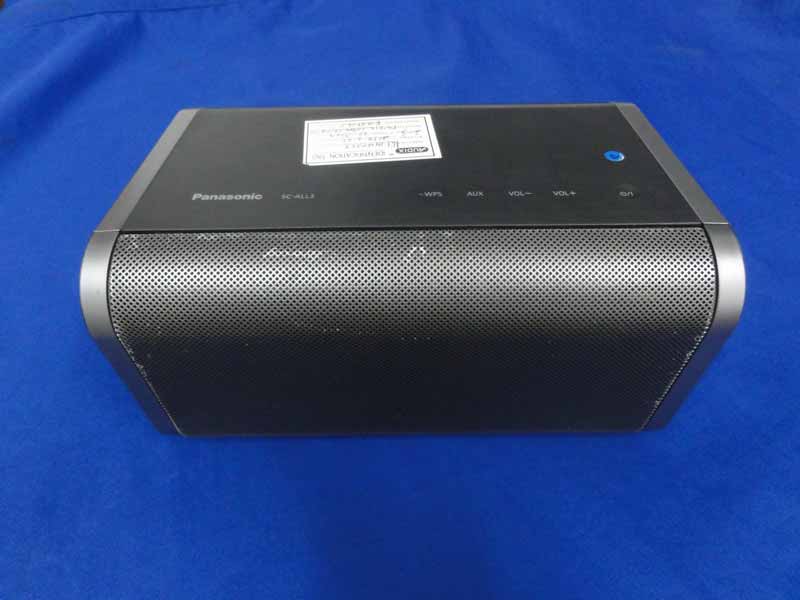

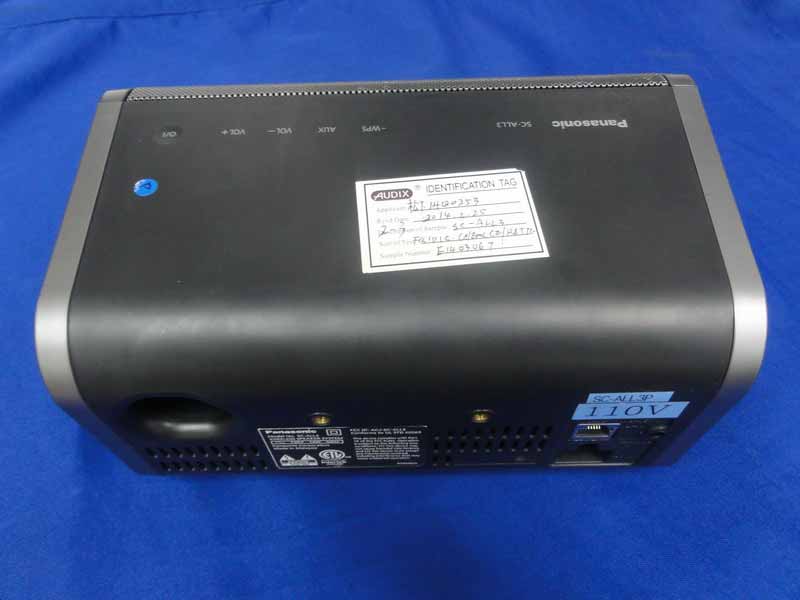

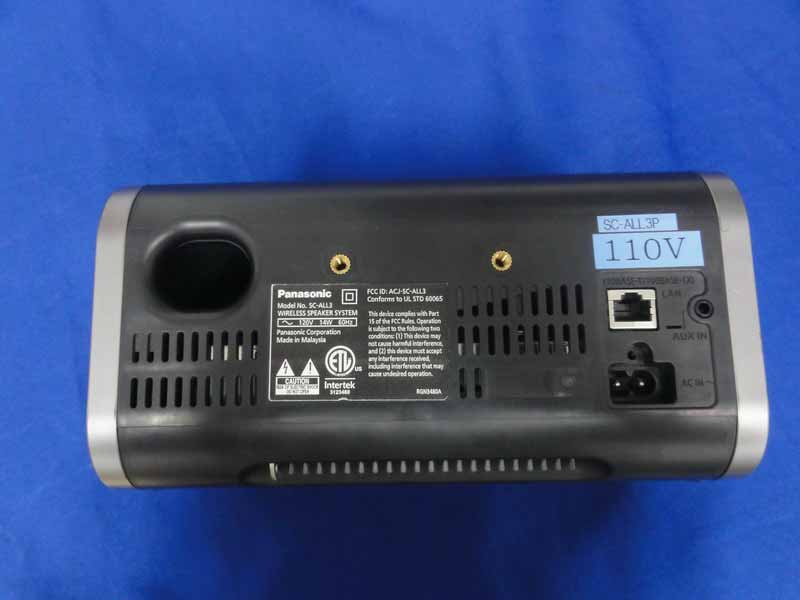

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 1 of 16 Photos of the EUT Wireless Speaker System Model No.: SC-ALL3 Report Number ： ACS-F14110 Date of Test ： Mar.27~Apr.05, 2014 Date of Report ： Apr.16, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 2 of 16 Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 3 of 16 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 4 of 16 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 5 of 16 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 6 of 16 Figure 9 Component side of the PCB Figure 10 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 7 of 16 Figure 11 Component side of the PCB Figure 12 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 8 of 16 Figure 13 Component side of the PCB Figure 14 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 9 of 16 Figure 15 Component side of the PCB Figure 16 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 10 of 16 Figure 17 Component side of the Board Figure 18 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 11 of 16 Figure 19 Component side of the Board Figure 20 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 12 of 16 Figure 21 Component side of the Board Figure 22 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 13 of 16 Figure 23 Component side of the Board Figure 24 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 14 of 16 Figure 25 Component side of the Board Figure 26 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 15 of 16 Figure 27 Component side of the Board Figure 28 Component side of the Board R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14110 Page 16 of 16 Figure 29 Power Cable

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result 2.4GHz EUT:Wireless Speaker System M/N:SC-ALL3 Test date: 2014-04-04 Pressure: 101.2±1.0 kpa Humidity: 48.4±3.0% Tested by: Kevin_Hu Test site: RF site Temperature:20.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2.5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 22.65 184.08 2.5 1.78 0.0652 CH6 2437 22.62 182.81 2.5 1.78 0.0647 11a CH11 2462 22.35 171.79 2.5 1.78 0.0608 CH1 2412 21.94 156.31 2.5 1.78 0.0553 CH6 2437 27.19 523.60 2.5 1.78 0.1853 11n HT20 CH11 2462 22.45 175.79 2.5 1.78 0.0622 CH1 2422 21.55 142.89 2.5 1.78 0.0506 CH4 2437 26.64 461.32 2.5 1.78 0.1633 11n HT40 CH7 2452 21.97 157.40 2.5 1.78 0.0557 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 10-2 5.8GHz EUT:Wireless Speaker System M/N:SC-ALL3 Test date: 2014-04-04 Pressure: 101.3±1.0 kpa Humidity: 48.4±3.0% Tested by: Kevin_Hu Test site: RF site Temperature:22.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 4.3dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH149 5745 24.41 276.06 4.3 2.69 0.1479 CH157 5785 24.06 254.68 4.3 2.69 0.1364 11a CH165 5825 23.12 205.12 4.3 2.69 0.1099 CH149 5745 24.04 253.51 4.3 2.69 0.1358 CH157 5785 23.98 250.03 4.3 2.69 0.1340 11n HT20 CH165 5825 22.75 188.36 4.3 2.69 0.1009 CH151 5755 23.20 208.93 4.3 2.69 0.1119 11n HT40 CH159 5795 22.82 191.43 4.3 2.69 0.1026

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Panasonic Corporation of North America Wireless Speaker System Model Number: SC-ALL3 FCC ID: ACJ-SC-ALL3 Prepared for : Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor Newark New Jersey United States 07102-5490 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14110 Date of Test ： Mar.27~Apr.05, 2014 Date of Report ： Apr.16, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-2 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 7.4. Test Results ..........…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-24 Chain 1: Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-29 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-35 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-37 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-38 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-40 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-41 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-42 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-43 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-44 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-45 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-46 5.8G: Chain 0: Test Mode: IEEE 802.11a TX Test CH149: 5745MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-47 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-48 Test CH157: 5785MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-49 Test CH165: 5825MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-50 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-51 Test Mode: IEEE 802.11n HT20 TX Test CH149: 5745MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-52 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-53 Test CH157: 5785MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-54 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-55 Test CH165: 5825MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-56 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-57 Test Mode: IEEE 802.11n HT40 TX Test CH151: 5755MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-58 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-59 Test CH159: 5795MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-60 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-61 Chain 1: Test Mode: IEEE 802.11a TX Test CH149: 5745MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-62 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-63 Test CH157: 5785MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ACJ-SC-ALL3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14110 5-64 Test CH165: 5825MHz R A…

Text truncated - open the document above for the full version.

R FCC ID: ACJ-SC-ALL3 Page 1 of 32 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14112 FCC Dynamic Frequency Selection Test Report for Panasonic Corporation of North America Wireless Speaker System Model No.: SC-ALL3 FCC ID: ACJ-SC-ALL3 Prepared for : Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor Newark New Jersey United States 07102-5490 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F14112 Date of Test : Apr.01, 2014 Date of Report ; Apr.16, 2014 R FCC ID: ACJ-SC-ALL3 Page 2 of 32 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14112 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION...............................................................................................................3 1.SUMMARY OF MEASUREMENTS AND RESULTS ..........................................................................4 2.GENERAL INFORMATION...................................................................................................................5 2.1.Description of Device (EUT) ............................................................................................................5 2.2.Support Equipment............................................................................................................................7 2.3.Test Channel......................................................................................................................................7 2.4.Description of Test Facility...............................................................................................................8 2.5.Measurement Uncertainty .................................................................................................................8 3.TEST EQUIPMENT.................................................................................................................................9 4.WORKING MODES AND REQUIREMENT TEST ITEM..................................................................10 4.1.Applicability of DFS Requirements Prior To Use A Channel ........................................................10 4.2.Applicability of DFS Requirements During Normal Operation .....................................................10 5.DFS DETECTION THRESHOLOS AND RADAR TEST WAVEFORMS .........................................11 5.1.Interference Threshold Value, Master or Client Incorporating In-Service Monitoring ..................11 5.2.Radar Test Waveform Minimum Step ............................................................................................11 5.3.Short Pulse Radar Test Waveforms ................................................................................................11 5.4.Long Pulse Radar Test Waveforms.................................................................................................12 5.5.Frequency Hopping Pulse Radar Test Waveforms .........................................................................14 5.6.Conducted Calibration Setup ..........................................................................................................16 5.7.Radar Waveform Calibration Procedure .........................................................................................16 5.8.Calibration Deviation ......................................................................................................................16 5.9.Radar Waveform Calibration Result ...............................................................................................17 6.TEST SETUP AND TEST RESULT......................................................................................................19 6.1.Test Setup........................................................................................................................................19 6.2.Channel Move Time, Channel Closing Transmission Time Measurement ....................................22 7.PHOTOGRAPHS OF MEASUREMENT ..............................................................................................32 R FCC ID: ACJ-SC-ALL3 Page 4 of 32 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14112 1. SUMMARY OF MEASUREMENTS AND RESULTS The EUT has been tested according to the applicable standards as referenced below. Description of Test Item Results Channel Availability Check Time N/A Channel Move Time PASS Non-Occupancy Period N/A Channel Closing Transmission Time PASS U-NII Detection Bandwidth N/A N/A is an abbreviation for Not Applicable, sine the product is client without radar detection function R FCC ID: ACJ-SC-ALL3 Page 5 of 32 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14112 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product Wireless Speaker System Model Number SC-ALL3 Serial Number N/A Applicant Panasonic Corporation of North America Two Riverfront Plaza, 9th Floor Newark New Jersey United States 07102-5490 Manufacturer Panasonic Corporation of North America Two Riverfront Plaza, 9th Floor Newark New Jersey United States 07102-5490 FCC ID ACJ-SC-ALL3 Fundamental Range 802.11b/g: 2412MHz ~ 2462MHz 802.11a: 5180MHz ~ 5240MHz (UNII Band I) and 5260MHz ~ 5320MHz (UNII Band II) and 5500MHz ~ 5700MHz (UNII Band III) and 5745MHz ~ 5825MHz (UNII Band IV) UNII Band II & III (DFS, Slave without radar detection function) 802.11n-HT20: 2412MHz ~ 2462MHz and 5180MHz ~ 5240MHz (UNII Band I) and 5260MHz ~ 5320MHz (UNII Band II) and 5500MHz ~ 5700MHz (UNII Band III) and 5745MHz ~ 5825MHz (UNII Band IV) UNII Band II & III (DFS, Slave without radar detection function) 802.11n-HT40: 2422MHz ~ 2452MHz and 5190MHz ~ 5230MHz (UNII Band I) and 5270MHz ~ 5310MHz (UNII Band II) and 5510MHz ~ 5670MHz (UNII Band III) and 5755MHz ~ 5795MHz (UNII Band IV) UNII Band II & III (DFS, Slave without radar detection function) R FCC ID: ACJ-SC-ALL3 Page 6 of 32 Audix Technology (Shenzhen…
