ACJ-SC-HC57Compact Stereo System

RQT9633-P ESPAÑOL ENGLISH until 2011/12/26 Owner’s Manual Unless otherwise indicated, illustrations in this Owner’s Manual are of SC-HC57. Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference. If you have any questions contact U.S.A. and Puerto Rico: 1-800-211-PANA (7262) Canada: 1-800-561-5505 Compact Stereo System Model No. SC-HC57 SC-HC37 Included Installation Instructions (>2, 6) The installation should never be done by any other than a qualified installation specialist. Before commencing work, carefully read these installation instructions and the operating instructions to ensure that installation is performed correctly. (Please keep these instructions. You may need them when maintaining or moving this unit.) La referencia rápida en español se puede encontrar en la página 20-21. PPC SC-HC57-37~RQT9633.book Page 1 Monday, December 5, 2011 6:39 PM 2 RQT9633 IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1Read these instructions. 2Keep these instructions. 3Heed all warnings. 4Follow all instructions. 5Do not use this apparatus near water. 6Clean only with dry cloth. 7Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Unit ≥To reduce the risk of fire, electric shock or product damage, – Do not expose this unit to rain, moisture, dripping or splashing. – Do not place objects filled with liquids, such as vases, on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to qualified service personnel. Power cord ≥Install this unit so that the power cord can be unplugged from the socket outlet immediately if any problem occurs. Button-type battery (Lithium battery) ≥Risk of fire, explosion and burns. Do not disassemble, heat above 60oC (140 o F) or incinerate. Unit ≥This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ≥Do not place sources of naked flames, such as lighted candles, on this unit. Placement ≥To reduce the risk of fire, electric shock or product damage, – Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. – Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items. Button-type battery (Lithium battery) ≥Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. ≥When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. ≥Keep out of reach of children. ≥Insert with poles aligned. ≥Mishandling of batteries can cause electrolyte leakage and may cause a fire. – Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place. – Do not heat or expose to flame. – Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed. – Do not touch the terminals (i and j) with metal objects. – Do not recharge, disassemble, remodel, heat or throw into fire. WARNING If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water. If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes thoroughly with water, and then consult a doctor. <For USA-California only> This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material s special handling may apply. See www.dtsc.ca.gov/hazardouswaste/ perchlorate. CAUTION SC-HC57-37~RQT9633.book Page 2 Monday, December 5, 2011 6:39 PM 3 RQT9633 ENGLISH Accessories THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee th…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Letter of Attorney December 20, 2011 AVG-11-U096 UL Japan, Inc. 4383-326 Awsama-cho, Ise-shi Mie 516-0021 Japan Re: Compact Stereo System, Model SC-HC57 with built-in WLAN, Type CX870 FCC ID: ACJ-SC-HC57 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our hehalf for a one year period from the date of this letter. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality December 16, 2011 AVG-11-U096 UL Japan, Inc. 4383-326 Awsama-cho, Ise-shi Mie 516-0021 Japan Re: Request for Confidentiality 1 Compact Stereo System, Model SC-HC57 with built-in WLAN, Type CX870 FCC ID: ACJ-SC-HC57 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Parts List • Theory of Operation / Operational Descriptions In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division 1 Compact Stereo System, Model SC-HC57 contains built-in WLAN, Type CX870. This WLAN is identical to Standard Mirosystems Limited Single Modular, which was separately TCB certified under FCC ID: ZQO-CX8703K.

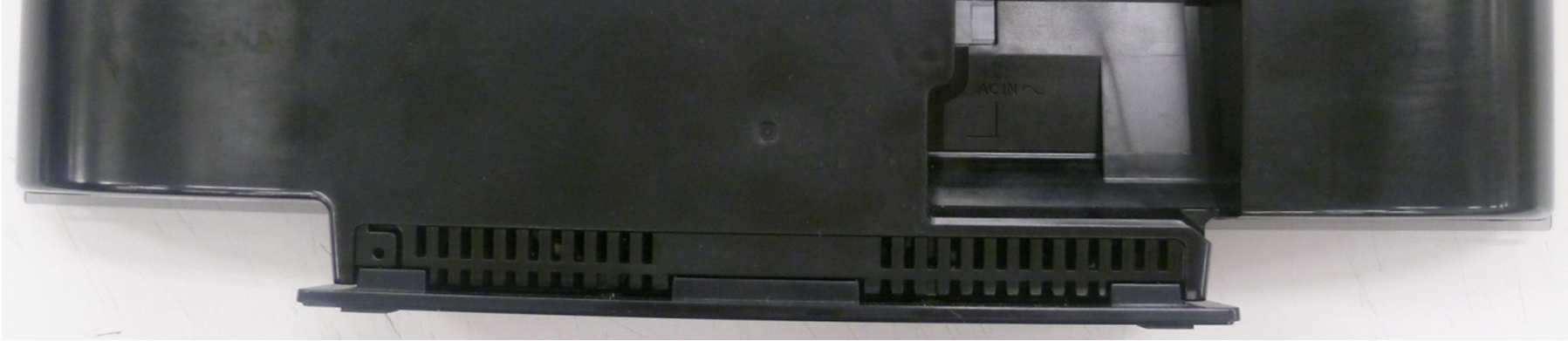

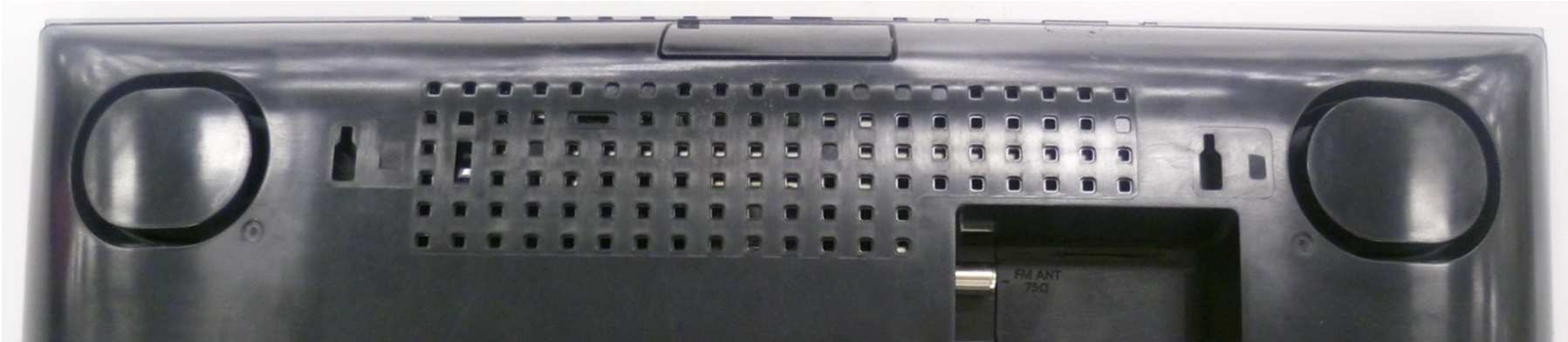

Front View External View (1) Rear ViewTop View External View (2) Name Plate (Bottom) FCC Statement (Bottom) External View (3)

Label Location for FCC Main Unit Bottom of Plate Bottom of Plate

PAVCSG APDC-S-GEN-008 FILM/ARTWORK ISSUE SLIP MODEL NO PART NO PART NAME OLD FILM RETURN DATE PREPAREDCHECKED APPROVED BY YEDINAKAMURA OMORI FILM PART NO 2012HC-017 SC-HC57P-K RGP1522J-K Rear Cabinet INSERT H5, FILM No.:2012HC-017 PAVCSG APDC-S-GEN-008 FILM/ARTWORK ISSUE SLIP MODEL NO PART NO PART NAME OLD FILM RETURN DATE PREPAREDCHECKED APPROVED BY YEDINAKAMURA OMORI FILM PART NO 2012HC-013 2012HC-012 SC-HC37/57 RGP1522 Rear Cabinet INSERT G3, FILM No.:2012HC-013 INSERT G2, FILM No.:2012HC-012

Internal View (1) WiFi Module Module setup Photo Module Photo Front B ack

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Corporation T ype of Equipment : Compact Stereo System Model No. : SC-HC57 FCC ID: ACJ-SC-HC57 IC Number:216A-SCHC57 Panasonic Corporation declares that Model : SC-HC57 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SC-HC57“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 193.20 mW (Maximum peak output power) G = 1.08 Numerical Antenna gain; equal to0.35 dBi r =20.0 cm For: SC-HC57S =0.04166 mW/cm 2 No. : 32AE0238-HO-02 RF Exposure / MPE Calculation

Test report No. : 32AE0238-HO-02-A-R2 Page : 1 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32AE0238-HO-02-A-R2 Applicant : Panasonic Corporation Type of Equipment : Compact Stereo System Model No. : SC-HC57 FCC ID : ACJ-SC-HC57 Test regulation: FCC Part 15 Subpart C: 2011 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32AE0238-HO-02-A-R1. 32AE0238-HO-02-A-R1 is replaced with this report. Date of test: November 24 to 29, 2011 Representative test engineer: Takeshi Choda Engineer of WiSE Japan, UL Verification Service Approved by: Mitsuru Fujimura Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32AE0238-HO-02-A-R2 Page : 2 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 21 Maximum Peak Output Power .......................................................................................................... 24 Radiated Spurious Emission ............................................................................................................. 26 Conducted Spurious Emission .......................................................................................................... 43 Conducted Emission Band Edge compliance ................................................................................... 69 Power Density ................................................................................................................................... 71 99%Occupied Bandwidth ................................................................................................................. 74 APPENDIX 2: Test instruments ............................................................................................................. 76 APPENDIX 3: Photographs of test setup ............................................................................................... 77 Conducted Emission ......................................................................................................................... 77 Radiated Spurious Emission ............................................................................................................. 78 Test report No. : 32AE0238-HO-02-A-R2 Page : 3 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic Corporation Address : 1-10-12 Yagumohigashi-machi Moriguchi Osaka 570-0021, Japan Telephone Number : +81-50-3487-3469 Facsimile Number : +81-6-6906-8800 Contact Person : Kazuo Taniguchi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Compact Stereo System Model No. : SC-HC57 Serial No. : Refer to Section 4, Clause 4.2 Rating : AC 120V/60Hz Receipt Date of Sample : November 22, 2011 Country of Mass-production : Malaysia Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 24MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS, OFDM Power Supply (radio part input) : DC 3.3V, DC 1.2V, DC 1.9V Antenna type : Patte…

Text truncated - open the document above for the full version.

Test report No. : 32AE0238-HO-02-A-R2 Page : 77 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32AE0238-HO-02-A-R2 Page : 78 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32AE0238-HO-02-A-R2 Page : 79 of 79 Issued date : December 14, 2011 Revised date : December 20, 2011 FCC ID : ACJ-SC-HC57 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 4.2 Configuration and peripherals A B C D AC 120V/60Hz 1 2 3 * Cabling and setup(s) were taken into consideration and test data was taken under worse case conditions. Description of EUT No. Item Model number Serial number ManufacturerRemarks A Compact Stereo System SC-HC57 001 Panasonic Corporation EUT B JukeBlox Networked Media CX870-3K - SMSC EUT FCC ID: ZQO-CX8703K C Headphone - - Panasonic Corporation - D Remote Controller S-11-1736 37 Panasonic Corporation - List of cables used No. Name Length (m) Shield Remarks Cable Connector 1 AC Cable 1.6 Unshielded Unshielded - 2 Headphone Cable 1.0 Unshielded Unshielded - 3 FM Antenna Cable 1.4 Unshielded Unshielded -
