SU-GX70 Network Audio Amplifier Amplificateur réseau audio Owner’s Manual Manuel d’utilisation 02 Music is borderless and timeless, touching people’s hearts across cultures and generations. Each day the discovery of a truly emotive experience from an unencountered sound awaits. Let us take you on your journey to rediscover music. Sans frontières, la musique est aussi intemporelle, touchant le coeur des gens en traversant les cultures et les générations. Tous les jours, nous attendons la révélation d’une expérience émotionnelle authentique à partir d’un son venu de nulle part. Permettez-nous de vous emmener en voyage pour redécouvrir la musique. 03 Delivering the Ultimate Emotive Musical Experience to All At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music. We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them. Through delivering this experience we want to support the development and enjoyment of the world’s many musical cultures. This is our philosophy. With a combination of our love of music and the vast high-end audio experience of the Technics team, we stand committed to building a brand that provides the ultimate emotive musical experience by music lovers, for music lovers. Apportez à tous l’expérience musicale empreinte d’émotions Chez Technics, nous savons que l’expérience de l’écoute n’est pas purement et simplement une question de technologie, mais de relation magique entre les personnes et la musique. Nous voulons que tout un chacun puisse ressentir la musique telle qu’elle a été conçue à l’origine et lui permettre de ressentir le choc émotionnel qu’il brûle de connaître. En apportant ce vécu, nous cherchons à accompagner le développement et le plaisir des nombreuses cultures musicales du monde. Telle est notre philosophie. Ici et maintenant, alliant l’amour de la musique et la grande expérience musicale de l’équipe Technics, nous sommes pleinement déterminés à construire une marque qui apporte le vécu musical émotionnel aux fervents de la musique. Director Directeur Michiko Ogawa 04 Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. • About descriptions in these operating instructions - Pages to be referred to are indicated as “ ○○”. - The illustrations shown may differ from your unit. - Unless otherwise indicated, operations are described using the remote control. • Illustrations and figures in this manual are of the silver main body. • A more detailed operating instruction is available in “Operating Instructions” (PDF format). To read it, download it from the website. www.technics.com/support/downloads/oi/SU-GX70.html • You will need Adobe Reader to browse or print “Operating Instructions” (PDF format). You can download and install a version of Adobe Reader that you can use with your OS from the following website. https://get.adobe.com/reader/ Table of contents IMPORTANT SAFETY INSTRUCTIONS 05 Installation 07 Control reference guide 08 Basic Connections 11 Network settings 14 Playback 18 Licenses 20 Specifications 21 Accessories Remote control (1) N2QAYA000239 Batteries for remote control (2) • Product numbers provided in these operating instructions are correct as of February 2023. • These may be subject to change. • Do not use AC mains lead with other equipment. If you have any questions, visit: U.S.A.: http: / /shop.panasonic.com/support Canada: w ww.panasonic.ca/engl ish/support Register online at http://shop.panasonic.com/support (U.S. customers only) AC power supply cord (1) K2CG3YY00219 FM indoor antenna (1) RSAX0002 (ONLY FOR CANADA) The enclosed Canadian French label sheet corresponds to the English display on the unit. 05 Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning Unit • To reduce the risk of fire, electric shock or product damage, - Do not expose this unit to rain, moisture, dripping or splashing. - Do not place objects filled with liquids, such as vases…

Text truncated - open the document above for the full version.

05 Français (25) Avant d’utiliser l’appareil, lire attentivement les instructions qui suivent. Se conformer tout particulièrement aux avertissements inscrits sur l’appareil et aux consignes de sécurité indiquées ci-dessous. Conserver le présent manuel pour consultation ultérieure. 1 Lire attentivement ces instructions. 2 C onserver ces instructions. 3 Lire toutes les mises en garde. 4 Suivre toutes les instructions. 5 Ne pas utiliser cet appareil près d’une source d’eau. 6 Ne nettoyer qu’avec un chiffon sec. 7 Ne pas bloquer les évents d’aération. Installer l’appareil selon les instructions du fabricant. 8 Ne pas installer l’appareil près d’un appareil de chauffage tel qu’un radiateur, une cuisinière, un registre de chaleur ou tout dispositif émettant de la chaleur (y compris un amplificateur). 9 Pour des raisons de sécurité, ne pas modifier la fiche polarisée ou celle de mise à la terre. Une fiche polarisée est une fiche à deux lames, dont une plus large. Une fiche de mise à la terre est une fiche à deux lames avec une broche de masse. La lame plus large ou la broche de masse procure une protection accrue. Si ce genre de fiche ne peut être inséré dans une prise de courant, communiquer avec un électricien pour remplacer la prise. 10 S’assurer que le cordon est placé dans un endroit où il ne risque pas d’être écrasé, piétiné ou coincé. Faire particulièrement attention à ses extrémités de branchement, y compris sa fiche. 11 N’utiliser que les accessoires ou périphériques recommandés par le fabricant. 12 N’utiliser l’appareil qu’avec un chariot, meuble, trépied, support ou table recommandé par le fabricant ou vendu avec l’appareil. Lors de l’utilisation d’un chariot, le déplacer avec le plus grand soin afin d’éviter tout dommage. 13 Débrancher cet appareil lors d’un orage ou en cas de non-utilisation prolongée. 14 Confier l’appareil à un technicien qualifié pour toute réparation : cordon d’alimentation ou fiche endommagé, liquide renversé ou objet tombé dans l’appareil, exposition à la pluie ou à une humidité excessive, mauvais fonctionnement ou échappement de l’appareil. AVERTISSEMENT Appareil • Pour réduire les risques d’incendie, de choc électrique ou de dommages à l’appareil, - N’exposez pas cet appareil à la pluie, à l’humidité, à l’égouttement ou aux éclaboussements. - Ne placez sur l’appareil aucun objet rempli de liquide, comme par exemple des vases. - Utilisez exclusivement les accessoires recommandés. - Ne retirez pas les couvercles. - Ne réparez pas cet appareil vous-même. Faites effectuer la réparation par un personnel qualifié. - Ne laissez aucun objet en métal tomber à l’intérieur de cet appareil. - Ne posez pas d’objets lourds sur cet appareil. Cordon d’alimentation c.a. • L a fi c he d’alimentation permet de déconnecter l’appareil. L’appareil doit être installé à proximité d’une prise secteur facile d’accès. • Assurez-vous que la lame pour la mise à la terre est insérée bien à fond afin de prévenir tout choc électrique. - Un appareil de classe 1 devrait être branché dans une prise secteur avec une protection pour mise à la terre. AT TENTION Appareil • Ne placez aucune source de flamme nue, telles des bougies allumées, sur l’appareil. •I l est possible que cet appareil reçoive des interférences provenant de téléphones cellulaires pendant son utilisation. Si de telles interférences se produisent, éloigner le téléphone cellulaire de l’appareil. Emplacement • Positionnez ce t appareil s ur une surface plane. • Pour réduire les risques d’incendie, de ch oc électrique ou de dommages à l’appareil, - N’installez pas cet appareil dans une bibliothèque, une armoire ou tout autre espace confiné. Assurez- vous que la ven tilation de l’appareil est adéquate. - N’obstruez pas les évents d’aération de l’appareil avec des journaux , des nappes, des rideaux ou d’autres objets similaires. - N’exposez pas cet appareil aux rayons directs du soleil, aux t empératures é levées, à une humidité élevée et à des vibrations excessives. •Installer les enceintes à au moins 10 mm (13/32 po) du système pour assurer une ventilation adéquate. •Ne soulevez pas ou ne transportez pas cet appareil en le tenant par l’avant. Cela pourrait faire tomber l’unité, ce qui pourrait causer des blessures ou des dysfonctionnements de cet appareil. Pile • I l y a un danger d’explosion si la pile n’est pas correctement remplacée. Remplacez uniquement par le type recommandé par le fabricant. • Une manipulation incorrecte des piles peut causer une fuite d’électrolyte ainsi qu’un incendie. - Retirez la pile si vous n’avez pas l’intention d’utiliser la télécommande pendant un long moment. Rangez-la dans un endroit frais et sombre. - Ne chauffez pas et n’exposez pas les piles à une flamme. -Ne laissez pas la (les) pile(s) dans un véhicule exposé directement aux rayons du soleil pendant u n long moment avec fenêtres et portières fermées. IMPORTANTES MISES EN GARDE 06 (26) - Ne démontez pas les piles et ne les court-circuitez pas. - Ne rechargez pas des piles alcalines ou au manganèse. - N’utilisez pas des piles dont le revêtement a été enlevé. - Ne mélangez pas les anciennes piles avec les piles neuves ou différents types de piles. • Pour jeter les piles, veuillez contacter les autorités locales ou votre revendeur afin de connaître la procédure d’élimination à suivre. AVIS RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR AVIS : AFIN DE PRÉVENIR LE RISQUE DE CHOCS ÉLECTRIQUES, NE PAS RETIRER LES VIS. AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR À L’INTÉRIEUR. FAITES EFFECTUER LA RÉPARATION PAR UN PERSONNEL QUALIFIÉ. Le symbole de l’éclair dans un triangle équilatéral indique la présence d’une tension suffisamment élevée pour engendrer un risque de chocs électriques. Le point d’exclamation dans un triangle équilatéral indique que le manuel d’utilisation inclus avec l’appareil contient d’importantes recommandations quant au fonctionnement et à l’entretien de ce dernier. Conforme à la norme UL 62368-1. Conforme à la norme CAN/CSA STD C22.2 N° 623…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America Federal Communications Commission Date: February 7, 2023 Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(7) Filing - FCC Grantee Code ACJ Panasonic Corporation of North America (“the applicant”) certifies that, Panasonic Corporation of North America is our designated U.S. agent for service of process for the above referenced FCC Grantee Code ACJ. Panasonic Corporation of North America accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Panasonic Corporation of North America accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for Grantee Code ACJ. Designated U.S. Agent Information: Name: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, New Jersey, United States Contact Person: Ben Botros Tel.: 201-348-7760 Email: [email protected] This agreement applies to all products applied by Panasonic Corporation of North America for FCC Grantee Code ACJ and is valid within the product life. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America Covered Equipment Certification Attestation Letter February 7, 2023 Federal Communications Commission HEG-23-U001 Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Application for Technics Network Audio Amplifier, Model SU-GX70 Under FCC ID ACJ-SU-GX70 To whom it may concern: Panasonic Corporation of North America certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Panasonic Corporation of North America certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America Agent Authorization Letter February 7, 2023 Federal Communications Commission HEG-23-U001 Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Application for Technics Network Audio Amplifier, Model SU-GX70 Under FCC ID ACJ-SU-GX70 To whom it may concern: Please be notified that Ben Botros of Panasonic Corporation of North America (PNA), hereby authorize Smile Wang from Dongguan Shuoxin Electronic Technology Co., Ltd., GuangDong, China to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters such as 731 forms. Any and all acts carried out by Dongguan Shuoxin Electronic Technology Co., Ltd. o n our behalf shall have the same effect as acts of our own. The undersigned hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Dongguan Shuoxin Electronic Technology Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is only for Model SU-GX70 under FCC ID ACJ-SU-GX70 and is valid for a six-month period from the date of this letter. Thank you for your attention in this matter. Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America Request for Permanent & Short-Term Confidentiality February 7, 2023 Federal Communications Commission HEG-23-U001 Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Application for Technics Network Audio Amplifier, Model SU-GX70 Under FCC ID ACJ-SU-GX70 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as permanent confidential document from public disclosure. • Operational Description • Block Diagrams • Parts List • Schematic Diagrams Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of 45 days, starting from the original issued Certification grant date. • External and Internal Photographs • Operating Instructions (User’s Manual) • Test Setup Photographs . Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel: 201-348-7760 / [email protected] Ben Botros Manager – Regulatory Compliance Panasonic Corporation of North America FCC Software Configuration Control Declaration February 7, 2023 HEG-23-U001 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Application for Technics Network Audio Amplifier, Model SU-GX70 Under FCC ID ACJ-SU-GX70 To whom it may concern: In reference to FCC Country Code Selection guidelines identified in KDB 594280, Panasonic Corporation of North America declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Please contact me if you have any questions or need further information regarding this application. . Sincerely, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

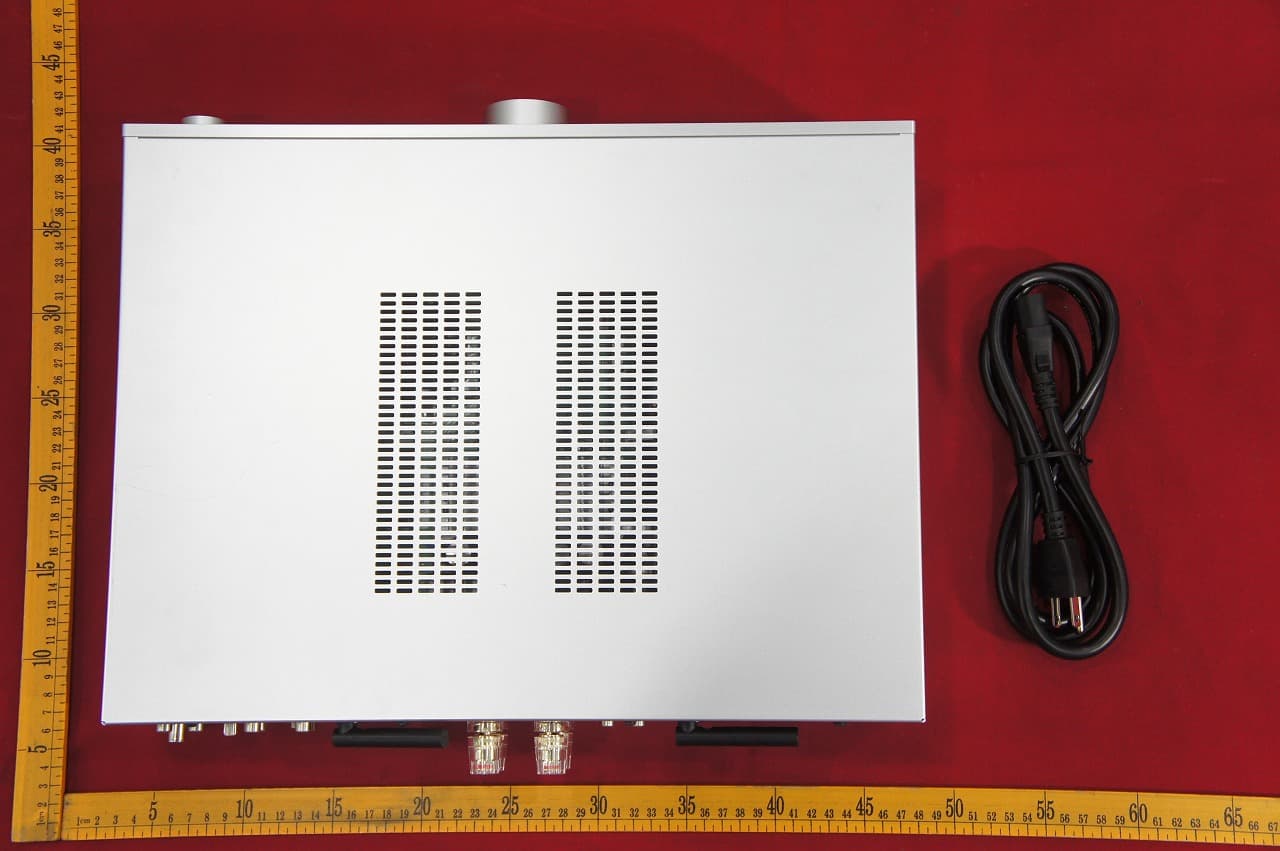

Project No.: 22EESS10067 Page 1 of 19 EUT PHOTOGRAPH Network Audio Amplifier / SU-GX70 Project No.: 22EESS10067 Page 2 of 19
