ACJ29082EB-BHX70Bluetooth Headset

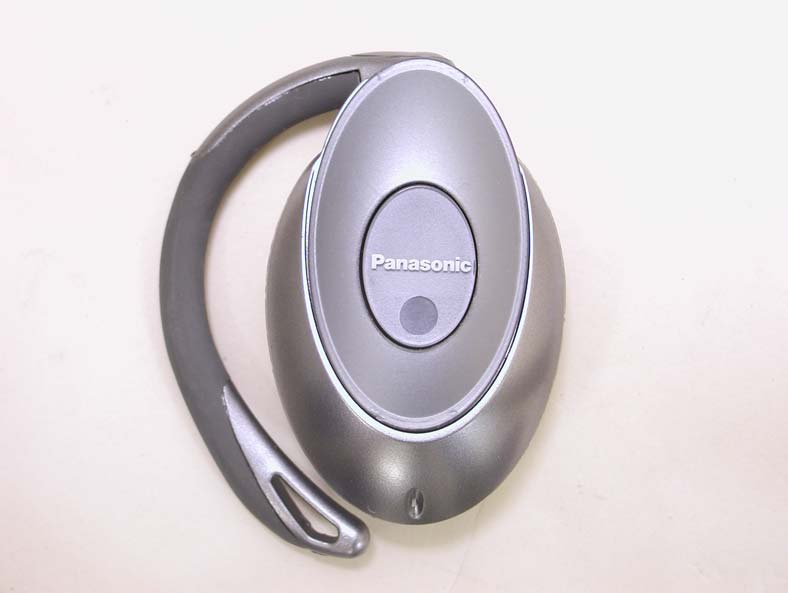

FCC ID: ACJ29082EBBHX70 External Photo Matsushita Electric Industrial Co., Ltd. Outside Inside

FCC ID: ACJ29082EBBHX70 Internal Photo Matsushita Electric Industrial Co. Ltd. Inside with cover (No.1) Inside with cover (No.2)

Applicant: Matsushita Electric Industrial Co.,Ltd. Type of Equipment: Bluetooth Headset Model No. : EB-BHX70 FCC ID: ACJ29082EB-BHX70 Matsushita Electric Industrial Co.,Ltd. declares that Model : Bluetooth Headset complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “EB-BHX70“ has 0.97 mW of conducted Peak Output power and 1.59 mW of EIRP. This kind of equipment is below 60/frequency[MHz] W(TCB Exclusion List) so that SAR testing is excluded. Follwing calculation is reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “EB-BHX70“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* * r 2 ) Where P =0.97mW (Maximum peak output power) G =1.64Numerical Antenna gain; equal to2.1 r =20.0cm For: EB-BHX70S = 0.00032 mW/cm 2 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: int +81 596 24 8116 Facsimile: int +81 596 24 8124 Page 1 RF Exposure / SAR Statement No. : 24CE0011-HO-3

Test report No. : 24CE0011-HO-3 Page : 1 of 38 Issued date : November 28, 2003 Revised date : February 20, 2004 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24CE0011-HO-3 Applicant : Matsushita Electric Industrial Co., Ltd. Type of Equipment : Bluetooth Headset Model No. : EB-BHX70 Test standard : FCC Part 15 Subpart C : 2003 Section 15.207, Section 15.247 FCC ID : ACJ29082EB-BHX70 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : October 23, 27 and 29, 2003 Tested by : Hiroka Umeyama EMC Service Approved by : Hironobu Shimoji Group Leader of EMC Service . Test report No. : 24CE0011-HO-3 Page : 2 of 38 Issued date : November 28, 2003 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Conducted Emission, Section 15.207 ........................................................................ 7 SECTION 6: Carrier Frequency Separation, Section15.247(a)(1)............................................... 7 SECTION 7: 20dB Bandwidth, Section 15.247(a)(1) ..................................................................... 7 SECTION 8: Number of Hopping Frequency, Section 15.247(a)(1)(iii) ...................................... 7 SECTION 9: Dwell time, Section 15.247(a)(1)(iii) ......................................................................... 8 SECTION 10: Maximum Peak Output Power, Section 15.247(b)(1) ........................................... 8 SECTION 11: Band Edge Compliance, Section 15.247(c) ............................................................ 8 SECTION 12: Spurious Emission , Section 15.247(c).................................................................... 9 APPENDIX 1: Photographs of test setup...................................................................................... 10 Conducted Emission ............................................................................................................ 10 Spurious Emission (Radiated)............................................................................................. 11 Worst Case Position (X-axis:Horizontal / Y-axis:Vertical).............................................. 12 APPENDIX 2:Test instruments ...................................................................................................... 13 APPENDIX 3: Data of EMI test ..................................................................................................... 14 Conducted Emission ............................................................................................................ 14 Carrier Frequency Separation............................................................................................ 18 20dB Bandwidth ................................................................................................................... 20 Number of Hopping Frequency .......................................................................................... 22 Dwell time ............................................................................................................................. 24 Maximum Peak Output Power ........................................................................................... 27 Band Edge compliance......................................................................................................... 28 Spurious Emission(Radiated).............................................................................................. 30 Spurious Emission(Conducted) .......................................................................................... 36 Test report No. : 24CE0011-HO-3 Page : 3 of 38 Issued date : November 28, 2003 Revised date : February 20, 2004 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Matsushita Electric Industrial Co.,Ltd. Address : 1006 Oaza Kadoma, Kadoma, Osaka 571-0050 JAPAN Telephone Number : +1-201-348-7758 Facsimile Number : +1-201-392-4564 Contact Person : Richard Mullen SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Headset Model No. : EB-BHX70 Serial No. : 001(for Conducted emission test) 002 (except for Conducted emission test) Country of Manufacture : Philippines Receipt Date of Sample : October 20, 2003 Condition of EUT : Production prototype 2.2 Product Description Matsushita Electric Industrial Co.,Ltd., Model No: EB-BHX70 is the Bluetooth Headset. The model number differs from the countries where the products are marketed. (eg: EB-BHX70** or EB-BHX70***) The system is mainly used as a wireless Headset for mo…

Text truncated - open the document above for the full version.

Test report No. : 24CE0011-HO-3 Page : 10 of 39 Issued date : November 28, 2003 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 24CE0011-HO-3 Page : 11 of 39 Issued date : November 28, 2003 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 24CE0011-HO-3 Page : 12 of 39 Issued date : November 28, 2003 FCC ID : ACJ29082EB-BHX70 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (X-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis
