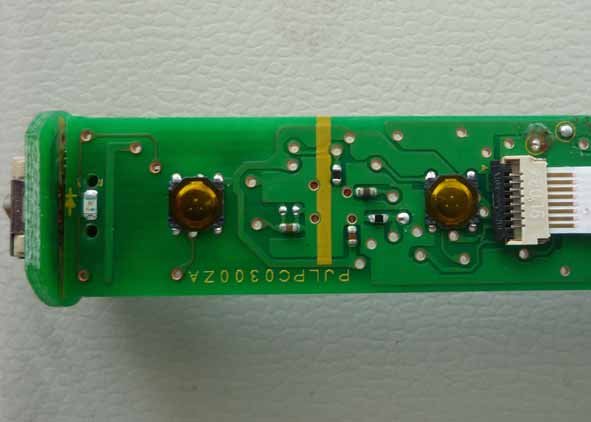

Inside_front Inside_back Position of Wireless Part

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Corporation of North America Type of Equipment : Electronic Pen Model No. : UE-608026 FCC ID: ACJ5Z6UE-608026 IC Number:216A-UE608026 Panasonic Corporation of North America declares that Model : UE-608026 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable) The “UE-608026“ has 0.62 mW of conducted Peak Output power and 0.62 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “UE-608026“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.62 mW (Maximum peak output power) G = 1.00 Numerical Antenna gain; equal to0.00dBi r =20.0 cm For: UE-608026S =0.00012 mW/cm 2 No. : 30GE0004-HO-01 RF Exposure / MPE Calculation

Test report No. : 30GE0004-HO-01-A-R1 Page : 1 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 30GE0004-HO-01-A-R1 Applicant : Panasonic Corporation of North America Type of Equipment : Electronic Pen Model No. : UE-608026 FCC ID : ACJ5Z6UE-608026 Test regulation : FCC Part 15 Subpart C 2010 Section 15.247 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 30GE0004-HO-01-A. 30GE0004-HO-01-A is replaced with this report. Date of test: _____________________________ Tested by: _____________________________ Satofumi Matsuyama Representative test engineer of EMC Service Approved by: _____________________________ Takahiro Hatakeda Leader of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.html MF060b (06.08.09) February 4 and 6, 2010 Test report No. : 30GE0004-HO-01-A-R1 Page : 2 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information.........................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................................3 SECTION 3: Test specification, procedures & results............................................................................4 SECTION 4: Operation of E.U.T. during testing ....................................................................................7 SECTION 5: Radiated Spurious Emission ..............................................................................................8 SECTION 6: Antenna Terminal Conducted Tests..................................................................................9 APPENDIX 1: Photographs of test setup ...............................................................................................10 Radiated Spurious Emission .............................................................................................................10 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) ..............................................................11 APPENDIX 2: Data of EMI test..............................................................................................................12 6dB Bandwidth .................................................................................................................................12 Maximum Peak Output Power ..........................................................................................................14 Radiated Spurious Emission .............................................................................................................15 Conducted Spurious Emission ..........................................................................................................20 Conducted Emission Band Edge compliance ...................................................................................24 Power Density ...................................................................................................................................25 99%Occupied Bandwidth .................................................................................................................27 APPENDIX 3: Test instruments .............................................................................................................28 Test report No. : 30GE0004-HO-01-A-R1 Page : 3 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd. Address : 1-62, 4-chome Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Telephone Number : +81-92-477-1405 Facsimile Number : +81-92-477-1487 Contact Person : Hidemori Shimojo *Panasonic System Networks Co., Ltd. is on behalf of the applicant: Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Pen Model No. : UE-608026 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC1.5V Receipt Date of Sample : February 4, 2010 Country of Mass-production : Japan, Malaysia Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description The EUT UE-608026 is a Electronic pen for electronic white board. The user writes on the board and the pen status data is then transmitted from the pen to the PC via a 2.4GHz Wireless frequency. General Specification Clock frequency in the system : CPU: 16MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2402-2481MHz Modulation : GFSK Power Supply (radio part input) : DC 1.8V Antenna type : 1/4λ Mono…

Text truncated - open the document above for the full version.

Test report No. : 30GE0004-HO-01-A-R1 Page : 12 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test 6dB Bandwidth Test place Head Office EMC Lab. No.4 Measurement Room Report No. 30GE0004-HO-01 Date 02/06/2010 Temperature/ Humidity 23 deg.C./ 32% Engineer Satofumi Matsuyama Mode Tx Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2402 0.876 >500 2441 1.032 >500 2481 1.045 >500 Test report No. : 30GE0004-HO-01-A-R1 Page : 13 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 2402MHz 2441MHz 2481MHz Test report No. : 30GE0004-HO-01-A-R1 Page : 14 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.4 Measurement Room Report No. 30GE0004-HO-01 Date 02/04/2010 Temperature/ Humidity 20 deg.C./ 39% Engineer Satofumi Matsuyama Mode Tx Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 2402.0-14.231.5010.02-2.710.5430.00100032.71 2441.0-13.581.5010.02-2.060.6230.00100032.06 2481.0-13.671.5010.02-2.150.6130.00100032.15 Sample Calculation: Result = Reading + Cable Loss (including the cable customer supplied)+ Attenuator ResultLimit Test report No. : 30GE0004-HO-01-A-R1 Page : 15 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30GE0004-HO-01 Date 02/04/2010 02/04/2010 02/04/2010 Temperature/ Humidity 20 deg.C./ 39% 20 deg.C./ 39% 20 deg.C./ 39% Engineer Kazuya Yoshioka Satofumi Matsuyama Kazuya Yoshioka (30-1000MHz) (1-10GHz) (10-26.5GHz) Mode Tx, 2402MHz PolarityFrequency Detector Reading Ant.Fac.LossGainResultLimitMarginRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB] Hori31.989 QP22.816.67.032.214.240.025.8 Hori63.991 QP22.77.37.532.05.540.034.5 Hori96.009 QP22.59.37.932.17.643.535.9 Hori128.000 QP22.513.68.332.112.343.531.2 Hori640.031 QP22.520.911.732.123.046.023.0 Hori800.022 QP22.323.112.531.726.246.019.8 Hori2390.000 PK53.526.72.932.750.473.923.5 Hori2400.000 PK70.626.72.932.767.573.96.4 Hori4804.000 PK46.730.85.331.950.973.923.0 Hori7206.000 PK43.535.95.732.652.573.921.4 Hori9608.000 PK43.337.96.833.454.673.919.3 Hori24020.000 PK45.938.1-1.232.550.373.923.6 Hori2390.000 AV31.626.72.932.728.553.925.4 Hori2400.000 AV41.426.72.932.738.353.915.6 Hori4804.000 AV36.930.85.331.941.153.912.8 Hori7206.000 AV32.535.95.732.641.553.912.4 Hori9608.000 AV30.137.96.833.441.453.912.5 Hori24020.000 AV34.838.1-1.232.539.253.914.7 Vert31.986 QP22.816.67.032.214.240.025.8 Vert64.007 QP22.77.37.532.05.540.034.5 Vert96.020 QP22.59.37.932.17.643.535.9 Vert128.000 QP22.613.68.332.112.443.531.1 Vert640.017 QP22.420.911.732.122.946.023.1 Vert800.006 QP22.423.112.531.726.346.019.7 Vert2390.000 PK50.826.72.932.747.773.926.2 Vert2400.000 PK65.826.72.932.762.773.911.2 Vert4804.000 PK46.330.85.331.950.573.923.4 Vert7206.000 PK44.935.95.732.653.973.920.0 Vert9608.000 PK43.037.96.833.454.373.919.6 Vert24020.000 PK46.538.1-1.232.550.973.923.0 Vert2390.000 AV31.526.72.932.728.453.925.5 Vert2400.000 AV37.726.72.932.734.653.919.3 Vert4804.000 AV37.330.85.331.941.553.912.4 Vert7206.000 AV34.335.95.732.643.353.910.6 Vert9608.000 AV30.337.96.833.441.653.912.3 Vert24020.000 AV34.838.1-1.232.539.253.914.7 Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter-Distance factor(above 10GHz)) - Gain(Amplifier) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). *The 4th harmonic and over were not seen so the result was its base noise level. Distance factor:10GHz-26.5GHz20log(3.0m/1.0m)= 9.5dB Test report No. : 30GE0004-HO-01-A-R1 Page : 16 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30GE0004-HO-01 Date 02/04/2010 Temperature/ Humidity 20 deg.C./ 39% Engineer Kazuya Yoshioka Mode Tx, 2441MHz PolarityFrequency Detector Reading Ant.Fac.LossGainResultLimitMarginRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB] Hori31.990 QP22.816.67.032.214.240.025.8 Hori64.020 QP22.77.37.532.05.540.034.5 Hori96.011 QP22.39.37.932.17.443.536.1 Hori128.023 QP22.513.68.332.112.343.531.2 Hori639.975 QP22.520.911.732.123.046.023.0 Hori800.021 QP22.423.112.531.726.346.019.7 Hori4882.000 PK43.831.15.331.948.373.925.6 Hori7323.000 PK41.036.15.732.650.273.923.7 Hori9764.000 PK41.238.16.933.452.873.921.1 Hori24410.000 PK44.238.3-1.132.349.173.924.8 Hori4882.000 AV34.931.15.331.939.453.914.5 Hori7323.000 AV30.836.15.732.640.053.913.9 Hori9764.000 AV30.238.16.933.441.853.912.1 Hori24410.000 AV33.638.3-1.132.338.553.915.4 Vert32.021 QP22.816.67.032.214.240.025.8 Vert63.990 QP22.77.37.532.05.540.034.5 Vert95.981 QP22.49.37.932.17.543.536.0 Vert128.008 QP22.513.68.332.112.343.531.2 Vert639.982 QP22.520.911.732.123.046.023.0 Vert800.020 QP22.423.112.531.726.346.019.7 Vert4882.000 PK47.531.15.331.952.073.921.9 Vert7323.000 PK46.136.15.732.655.373.918.6 Vert9764.000 PK41.238.16.933.452.873.921.2 Vert24410.000 PK44.838.3-1.132.349.773.924.2 Vert4882.000 AV38.931.15.331.943.453.910.5 Vert732…

Text truncated - open the document above for the full version.

Test report No. : 30GE0004-HO-01-A-R1 Page : 10 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 30GE0004-HO-01-A-R1 Page : 11 of 28 Issued date : April 12, 2010 Revised date : April 19, 2010 FCC ID : ACJ5Z6UE-608026 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) X-axis Y-axis Z-axis
