English - 2 Things You Should Know Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. PT-L759U Serial No. On your purchase of one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of service enjoyment. Please take time to fill in the information below. The serial number is on the tag located on the back of your LCD Projector. You'll want to keep this manual handy as your convenient LCD Projector information source. For your own protection and prolonged operation of your LCD Projector, please be sure to read the “Important Safeguards” carefully, before use. © 2000 Matsushita Electric Industrial Co., Ltd All product/brand names are trademarks or registered trademarks of the respective holders. Caution:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. FCC Warning:To assure continued FCC compliance, use only the provided grounded power supply cord and prevent undesirable interference, use only the provided shielded VGA cable with 2 ferrite cores while connecting LCD to computer and all other connecting cables should be shielded. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Congratulations Warning:To assure continued CE Mark compliance, use only the provided earthed power supply cord and prevent undesirable interference, use only the provided shielded VGA cable with 2 ferrite cores while connecting LCD to compliance could void the user‘s authority to operate this equipment. English - 3 Table of Contents To Start! Use Now! Enjoy more! Other Information! Things You Should Know .................................................................................. 2 Table of Contents ............................................................................................. 3 Important Safeguards ....................................................................................... 4 LCD Projector Features .................................................................................... 6 Contents of LCD Projector Box ........................................................................ 7 Product Information .......................................................................................... 8 Before using the Remote Control ................................................................... 10 Menu operation guide .................................................................................... 12 Turning the power on and off .......................................................................... 14 Screen Requirements .................................................................................... 15 Standard Setting-up Positions ........................................................................ 16 Adjusting the Lens .......................................................................................... 18 Setting-up Positions and Changing the Projection Mode ............................... 19 Setting the Screen Type ................................................................................. 20 Digital Variable Compression ( Tele Zoom ) ................................................... 21 Digital Keystone (Keystone Correction) .......................................................... 22 Input signal ..................................................................................................... 23 Basic LCD Projector Operation ...................................................................... 27 Selecting the Image Quality ........................................................................... 29 Adjusting the Picture to the Desired Setting ................................................... 30 Adjusting the White Balance .......................................................................... 31 Using the Auto Setup Feature ........................................................................ 32 Adjusting the Image Position .......................................................................... 33 Using Other Useful Functions ........................................................................ 36 System Configuration Example (continued) ................................................... 43 Video/ Computer Cables & Adaptors ............................................................. 44 Communication settings ................................................................................. 45 Using the SERIAL connector ......................................................................... 45 Wireless mouse and keyboard ....................................................................... 47 Setting procedure ........................................................................................... 48 Projecting the DTV Format Signal .................................................................. 48 Re…

Text truncated - open the document above for the full version.

EXHIBIT #: 4-2 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Block Diagram

EXHIBIT #: 4-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Description of PeripheralsPage 1/2 Power Supply:Voltage: AC 100 - 240 V, 50 / 60 Hz :Power Consumption: 3.7-1.5A Video Input Signal:1 Vp-p, sync negative, 75 ohms terminated S-Video Input Signal:Y (luminance signal), 1 Vp-p, 75 ohms terminated :C (chrominance signal), 0.286 Vp-p, 75 ohms terminated RGB/YPBPR Input Signal Video Signal:RGB Analog (0.7 Vp-p, 1.0 Vp-p with sync on green, 75 ohms) Unlimited numers of colors :YPBPR (Y: 1Vp-p, PB,PR: 0.7Vp-p 75 ohms) Sync Signal:H/V separate, H/V composite, or Sync-on-Green H-Frequency:24 – 110 kHz (TTL Level) V-Frequency:50 - 86 Hz (TTL Level) Terminals:S-Video Input : Mini DIN 4-pin 1 :Video Input: RCA pin 1 :Video Audio Input: M3 stereo mini pin 1 :Serial Port (RS-232C): Mini DIN 8-pin 1 :Mouse Terminal: 13-pin round connector 1 :RGB Input 1: D-Sub mini 15-pin 1 :RGB/ YPBPR Input 2: D-Sub mini 15-pin 1 :RGB/ YPBPR Audio Input: M3 stereo mini pin 1 :Audio Output: M3 stereo mini pin 1 :USB Port : USB B-Type 4-pin 1 Operating Temperature:41 F - 104 F ( 5 - 40 ) Operating Humidity:10 % - 80 % EXHIBIT #: 4-1 FCC ID : ACJ927132K OUR REF.: MKES00-F003 Description of PeripheralsMODEL NO.: PT-L759U Page 2/2 Performance Explanation of LCD Projector This projector is equipped with the function to project video images onto a large screen Using monitor signal from PCs or video signal from VCRs, etc. And the audio signal from PC or VCR is output by projectors internal speaker. The following describes how the video signal is processed. 1. Video Mode, Video signal which is input to S-VIDEO input terminal or VIDEO input terminal is Supplied to Digital block. In the digital block, Video signal is converted to RGB signal. And Synchronizing signals which are separated by Digital Video Decoder is supplied to LCD drive timing control circuit. 2. RGB Mode, the monitor signal which is supplied to monitor input terminal from a PC, is supplied to digital block and output RGB signal. Synchronizing signal, which is produced by the Synchronizing signal processing, is added to LCD drive timing control circuit and system control circuit. 3.Synchronizing signal, is used to process synchronization of system control and LCD drive. 4.PLL oscillation clock of LCD drive timing control circuit and OSD clock which is supplied to signal process circuit are adjusted to the proper frequency for each PC by the system control circuit which distinguishes the input Synchronizing signal.

EXHIBIT #: 4-3 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Page 1/2 List of Frequency The CLOCK of LCD Projector CIRCUIT NameCLOCK (MHz) BALLAST 4.00 SYSTEM CONTROL 19.6608 DIGTALVIDEO DECODER20.25 & 16.00 MOUSE CONTROL 8.00 LCD DRIVE TIMING CONTROL 16.00 RGB MEMORY TIMING CONTROL 80.00 PLLRGB Mode12801024 @85MHz157.50 USB CONTROL 6.00 The CLOCK of PLL CLOCK (MHz) VIDEO SIGNAL MODE MODE 480I20.4215.36 625I21.0015.78 480P19.8914.95 1080I40.77- 1035I40.77- YPBPR MODE 720P60.96 - NO SIGNAL-38.03 MODE 1 --- The case of EXPANSION : ON or WIDE : ON MODE 2 --- The case of EXPANSION : OFF and WIDE : OFF EXHIBIT #: 4-3 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U List of FrequencyPage 2/2 The CLOCK of PLL VIDEO SIGNALCLOCK (MHz) VGA @60Hz 25.18 VGA @72Hz 31.50 VGA @75Hz 31.50 VGA @85Hz 36.00 MAC 13 30.24 SVGA @56Hz 36.00 SVGA @60Hz 40.00 SVGA @72Hz 50.00 SVGA @75Hz 49.50 SVGA @85Hz 56.25 MAC 16 57.28 XGA @60Hz 65.00 XGA @70Hz 75.00 XGA @75Hz 78.75 XGA @85Hz 94.50 MAC 19 80.00 1152864 @60Hz 80.00 1152864 @70Hz 94.50 1152864 @75Hz108.00 1152864 @80Hz121.50 MAC 21100.00 1280960 @60Hz108.00 1280960 @75Hz126.00 [email protected] RGB MODE [email protected] *RGB Testing [email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]

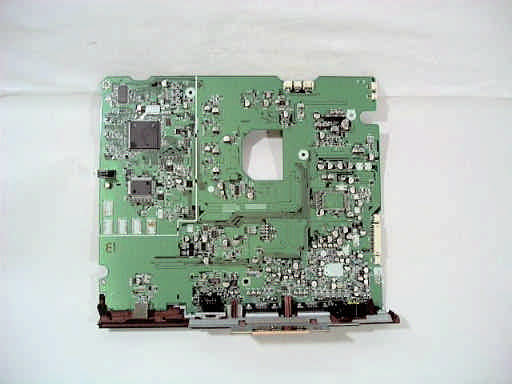

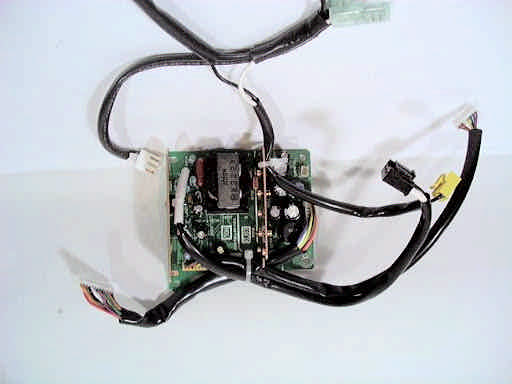

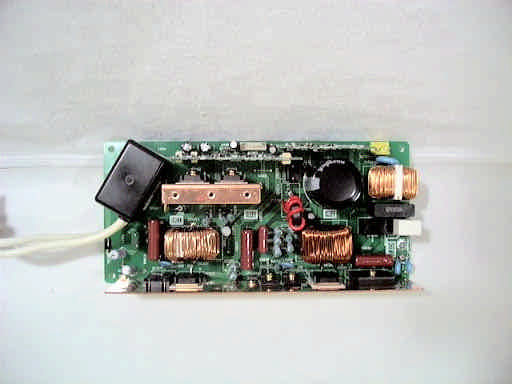

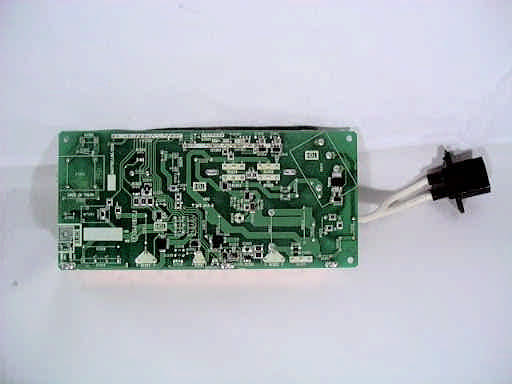

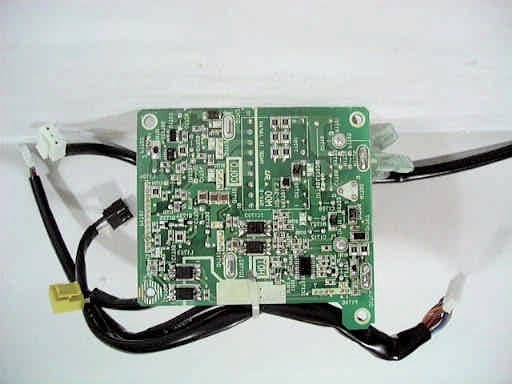

EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 1 of 14 Sheets EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 2 of 14 Sheets Lamp Cover EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 3 of 14 Sheets Top Cover Bottom Cover EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 4 of 14 Sheets Main PCB (Top View) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 5 of 14 Sheets Main PCB (Top View) Main PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 6 of 14 Sheets Power Unit Power Unit EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 7 of 14 Sheets Line Filter PCB (Top View) Line Filter PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 8 of 14 Sheets Filter Unit Filter Unit (Bottom View) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 9 of 14 Sheets Filter PCB (Bottom View) Filter PCB (Top View) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 10 of 14 Sheets Main Power PCB (Top view) Main Power PCB (Top view) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 11 of 14 Sheets Main Power PCB (Top view) Main Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 12 of 14 Sheets System Power PCB (Top view) System Power PCB (Top view) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 13 of 14 Sheets System Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U Sheet 14 of 14 Sheets IR PCB (Top view) IR PCB (Bottom view)

EXHIBIT #: 1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sample of FCC Identifier FCC Statements for compliance with FCC Rules Part 15 EXHIBIT #: 2 FCC ID : ACJ927132K OUR REF. : MKES00-F003 MODEL NO.: PT-L759U FCC IDENTIFIER Nameplate with FCC Identifier 2. Enclosure Bottom Statement for Compliance with FCC Rules Part 15

Block Diagram of System for MeasurementsEXHIBIT #: 3-2 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Page 1/3 S-VCR EUT LCD Projector Computer 1Computer 2 Printer Keyboard Keyboard Speaker Mouse EXHIBIT #: 3-2 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Page 2/3 Type of Interface Cable 1. Power Cord 2. VGA cable (2.0 m): Shielded Cable with Ferrite Cores 3. PC Audio Cable (2.0 m): Shielded Cable 4. RS232C cable (2.0 m): Shielded Cable (Serial Cable) 5. Mouse Cable (2.0 m): Shielded Cable 6. USB cable (2.0 m): Shielded Cable 7. VGA cable (2.0 m): Shielded Cable with Ferrite Cores 8. S-Video Cable (1.4 m): Shielded Cable 9. Video Cable (1.4 m): Shielded Cable 10. Audio Cable (1.4 m): Shielded Cable 11. Audio Cable (2.0 m): Shielded Cable 12. Printer Cable (2.0 m): Shielded Cable (Parallel Cable) 13. Keyboard Cable (1.9 m): Shielded Cable (Permanently attached to the Keyboard) 14. Keyboard Cable (1.1 m): Shielded Cable; Curl Cord (Permanently attached to the Keyboard) 15. Mouse Cable (1.9 m): Shielded Cable (Permanently attached to the Mouse) 16. Speaker Cable (2.9 m) 17. DC Cable (2.0 m) (Permanently attached to the AC Adaptor) EXHIBIT #: 3-2 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Page 3/3 Description LCD ProjectorModel No.: PT-L759U (Application Device)Trade Name: Panasonic FCC ID: ACJ927132K Computer 1Model No.: MMP (DoC Device)Trade Name : DELL Computer Corporation KeyboardModel No.: SK-1000REW (Certified Device)Trade Name: DELL Computer Corporation FCC ID: GYUR36SK Computer 2Model No.: MMM (Certified Device)Trade Name: DELL Computer Corporation FCC ID: E2KSTNGRMT KeyboardModel No.: 49256 (Certified Device)Trade Name: DELL Computer Corporation FCC ID: M9607-3090 MouseModel No. : X04-72172 (DoC Device)Trade Name : Microsoft Corporation S-VCRModel No.: PV-S7680 (Certified Device)Trade Name: Panasonic FCC ID: ACJ927104AHS PrinterModel No.: 4078-001 (Certified Device)Trade Name: Lexmark FCC ID: IYL4078 SpeakerModel No.: M6082 Trade Name: Apple AC AdaptorModel No.: M6082 (For Speaker)Trade Name: Apple

EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 4 of 14 Sheets 1) 15.107 Power Line Conducted Voltage Meter Reading (dBuV)Interference (dBuV) Mode Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) Matchin g Pad Loss (dB) 1-end & Grounded The other- End & Gro 0.9123.122.40.16.229.428.7 1.1921.420.70.16.227.727.0 2.0123.922.10.26.230.328.5 2.6523.121.30.36.229.627.8 13.1423.121.40.66.229.928.2 RGB 28.1323.222.51.06.230.429.7 Note: 1. Sample calculation at RGB Mode 1-end & Gro., 0.91 MHz ; 23.1 + 0.1 + 6.2 = 29.4 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-402C (1) Detector function : CISPR Q-PEAK (2) IF band width : 9 kHz (3) Input impedance : 75 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work Co., Ltd. Model : KNW-406, KNW-407 50 ohms / 50 uH network c) Matching pad - Kyoritsu Electric Work Co., Ltd. Model : KPD-401 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 5 of 14 Sheets 2) 15.107 Power Line Conducted Voltage Meter Reading (dBuV)Interference (dBuV) Mode Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) Matchin g Pad Loss (dB) 1-end & Grounded The other- End & Gro 0.9121.621.20.16.227.927.5 1.2822.021.10.16.228.327.4 2.7421.020.30.36.227.526.8 3.5621.820.70.36.228.327.2 13.3220.118.60.66.226.925.4 S-Video 28.2422.721.51.06.229.928.7 Note: 1. Sample calculation at S-Video Mode 1-end & Gro., 0.91 MHz ; 21.6 + 0.1 + 6.2 = 27.9 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-402C (1) Detector function : CISPR Q-PEAK (2) IF band width : 9 kHz (3) Input impedance : 75 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work Co., Ltd. Model : KNW-406, KNW-407 50 ohms / 50 uH network c) Matching pad - Kyoritsu Electric Work Co., Ltd. Model : KPD-401 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 6 of 14 Sheets 3) 15.109 Radiated Emission Meter Reading Open Volt. (dBuV) Emission at 3 meters (DbuV) Mode Freq. (MHz) Horiz.Vert. Correction Factor (dB) Open Vol. Horiz.Vert. 31.80 5.211.619.024.230.6 111.3918.814.914.032.828.9 299.0715.612.524.039.636.5 330.0019.0 9.319.638.628.9 354.6815.417.520.035.437.5 RGB 715.9512.7 7.528.641.336.1 Note: 1. Sample calculation at RGB Mode Horiz., 31.80 MHz ; 5.2 + 19.0 = 24.2 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Hewlett Packard company Model: HP 8546A (1) Frequency range: 9 kHz to 6.5 GHz (2) RF Input: 50 ohm (3) IF band width: 200 Hz/ 9 kHz/ 120 kHz/ 1MHz (4) Detector function: Average/CISPR Q-Peak/Peak b) Receiving antenna- Schwarzbeck Model: VHA9103 30 - 300 MHz Model: UHALP9107 300 - 1000 MHz - The Electro-Mechanics Company Model: 3115 1 - 18G Hz 3. The spectrum was checked from 30 MHz to 1694 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 7 of 14 Sheets 4) 15.109 Radiated Emission Meter Reading Open Volt. (dBuV) Emission at 3 meters (DbuV) Mode Freq. (MHz) Horiz.Vert. Correction Factor (dB) Open Vol. Horiz.Vert. 31.80 5.110.919.024.129.9 111.3916.714.414.030.728.4 299.0714.710.824.038.734.8 330.0018.2 9.419.637.829.0 354.6814.816.420.034.836.4 S-Video 715.9511.4 6.128.640.034.7 Note: 1. Sample calculation at S-Video Mode Horiz., 31.80 MHz ; 5.1 + 19.0 = 24.1 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Hewlett Packard company Model: HP 8546A (1) Frequency range: 9 kHz to 6.5 GHz (2) RF Input: 50 ohm (3) IF band width: 200 Hz/ 9 kHz/ 120 kHz/ 1MHz (4) Detector function: Average/CISPR Q-Peak/Peak b) Receiving antenna- Schwarzbeck Model: VHA9103 30 - 300 MHz Model: UHALP9107 300 - 1000 MHz - The Electro-Mechanics Company Model: 3115 1 - 18G Hz 3. The spectrum was checked from 30 MHz to 1694 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 8 of 14 Sheets 15.107 POWER LINE CONDUCTED VOLTAGE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 9 of 14 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 10 of 14 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 11 of 14 Sheets EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 12 of 14 Sheets EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 13 of 14 Sheets EXHIBIT #: 3-1 FCC ID: ACJ927132K OUR REF.: MKES00-F003 MODEL NO.: PT-L759U Sheet 14 of 14 Sheets
