ACJ927135LRF Light for LCD Viewfinder
Panasonic Corporation of North America
Click to zoom
Application Details
- Equipment Class
- 8CC - Part 18 Consumer Device
- Date of Grant
- Oct 05, 2000
- Application Purpose
- Original Equipment
- Date of Application
- Sep 11, 2000
- Equipment Note
- RF Light for LCD Viewfinder
- Frequency Range
- 0.10000000 - 0.10000000
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
EXHIBIT # : 5 FCC ID: ACJ927135L OUR REF.: MKES00-F009 Block DiagramMODEL NO.: PV-L651D
External Photos

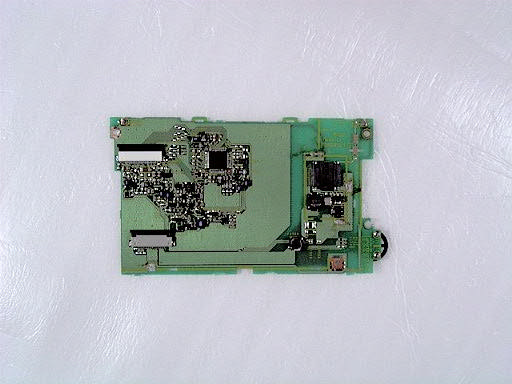

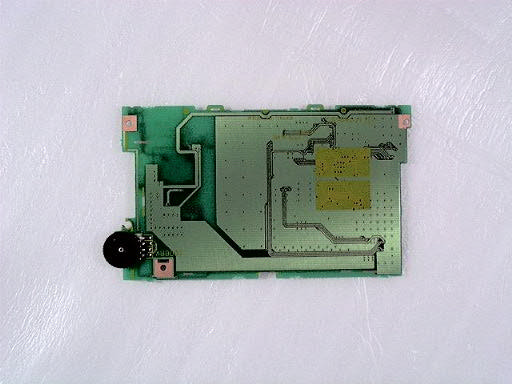

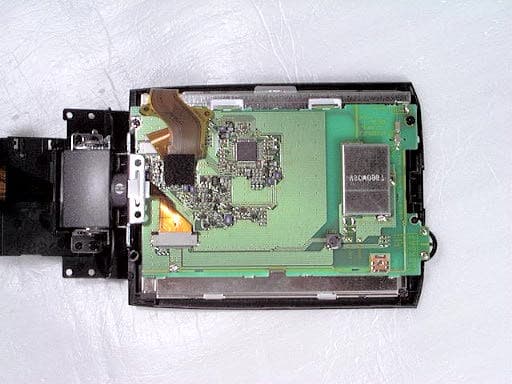

EXHIBIT #: FCC ID: ACJ927135L OUR REF. : MKES00-F009 MODEL NO.: PV-L651D Sheet 1 of 5 Sheets Color LCD electronic view finder (Part of video camera) EXHIBIT #: FCC ID: ACJ927135L OUR REF. : MKES00-F009 MODEL NO.: PV-L651D Sheet 2 of 5 Sheets EXHIBIT #: FCC ID: ACJ927135L OUR REF. : MKES00-F009 MODEL NO.: PV-L651D Sheet 3 of 5 Sheets LCD Power PCB (Top view) Oscillator circuit EXHIBIT #: FCC ID: ACJ927135L OUR REF. : MKES00-F009 MODEL NO.: PV-L651D Sheet 4 of 5 Sheets LCD Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927135L OUR REF. : MKES00-F009 MODEL NO.: PV-L651D Sheet 5 of 5 Sheets LCD RF Lighting device (Fluorescent lamp)
ID Label/Location Info
EXHIBIT # : 2 FCC ID: ACJ927135L OUR REF.: MKES00-F009 MODEL NO.: PV-L651D Location of FCC Identifier FCC Identifier
ID Label/Location Info
EXHIBIT # : 1 FCC ID: ACJ927135L OUR REF.: MKES00-F009 MODEL NO.: PV-L651D Sample of FCC Identifier FCC ID : ACJ927135L FCC Statements for compliance with FCC Rules Part 18 in User's Manual
Test Report
EXHIBIT # : FCC ID: ACJ927135L OUR REF.: MKES00-F009 MODEL NO.: PV-L651D Sheet 4 of 5 Sheets 18.307 POWER LINE CONDUCTED INTERFERENCE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of accessories on the test table ) VHS-C MOVIE With LCD EVF Test table Earphone RF lighting device (Color LCD EVF Part FCC ID : ACJ927135L) DC Out cable (2 meter) AC Adaptor (PV-A19) Video/Audio cable (1.5 meter) EXHIBIT # : FCC ID: ACJ927135L OUR REF.: MKES00-F009 MODEL NO.: PV-L651D Sheet 5 of 5 Sheets
