ACJ927136KDigital Video Camera

Description of Application Model FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Application model is as below. FCC ID:ACJ927136K Application name:Digital Video Camera Grantee name:Matsushita Electric Industrial Co., Ltd. Manufacturer:Matsushita-Kotobuki Electronics Ind. Ltd. Model No.:PV-DV401D Brand name:Panasonic Chassis No.:KDV-2001 Cabinet Material:Plastics LCD Monitor:3” LCD

Block Diagram of System for MeasurementsEXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D DV Mode Page 1/9 (1) Printer Computer Mouse Monitor AC Adaptor (7) (5) (6) (8) (9) (4) Earphone Digital Video Camera (EUT) Microphone PCI Host Adapter S-VCR (2) (3) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D DV Mode Page 2/9 Type of Interface Cable 1. Power Cord 2. Audio/Video Cable (1.5 m): Shielded Cable; Circular Cable 3. S-Video Cable (1.5 m): Shielded Cable; Circular Cable 4. DC Cable (2.0 m): Circular Cable 5. PC Interface cable (2.0 m): Shielded Cable; Circular Cable (IEEE1394 Cable) 6. Monitor Cable (1.5 m) : Shielded Cable with Ferrite Cores ; Circular Cable (Permanently attached to the Monitor) 7. Printer Cable (1.5 m): Shielded Cable; Circular Cable (Parallel Cable) 8. Keyboard Cable (1.7 m): Shielded Cable ; Circular Cable (Permanently attached to the Keyboard) 9. Mouse Cable (1.8 m): Shielded Cable ; Circular Cable (Permanently attached to the Mouse) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D DV Mode Page 3/9 Description Digital Video Camera Model No. : PV-DV401D (Application Device) Trade Name : Panasonic FCC ID : ACJ927136K AC AdaptorModel No.: PV-DAC11 ( For Digital Video Camera)Trade Name: Panasonic MicrophoneModel No.: ECM-K57 Trade Name: SONY Monitor Model No.: 500-069EV (Certified Device) Trade Name: Gateway FCC ID: BEJCS592 Computer Model No. : DCM (DoC Device) Trade Name : DELL Computer Corporation 1394-to-PCI Host AdapterModel No.: AHA-8940 (DoC Device)Trade Name: Adaptec, Inc. KeyboardModel No.: SK-1000REW (Certified Device)Trade Name: DELL Computer Corporation FCC ID: GYUR36SK Mouse Model No. : 90741 (Certified Device) Trade Name : Microsoft Corporation FCC ID : C3KKMP3 PrinterModel No.: P-200JD (Certified Device)Trade Name: Panasonic FCC ID: IUO5LU0002 S-VCR Model No. : PV-VS4820 (DoC Device) Trade Name : Panasonic Block Diagram of System for MeasurementsEXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Serial Mode Page 4/9 (1) Printer Computer Mouse Monitor AC Adaptor (7) (5) (6) (8) (9) (4) Earphone Digital Video Camera (EUT) Microphone PCI Host Adapter S-VCR (2) (3) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Serial Mode Page 5/9 Type of Interface Cable 1. Power Cord 2. Audio/Video Cable (1.5 m): Shielded Cable ; Circular Cable 3. S-Video Cable (1.5 m): Shielded Cable ; Circular Cable 4. DC Cable (2.0 m): Circular Cable 5. PC Connection cable (2.0 m): Shielded Cable with Ferrite Cores ; Circular Cable (Serial Cable) 6. Monitor Cable (1.5 m) : Shielded Cable with Ferrite Cores ; Circular Cable (Permanently attached to the Monitor) 7. Printer Cable (1.5 m): Shielded Cable ; Circular Cable (Parallel Cable) 8. Keyboard Cable (1.7 m): Shielded Cable ; Circular Cable (Permanently attached to the Keyboard) 9. Mouse Cable (1.8 m): Shielded Cable ; Circular Cable (Permanently attached to the Mouse) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Serial Mode Page 6/9 Description Digital Video Camera Model No. : PV-DV401D (Application Device) Trade Name : Panasonic FCC ID : ACJ927136K AC AdaptorModel No.: PV-DAC11 ( For Digital Video Camera)Trade Name: Panasonic MicrophoneModel No.: ECM-K57 Trade Name: SONY Monitor Model No.: 500-069EV (Certified Device) Trade Name: Gateway FCC ID: BEJCS592 Computer Model No. : DCM (DoC Device) Trade Name : DELL Computer Corporation 1394-to-PCI Host AdapterModel No.: AHA-8940 (DoC Device)Trade Name: Adaptec, Inc. KeyboardModel No.: SK-1000REW (Certified Device)Trade Name: DELL Computer Corporation FCC ID: GYUR36SK Mouse Model No. : 90741 (Certified Device) Trade Name : Microsoft Corporation FCC ID : C3KKMP3 PrinterModel No.: P-200JD (Certified Device)Trade Name: Panasonic FCC ID: IUO5LU0002 S-VCR Model No. : PV-VS4820 (DoC Device) Trade Name : Panasonic Block Diagram of System for MeasurementsEXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D USB Mode Page 7/9 (1) Printer Computer Mouse Monitor AC Adaptor (7) (5) (6) (8) (9) (4) Earphone Digital Video Camera (EUT) Microphone PCI Host Adapter S-VCR (2) (3) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D USB Mode Page 8/9 Type of Interface Cable 1. Power Cord 2. Audio/Video Cable (1.5 m): Shielded Cable ; Circular Cable 3. S-Video Cable (1.5 m): Shielded Cable ; Circular Cable 4. DC Cable (2.0 m): Circular Cable 5. USB cable (2.0 m): Shielded Cable with Ferrite Cores ; Circular Cable 6. Monitor Cable (1.5 m) : Shielded Cable with Ferrite Cores ; Circular Cable (Permanently attached to the Monitor) 7. Printer Cable (1.5 m): Shielded Cable ; Circular Cable (Parallel Cable) 8. Keyboard Cable (1.7 m): Shielded Cable ; Circular Cable (Permanently attached to the Keyboard) 9. Mouse Cable (1.8 m): Shielded Cable ; Circular Cable (Permanently attached to the Mouse) EXHIBIT #: 3-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D USB Mode Page 9/9 Description Digital Video Camera Model No. : PV-DV401D (Application Device) Trade Name : Panasonic FCC ID : ACJ927136K AC AdaptorModel No.: PV-DAC11 ( For Digital Video Camera)Trade Name: Panasonic MicrophoneModel No.: ECM-K57 Trade Name: SONY Monitor Model No.: 500-069EV (Certified Device) Trade Name: Gateway FCC ID: BEJCS592 Computer Model No. : DCM (DoC Device) Trade Name : DELL Computer Corporation 1394-to-PCI Host AdapterModel No.: AHA-8940 (DoC Device)Trade Name: Adaptec, Inc. KeyboardModel No.: SK-1000REW (Certified Device)Trade Name: DELL Computer Corporation FCC ID: GYUR36SK Mouse Model No. : 90741 (Certified Device) Trade Name : Microsoft Corporation FCC ID : C3KKMP3 PrinterModel No.: P-200JD (Certified Device)Trade Name: Panasonic FCC ID: IUO5LU0002 S-VCR Model No. : PV-VS4820 (DoC Device) Trade Name : Panasonic

EXHIBIT #: 4-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Page 1/2 Description of Peripherals Technical Specification Power Source : DC 7.2 / 7.8 V Power Consumption : 6.5 W Video Recording System: EIA Standard (525 lines, 60 fields) NTSC color signal Frequency generated or used : 10 kHz - 49.152 MHz Operating Temperature : 0 C – 40 C Operating Humidity : 10 % - 75 % Device Operation DescriptionEXHIBIT #: 4-1 FCC ID : ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Page 2/2 Performance Explanation of Digital Video Camera 1) Camera Mode(Camera->DV Output/Monitor Output/Tape Recording) The light on the CCD through the lens is converted to the electric analog signal and it is forwarded to the CDS/AD. In it, the analog signal is converted to the digital signal by the built-in A/D Converter and is image-processed by the Camera Video Process. Then, it is converted to the digital component signal. The digital component signal is forwarded to Format Process. Then it is compressed and converted to the DV Format signal. The DV format signal is processed by the Tape Format and it is converted to Tape Recording signal for recording on the tape. On the other hand, it is processed by the DIF Process to output the DV Signal (compliant with the IEEE1394) to the PCs or the different DVCs through the DV Cable. And, the Digital Component signal is converted to NTSC signal by the Camera Video Process and then processed by D/A. Its NTSC VIDEO signal is forwarded to the VIDEO AMP and the amplified VIDEO signal is output to TV monitors, etc. through Audio/Video I/O Terminals. 2) Playback Mode(Tape Signal->DV Output/Monitor Output) The signal by way of Cylinder Head from the tape is converted to the DV Format signal by the Format Process. The DV Format signal is processed by the DIF Process to output the DV Signal compliant with the IEEE1394 to the PCs or the different DVCs. On the other hand, this compressed DV signal is extracted. Then it is converted to NTSC signal by the Camera Video Process and then processed by D/A. Its NTSC VIDEO signal is forwarded to the VIDEO AMP and the amplified VIDEO signal is output to TV monitors, etc. through Audio/Video I/O Terminals. 3) DV Input Mode(DV Input Signal->Monitor Output/Tape Recording) The DV signal compliant with the IEEE1394 via the DV Cable from the PCs or the different DVCs is converted to the DV Format signal by DIF Process. The DV Format signal is, by the Format Process, converted to Tape Recording signal for recording on the tape. On the other hand, this compressed DV signal is extracted. Then it is converted to NTSC signal by the Camera Video Process and then processed by D/A. Its NTSC VIDEO signal is forwarded to the VIDEO AMP and the amplified VIDEO signal is output to TV monitors, etc. through Audio/Video I/O Terminals. 4) Playback Still Image Output Mode (Tape Signal->Memory->USB/Monitor) The still image stored on the memory of playback tape signal is amplified by the USB Driver and is output to the PCs, etc. through the USB Cable. 5) DSC Still Image Output Mode (DSC Memory->USB/Monitor) The image stored on the memory of DSC is amplified by the USB Driver and is output to the PCs, etc. through the USB Cable. 6) DSC Still Image Output Mode (DSC Memory->RS232C/Monitor) The image stored on the memory of DSC is amplified by the RS-232C Driver and is output to the PCs, etc. through the RS-232C Cable. 7) Playback Still Image Output Mode (Tape Signal->Memory->RS-232C/Monitor) The still image stored on the memory of playback tape signal is amplified by the RS-232C Driver and is output to the PCs, etc. through the RS-232C Cable.

EXHIBIT #: 4-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Page 1/2 Block Diagram EXHIBIT #: 4-2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Page 2/2 List of Frequency CLOCK of Digital Video Camera CIRCUIT NameCLOCK 36.0MHz Timing Generator 6.0MHz CCD18MHz CDS/AD18MHz 18MHz 27MHz Camera Video Process 24.576MHz 27MHz Format Process 41.85MHz CYL Head10kHz - 20.925MHz 27MHz 24.576MHz DIF Process DC - 49.152MHz Power750kHz Timer Clock32.0MHz Sub CPU1.5MHz System CPU27.0MHz DSC Control CPU18.0MHz USB Driver6.0MHz LCD Process (PLL)19.07MHz EVF Process (PLL)10.38MHz

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Richard Mullen Secaucus, NJ 07094 Manager Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 348-7758 e-mail: [email protected] October 2, 2000 MKE-00-F010 731 Confirmation # : 13EA98925 Federal Communications Commission Common Carrier Domestic Services P.O. Box 358145 Pittsburgh, PA 15251-5145 Subject: Original Application for Certification of Class B Computing Device Peripheral Panasonic Digital Video Camera Model PV-DV401D FCC: ACJ927136K Dear Sir or Madam: Enclosed, find Matsushita Electric Industrial Co., Ltd.’s application for equipment authorization, Dated September 28, 2000. This device is in compliance with Part 15, Subpart B of the FCC rules. This device is a Digital Video Camera with 1- Three interface ports I- IEEE1394, II- USB, III-RS232. 2- LCD and Electronic View Finder with switching power supply. 3- Numerous CPU’s and associated clock frequencies. 4- Ac adaptor, Model # PV-DAC10 This EUT was system tested in accordance with test procedure ANSI C63.4-1922 with All its available interface ports and jacks connected to suitable peripheral devices or loads to Show compliance with FCC part 15 Class B limits. Should you have any questions or comments, please contact me at any time. Thank you for your attention and cooperation in this matter. Sincerely yours, Reviewed by, Zameel Shahat Richard Mullen Engineer Group Manager

EXHIBIT # : 1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sample of FCC Identifier FCC Statements for compliance with FCC Rules Part 15 in User's Manual EXHIBIT # : 2 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D FCC IDENTIFIER

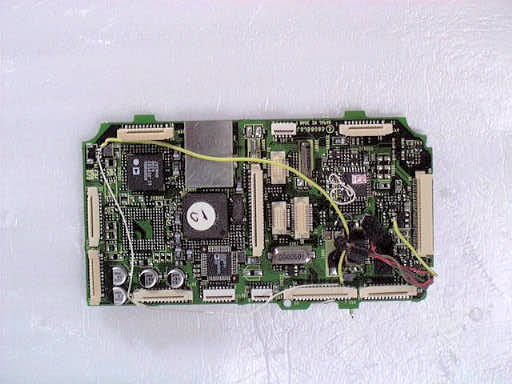

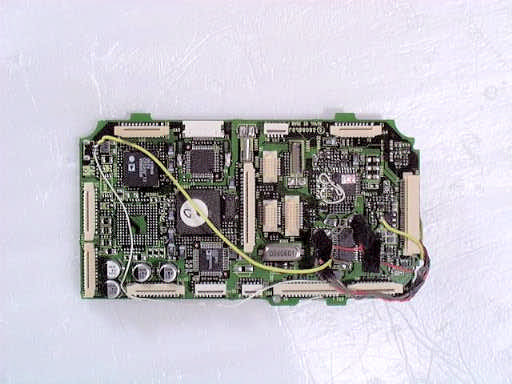

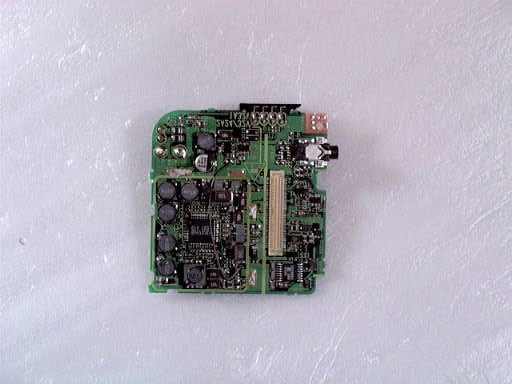

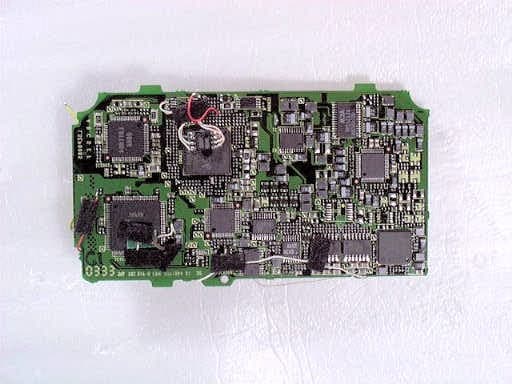

EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 1 of 23 Sheets EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 2 of 23 Sheets EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 3 of 23 Sheets EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 4 of 23 Sheets EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 5 of 23 Sheets Camera Main PCB (Top View) Camera Main PCB (Top View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 6 of 23 Sheets Camera Main PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 7 of 23 Sheets Power PCB (Top View) Power PCB (Top View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 8 of 23 Sheets Power PCB (Bottom View) Power PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 9 of 23 Sheets CCD PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 10 of 23 Sheets CCD PCB (Top View) CCD PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 11 of 23 Sheets Microphone PCB (Bottom View) Microphone PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 12 of 23 Sheets Microphone PCB (Top View) Microphone PCB (Top View)

EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 13 of 23 Sheets Jack PCB (Top view) Jack PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 14 of 23 Sheets Electronic view finder (Top view) Electronic view finder (Bottom view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 15 of 23 Sheets LCD LCD (Top view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 16 of 23 Sheets LCD (Top view) LCD (Top view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 17 of 23 Sheets LCD (Bottom view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 18 of 23 Sheets LCD LCD EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 19 of 23 Sheets LCD EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 20 of 23 Sheets AC Adaptor (PV-DAC11) AC Adaptor (PV-DAC11) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 21 of 23 Sheets AC Adaptor PCB (Top view) AC Adaptor PCB (Top view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 22 of 23 Sheets AC Adaptor PCB (Bottom view) AC Adaptor PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927136K OUR REF. : MKES00-F010 MODEL NO.: PV-DV401D Sheet 23 of 23 Sheets USB Cable Serial Cable

EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 3 of 16 Sheets 1) 15.107 Power Line Conducted Voltage Meter Reading (dBuV)Interference (dBuV) Mode Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro 0.4836.937.60.137.037.7 0.6434.235.10.134.335.2 1.4329.531.50.129.631.6 3.4627.430.20.327.730.5 5.6429.931.20.430.331.6 DV 9.8139.540.80.540.041.3 0.4837.338.10.137.438.2 0.6434.235.30.134.335.4 1.4328.529.90.128.630.0 3.4627.529.60.327.829.9 5.6432.132.70.432.533.1 Serial 9.8140.141.30.540.641.8 0.4836.737.70.136.837.8 0.6433.834.80.133.934.9 3.4631.832.20.332.132.5 5.6431.632.50.432.032.9 9.8139.640.80.540.141.3 USB 18.0036.236.70.736.937.4 Note: 1. Sample calculation at DV Mode 1-end &Grounded, 41.85 MHz ; 36.9 + 0.1 = 37.0 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406, KNW-407 50 ohms / 50 uH network c) Test Signal Generator- Shibasoku Co., Ltd. (Multi Burst) Model : 205 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D 2) 15.109 Radiated EmissionSheet 4 of 16 Sheets Meter Reading Open Volt. (dBuV) Emission at 3 meters (DbuV) Mode Freq. (MHz) Horiz.Vert. Correction Factor (dB) Open Vol. Horiz.Vert. 41.85 19.919.7 15.5 35.435.2 108.00 24.122.5 13.4 37.535.9 125.55 22.921.6 15.6 38.537.2 209.25 18.717.2 19.8 38.537.0 376.65 21.418.3 19.1 40.537.4 DV 396.00 20.817.8 20.0 40.837.8 41.85 19.117.0 15.5 34.632.5 108.00 23.420.4 13.4 36.833.8 125.55 22.320.3 15.6 37.935.9 209.25 18.417.4 19.8 38.237.2 376.65 21.119.9 19.1 40.239.0 Serial 396.00 20.018.6 20.0 40.038.6 41.85 19.518.7 15.5 35.034.2 108.00 24.423.1 13.4 37.836.5 125.55 22.620.6 15.6 38.236.2 209.25 18.516.0 19.8 38.335.8 376.65 20.919.7 19.1 40.038.8 USB 396.00 20.219.2 20.0 40.239.2 Note: 1. Sample calculation at DV Mode Horiz., 41.85 MHz ; 19.9 + 15.5 = 35.4 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Hewlett Packard company Model: HP 8546A (1) Frequency range: 9 kHz to 6.5 GHz (2) RF Input: 50 ohm (3) IF band width: 200 Hz/ 9 kHz/ 120 kHz/ 1MHz (4) Detector function: Average/CISPR Q-Peak/Peak b) Receiving antenna- Schwarzbeck Model: VHA9103 30 - 300 MHz Model: UHALP9108A 300 - 1000 MHz 3. The Spectrum was checked from 30 MHz to 1000 MHz and the six highest emissions relative to the appropriate limit were measured and reported. emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 5 of 16 Sheets 15.107 POWER LINE CONDUCTED VOLTAGE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) DV Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 6 of 16 Sheets 15.107 POWER LINE CONDUCTED VOLTAGE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) Serial Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 7 of 16 Sheets 15.107 POWER LINE CONDUCTED VOLTAGE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) USB Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 8 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) DV Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 9 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) DV Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 10 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) Serial Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 11 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) Serial Mode FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 12 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) USB Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 13 of 16 Sheets 15.109 RADIATED EMISSION - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of interface cable on the test table ) USB Mode EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 14 of 16 Sheets EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 15 of 16 Sheets EXHIBIT #: 3-1 FCC ID: ACJ927136K OUR REF.: MKES00-F010 MODEL NO.: PV-DV401D Sheet 16 of 16 Sheets
