FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Description of Application Model Application model is as below. FCC ID:ACJ927139AHP Appliance name:Video Cassette Recorder Grantee Name:Matsushita Electric Industrial Co., Ltd. Model No.:NV-FJ4521PX Brand Name:Panasonic Chassis No.:KG-21HGPX Cabinet Material:Top: Steel Front, Side, Rear, Bottom: Plastics RF Converter:ENG56717G1, TMDH2-A24A or 115-V-D025AN (These RF Converter circuits are similar and they are included in each different Tuner) Output Channel:CH 3 & 4 Broadcast Channels:VHF 2-13, UHF 14-69 CATV Channels:Mid band A through I (14-22) Super band J through W (23-36) Hyper band AA - EEE (37-64) Low band A-5 - A-1 (95-99) Special CATV channel 5A (01) Ultra band 65-94, 100-125 Antenna Terminal:One VHF/UHF Input Antenna Terminal and One VHF/UHF Output Terminal are provided. Impedance:75 ohms Transfer SW is provided in Tuner circuit. Power splitter is provided in Tuner circuit. Highest frequency- generated or used: 847 MHz (Local oscillator frequency of UHF Ch69) 71.75 MHz (Aural carrier frequency of Converter Ch4) Input Terminal: Video and Audio Input Terminals are provided. Remote Controller: Wireless

EXHIBIT #: 4-2 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX (Tuner: ENG56717G1, TMDH2-A24A or 115-V-D025AN)Page 1/2 Description of RF Converter Circuit 1) Type(s) of emission Not applicable 2) Frequency range USA standard broadcasting signal CHANNEL 3 & 4 3) Range of operating power and description of means provided for Variation of operating power Not applicable 4) Maximum power rating as defined in the applicable rules Not applicable 5) Tune up procedure over the power range or at specific operating power levels Not applicable 6) A description of all circuitry and devices provided for determining and stabilizing frequency Video Carrier Frequency Frequency of video carrier output is determined by output of PLL1(4MHz).Consequently, the frequency stability is determined by PLL1 (4MHz) which is nominally +/- 0.2 %. Audio Carrier Frequency Audio Carrier Frequency is generated by mixing of video carrier and output signal of the FM- OSC circuit in the RF-MIXER circuit of IC201. The output signal of the FM-OSC circuit is generated by modulating of audio input signal and output signal of PLL2(4.5MHz). Frequency of audio carrier output is determined by output of PLL2. The frequency stability is determined by PLL2 and maintained within +/- 0.2%. 7) A description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power. a. Limit of Modulation Modulations for video carrier and audio carrier are limited, because both inputs supplied from VCR are maintained constant. b. Limit of Operating Power Not applicable EXHIBIT #: 4-2 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Description of RF Converter CircuitPage 2/2 8) Function of each electron tube, semiconductor or other active circuit device RF oscillator (IC201) The video carrier frequency is generated by RF oscillator circuit and controlled by PLL1 circuit. Generated video carrier frequency is supplied to RF MIXER circuit through the Buffer Amplifier. RF MIXER (IC201) The output of RF oscillator and video signal from white clip circuit are supplied to RF MIXER. Amplitude modulated video carrier is obtained as RF output through the buffer amplifier. FM modulated audio signal is supplied to RF MIXER from FM oscillator. The output of RF oscillator is made both side-band modulation by FM modulated audio signal, as result, audio carrier is obtained as RF output through the buffer amplifier. Clamp and White Clip (IC201) The video input is clamped by Sync-Chip. It prevents from over-modulation. RF MIXER (IC201) The oscillated frequency is adjusted to 4.5MHz by PLL2. Audio signal is supplied to the FM oscillator FM modulated audio carrier is obtained as an output. REF oscillator (IC201) Each reference frequency that generated in REF oscillator circuit is supplied to PLL1 and PLL2 for control of RF oscillator and FM oscillator. Carrier OFF SW When TV side selected by TV/VCR SW, carrier OFF SW circuit shut off power of the RF oscillator circuit and RF MIXER circuit. RF Converter Block Diagram

EXHIBIT #: 4-1 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 Technical SpecificationMODEL NO.: NV-FJ4521PX Power Source:AC 110 / 120 / 220 / 240 V 50 / 60 Hz Power Consumption :Approx. 23W Television System :EIA Standard (525 lines, 60 fields) NTSC Luminance : Frequency modulation Color Signal : converted sub carrier direct recording Audio Track :1 track (Normal) 2 Channels (Hi-Fi Sound) Tape Format :Tape width 1/2" (12.7 mm), high density tape Tape Speed :33.35 mm/sec. at SP mode 16.67 mm/sec. at LP mode 11.12 mm/sec. at SLP mode Record/Playback Time :480 min. (max.) FF/REW Time :Less than 5 min.(T-120) Heads :Video : 4 rotary heads Audio : 1 stationary head (Normal) 2 rotary heads (Hi-Fi Sound) Control : 1 stationary head Erase : 1 full track Input Level :Video : Video Input Connector 1.0 V p-p, 75 ohms Audio : Audio Input Connector -10 dBV, 47 k ohms Output Level :Video : Video Output Connector 1.0 V p-p, 75 ohms Audio : Audio Output Connector -8 dBV, 600 ohms RF Modulated Output :Channel 3 and 4 (selective) RF Input :Same as conventional TV receiver Video Horizontal Resolution:Color & B/W : More than 230 lines (VHS mode) (on mono scope test pattern) Audio Frequency Response :100 Hz - 8 kHz at SP mode (Normal Audio Sound) 20 Hz-20 kHz (Hi-Fi Audio Sound) Signal to Noise Ratio :Video : More than 43 dB at SP mode (VHS) Audio : More than 42 dB at SP mode (Normal) More than 60 dB (Hi-Fi) Operating Humidity :10 % - 75 % Operating Temperature :41F – 104F (5C – 40C)

EXHIBIT #: 5 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Block Diagram

EXHIBIT #: 1 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sample of FCC Identifier Sample of Statement for compliance with FCC Rules Part 15 EXHIBIT #: 2 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Location of FCC Identifier 1. Enclosure Rear Nameplate with FCC Identifier 2. Enclosure Bottom Statement for Compliance with FCC Rules Part 15

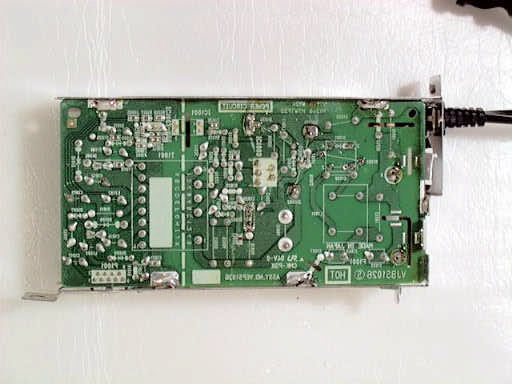

EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 1 of 9 Sheets Main PCB (Top view) Tuner (RF Converter) AC Cord Video in 2 Audio in 2 EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 2 of 9 Sheets Main PCB (Top view) Main PCB (Bottom view) Tuner (RF Converter) Video in 1 Audio in 1 EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 3 of 9 Sheets Power PCB (Top view) Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 4 of 9 Sheets Tuner (ENG56717G1: Top view) Tuner (ENG56717G1: Top view) In from antenna Out to TV RF Converter EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 5 of 9 Sheets Tuner (ENG56717G1: Bottom View) Tuner (ENG56717G1: Bottom View) Audio in Video in CH. SW TV/VCR SW 5V RF Converter IC201 RF Converter EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 6 of 9 Sheets Tuner (TMDH2-A24A: Top view) Tuner (TMDH2-A24A: Top view) In from antenna Out to TV RF Converter Audio in Video in CH. SW TV/VCR SW 5V EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 7 of 9 Sheets Tuner (TMDH2-A24A: Bottom View) Tuner (TMDH2-A24A: Bottom View) RF Converter IC201 RF Converter EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 8 of 9 Sheets Tuner (115-V-D025AN: Top view) Tuner (115-V-D025AN: Top view) In from antenna Out to TV RF Converter Audio in Video in CH. SW TV/VCR SW 5V EXHIBIT #: FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Sheet 9 of 9 Sheets Tuner (115-V-D025AN: Bottom View) Tuner (115-V-D025AN: Bottom View) RF Converter IC201 RF Converter

Tuner: ENG56717G1EXHIBIT #: 3 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Part 15 Subpart B, (TV Interface Device)Sheet 5 of 33 Sheets 1) 15.107 Power Line Conducted Voltage Meter Read. (dBuV)Interference (dBuV) Video Signal Freq. (MHz) 1-end & Gro. The other- End&Gro. LISN Factor (dB) 1-end & Gro. The other- End &Gro. 0.47 31.332.20.131.432.3 0.65 29.530.40.129.630.5 0.95 30.530.90.130.631.0 1.24 29.328.70.129.428.8 4.20 28.026.90.328.327.2 Multi Burst 1 V p-p 28.64 39.340.31.040.341.3 0.47 30.931.90.131.032.0 0.65 29.231.40.129.331.5 0.95 30.330.60.130.430.7 1.24 29.129.50.129.229.6 4.20 28.027.20.328.327.5 Multi Burst 5 V p-p 28.64 39.040.01.040.041.0 0.47 30.831.80.130.931.9 0.65 29.133.50.129.233.6 0.95 30.531.40.130.631.5 1.24 29.229.80.129.329.9 4.20 27.826.10.328.126.4 Internal Signal 28.64 39.339.71.040.340.7 0.47 31.034.40.131.134.5 0.65 29.235.10.129.335.2 0.95 30.331.80.130.431.9 1.24 29.030.00.129.130.1 4.20 28.129.20.328.429.5 RF/CATV Signal Input 28.64 39.540.11.040.541.1 Note: 1. Sample calculation at M.B., 1 V p-p, 1-end & Gro. 0.47 MHz ; 31.3 + 0.1 = 31.4 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406 50 ohms / 50 uH network c) Test Signal Generator- Shibasoku Co., Ltd. (Multi Burst) Model : 205 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. Tuner: ENG56717G1EXHIBIT #: 3 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Part 15 Subpart B, (TV Interface Device)Sheet 6 of 33 Sheets 2) 15.109 Radiated Emission (Including Tuner, Without Accessories) Meter Reading Open Volt. (dBuV) Emission & 3 meters(dBuV) Video Signal Frequency (MHz) Horiz.Vert. Correction Factor (dB) Open Vol. Horiz.Vert. 114.55 7.16.014.421.520.4 128.86 9.68.416.025.624.4 157.50 8.36.518.026.324.5 833.00 4.92.727.732.630.4 839.00 5.73.727.833.531.5 Multi Burst 1 V p-p 845.00 5.42.628.033.430.6 114.55 8.27.114.422.621.5 128.8610.38.916.026.324.9 157.50 8.46.518.026.424.5 833.00 4.92.727.732.630.4 839.00 5.73.727.833.531.5 Multi Burst 5 V p-p 845.00 5.42.628.033.430.6 114.55 7.36.114.421.720.5 128.86 8.38.116.024.324.1 157.50 7.66.718.025.624.7 833.00 4.92.727.732.630.4 839.00 5.73.727.833.531.5 Internal Signal 845.00 5.42.628.033.430.6 114.55 7.06.514.421.420.9 128.86 8.15.716.024.121.7 157.50 7.65.618.025.623.6 833.00 4.92.727.732.630.4 839.00 5.73.727.833.531.5 RF/CATV Signal Input 845.00 5.42.628.033.430.6 Note:1. Sample calculation at M.B., 1 V p-p, Horiz. 114.55 MHz ; 7.1 + 14.4 = 21.5 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Hewlett Packard company Model: HP 8546A (1) Frequency range: 9 kHz to 6.5 GHz (2) RF Input: 50 ohm (3) IF band width: 200 Hz/ 9 kHz/ 120 kHz/ 1MHz (4) Detector function: Average/CISPR Q-Peak/Peak b) Test Signal Generator - Shibasoku Co., Ltd. (Multi Burst)Model: TG-5, 2U2 c) Receiving antenna- Schwarzbeck Model: VHA9103 30 - 300 MHz Model: UHALP9108A 300 - 1000 MHz - The Electro-Mechanics Company Model: 3115 1 - 18G Hz 3. The spectrum was checked from 30 MHz to 1694 MHz and the six highest emissions relative to the appropriate limit were measured and reported. Tuner: ENG56717G1EXHIBIT #: 3 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Part 15 Subpart B, (TV Interface Device)Sheet 7 of 33 Sheets 2) 15.109 Radiated Emission (Including Tuner, With Accessories) Meter Reading Open Volt. (dBuV) Emission & 3 meters(dBuV) Video Signal Frequency (MHz) Horiz.Vert. Correction Factor (dB) Open Vol. Horiz.Vert. 114.55 9.512.614.423.927.0 128.8612.210.616.028.226.6 157.5012.6 8.518.030.626.5 833.00 8.1 6.427.735.834.1 839.00 8.6 6.627.836.434.4 Multi Burst 1 V p-p 845.00 8.0 5.928.036.033.9 114.5510.412.814.424.827.2 128.8612.210.516.028.226.5 157.5012.8 8.418.030.826.4 833.00 8.1 6.427.735.834.1 839.00 8.6 6.627.836.434.4 Multi Burst 5 V p-p 845.00 8.0 5.928.036.033.9 114.55 9.212.614.423.627.0 128.8611.6 9.416.027.625.4 157.5012.4 7.818.030.425.8 833.00 8.1 6.427.735.834.1 839.00 8.6 6.627.836.434.4 Internal Signal 845.00 8.0 5.928.036.033.9 114.55 9.112.314.423.526.7 128.8611.9 9.616.027.925.6 157.5012.0 7.818.030.025.8 833.00 8.1 6.427.735.834.1 839.00 8.6 6.627.836.434.4 RF/CATV Signal Input 845.00 8.0 5.928.036.033.9 Note:1. Sample calculation at M.B., 1 V p-p, Horiz. 114.55 MHz ; 9.5 + 14.4 = 23.9 (dBuV/m) 2. Measuring Instruments: a) Field strength meter - Hewlett Packard company Model: HP 8546A (1) Frequency range: 9 kHz to 6.5 GHz (2) RF Input: 50 ohm (3) IF band width: 200 Hz/ 9 kHz/ 120 kHz/ 1MHz (4) Detector function: Average/CISPR Q-Peak/Peak b) Test Signal Generator - Shibasoku Co., Ltd. (Multi Burst)Model: TG-5, 2U2 c) Receiving antenna- Schwarzbeck Model: VHA9103 30 - 300 MHz Model: UHALP9108A 300 - 1000 MHz - The Electro-Mechanics Company Model: 3115 1 - 18G Hz 3. The spectrum was checked from 30 MHz to 1694 MHz and the six highest emissions relative to the appropriate limit were measured and reported. Tuner: ENG56717G1EXHIBIT #: 3 FCC ID: ACJ927139AHP OUR REF.: MKES00-F019 MODEL NO.: NV-FJ4521PX Part 15 Subpart B, (TV Interface Device)Sheet 8 of 33 Sheets 3) 15.111 (a) Antenna Power Conducted Voltage Frequency (MHz) Meter Reading (dBuV) Matc. Pad Loss (dB) Interference (dBuV) 1618.033.78.842.5 1630.034.48.843.2 1642.035.58.844.3 1654.0 36.5 8.845.3 1666.036.38.845.1 1678.036.08.844.8 Antenna Input Impedance: 75 ohms (Unbalanced) Note: 1. Sample calculation at 1618.0 MHz ; 33.7 + 8.8 = 42.5 (dBuV) 2. Measuring Instrument: a) Spectrum Analyzer - ADVANTEST Co., Ltd. Model : R3261A (1) Detector function : Peak (2) Band width : 100 kHz b) Matching Pad - Anritsu Electric Co., Ltd. Model : MB-009 (1) Frequency range : DC - 2G Hz 3. The spectrum was checked from 30 …
