Description of Application Model FCC ID : ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Application model is as below. (This model is TV/VCR combination with FM Transmitter.) FCC ID:ACJ927140TX Appliance name:Intentional Radiators : FM Transmitter Grantee Name:Matsushita Electric Industrial Co., Ltd. Model No.:PV-C921 Brand Name:Panasonic Chassis No.:KM-901 Cabinet Material:Plastics Remote Controller:Wireless FM Transmitter portion: FM Transmitter:VEPS4033 Output Frequency:Low Band93 MHz (+0.5/-2 MHz) – 97 MHz (+2/-0.5 MHz) High Band99 MHz (+0.5/-2 MHz) – 103 MHz (+2/-0.5 MHz) Output Antenna:Rod Antenna on the Transmitter PCB TV/VCR combination portion: Broadcast ChannelsFM 87.5 MHz – 108.1 MHz, VHF 2-13, UHF 14-69 CATV Channels:Mid band A through I (14-22) Super band J through W (23-36) Hyper band AA - EEE (37-64) Low band A-5 - A-1 (95-99) Special CATV channel 5A (01) Ultra band 65-94, 100-125 Antenna Terminal:One FM/VHF/UHF Input Antenna Terminal Impedance:75 ohms Highest frequency- generated or used:847 MHz (Local oscillator frequency of UHF Ch69) Input Terminal:Video and Audio Input Terminals are provided.

Description of FM Transmitter EXHIBIT #: 4-2 FCC ID : ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Performance Explanation of FM Transmitter Each signal of Tuner, Line-In and Playback passes through the limiting circuit. Audio signal is FM-modulated by the Oscillation Process circuit, then passes through the BPF and radiate through the antenna. Band width is limited by the limiting circuit for the Base Band Audio. Spurious is attenuated by the BPF circuit. Frequency of carrier is determined by L, C, and D in oscillator circuit. Consequently the frequency stability is determined by L, C, and D which is +/-250 kHz. Antenna is permanently constructed by the Rod on the Transmitter PCB. Rod Antenna TUNER LINE IN PLAY BACK LIMITTER Micro- processor BPF OSC FM MOD Low band:93 MHz (+0.5/-2 MHz)to97 MHz (+2/-0.5 MHz) High band:99 MHz(+0.5/-2 MHz)to103 MHz (+2/-0.5 MHz)

Technical Specification EXHIBIT #: 4-1 FCC ID : ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Power Source :AC 120 V 60 Hz DC 12 V / 24 V Power Consumption :AC 66 W DC 63 W Audio input: Max. –7 dBV Operating Temperature: 5 C – 40 C Operating Humidity : 10 % - 75 %

EXHIBIT #: 5 FCC ID : ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Block Diagram

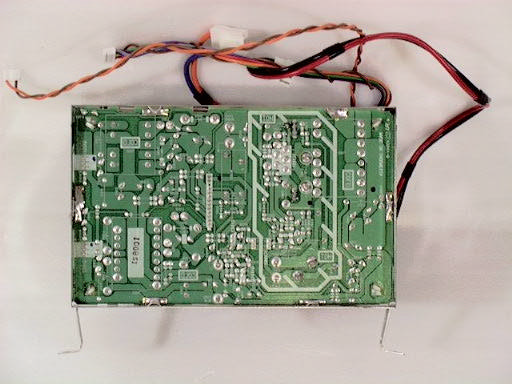

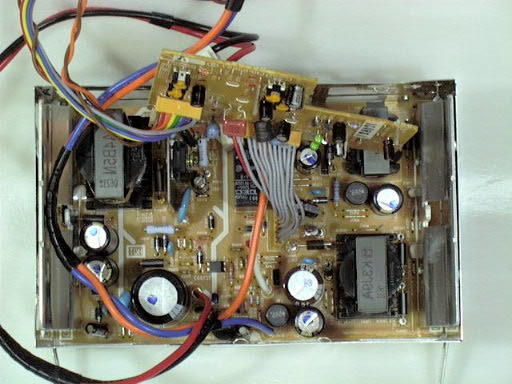

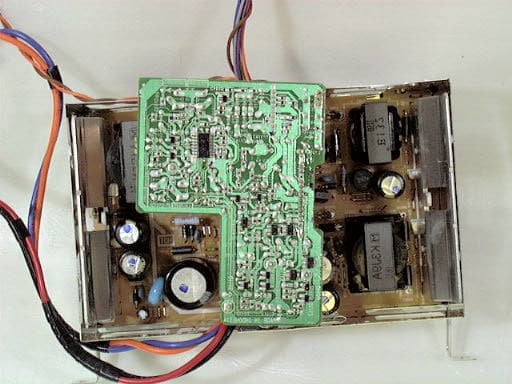

EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 1 of 16 Sheets EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 2 of 16 Sheets EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 3 of 16 Sheets TV Main PCB (Top view) FM Transmitter PCB (Top view)Rod Antenna EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 4 of 16 Sheets TV Main PCB (Top View) TV Main PCB (Top View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 5 of 16 Sheets TV Main PCB (Bottom View) Power PCB & VCR Main PCB EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 6 of 16 Sheets Power PCB (Top view) Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 7 of 16 Sheets Sub Power PCB (Top view) Sub Power PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 8 of 16 Sheets Power PCB (Top view) Power PCB (Bottom view)

EXHIBIT #: 1 FCC ID : ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Sample of FCC Identifier Sample of Statement for compliance with FCC Rules Part 15 Location of FCC Identifier EXHIBIT #: 2 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Enclosure Rear Statement for Compliance with FCC Rules Part 15 Nameplate with FCC Identifier

EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 9 of 16 Sheets VCR Main PCB (Top View) VCR Main PCB (Top View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 10 of 16 Sheets VCR Main PCB (Top View) VCR Main PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 11 of 16 Sheets FM Transmitter PCB (Top View) Rod Antenna FM Transmitter PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 12 of 16 Sheets FM Transmitter (Top View) FM Transmitter (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 13 of 16 Sheets FM Transmitter (Top View) FM Transmitter (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 14 of 16 Sheets Tuner PCB & IF PCB (Top View) Tuner PCB & IF PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 15 of 16 Sheets Tuner PCB & IF PCB (Top View) Tuner PCB & IF PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921 Sheet 16 of 16 Sheets Tuner PCB (Top View) Tuner PCB (Bottom View)

EXHIBIT #: 4-3 FCC ID : ACJ927140TX OUR REF. : MKES00-F016 MODEL NO.: PV-C921

EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 3 of 20 Sheets 1) 15.239 (a) Band wide Low Band (Lowest: 91.79 MHz) No Audio signalAudio input 1 kHz -7 dBV (Middle: 94.39 MHz) No Audio signalAudio input 1 kHz -7 dBV (Highest: 96.97 MHz) No Audio signalAudio input 1 kHz -7 dBV EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 4 of 20 Sheets 1) 15.239 (a) Band wide High Band (Lowest: 97.16 MHz) No Audio signalAudio input 1 kHz -7 dBV (Middle: 100.22 MHz) No Audio signalAudio input 1 kHz -7 dBV (Highest: 102.90 MHz) No Audio signalAudio input 1 kHz -7 dBV EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 5 of 20 Sheets 1) 15.239 (a) Band wide Note: Measuring Instruments: a) Spectrum Analyzer-ADVANTEST Co., Ltd. Model : R3261A (1) Frequency range : 9 kHz to 2.6 GHz (2) RF Input : 50 ohm (3) IF band width : 30 Hz to 1 MHz 200 Hz/9 kHz/120 kHz (4) Detector function: CISPR Q-Peak/Peak b) RC Oscillator- National (Matsushita Communication Industrial Co. Ltd.) Model : VP-7201A (1) Output Frequency: 5 Hz to 500 kHz (2) Output Level: -69.9 dBV to 10 dBV EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 6 of 20 Sheets 2) 15.107 Power Line Conducted Voltage No Audio signal Meter Read. (dBuV)Interference (dBuV) Output Freq. (MHz) Freq. (MHz) 1-end & Gro. The other- End&Gro. LISN Factor (dB) 1-end & Gro. The other- End &Gro. 0.65 35.935.5 0.1 36.035.6 0.76 34.836.3 0.1 34.936.4 0.89 34.037.2 0.1 34.137.3 0.9731.739.10.131.839.2 1.08 31.439.9 0.1 31.540.0 91.79 1.1529.737.90.129.838.0 0.65 36.535.6 0.1 36.635.7 0.7635.636.10.135.736.2 0.89 32.737.3 0.1 32.837.4 0.9730.537.50.130.637.6 1.08 30.938.9 0.1 31.039.0 94.39 1.1529.537.40.129.637.5 0.65 36.635.5 0.1 36.735.6 0.76 35.636.9 0.1 35.737.0 0.89 32.436.8 0.1 32.536.9 0.97 29.838.9 0.1 29.939.0 1.08 30.638.7 0.1 30.738.8 Low Band 96.97 1.15 29.037.5 0.1 29.137.6 0.6536.435.60.136.535.7 0.76 35.635.6 0.1 35.735.7 0.8932.638.40.132.738.5 0.97 30.637.9 0.1 30.738.0 1.0831.238.40.131.338.5 97.46 1.15 29.737.6 0.1 29.837.7 0.6536.535.90.136.636.0 0.76 35.335.0 0.1 35.435.1 0.89 32.838.5 0.1 32.938.6 0.97 30.537.9 0.1 30.638.0 1.08 31.139.3 0.1 31.239.4 100.22 1.15 28.637.7 0.1 28.737.8 0.65 36.735.7 0.1 36.835.8 0.76 35.835.6 0.1 35.935.7 0.89 32.737.2 0.1 32.837.3 0.9730.237.70.130.337.8 1.08 30.738.5 0.1 30.838.6 High Band 102.90 1.1529.136.80.129.236.9 EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 7 of 20 Sheets 2) 15.107 Power Line Conducted Voltage No Audio signal Note: 1. Sample calculation at Output 91.79 MHz 1-end & Gro. 0.65 MHz ; 35.9 + 0.1 = 36.0 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406 50 ohms / 50 uH network 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 8 of 20 Sheets 2) 15.107 Power Line Conducted Voltage Audio Input 1 kHz -7 dBV Meter Read. (dBuV)Interference (dBuV) Output Freq. (MHz) Freq. (MHz) 1-end & Gro. The other- End&Gro. LISN Factor (dB) 1-end & Gro. The other- End &Gro. 0.6536.035.50.136.135.6 0.76 36.035.6 0.1 36.135.7 0.89 32.237.9 0.1 32.338.0 0.97 29.538.5 0.1 29.638.6 1.08 30.938.1 0.1 31.038.2 91.79 1.15 29.837.4 0.1 29.937.5 0.65 35.536.3 0.1 35.636.4 0.76 35.536.0 0.1 35.636.1 0.89 31.437.3 0.1 31.537.4 0.9730.138.20.130.238.3 1.08 30.435.8 0.1 30.535.9 94.39 1.1529.636.20.129.736.3 0.65 36.635.2 0.1 36.735.3 0.7635.636.30.135.736.4 0.89 33.237.4 0.1 33.337.5 0.9730.938.10.131.038.2 1.08 31.337.9 0.1 31.438.0 Low Band 96.97 1.15 29.337.6 0.1 29.437.7 0.65 36.235.5 0.1 36.335.6 0.76 35.137.9 0.1 35.238.0 0.89 32.938.5 0.1 33.038.6 0.97 30.538.8 0.1 30.638.9 1.08 31.137.0 0.1 31.237.1 97.46 1.15 29.338.1 0.1 29.438.2 0.6535.935.00.136.035.1 0.76 35.436.7 0.1 35.536.8 0.8932.538.70.132.638.8 0.97 30.639.0 0.1 30.739.1 1.0831.439.20.131.539.3 100.22 1.15 29.337.7 0.1 29.437.8 0.6536.536.50.136.636.6 0.76 36.035.0 0.1 36.135.1 0.89 33.238.7 0.1 33.338.8 0.97 30.939.7 0.1 31.039.8 1.08 31.138.7 0.1 31.238.8 High Band 102.90 1.15 29.437.5 0.1 29.537.6 EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 9 of 20 Sheets 2) 15.107 Power Line Conducted Voltage Audio Input 1 kHz -7 dBV Note: 1. Sample calculation at Output 91.79 MHz 1-end & Gro. 0.65 MHz ; 36.0 + 0.1 = 36.1 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406 50 ohms / 50 uH network c) RC Oscillator- National (Matsushita Communication Industrial Co. Ltd.) Model : VP-7201A (1) Output Frequency: 5 Hz to 500 kHz (2) Output Level: -69.9 dBV to 10 dBV 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3 FCC ID: ACJ927140TX OUR REF.: MKES00-F016 MODEL NO.: PV-C921 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 10 of 20 Sheets 3) 15.209 & 15.239 (b) (c) Radiated Emission No Audio signal Meter Reading Op…
