ACJ927141TXCombination TV/VCR

Description of Application Model FCC ID : ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Application model is as below. (This model is TV/VCR combination with FM Transmitter.) FCC ID:ACJ927141TX Appliance name:Intentional Radiators : FM Transmitter Grantee Name:Matsushita Electric Industrial Co., Ltd. Model No.:PV-C2081 Brand Name:Panasonic Chassis No.:KM-2001 Cabinet Material:Plastics Remote Controller:Wireless FM Transmitter portion: FM Transmitter:VEPS4033 Output Frequency:Low Band93 MHz (+0.5/-2 MHz) – 97 MHz (+2/-0.5 MHz) High Band99 MHz (+0.5/-2 MHz) – 103 MHz (+2/-0.5 MHz) Output Antenna:Rod Antenna on the main PCB TV/VCR combination portion: Broadcast ChannelsFM 87.5 MHz – 108.1 MHz, VHF 2-13, UHF 14-69 CATV Channels:Mid band A through I (14-22) Super band J through W (23-36) Hyper band AA - EEE (37-64) Low band A-5 - A-1 (95-99) Special CATV channel 5A (01) Ultra band 65-94, 100-125 Antenna Terminal:One FM/VHF/UHF Input Antenna Terminal Impedance:75 ohms Highest frequency- generated or used:847 MHz (Local oscillator frequency of UHF Ch69) Input Terminal:Video and Audio Input Terminals are provided.

Description of FM Transmitter EXHIBIT #: 4-2 FCC ID : ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Performance Explanation of FM Transmitter Each signal of Tuner, Line-In and Playback passes through the limiting circuit and is converted to Stereo Composite signal by the Stereo Process circuit. Stereo Composite signal is FM-modulated by the Oscillation Process circuit, then passes through the BPF and radiate through the antenna. Band width is limited by the limiting circuit for the Base Band Audio. Spurious is attenuated by the BPF circuit. Frequency of carrier is determined by L, C, and D in oscillator circuit. Consequently the frequency stability is determined by L, C, and D which is +/-250 kHz. Antenna is permanently constructed by the Rod on the main PCB. Rod Antenna TUNER LINE IN PLAY BACK LIMITTER STEREO PROCESS Micro- processor BPF OSC FM MOD Low band:93 MHz (+0.5/-2 MHz)to97 MHz (+2/-0.5 MHz) High band:99 MHz(+0.5/-2 MHz)to103 MHz (+2/-0.5 MHz)

Technical Specification EXHIBIT #: 4-1 FCC ID : ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Power Source :AC 120 V, 60 Hz Power Consumption :110 W Audio input: Max. –7 dBV Operating Temperature: 5 C – 40 C Operating Humidity : 10 % - 75 %

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Zameel Shahat Secaucus, NJ 07094 Project Engineer Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 392-4161 e-mail: [email protected] January 30, 2001 MKES-00-F017 Re: FCC ID: ACJ927141TX Applicant : Matsushita Electric Industrial Co., Ltd Correspondence Reference #: 17912 731 Confirmation Number: EA99377 Product : FM transmitter built-in TV/VCR combo unit. Attn. Errol Chang Dear sir Referring to your comment “ It is not clear what is being certified”. This device is FM transmitter that can send wireless audio signal to any FM radio on Carrier frequency 93-103 MHz. This device is in compliance with Part 15, Subpart C and Section 15.239 of the FCC Rules. This FM transmitter is built in TV/VCR combo. The TV/VCR combo is subject to verification, Part 15 Subpart B. Sincerely yours, Reviewed by, Zameel Shahat Richard Mullen Project Engineer Group Manager

EXHIBIT #: 5 FCC ID : ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Block Diagram

EXHIBIT #: 1 FCC ID : ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Sample of FCC Identifier Sample of Statement for compliance with FCC Rules Part 15 Location of FCC Identifier EXHIBIT #: 2 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Enclosure Rear Statement for Compliance with FCC Rules Part 15 Nameplate with FCC Identifier

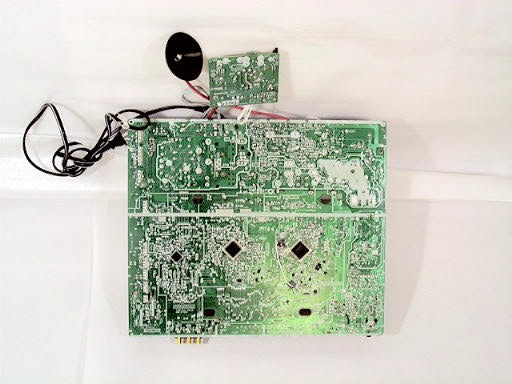

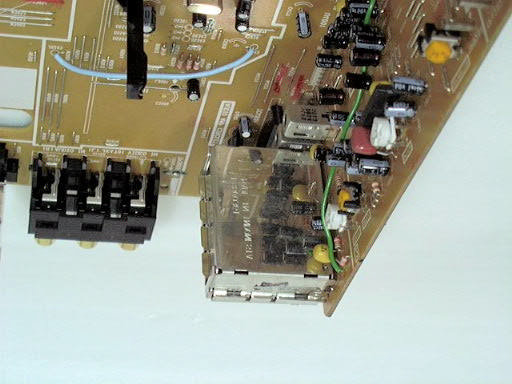

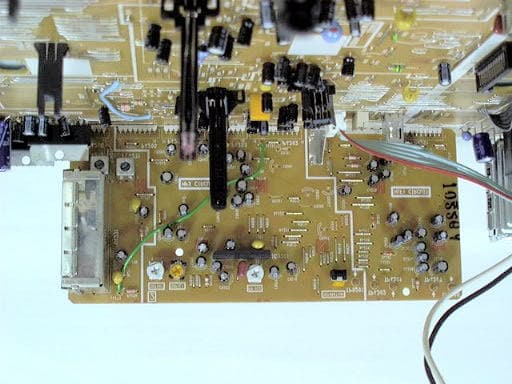

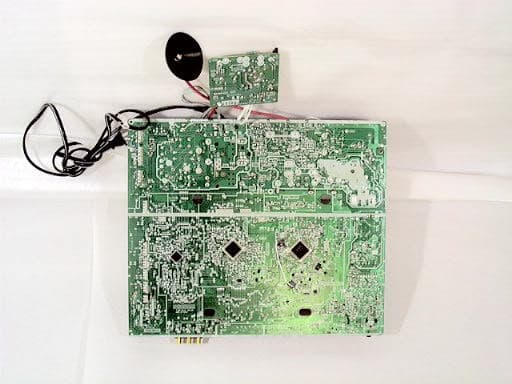

EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 1 of 8 Sheets EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 2 of 8 Sheets Main PCB (Top view) EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 3 of 8 Sheets Main PCB (Top view) Main PCB (Top view)FM Transmitter EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 4 of 8 Sheets Main PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 5 of 8 Sheets FM TransmitterStereo Pack PCB (Top view) Stereo Pack PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 6 of 8 Sheets FM Transmitter PCBRod Antenna FM Transmitter PCB EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 7 of 8 Sheets FM Transmitter PCB (Top View) FM Transmitter PCB (Bottom View) EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 7 of 8 Sheets Tuner (Top View) Tuner PCB (Top View) EXHIBIT #: FCC ID: ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081 Sheet 8 of 8 Sheets Tuner (Bottom View) Tuner PCB (Bottom View)

EXHIBIT #: 4-3 FCC ID : ACJ927141TX OUR REF. : MKES00-F017 MODEL NO.: PV-C2081

EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 3 of 20 Sheets 1) 15.239 (a) Band wide Low Band (Lowest: 91.90 MHz) No Audio signalAudio input 1 kHz -7 dBV (Middle: 94.69 MHz) No Audio signalAudio input 1 kHz -7 dBV (Highest: 97.50 MHz) No Audio signalAudio input 1 kHz -7 dBV EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 4 of 20 Sheets 1) 15.239 (a) Band wide High Band (Lowest: 97.85 MHz) No Audio signalAudio input 1 kHz -7 dBV (Middle: 100.84 MHz) No Audio signalAudio input 1 kHz -7 dBV (Highest: 103.77 MHz) No Audio signalAudio input 1 kHz -7 dBV EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 5 of 20 Sheets 1) 15.239 (a) Band wide Note: Measuring Instruments: a) Spectrum Analyzer-ADVANTEST Co., Ltd. Model : R3261A (1) Frequency range : 9 kHz to 2.6 GHz (2) RF Input : 50 ohm (3) IF band width : 30 Hz to 1 MHz 200 Hz/9 kHz/120 kHz (4) Detector function: CISPR Q-Peak/Peak b) RC Oscillator- National (Matsushita Communication Industrial Co. Ltd.) Model : VP-7201A (1) Output Frequency: 5 Hz to 500 kHz (2) Output Level: -69.9 dBV to 10 dBV EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 6 of 20 Sheets 2) 15.107 Power Line Conducted Voltage No Audio signal Meter Read. (dBuV)Interference (dBuV) Output Freq. (MHz) Freq. (MHz) 1-end & Gro. The other- End&Gro. LISN Factor (dB) 1-end & Gro. The other- End &Gro. 0.57 28.730.4 0.1 28.830.5 0.72 30.831.5 0.1 30.931.6 0.74 31.932.2 0.1 32.032.3 0.8031.232.20.131.332.3 0.82 32.332.8 0.1 32.432.9 91.90 0.9830.731.20.130.831.3 0.57 28.730.1 0.1 28.830.2 0.7230.830.90.130.931.0 0.74 32.732.8 0.1 32.832.9 0.8032.331.40.132.431.5 0.82 33.032.0 0.1 33.132.1 94.69 0.9831.031.30.131.131.4 0.57 28.330.4 0.1 28.430.5 0.72 30.332.5 0.1 30.432.6 0.74 32.433.9 0.1 32.534.0 0.80 31.932.1 0.1 32.032.2 0.82 32.831.1 0.1 32.931.2 Low Band 97.50 0.98 31.031.8 0.1 31.131.9 0.5728.029.90.128.130.0 0.72 30.631.3 0.1 30.731.4 0.7432.034.10.132.134.2 0.80 32.032.3 0.1 32.132.4 0.8233.134.00.133.234.1 97.85 0.98 31.031.4 0.1 31.131.5 0.5728.631.40.128.731.5 0.72 31.229.6 0.1 31.329.7 0.74 32.734.7 0.1 32.834.8 0.80 32.333.0 0.1 32.433.1 0.82 32.832.8 0.1 32.932.9 100.84 0.98 31.131.2 0.1 31.231.3 0.57 28.030.4 0.1 28.130.5 0.72 30.030.9 0.1 30.131.0 0.74 33.532.6 0.1 33.632.7 0.8033.132.40.133.232.5 0.82 33.134.0 0.1 33.234.1 High Band 103.77 0.9831.431.60.131.531.7 EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 7 of 20 Sheets 2) 15.107 Power Line Conducted Voltage No Audio signal Note: 1. Sample calculation at Output 91.90 MHz 1-end & Gro. 0.57 MHz ; 28.7 + 0.1 = 28.8 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406 50 ohms / 50 uH network 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 8 of 20 Sheets 2) 15.107 Power Line Conducted Voltage Audio Input 1 kHz -7 dBV Meter Read. (dBuV)Interference (dBuV) Output Freq. (MHz) Freq. (MHz) 1-end & Gro. The other- End&Gro. LISN Factor (dB) 1-end & Gro. The other- End &Gro. 0.5728.830.40.128.930.5 0.72 32.030.8 0.1 32.130.9 0.74 30.132.9 0.1 30.233.0 0.80 29.031.6 0.1 29.131.7 0.82 31.831.0 0.1 31.931.1 91.90 0.98 30.830.7 0.1 30.930.8 0.57 28.331.2 0.1 28.431.3 0.72 31.531.2 0.1 31.631.3 0.74 29.332.3 0.1 29.432.4 0.8029.631.30.129.731.4 0.82 31.328.7 0.1 31.428.8 94.69 0.9830.629.50.130.729.6 0.57 29.430.1 0.1 29.530.2 0.7231.631.50.131.731.6 0.74 31.132.4 0.1 31.232.5 0.8030.431.20.130.531.3 0.82 32.230.8 0.1 32.330.9 Low Band 97.50 0.98 30.330.9 0.1 30.431.0 0.57 29.030.4 0.1 29.130.5 0.72 31.133.1 0.1 31.233.2 0.74 30.833.5 0.1 30.933.6 0.80 30.031.9 0.1 30.132.0 0.82 32.029.9 0.1 32.130.0 97.85 0.98 30.331.4 0.1 30.431.5 0.5728.729.90.128.830.0 0.72 31.431.9 0.1 31.532.0 0.7430.433.70.130.533.8 0.80 30.132.1 0.1 30.232.2 0.8232.332.80.132.432.9 100.84 0.98 30.331.0 0.1 30.431.1 0.5729.331.40.129.431.5 0.72 32.030.2 0.1 32.130.3 0.74 31.133.7 0.1 31.233.8 0.80 30.432.8 0.1 30.532.9 0.82 32.031.6 0.1 32.131.7 High Band 103.77 0.98 30.430.8 0.1 30.530.9 EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 9 of 20 Sheets 2) 15.107 Power Line Conducted Voltage Audio Input 1 kHz -7 dBV Note: 1. Sample calculation at Output 91.91 MHz 1-end & Gro. 0.57 MHz ; 28.8 + 0.1 = 28.9 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work CO., Ltd. Model : KNW-406 50 ohms / 50 uH network c) RC Oscillator- National (Matsushita Communication Industrial Co. Ltd.) Model : VP-7201A (1) Output Frequency: 5 Hz to 500 kHz (2) Output Level: -69.9 dBV to 10 dBV 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT #: 3 FCC ID: ACJ927141TX OUR REF.: MKES00-F017 MODEL NO.: PV-C2081 Part 15 Subpart C. (Intentional Radiators : FM Transmitter) Sheet 10 of 20 Sheets 3) 15.209 & 15.239 (b) (c) Radiated Emission No Audio signal Meter Re…
