ACJ927142LVideo Camera with LCD display

EXHIBIT # : 4-1 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Technical Specification Color LCD Electronic View Finder (Part of Video Camera) Power Source: Supplied from Video Camera Power Consumption: 8.5 W (With Video Camera) Television System: EIA Standard (525 lines, 60 fields) NTSC Video Horizontal Resolution: More than 250 lines Illumination: Built-in 1.4 W fluorescent lamp Dimensions: Approx. 15 mm(W) x 110 mm(D) x 84 mm(H) Weight: Approx. 200 g Color: Black Operating Humidity: 10 % - 75 % Operating Temperature: 32 F – 104 F ( 0 C - 40 C )

EXHIBIT # : 4-2 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Page 1/3 Description of RF Lighting Device 1)Type(s) of emission Not applicable 2)Frequency range 100 kHz 10 kHz 3)Range of operating power and description of means provided for variation of operating power Not applicable 4)Maximum power rating as defined in the applicable rules Not applicable 5)The voltage applied to and currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Indicate whether these voltages and currents are DC or AC. Input Voltage (circuit diagram Point No. 2) = 4.5 V (DC) Input Current (circuit diagram Point No. 2) = 310 mA (DC) 6)Function of each electron tube, semiconductor or other active circuit device. a. Switching transistor Q9101,Q9102: 2SD1119 2 or 2SD2150 2 b. Pulse transformer T9101: ETJ11K95AM or ETJ11K114AM Input Voltage: 4.5 V DC Output Voltage: 850 V AC (at no load) c. Choke coil L9101: SLF6028T680M Inductance : 68 uH d. Fluorescent lamp PL9101: LSLL0023 or LSLL0024 Tube voltage: 300 V AC Power consumption: 1.2 W EXHIBIT # : 4-2 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Page 2/3 7)Brock diagram See EXHIBIT # 5 8)Operating Instruction manual. If the operating instruction manuals are not available when the application is filed a set of draft instructions should be provided and complete instruction manuals should be submitted as soon as available. 9)Tune up procedure over the power range or at specific operating power levels. Not applicable 10)A description of all circuitry and devices provided for deterring and stabilizing frequency. Oscillator circuit: Blocking oscillator DC-AC inverter Pulse transformer: ETJ11K95AM or ETJ11K114AM Switching Transistor: Q9101, Q9102 (2SD1119 2 or 2SD2150 2) 11)A description of any circuits for devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power. Not applicable 12)A photograph or drawing of the equipment identification label, silk-screened or molding showing the information to be placed there on. See EXHIBIT # 1 and # 2. EXHIBIT # : 4-2 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Page 3/3

EXHIBIT # : 5 FCC ID: ACJ927142L OUR REF.: MKES01-F007 Block DiagramMODEL NO.: PV-L352D

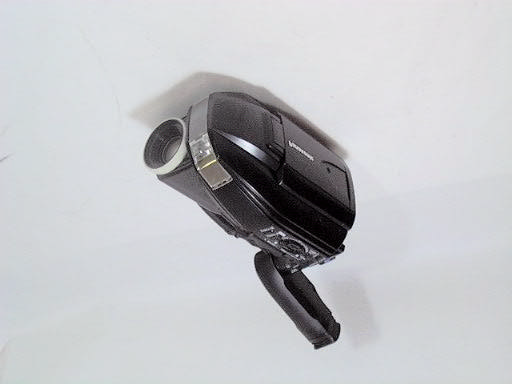

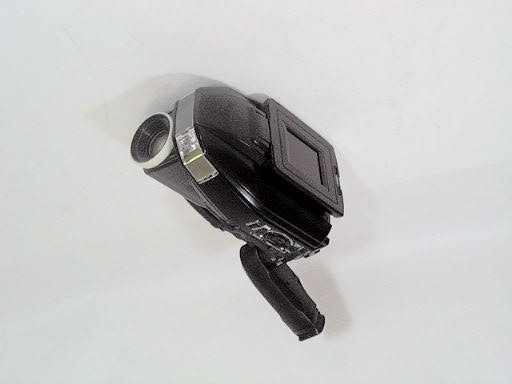

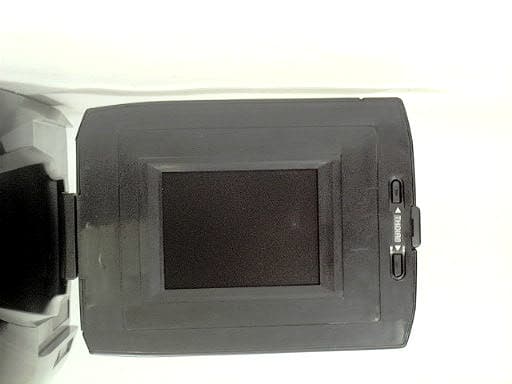

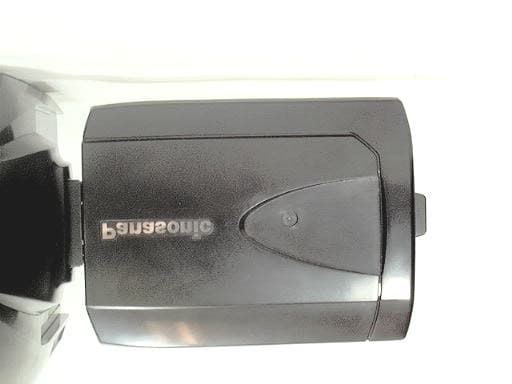

EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 1 of 7 Sheets Color LCD electronic view finder (Part of video camera) EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 2 of 7 Sheets

EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 3 of 7 Sheets LCD Power PCB (Bottom view / Pulse transformer: ETJ11K95AM) Oscillator circuit (Pulse transformer: ETJ11K95AM) EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 4 of 7 Sheets LCD Power PCB (Top view / Pulse transformer: ETJ11K95AM) EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 5 of 7 Sheets LCD Power PCB (Bottom view / Pulse transformer: ETJ11K114AM) Oscillator circuit (Pulse transformer: ETJ11K114AM) EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 6 of 7 Sheets LCD Power PCB (Top view / Pulse transformer: ETJ11K114AM) EXHIBIT #: FCC ID: ACJ927142L OUR REF. : MKES01-F007 MODEL NO.: PV-L352D Sheet 7 of 7 Sheets LCD RF Lighting device (Fluorescent lamp)

EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 3 of 8 Sheets 5) 18.307 Power Line Conducted Interference (Pulse transformer: ETJ11K95AM / AC Adaptor: PV-A19) Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.5628.737.20.128.837.3 0.6526.933.10.127.033.2 0.8118.134.40.118.234.5 0.9821.433.10.121.533.2 1.6519.833.30.220.033.5 5.3339.541.60.439.942.0 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.56 MHz; 28.7 + 0.1 = 28.8 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance: 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 4 of 8 Sheets 5) 18.307 Power Line Conducted Interference (Pulse transformer: ETJ11K114AM / AC Adaptor: PV-A19) Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.5629.237.80.129.337.9 0.7028.133.40.128.233.5 0.8118.935.20.119.035.3 0.9919.734.30.119.834.4 2.1220.935.00.221.135.2 5.3638.040.50.438.440.9 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.56 MHz; 29.2 + 0.1 = 29.3 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance: 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 5 of 8 Sheets 5) 18.307 Power Line Conducted Interference (Pulse transformer: ETJ11K95AM / AC Adaptor: PV-A20) Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.4527.527.70.127.627.8 0.4726.827.30.126.927.4 0.5128.229.40.128.329.5 0.6026.227.80.126.327.9 6.0130.429.10.430.829.5 6.3134.132.80.434.533.2 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.45 MHz; 27.5 + 0.1 = 27.6 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance: 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 6 of 8 Sheets 5) 18.307 Power Line Conducted Interference (Pulse transformer: ETJ11K114AM / AC Adaptor: PV-A20) Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.4730.831.30.130.931.4 0.5328.830.60.128.930.7 0.6125.227.30.125.327.4 0.8321.323.80.121.423.9 6.4031.530.00.431.930.4 29.9828.429.01.029.430.0 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.47 MHz; 30.8 + 0.1 = 30.9 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance: 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 7 of 8 Sheets 18.307 POWER LINE CONDUCTED INTERFERENCE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of accessories on the test table ) VHS-C MOVIE With LCD EVF Test table RF lighting device (Color LCD EVF Part FCC ID : ACJ927142L) Video/Audio cable (1.5 meter) DC Out cable (2 meter) AC Adaptor (PV-A19 or PV-A20) EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 8 of 8 Sheets

EXHIBIT # : 3 FCC ID: ACJ927142L OUR REF.: MKES01-F007 MODEL NO.: PV-L352D Sheet 7 of 8 Sheets 18.307 POWER LINE CONDUCTED INTERFERENCE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of accessories on the test table ) VHS-C MOVIE With LCD EVF Test table RF lighting device (Color LCD EVF Part FCC ID : ACJ927142L) Video/Audio cable (1.5 meter) DC Out cable (2 meter) AC Adaptor (PV-A19 or PV-A20)
