ACJ927144LMini DV Cassette Recorder With LCD

EXHIBIT # : 5 FCC ID: ACJ927144L OUR REF.: MKES02-F010 Block DiagramMODEL NO. : AG-DV1DCP

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Richard Mullen Secaucus, NJ 07094 Group Manager Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 348-7758 e-mail: [email protected] April 1, 2002 MKES-02-F010 731 Confirmation Number: 13EA704928 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Original Application for Certification of Consumer RF Lighting Device Mini DV Cassette Recorder with built-in color LCD Panel, Model AG-DV1DCP FCC ID: ACJ927144L Gentlemen: Enclosed, find Matsushita Electric Industrial Co., Ltd. application for equipment authorization dated March 29, 2002. This device is in compliance with Part 18 of the FCC Rules for Consumer RF Lighting Device. The subject device is a Mini DV Cassette Recorder with built-in color LCD panel. The LCD panel uses 1.2 watt fluorescent lamp, which operates at 105 kHz ±10 kHz and as such, is classified by FCC as a Consumer RF Lighting Device. Also, this device contains iLink digital interface port (IEEE 1394) for connection to host digital video camera (Palmcorder). This EUT was system tested while connected to provided AC Adaptor, model DE-852D. Compliance tests were performed in accordance with FCC/OST MP-5 to show compliance with FCC Part 18 limits. Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

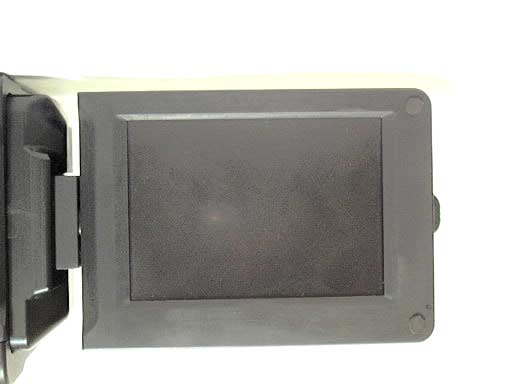

EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 1 of 6 Sheets Color LCD Panel (Part of miniDV Cassette Recorder) EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 2 of 6 Sheets

EXHIBIT # : 1 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Sample of FCC Identifier FCC ID : ACJ927144L FCC Statements for compliance with FCC Rules Part 18 in User's Manual EXHIBIT # : 2 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Location of FCC Identifier FCC Identifier

EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 3 of 6 Sheets LCD Power PCB (Bottom view) Oscillator circuit EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 4 of 6 Sheets LCD Power PCB (Top view) EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 5 of 6 Sheets LCD Power PCB (Top view) EXHIBIT #: FCC ID: ACJ927144L OUR REF. : MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 6 of 6 Sheets LCD RF Lighting device (Fluorescent lamp)

FCC ID : ACJ927144L OUR REF. : MKES02-F010 MODEL NO.: AG-DV1DCP Description of Application Models Application models are as below. FCC ID:ACJ927144L Trade Name:Panasonic Model No.:AG-DV1DCP Name of Device:Color LCD Panel, part of miniDV Cassette Recorder Grantee Name:Matsushita Electric Industrial Co., Ltd. Manufacturer:Matsushita Kotobuki Electronics Industries, Ltd. Cabinet Material:Plastics

EXHIBIT # : 4-1 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO.: AG-DV1DCP Technical Specification Color LCD Panel (Part of miniDV Cassette Recorder) Power Source: Supplied from miniDV Cassette Recorder Power Consumption: 4.5 W (With miniDV Cassette Recorder) Television System: EIA Standard (525 lines, 60 fields) NTSC Illumination: Built-in 1.2 W fluorescent lamp Dimensions: Approx. 15 mm(W) x 110 mm(D) x 84 mm(H) Weight: Approx. 100 g Operating Humidity: 10 % - 75 % Operating Temperature: 32 F – 104 F ( 0 C - 40 C )

EXHIBIT # : 4-2 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Page 1/3 Description of RF Lighting Device 1) Type(s) of emission Not applicable 2) Frequency range 105 kHz ± 10 kHz 3) Range of operating power and description of means provided for variation of operating power Not applicable 4) Maximum power rating as defined in the applicable rules Not applicable 5) The voltage applied to and currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Indicate whether these voltages and currents are DC or AC. Input Voltage (circuit diagram Point No. 2) = 4.7 V (DC) Input Current (circuit diagram Point No. 2) = 300 mA (DC) 6) Function of each electron tube, semiconductor or other active circuit device. a. Switching transistor Q8104, Q8105: 2SD1119 x 2 or 2SD2150 x 2 b. Pulse transformer T8101: ETJ11K121AM Input Voltage: 4.7 V DC Output Voltage: 850 V AC (at no load) c. Choke coil L8103: SLF6028T680M Inductance : 68 uH d. Fluorescent lamp PL8001: A4GB9F000001 or KC82D20T86CH Tube voltage: 330 V AC Power consumption: 1.2 W EXHIBIT # : 4-2 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Page 2/3 7) Block diagram See EXHIBIT # 5 8) Operating Instruction manual. If the operating instruction manuals are not available when the application is filed a set of draft instructions should be provided and complete instruction manuals should be submitted as soon as available. 9) Tune up procedure over the power range or at specific operating power levels. Not applicable 10) A description of all circuitry and devices provided for deterring and stabilizing frequency. Oscillator circuit: Blocking oscillator DC-AC inverter Pulse transformer: ETJ11K121AM Switching Transistor: Q8104, Q8105 (2SD1119 x 2 or 2SD2150 x 2) 11) A description of any circuits for devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power. Not applicable 12) A photograph or drawing of the equipment identification label, silk-screened or molding showing the information to be placed there on. See EXHIBIT # 1 and # 2. EXHIBIT # : 4-2 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Page 3/3

EXHIBIT # : 3 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 3 of 5 Sheets 5) 18.307 Power Line Conducted Interference Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.4531.431.60.131.531.7 0.5233.935.20.134.035.3 0.7829.931.90.130.032.0 1.3131.431.90.131.532.0 5.7433.031.00.433.431.4 9.6431.135.50.531.636.0 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.45 MHz; 31.4 + 0.1 = 31.5 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function : CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 4 of 5 Sheets 18.307 POWER LINE CONDUCTED INTERFERENCE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of accessories on the test table ) miniDV Cassette Recorder With Color LCD Panel Test table RF lighting device (Color LCD Panel) FCC ID: ACJ927144L DC out cable (2.0 meter) AC Adaptor (DE-852D) Video/Audio cable (1.5 meter) DV cable (2.0 meter) Pause Remote Controller (VSQW0001) S - Video cable (1.5 meter) Stereo Microphone (RP-VMS65) EXHIBIT # : 3 FCC ID: ACJ927144L OUR REF.: MKES02-F010 MODEL NO. : AG-DV1DCP Sheet 5 of 5 Sheets
