EXHIBIT # : 5 FCC ID: ACJ927145L OUR REF.: MKES02-F012 Block DiagramMODEL NO.: PV-L353D

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Richard Mullen Secaucus, NJ 07094 Group Manager Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 348-7758 e-mail: [email protected] September 23, 2002 MKES-02-F012 731 Confirmation Number: 13EA173555 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Original Application for Certification of Consumer RF Lighting Device Camcorder with Color LCD Viewfinder, Model PV-L353D FCC ID: ACJ927145L Gentlemen: Enclosed, find Matsushita Electric Industrial Co., Ltd. application for equipment authorization dated September 23, 2002. This device is in compliance with Part 18 of the FCC Rules for Consumer RF Lighting Device. The subject device is a Compact VHS Camcorder with built-in 2.5-inch color LCD and 0.33 inch liquid crystal color electronic viewfinder. The LCD panel uses 1.4 watt fluorescent lamp, which operates at 100 kHz ±10 kHz and is classified by FCC as a Consumer RF Lighting Device. This EUT was tested while connected to provided AC Adaptor model PV-A20. Compliance tests were performed in accordance with FCC/OST MP-5 to show compliance with FCC Part 18 limits. Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

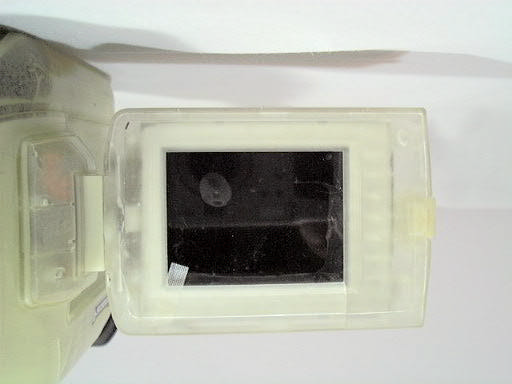

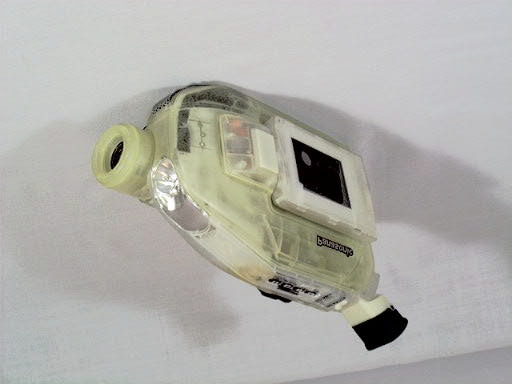

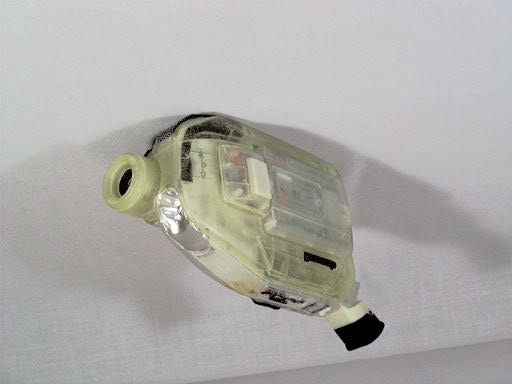

EXHIBIT #: FCC ID: ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Sheet 1 of 5 Sheets Color LCD electronic view finder (Part of video camera) EXHIBIT #: FCC ID: ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Sheet 2 of 5 Sheets

EXHIBIT # : 1 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Sample of FCC Identifier FCC ID : ACJ927145L FCC Statements for compliance with FCC Rules Part 18 in User's Manual EXHIBIT # : 2 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Location of FCC Identifier FCC Identifier

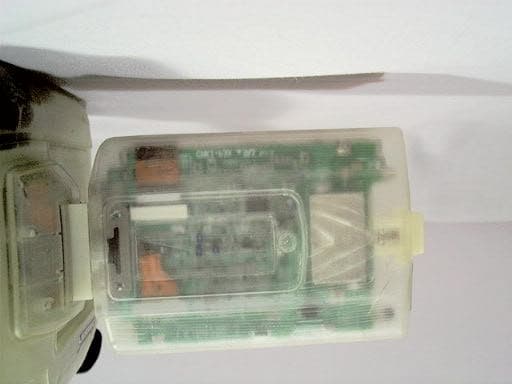

EXHIBIT #: FCC ID: ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Sheet 3 of 5 Sheets LCD Power PCB (Bottom view) Oscillator circuit EXHIBIT #: FCC ID: ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Sheet 4 of 5 Sheets LCD Power PCB (Top view) EXHIBIT #: FCC ID: ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Sheet 5 of 5 Sheets LCD RF Lighting device (Fluorescent lamp)

EXHIBIT # : 4-2 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Page 1/3 Description of RF Lighting Device 1)Type(s) of emission Not applicable 2)Frequency range 100 kHz 10 kHz 3)Range of operating power and description of means provided for variation of operating power Not applicable 4)Maximum power rating as defined in the applicable rules Not applicable 5)The voltage applied to and currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Indicate whether these voltages and currents are DC or AC. Input Voltage (circuit diagram Point No. 2) = 4.5 V (DC) Input Current (circuit diagram Point No. 2) = 310 mA (DC) 6)Function of each electron tube, semiconductor or other active circuit device. a. Switching transistor Q9051, Q9025: 2SD1119 2 or 2SD2150 2 b. Pulse transformer T9051: ETJV10ZA17AF Input Voltage: 4.5 V DC Output Voltage: 850 V AC (at no load) c. Choke coil L9051: G1C680M00011 Inductance : 68 uH d. Fluorescent lamp PL9001: LSLL0023 or LSLL0024 Tube voltage: 300 V AC Power consumption: 1.2 W EXHIBIT # : 4-2 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Page 2/3 7)Brock diagram See EXHIBIT # 5 8)Operating Instruction manual. If the operating instruction manuals are not available when the application is filed a set of draft instructions should be provided and complete instruction manuals should be submitted as soon as available. 9)Tune up procedure over the power range or at specific operating power levels. Not applicable 10)A description of all circuitry and devices provided for deterring and stabilizing frequency. Oscillator circuit: Blocking oscillator DC-AC inverter Pulse transformer: ETJV10ZA17AF Switching Transistor: Q9051, Q9052 (2SD1119 X 2 or 2SD2150 X 2) 11)A description of any circuits for devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power. Not applicable 12)A photograph or drawing of the equipment identification label, silk-screened or molding showing the information to be placed there on. See EXHIBIT # 1 and # 2. EXHIBIT # : 4-2 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Page 3/3

FCC ID : ACJ927145L OUR REF. : MKES02-F012 MODEL NO.: PV-L353D Description of Application Models Application models are as below. FCC ID:ACJ927145L Trade Name:Panasonic Model No. of Video Camera:PV-L353D Name of Device:Color LCD Electronic View Finder, part of Video Camera Grantee Name:Matsushita Electric Industrial Co., Ltd. Manufacturer:PT. Matsushita Kotobuki Electronics Industries Indonesia Cabinet Material:Plastics

EXHIBIT # : 4-1 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Technical Specification Color LCD Electronic View Finder (Part of Video Camera) Power Source: Supplied from Video Camera Power Consumption: 8.5 W (With Video Camera) Television System: EIA Standard (525 lines, 60 fields) NTSC Video Horizontal Resolution: More than 250 lines Illumination: Built-in 1.4 W fluorescent lamp Dimensions: Approx. 15 mm(W) x 100 mm(D) x 70 mm(H) Weight: Approx. 200 g Color: Black Operating Humidity: 10 % - 75 % Operating Temperature: 32 F – 104 F ( 0 C - 40 C )

EXHIBIT # : 3 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Sheet 3 of 5 Sheets 5) 18.307 Power Line Conducted Interference Meter Reading (dBuV)Interference (dBuV) Freq. (MHz) 1-end & Grounded The other- End & Gro. LISN Factor (dB) 1-end & Grounded The other- End & Gro Limits (dBuV) 0.45 31.130.3 0.131.230.4 0.46 31.330.3 0.131.430.4 0.64 26.824.2 0.126.924.3 6.50 35.035.6 0.435.436.0 7.01 40.141.0 0.440.541.4 20.52 27.824.1 0.828.624.9 48.0 Note: 1. Sample calculation at 1-end & Gro. 0.45 MHz; 31.1 + 0.1 = 31.2 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Model KNM-2403 (1) Detector function: CISPR Q-Peak (2) IF band width: 9 kHz (3) Input impedance: 50 ohms b) Line impedance stabilized net work (LISN) - Kyoritsu Electric Work Co., Model KNW-406 50 ohms / 50 uH net work 3. The spectrum was checked from 0.45 MHz to 30 MHz and the six highest emissions relative to the appropriate limit were measured and reported. EXHIBIT # : 3 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Sheet 4 of 5 Sheets 18.307 POWER LINE CONDUCTED INTERFERENCE - CONFIGURATION OF THE EQUIPMENT UNDER TEST - ( Arrangement of accessories on the test table ) VHS-C MOVIE With LCD EVF Test table RF lighting device (Color LCD EVF Part FCC ID: ACJ927145L) Video/Audio cable (1.5 meter) DC Out cable (2 meter) AC Adaptor (PV-A20) EXHIBIT # : 3 FCC ID: ACJ927145L OUR REF.: MKES02-F012 MODEL NO.: PV-L353D Sheet 5 of 5 Sheets
