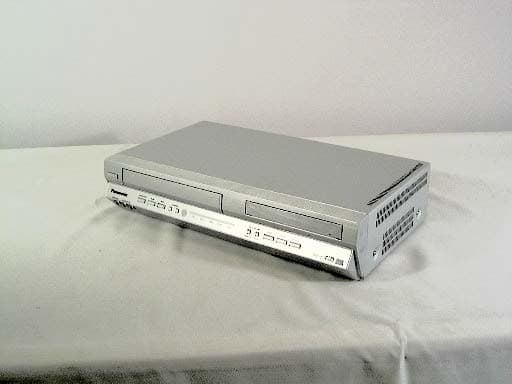

ACJ927149AHVVCR With DVD Player

EXHIBIT #: 6 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S Operating Instructions (Tentative)

EXHIBIT #: 5 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S Block Diagram

EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 1 of 11 Sheets

EXHIBIT #: 2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S Location of FCC Identifier & FCC Statements for compliance with FCC Rules Part 15 1. Enclosure Rear Nameplate with FCC Identifier 2. Enclosure Bottom Statement for Compliance with FCC Rules Part 15

EXHIBIT #: 1 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S Sample of FCC Identifier & FCC Statements for compliance with FCC Rules Part 15 Sample of FCC Identifier Sample of Statement for compliance with FCC Rules Part 15

EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 1 of 11 Sheets EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 2 of 11 Sheets Main PCB (Top view) Main PCB (Top view) Tuner (RF Converter) Video in 1 Audio in 1 Tuner (RF Converter)AC Cord Video in 2 Audio in 2 EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 3 of 11 Sheets Main PCB (Top view) Main PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 4 of 11 Sheets DVD Unit (Top view) DVD Unit (Bottom view) EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 5 of 11 Sheets DVD Unit PCB (Top view) DVD Unit PCB (Bottom view) EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 6 of 11 Sheets Tuner (ENG56D06G1: Top view) Tuner (ENG56D06G1: Top view) In from antenna Out to TV RF Converter Audio in Video in CH. SW TV/VCR SW 5V IC EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 7 of 11 Sheets Tuner (ENG56D06G1: Bottom View) Tuner (ENG56D06G1: Bottom View) RF Converter RF Converter EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 8 of 11 Sheets Tuner (TMZH2-035A: Top view) Tuner (TMZH2-035A: Top view) In from antenna Out to TV RF Converter Audio in Video in CH. SW TV/VCR SW 5V EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 9 of 11 Sheets Tuner (TMZH2-035A: Bottom View) Tuner (TMZH2-035A: Bottom View) RF Converter IC RF Converter EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 10 of 11 Sheets Tuner (115-V-HA35AK: Top view) Tuner (115-V-HA35AK: Top view) In from antenna Out to TV RF Converter Audio in Video in CH. SW TV/VCR SW 5V EXHIBIT #: FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Sheet 11 of 11 Sheets Tuner (115-V-HA35AK: Bottom View) Tuner (115-V-HA35AK: Bottom View) RF Converter RF Converter IC

FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Description of Application Model Application model is as below. FCC ID:ACJ927149AHV Appliance name:Video Cassette Recorder with DVD Player Grantee Name:Matsushita Electric Industrial Co., Ltd. Model No.:PV-D4745S Brand Name:Panasonic Chassis No.:KG-25WHGD Cabinet Material:Top, Side, Rear, Bottom: Steel / Front: Plastics RF Converter:ENG56D06G1, TMZH2-035A or 115-V-HA35AK (These RF Converter circuits are similar and they are included in each different Tuner) Output Channel:CH 3 & 4 Broadcast Channels:VHF 2-13, UHF 14-69 CATV Channels:Mid band A through I (14-22) Super band J through W (23-36) Hyper band AA - EEE (37-64) Low band A-5 - A-1 (95-99) Special CATV channel 5A (01) Ultra band 65-94, 100-125 Antenna Terminal:One VHF/UHF Input Antenna Terminal and One VHF/UHF Output Terminal are provided. Impedance:75 ohms Transfer SW is provided in Tuner circuit. Power splitter is provided in Tuner circuit. Highest frequency- generated or used: 847 MHz (Local oscillator frequency of UHF Ch69) 71.75 MHz (Aural carrier frequency of Converter Ch4) Input Terminal: Video and Audio Input Terminals are provided. Remote Controller: Wireless

EXHIBIT #: 4-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S (Tuner: ENG56D06G1, TMZH2-035A or 115-V-HA35AKPage 1/2 Description of RF Converter Circuit 1) Type(s) of emission Not applicable 2) Frequency range USA standard broadcasting signal CHANNEL 3 & 4 3) Range of operating power and description of means provided for Variation of operating power Not applicable 4) Maximum power rating as defined in the applicable rules Not applicable 5) Tune up procedure over the power range or at specific operating power levels Not applicable 6) A description of all circuitry and devices provided for determining and stabilizing frequency Video Carrier Frequency Frequency of video carrier output is determined by output of PLL1(4MHz).Consequently, the frequency stability is determined by PLL1 (4MHz) which is nominally +/- 0.2 %. Audio Carrier Frequency Audio Carrier Frequency is generated by mixing of video carrier and output signal of the FM- OSC circuit in the RF-MIXER circuit of *IC1. The output signal of the FM-OSC circuit is generated by modulating of audio input signal and output signal of PLL2(4.5MHz). Frequency of audio carrier output is determined by output of PLL2. The frequency stability is determined by PLL2 and maintained within +/- 0.2%. 7) A description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power. a. Limit of Modulation Modulations for video carrier and audio carrier are limited, because both inputs supplied from VCR are maintained constant. b. Limit of Operating Power Not applicable EXHIBIT #: 4-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S Description of RF Converter CircuitPage 2/2 8) Function of each electron tube, semiconductor or other active circuit device RF oscillator (*IC1) The video carrier frequency is generated by RF oscillator circuit and controlled by PLL1 circuit. Generated video carrier frequency is supplied to RF MIXER circuit through the Buffer Amplifier. RF MIXER (*IC1) The output of RF oscillator and video signal from white clip circuit are supplied to RF MIXER. Amplitude modulated video carrier is obtained as RF output through the buffer amplifier. FM modulated audio signal is supplied to RF MIXER from FM oscillator. The output of RF oscillator is made both side-band modulation by FM modulated audio signal, as result, audio carrier is obtained as RF output through the buffer amplifier. Clamp and White Clip (*IC1) The video input is clamped by Sync-Chip. It prevents from over-modulation. RF MIXER (*IC1) The oscillated frequency is adjusted to 4.5MHz by PLL2. Audio signal is supplied to the FM oscillator FM modulated audio carrier is obtained as an output. REF oscillator (*IC1) Each reference frequency that generated in REF oscillator circuit is supplied to PLL1 and PLL2 for control of RF oscillator and FM oscillator. Carrier OFF SW When TV side selected by TV/VCR SW, carrier OFF SW circuit shut off power of the RF oscillator circuit and RF MIXER circuit. *IC1: ENG56D06G1 = LA77000 TMZH2-035A and 115-V-HA35AK = LA7161 RF Converter Block Diagram

EXHIBIT #: 4-1 FCC ID: ACJ927149AHV Technical SpecificationOUR REF.: MKES04-F005 Product Technical DescriptionMODEL NO.: PV-D4745S Power Source: AC 120 V, 60 Hz Power Consumption: Approx. 22 W Television System: EIA Standard (525 lines, 60 fields) NTSC Luminance: Frequency modulation Color Signal : converted sub carrier direct recording VCR system: VHS Hi-Fi Record/Playback Time: 630 min. (T-210 Max.) FF/REW Time: Less than 1 min.(T-120) Heads: Video: 4 rotary heads Audio: 1 stationary head (Normal) 2 rotary heads (Hi-Fi Sound) Control: 1 stationary head Erase:1 full track Disc Formats: DVD, CD (Audio) Digital Audio Output: Optical Connector Laser Wave Length: 635-665 nmDVD/770-810nm(CD) RF Modulated Output: Channel 3 and 4 (selective) RF Input: Same as conventional TV receiver Input Level: Video:Video Input Connector 1.0 V p-p, 75 ohms Audio:Audio Input Connector -10 dBV, 47k ohms Output Level: Video:Video Output Connector 1.0 V p-p, 75 ohms Audio:Audio Output Connector -8 dBV, 600 ohms Component: Y Connector1.0 V p-p, 75 ohms P B / PR Connector0.7 V p-p, 75 ohms Video Horizontal Resolution: Color & B/W: More than 230 lines (VHS mode) (On mono scope test pattern) More than 500 lines (DVD mode) Audio Frequency Response : 100 Hz - 8 kHz at SP mode (Normal Audio Sound) 20 Hz - 20 kHz (Hi-Fi Audio Sound) 2 Hz - 44 kHz (DVD Linear Sound / PCM96 kHz) Operating Humidity: 10 % - 75 % Operating Temperature: 41 F – 104 F (5 C – 40 C)

EXHIBIT #: 3-1 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO.: PV-D4745S TEST REPORT Test Report Prepared By : Matsushita Kotobuki Electronics Ind., Ltd. MKM Site. (FCC Registration No.: 90793) Test Report Ref. No.: MKM04F-S01 Tested in accordance with FCC / ANSI C63.4-2003 To show compliance with: FCC Part 15 Limit Matsushita Kotobuki Electronics Industries Ltd. Storage Products Business Unit Address: 2131-1, Minamigata, Toon, Ehime 791 - 0395 JAPAN Page 1 of 14 pages TEST REPORT REPORT NUMBER: MKM04F-S01 APPLICANT: Matsushita Kotobuki Electronics Industries, Ltd. MODEL NUMBER: PV-V4745S FCC ID: ACJ927149AHV Regulation: FCC Part15B Class B Radiated Emission Test Matsushita Kotobuki Electronics Ind., Ltd. Storage Products Business Unit 2131-1, Minamigata, Toon-shi, Ehime-ken 791 - 0395 JAPAN Tel.: +81 89 966 2111 Fax.: +81 89 966 5733 Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 2 of 14 pages TABLE OF CONTENTS Page SECTION 1.TEST CERTIFICATION 3 SECTION 2.EQUIPMENT UNDER TEST 5 SECTION 3.CABLE(S) USED 5 SECTION 4.CONSTRUCTION OF EQUIPMENT 6 SECTION 5.OPERATING CONDITIONS 7 SECTION 6.TEST PROCEDURE(S) 7 SECTION 7.EVALUATION OF TEST RESULTS 8 SECTION 8.PHOTOGRAPHS OF TEST SET-UP12 SECTION 9.INSTRUMENTS USED FOR TEST13 SECTION 10.PRECISION14 SECTION 11.VALIDITY OF TEST REPORT14 Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 3 of 14 pages SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company: Matsushita Kotobuki Electronics Industries, Ltd. Address: 247 Fukutake, Saijo-shi, Ehime-ken, 793-8510 Japan GRANTEE INFORMATION Division: Visual Products Business Unit Address: 247 Fukutake, Saijo-shi, Ehime-ken, 793-8510 Japan Telephone number: +81 897 56 1216 Fax number : +81 897 56 6720 DESCRIPTION OF TEST ITEM Kind of equipment: TV Interface Device (Video Cassette Recorder with DVD Player) Trademark: Panasonic FCC ID: ACJ927149AH Model number: PV-D4745S Tuner type / Serial number : ENG56D06G1 / J4IA20007 Tuner type / Serial number : TMZH2-035A / J4IA20008 Tuner type / Serial number : 115-V-HA35AK / J4IA20009 Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 4 of 14 pages TEST PERFORMED FCC Registration No.: 90793 Test started: November 8, 2004 Test completed: November 8, 2004 Regulation: FCC Part 15B Class B Test setup: ANSI C63.4 -2003 Report file number: MKM04F-S01 Report issue date: November 10, 2004 Test engineer: Shinji Yamauchi Report approved by : Hisayuki Honda [ Manager ] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 5 of 14 pages SECTION 2. EQUIPMENT UNDER TEST The equipment under test (EUT) consists of the following equipment. Indication in the following left side column corresponds to section 4. Symbol ItemModel No. Tuner typeSerial No.FCC IDManufacturer A)VCR withPV-D4745S ENG56D06G1J4IA20007 ACJ927149AHV Panasonic DVD PlayerTMZH2-035AJ4IA20008 115-V-HA35AK J4IA20009 Power ratings of EUT : AC 120V 60Hz, 22W SECTION 3. CABLE(S) USED The following cable(s) was used for testing. Indication number in the following left side column corresponds to section 4. Number NameLengthShield 1)RF cable0.9 mYes 2)A/V cable1.5 mYes 3)Audio cable1.5 mYes 4)S-Video cable1.5 mYes 5)Component Video cable1.5 mYes 6)Power cord for EUT1.5 mNone Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 6 of 14 pages SECTION 4. CONSTRUCTION OF EQUIPMENT The construction of EUT during testing is as follows. System configuration Symbol or numbers assigned to equipment or cables on this diagram are corresponded to the symbols or numbers assigned to equipment or cables on tables in Sections 2 to 3. 120V AC 60Hz * EUT (A) VCR with DVD Player Test Signal Generator (Multi Burst) “ “= Terminator (5) (4)(3) (2) (1) (6) RF Terminator Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 7 of 14 pages SECTION 5. OPERATING CONDITIONS The EUT has been operated under the following conditions during the tests. 5.1 Operating condition The tests have been carried out under Multi Burst (1Vp-p) input mode, Multi Burst (5Vp-p) input mode, Internal Signal (DVD Play) mode and RF/CATV Signal input mode. We reported the greatest measurement mode. (Internal Signal (DVD Play) mode) 5.2 Operation flow Performed following operations continuously. SECTION 6. TEST PROCEDURE(S) Tests have been carried out with the test procedure(s) drawn up by our laboratory which is in accordance with the following test procedure(s). Test itemTest procedure usedScanned Frequency Range Radiated Emission ANSI C63.4-200330 - 2000 MHz Video signal and Audio signal are outputted from the RF output terminal, the S-Video output terminal, the Video output terminal, the Audio output terminals and the component video output terminal. EUT play the DVD Video. Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 8 of 14 pages SECTION 7. EVALUATION OF TEST RESULTS 7.1 Radiated Emission Test [ Quasi Peak mode ] No.Freq.Reading LevelFactorEmission LevelLimitMargin [MHz] Hor. [dBuV] Ver. [dBuV][dB] Hor. [dBuV/m] Ver. [dBuV/m] [dBuV/m] Hor. [dB] Ver. [dB] 1184.3217.114.518.335.432.843.58.110.7 2194.7010.87.919.029.826.943.513.716.6 3307.2519.318.118.938.237.046.07.89.0 4331.809.27.319.228.426.546.017.619.5 5364.5013.115.519.933.035.446.013.010.6 6479.2314.318.223.037.341.246.08.74.8 7626.717.214.026.033.240.046.012.86.0 8700.397.312.527.434.739.946.011.36.1 Product Name:Video Cassette Recorder with DVD Player Model No.:PV-D4745S Tuner Type:ENG56D06G1 Serial No.:J4IA20007 Power Supply:120V / 60Hz Test Mode:Internal Signal (DVD Play) mode Temp / Humi / Pres:23 C / 53% / 1024hPa Operator:S. Yamauchi Report No. MKM04F-S01 FCC ID : ACJ927149AHV Page 9 of 14 pages 7.2 Radiated Emission Test [ Quasi Peak mode ] No.Freq.Reading LevelFactorEmission LevelLimitMargin [MHz] Hor. [dBuV] Ver. [dBuV][dB] Hor. [dBuV/m] Ver. [dBuV/m] [dBuV/m] Hor. [dB] Ver. [dB] 1184.3217.715.218.336.033.543.57.510.0 2307.2519.818.518.938.737.446.07.38.6 3479.2314.817.823.037.8…

Text truncated - open the document above for the full version.

Tuner: ENG56D06G1EXHIBIT #: 3-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Part 15 Subpart B, (TV Interface Device)Sheet 5 of 23 Sheets 1) 15.107 Power Line Conducted Voltage Page 1/2 Meter Reading (dBuV) LISN Factor (dB) Interference (dBuV) Margin (dB) Video Signal Freq. (MHz) Mode V AVBVAVBVAVB Limits (dBuV) V AVB 0.234Average34.038.20.20.234.238.452.318.113.9 0.354Average33.128.60.10.133.228.748.915.720.2 0.468Q-Peak35.338.10.00.035.338.156.521.218.4 0.468Average32.933.30.00.032.933.346.513.613.2 0.590Q-Peak37.435.10.00.037.435.156.018.620.9 0.590Average29.132.90.00.029.132.946.016.913.1 0.660Q-Peak28.734.40.00.028.734.456.027.321.6 0.700Q-Peak36.232.10.00.036.232.156.019.823.9 Multi Burst 1 V p-p 0.700Average30.1 27.90.00.030.127.946.015.918.1 0.234Average34.638.70.20.234.838.952.317.513.4 0.354Average32.128.00.10.132.228.148.916.720.8 0.468Q-Peak36.037.80.00.036.037.856.520.518.7 0.468Average33.233.50.00.033.233.546.513.313.0 0.590Q-Peak38.334.90.00.038.334.956.017.721.1 0.590Average28.833.60.00.028.833.646.017.212.4 0.660Q-Peak29.035.00.00.029.035.056.027.021.0 0.700Q-Peak35.933.60.00.035.933.656.020.122.4 Multi Burst 5 V p-p 0.700Average29.8 27.70.00.029.827.746.016.218.3 0.216Average34.939.80.20.235.140.053.017.913.0 0.326Average35.228.70.10.135.328.849.614.320.8 0.435Q-Peak34.637.50.00.034.637.557.122.519.6 0.435Average31.134.50.00.031.134.547.116.012.6 0.540Q-Peak38.435.10.00.038.435.156.017.620.9 0.540 Average 35.0 31.90.00.0 35.0 31.946.0 11.0 14.1 0.650Q-Peak37.337.00.00.037.337.056.018.719.0 0.650Average32.932.60.00.032.932.646.013.113.4 Internal Signal (DVD Playback) 2.070Q-Peak33.934.9 0.00.133.935.056.022.121.0 0.234Average35.238.90.20.235.439.152.316.913.2 0.354Average33.328.30.10.133.428.448.915.520.5 0.468Q-Peak35.937.10.00.035.937.156.520.619.4 0.468Average32.933.10.00.032.933.146.513.613.4 0.590Q-Peak39.235.70.00.039.235.756.016.820.3 0.590Average27.933.20.00.027.933.246.018.112.8 0.660Q-Peak29.234.70.00.029.234.756.026.821.3 0.700Q-Peak33.933.10.00.033.933.156.022.122.9 RF/CATV Signal Input 0.700Average30.5 28.10.00.030.528.146.015.517.9 Tuner: ENG56D06G1EXHIBIT #: 3-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Part 15 Subpart B, (TV Interface Device)Sheet 6 of 23 Sheets 1) 15.107 Power Line Conducted Voltage Page 2/2 Note: 1. Sample calculation at M.B., 1 V p-p, VA 0.234 MHz Q-Peak; 34.0 + 0.2 = 34.2 (dBuV) 2. Measuring Instruments: a) Field strength meter - Kyoritsu Electric Work Co., Ltd. Model : KNM-2403 (1) Detector function: CISPR Q-Peak, Average (2) IF band width : 9 kHz (3) Input impedance : 50 ohms b) Line impedance stabilized network (LISN) - Kyoritsu Electric Work Co., Ltd. Model : KNW-406 50 ohms / 50 uH network c) Test Signal Generator- Shibasoku Co., Ltd. (Multi Burst) Model : 205 3. The spectrum was checked from 0.15 MHz to 30 MHz. Higher six points are underlined. Tuner: ENG56D06G1EXHIBIT #: 3-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Part 15 Subpart B, (TV Interface Device)Sheet 7 of 23 Sheets 2) 15.111 (a) Antenna Power Conducted Voltage Frequency (MHz) Meter Reading (dBuV) Matc. Pad Loss (dB) Interference (dBuV) 1646.0 22.9 8.8 31.7 1654.0 23.7 8.8 32.5 1658.0 24.9 8.8 33.7 1666.0 24.1 8.8 32.9 1670.0 23.3 8.8 32.1 1678.0 22.4 8.8 31.2 Antenna Input Impedance: 75 ohms (Unbalanced) Note: 1. Sample calculation at 1646.0 MHz; 22.9 + 8.8 = 31.7 (dBuV) 2. Measuring Instrument: a) Spectrum Analyzer - ADVANTEST Co., Ltd. Model : R3261A (1) Detector function : Peak (2) Band width : 100 kHz b) Matching Pad - Anritsu Electric Co., Ltd. Model : MB-009 (1) Frequency range : DC – 2 GHz 3. The spectrum was checked from 30 MHz to 1694 MHz and the six highest emissions relative to the appropriate limit were measured and reported. Tuner: ENG56D06G1EXHIBIT #: 3-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Part 15 Subpart B, (TV Interface Device)Sheet 8 of 23 Sheets 3) 15.115 (b) (1) Output Signal Level Measured Frequency(MHz) Meter Reading (dBuV) Output Signal Level (dBuV) Video SignalCh VisualAuralVisualAural Pad Loss (dB) VisualAural 361.2565.75 63.147.82.365.450.1 Multi Burst 1 V p-p 467.2571.75 62.747.12.365.049.4 361.2565.75 63.147.82.365.450.1 Multi Burst 5 V p-p 467.2571.75 62.747.12.365.049.4 361.2565.75 63.147.82.365.450.1 Internal Signal 467.2571.75 62.747.12.365.049.4 361.2565.75 63.147.82.365.450.1 RF/CATV Signal 467.2571.75 62.747.12.365.049.4 RF Output Impedance: 75 ohms (Unbalanced) Note: 1. Sample calculation at M.B., 1 V p-p, Visual, 3 Ch ; 6 3.1 + 2.3 = 65.4 (dBuV) 2. Measuring Instrument: a) Spectrum Analyzer - Anritsu Electric Co., Ltd. Model : MS62B (1) Detector function : Peak (2) Band width : 100 kHz b) Matching Pad - Anritsu Electric Co., Ltd. Model : MP614A (1) Frequency range : 10 - 1200 MHz c) Test Signal Generator - Shibasoku Co., Ltd. (Multi Burst) Model : 205 Tuner: ENG56D06G1EXHIBIT #: 3-2 FCC ID: ACJ927149AHV OUR REF.: MKES04-F005 MODEL NO. : PV-D4745S Part 15 Subpart B, (TV Interface Device)Sheet 9 of 23 Sheets 4) 15.115 (b) (2) Output Terminal Conducted Interference Page 1/2 Video Signal Ch Freq. (MHz) Meter Read. (dBuV) Matc. Pad Loss (dB) Att. Pad Loss(dB) Gain of Amp.(dB) Interference (dBuV) 43.3445.72.3N/A24.323.7 47.7044.12.3N/A24.322.1 50.5050.32.3N/A24.328.3 72.0048.62.3N/A24.426.5 245.046.22.4N/A24.324.3 3 490.049.52.8N/A23.828.5 49.3945.32.3N/A24.323.3 53.7244.42.3N/A24.322.4 56.5050.12.3N/A24.328.1 78.0049.12.3N/A24.427.0 269.0049.82.4N/A24.327.9 Multi Burst 1 V p-p 4 538.0047.92.9N/A23.327.5 43.3445.72.3N/A24.323.7 47.7044.12.3N/A24.322.1 50.5050.32.3N/A24.328.3 72.0048.62.3N/A24.426.5 245.046.22.4N/A24.324.3 3 490.049.52.8N/A23.828.5 49.3945.32.3N/A24.323.3 53.7244.42.3N/A24.322.4 56.5050.12.3N/A24.328.1 78.0049.12.3N/A24.427.0 269.0049.82.4N/A24.327.9 Multi Burst 5 V p-p 4 538.0047.92.9N/A23.327.5 43.3445.72.3N/A24.323.7 47.7044.12.3N/A24.322.1 50.5050.32.3N/A24.328.3 72.0048.62.3N/A24.426.5 245.046.22.4N/A24.324.3 3 490.049.52.…
