ACJ927151TXRemote Control

Operating Instructions Remote Control Model No. WH-0M1201A Thank you for purchasing a Panasonic Remote Control WH-0M1201A. This product is a wireless device, used for operating memory programs and adjusting volume levels. Please be aware that you cannot use the remote control in the following cases: · Outside the United States · While in flight · If you are fitted with a cardiac pacemaker For safe and reliable operation, it is important that you read this manual thoroughly and fully understand the operating procedures before attempting to set up and operate the remote control. Failure to follow the operating instructions may result in poor performance of the product or even can result in serious and sometimes permanent bodily injury. If you have any questions, consult the dispenser where you purchased your hearing instrument and remote control. The Limited Warranty document is enclosed together in the package. Keep it in a secure place. Make sure that it is properly completed, signed with the authorized dispenser’s name, and filled in with date of original purchase, name of dispenser and other important information. VOL MEMORY 2 Before Use Supported products For wireless connection between the remote control and hearing instrument, please be aware of the following: · Use 1 (one) for the wireless device identification of the hearing instrument and remote control. · If somebody around you is using a Panasonic’s wireless device, sharing the same wireless ID as you in the same area can affect the performance of each other’s hearing instruments. Contact your dispenser, so they will change the device identification number for you. Wireless connection ProductModel R1-W series WH-R17C WH-R15C WH-R13C 3 Before Use Before Use Operations Reference Contents Before Use Warning to dispensers .................................................... 4 Safety precautions ........................................................... 9 Care and handling ........................................... 16 Maintenance ................................................... 11 Operations Product descriptions ...................................................... 12 Cell battery replacement .............................................. 13 Volume adjustment ........................................................ 14 Memory switch ................................................ 15 Hold switch ...................................................... 16 Hand strap attachment ............................................... 17 Proper remote control operation ............................ 18 Reference Hearing instrument reset ................................. 20 Standby zinc air battery .............................................. 22 Troubleshooting guide ................................................ 23 Specifications .................................................................. 24 Warranty and Customer Service .............................. 25 Information ...................................................................... 26 Package contents The Panasonic Remote Control comes with the following items. If there are any missing or defective items, please inform your dispenser. · Operating instructions · AAA alkaline battery · Limited warranty 4 Before Use Warning to dispensers  The remote control must be adjusted and configured by the dispenser on an individual basis. Inappropriate wireless connection setup may cause damage to your clients or result in poor performance of the product. Company name: Panasonic Corporation of North America Healthcare Group Address: One Panasonic Way, 1H-6, Secaucus, NJ 07094 Telephone No.: 1-888-422-6309  Remote control setup Wireless Device Identification No. : 5 Before Use Safety precautions Follow the instructions below to reduce the risk of personal injury or damage to the hearing instrument.  The following symbols are used throughout this document, and contain important differences regarding the probability of serious injury. These definitions are as follows: WARNING CAUTION Indicates a potentially hazardous situation that could result in death or serious injury. Indicates a possible hazard which if not avoided may result in minor to moderate injury. It is also used to alert against unsafe practices that can result in property damage.  The following symbols specify behavior or actions which are not permitted and an instruction that must be carried out. Prohibitions Mandatory 6 Before Use Safety precautions (Continued) WARNING Follow the battery instructions as to proper handling and storage of batteries. Mishandling the battery can cause electrolyte leakage, heat generation, ignition, or explosion. •If electrolyte leaks from the battery, consult your dispenser. •If the electrolyte comes in contact with any part of the body, immediately flush the affected area with water. For the eyes, flush with an abundance of water, and seek immediate medical attention. •If electrolyte is taken internally, drink large quantities of water or milk. Do not induce vomiting. Call a physician immediately. •Do not insert the battery in the hearing instrument the wrong way round. Observe polarity, otherwise a liquid spill or explosion may occur. •Do not charge a dry cell battery. •Do not disassemble or expose the battery to excessive pressure, heat flame or liquid. •Do not leave the empty dead/discharged battery in the main unit. •Do not transport or store the battery together with metal jewelry or objects. •Do not connect the positive “+” and negative “-“ terminals with a metal objects such as coins, nails, screws and hair pins. 7 Before Use Do not let others use your remote control. Inappropriate use of a remote control can cause severe damage to the ear. Do not let children play with the remote control. Keep it out of reach of children. WARNING Keep out of reach of children and pets. Zinc air batteries can be easily swallowed and pose a choking hazard and possible internal injury or can lead to deat…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality September 1, 2011 PHC-SJ11-F004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Product Name: Panasonic Hearing Aid Remote Control with 10.6 MHz TX Model WH-0M1201A FCC ID: ACJ927151TX FCC Rule Part: FCC Part 15C, Section 15.209 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Parts List • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre- market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division

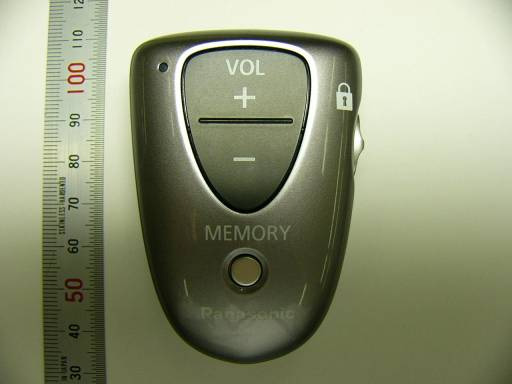

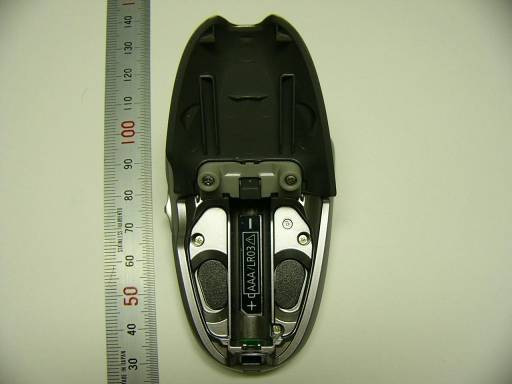

Extermal photos Extermal photosExtermal photos Extermal photos

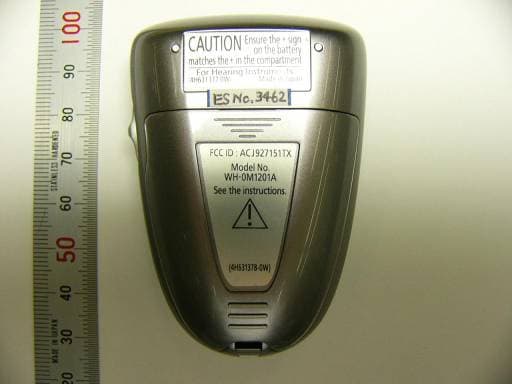

WH-0M1201A FCC ID Photo WH-0M1201A FCC ID Label

Extermal photos Extermal photosExtermal photos Extermal photos

Report No. CSF-11027 Page 1 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） ELECTROMAGNETIC EMISSIONS TEST REPORT FCC Part 15, Subpart C, Section 15.209 Name of Appliances : Remote Control Model No. (Type) : WH-0M1201A Test report No. : CSF-11027 Panasonic EMC Standard Site Panasonic Corporation Yashiro Sasayama-City, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682 Received : August 4, 2011 Completed : August 4, 2011 This test report with appendix consists of 20 pages. The test results respond to the tested sample only. It is not allowed to copy this report even partly without the allowance of the test laboratory. This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Masayuki Ueda Chief Engineer of Panasonic EMC Standard Site Date: August 10, 2011 Report No. CSF-11027 Page 2 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） TABLE OF CONTENTS Page 1.0 ENGINEERING TEST REPORT ··············································································································· 3 2.0 INTRODUCTION ········································································································································· 6 2.1 Purpose ················································································································································ 6 2.2 Deviation from the standards ··············································································································· 6 2.3 Requirement········································································································································· 6 2.3.1 FCC 15.31(e) ································································································································· 6 2.3.2 FCC 15.203 ··································································································································· 6 2.3.3 FCC 15.205 ··································································································································· 6 2.3.4 FCC 15.207 ··································································································································· 7 2.3.5 FCC 15.209 ··································································································································· 7 2.4 Short Description of the EUT ·············································································································· 8 2.5 Equipment Under Test ························································································································· 8 2.5.1 Operation - mode of the EUT ········································································································ 8 2.5.2 Modification of the EUT················································································································ 8 2.5.3 The Equipment Under Test (EUT) and Peripherals········································································ 8 2.5.4 Configuration of the Equipment Under Test (EUT) : ····································································· 9 2.5.5 Block diagram of the Equipment Under Test (EUT) :·································································· 10 2.6 Environmental Conditions ················································································································· 10 3.0 TEST SITE DESCRIPTION······················································································································ 10 4.0 TEST INSTRUMENTATION···················································································································· 11 4.1 Table 4-1 ·············································································································································11 5.0 TEST EUT SETUP AND CONFIGURATIONS ····················································································· 12 5.1 Technical Requirements ····················································································································· 12 5.1.1 Radiated Emission ······················································································································· 12 6.0 TEST RESULTS ·········································································································································· 15 6.1 Radiated Emission ····························································································································· 15 6.1.1 Test Data······································································································································ 15 6.1.2 Photograph··································································································································· 18 Report No. CSF-11027 Page 3 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） 1.0 ENGINEERING TEST REPORT This report is to certify that the Remote Control, WH-0M1201A from which the following data has been derived properly complies with the requirements of “FCC Rules and Regulations Part 15 Subpart C” as of the date the measurements were made. Any modification to the unit as tested may invalidate the data and void this certification. 1. Applicant : Panasonic Healthcare Co., Ltd. Hearing Instruments Business Unit Address : 600 Saedo-cho, Tsuzuki-ku, Yokohama, Kanagawa 224-8539, Japan 2. Manufacturer : Panasonic Healthcare Co., Ltd Hearing Instruments Business Unit Address : 600 Saedo-cho, Tsuzuki-ku, Yokohama, Kanagawa 224-8539, Japan 3. Factor…

Text truncated - open the document above for the full version.

Report No. CSF-11027 Page 9 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） 2.5.4 Configuration of the Equipment Under Test (EUT) : X axis Y axis Z axis (continued) Report No. CSF-11027 Page 18 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued) 6.1.2 Photograph Configuration of the maximized Radiated emission (Below 1GHz) Antenna Height: 1.00m, Polarity: Vertical, Angle of turntable: 99deg. , Angle of turn table 0deg.(CW) (continued) Report No. CSF-11027 Page 19 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued) Configuration of the maximized Radiated emission (Below 1GHz) Antenna Height: 1.00m, Polarity: Vertical, Angle of turntable: 192deg. (CW) (continued) Report No. CSF-11027 Page 20 of 20 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued)
