ACJ927152TXHearing Hub

Operating Instructions Hearing Hub Model No. Thank you for purchasing a Panasonic Hearing Hub. This product is a Bluetooth ® device, designed to act as a medium between Panasonic’s wireless digital hearing instruments and other electronic devices like Bluetooth ® enabled mobile phones and external audio sources. The two main purposes of audio streaming are phone usage and audio entertainment including digital audio players and TV. The Hearing Hub delivers crystal-clear sound directly to your hearing instruments wirelessly. Further, the Hearing Hub allows you to change the volume level and switch memory programs of your hearing instrument wirelessly. Please be aware that you cannot use your wireless digital hearing instrument and Hearing Hub in the following cases:•Outside the United States •While in flight •If you are fitted with a cardiac pacemaker. For safe and reliable operation, it is important that you r ead this manual thoroughly and fully understand the operating procedures before attempting to set up and operate the Hearing Hub. Failure to follow the operating instructions may result in poor performance of the product or even can result in serious and sometimes permanent bodily injury. If you have any questions, consult the dispenser where you purchased your hearing instrument and Hearing Hub. The Limited Warranty document is enclosed together in the package. Keep it in a secure place. Make sure that it is properly completed, signed with the authorized dispenser’s name, and filled in with date of original purchase, name of dispenser and other important information. TV VOL PHONE CHARGE MEMO LOCK PLAY STOP REC MEMORY PAIRING HEARING INSTRUMENTS POWER ON OFF Before Use Operations Reference 9*/#AGPIDQQMࠫ࡯ࡍ㧞㧜㧝㧝ᐕ㧝㧜᦬㧞㧝ᣣޓ㊄ᦐᣣޓඦ೨㧥ᤨ㧟㧣ಽ 2 Before Use Wireless connectionFor wireless connection between the Hearing Hub and hearing instrument, be aware of the following:p Use 1 (one) for the wireless device identification of the hearing instrument and Hearing Hub. p If more than one person is using a Panasonic wireless device sharing the same wireless ID in the same area, the performance of the hearing instruments can be affected. p Contact your dispenser to configure the device identification number for you. Product Model R1-W series To dispensersA wireless connection between the Hearing Hub and hearing instrument must be adjusted and configured by the dispenser on an individual basis. Inappropriate wireless connection setup may cause damage to your clients or result in poor performance of the product.If you have any questions, contact the Panasonic Sales Division below. Panasonic Corporation of North America Healthcare Group One Panasonic Way, 1H-6, Secaucus, NJ 07094Telephone No. 1-888-422-6309 Wireless Device Identification No.: 9*/#AGPIDQQMࠫ࡯ࡍ㧞㧜㧝㧝ᐕ㧝㧜᦬㧞㧝ᣣޓ㊄ᦐᣣޓඦ೨㧥ᤨ㧟㧣ಽ 3 Before Use Table of contentsBefore UsePackage contents ........................................ 5Safety precautions....................................... 6Care and handling instructions .................. 17Product description ................................... 18 General Bluetooth ® description..................20 Device description .....................................22Neckloop antenna .....................................24 OperationsCharging (Charge the battery immediately after purchase) .......................................... 26Proper way to wear or carry your Hearing Hub ...................................... 28Turn on/off Hearing Hub ........................... 30Put Hearing Hub in key lock mode ............. 31‚ Operate your hearing instrument Monaural/Binaural switch ...................... 32Volume adjustment ................................ 33Memory switch ...................................... 35Remaining battery power of the hearing instrument ............................................. 36Hearing instrument reset........................ 37 ‚ Listen to TV audio Listen to TV audio (Pairing) .................... 39Listen to TV audio (Prerequisite) ............. 42Listen to TV audio (Operation)................ 43 ‚ Make and receive calls on mobile phone Make and receive calls on mobile phone (Pairing) .................................................45Make and receive calls on mobile phone (Prerequisite)..........................................48Make and receive calls on mobile phone (Operation) ............................................49 ‚ Make and receive calls on landline phone Make and receive calls on landline phone (Pairing) .................................................53Make and receive calls on landline phone (Prerequisite)..........................................55Make and receive calls on landline phone (Operation) ............................................57 9*/#AGPIDQQMࠫ࡯ࡍ㧞㧜㧝㧝ᐕ㧝㧜᦬㧞㧝ᣣޓ㊄ᦐᣣޓඦ೨㧥ᤨ㧟㧣ಽ Table of contents (Continued) 4 Before Use ‚ Listen to music Listen to music (External input terminal) ........................ 61 ‚ Voice memo recording Record audio data (Voice memo recording) ........................ 64Listen to recorded audio data ................ 68Protect audio files .................................. 70 Hearing Hub reset ..................................... 71LED indicator............................................. 72ReferenceMaintenance............................................. 77Bluetooth ® operation instructions.............. 78 Troubleshooting guide .............................. 80Specifications ............................................ 86Warranty and customer service ................. 88Information............................................... 89FCC compliance ........................................ 91 9*/#AGPIDQQMࠫ࡯ࡍ㧞㧜㧝㧝ᐕ㧝㧜᦬㧞㧝ᣣޓ㊄ᦐᣣޓඦ೨㧥ᤨ㧟㧣ಽ 5 Before Use Package contentsThe Panasonic Hearing Hub comes with the following items.If there are any missing or defective items, please inform your dispenser.Operating InstructionsEasy GuideLimited Warranty Charger cradleQTY: 1AC adaptorQTY: 1AC cordQTY: 1 Audio cable …

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Letter of Agency November 4, 2011 PHC-SJ11-F005 TUV Rheinland of North America, Inc. Product Safety Division 762 Park Avenue Youngsville, North Carolina USA To Whom It May Concern: Panasonic Corporation of North America hereby authorizes TUV Rheinland Japan Ltd. to act on behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by them on our behalf, shall have the same effect as acts of our own. This authorization is valid for a period of one year from the date of this letter. Product Name: Panasonic Hearing Hub for Hearing Instruments with 10.6 MHz Transmitter Model WH-0M1101A 1 FCC ID: ACJ927152TX FCC Rule Part: FCC Part 15C, Section 15.209 Equipment Classification: Low Power Communication Device Transmitter Product Specification: One Channel Operation at 10.597 MHz Type Modulation: FSK Rated RF Output: Maximum Peak RF Output Power is -34.0 dBm EIRP Antenna Gain: -56.7 dBi coil and loop antenna Applicant & Grantee: Panasonic Corporation of North America (PNA) One Panasonic Way, Secaucus, NJ 07094 USA FRN Number: 0003762242 Responsible Applicant: Panasonic Healthcare Co., Ltd. (PHC) Medical Instruments & Hospital System Business Unit Attn.: Tomohiro Watanabe / Product Safety & Regulations Team E-mail:[email protected] 1 Contains BT Module Model WCA-008-XX, which will be separately certified under FCC ID: ACJ927153TX Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division November 4, 2011 PHC-SJ11-F005 We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This application for dual equipment authorization has not been submitted to any other TCB for certification. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality November 2, 2011 PHC-SJ11-F005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Product Name: Panasonic Hearing Hub for Hearing Instruments with 10.6 MHz Transmitter Model WH-0M1101A FCC ID: ACJ927152TX FCC Rule Part: FCC Part 15C, Section 15.209 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Parts List • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre- market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division

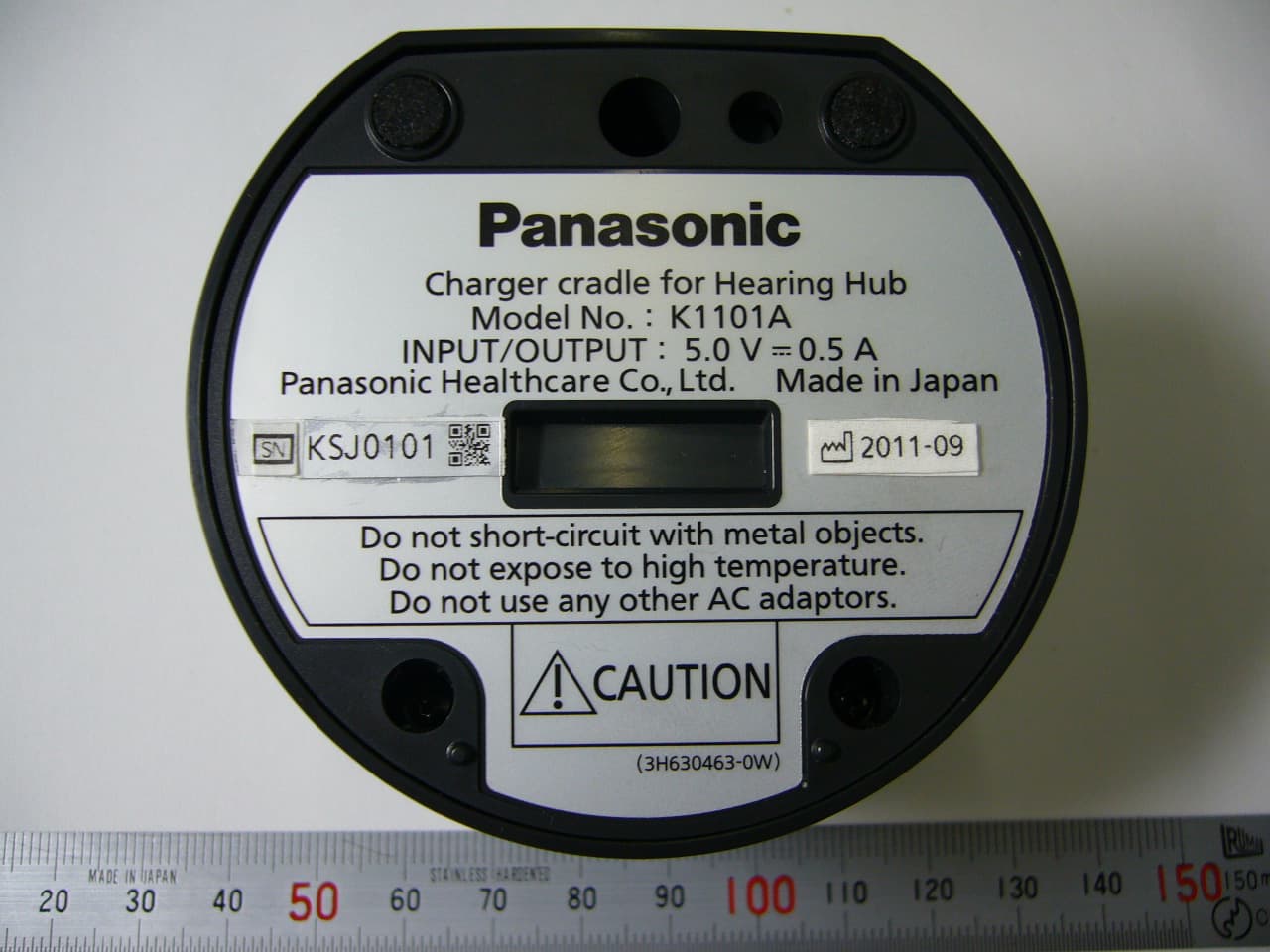

Model : WH-0M1101A FCC ID : ACJ927152TX External Photos １） Front View 1 2） Front View 2 Loop Antenna 3) Rear View 4) Side View 1 5) Side View 2 6) Top View 7) Bottom View 8) Charger cradle View 1 9) Charger cradle View 2 Loop Antenna Charger cradleAC Adaptor 10) Charger cradle View 3 11) Charger cradle View 4 12) Charger cradle View 5 13) Charger cradle View 6 14) AC Adaptor View 1 15) AC Adaptor View 2 16) AC Adaptor View 3

Model : WH-0M1101A FCC ID : ACJ927152TX FCC Label and Location 1) FCC Label 2） Physical Location of FCC Label on EUT FCC Label location

Model : WH-0M1101A FCC ID : ACJ927152TX Internal Photos １） Internal La yout View 1 2） Internal Layout View 2 Coil Antenna Bluetooth Module Li-ion Battery Chip Antenna Top U Bottom U 3） Antenna Layout View 1 4） Antenna Layout View 2 Distance between Chip Antenna and Ferrite of Coil Antenna: 5 mm Distance between Chip Antenna and Wire of Coil Antenna: 13 mm 5） Top U and Bottom U Internal View 6) Main Board PCB View 1 Top U Bottom U MIC 7) Main Board PCB View 2 8) Main Board PCB View 3 9) Main Board PCB View 4 10) Main Board PCB View 5 11) Main Board PCB View 6 12) Main Board PCB View 7 13) Bluetooth Module Top View 14) Bluetooth Module Bottom View 15) Coil Antenna View 1 16) Coil Antenna View 2 17) Loop Antenna Block View 1 18) Loop Antenna Block View 2 19) Loop Antenna Block View 3 20) Loop Antenna Block View 4 21) Loop Antenna Block View 5 22) Chager cradle internal View 23) Chager cradle PCB View 1 24) Chager cradle PCB View 2 25) Chager cradle PCB View 3 26) Chager cradle PCB View 4

Report No. CSF-11036 FCC ID: ACJ927152TX Page 1 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） ELECTROMAGNETIC EMISSIONS TEST REPORT FCC Part 15, Subpart C, Section 15.209 Name of Appliances : Hearing Hub Model No. (Type) : WH-0M1101A Test report No. : CSF-11036 Panasonic EMC Standard Site Panasonic Corporation Yashiro Sasayama-City, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682 Received : October 6, 2011 Completed : October 7, 2011 This test report with appendix consists of 21 pages. The test results respond to the tested sample only. It is not allowed to copy this report even partly without the allowance of the test laboratory. This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Masayuki Ueda Chief Engineer of Panasonic EMC Standard Site Date: October 12, 2011 Report No. CSF-11036 FCC ID: ACJ927152TX Page 2 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） TABLE OF CONTENTS Page 1.0 ENGINEERING TEST REPORT ··············································································································· 3 2.0 INTRODUCTION ········································································································································· 6 2.1 Purpose ················································································································································ 6 2.2 Deviation from the standards ··············································································································· 6 2.3 Requirement········································································································································· 6 2.3.1 FCC 15.31(e) ································································································································· 6 2.3.2 FCC 15.203 ··································································································································· 6 2.3.3 FCC 15.205 ··································································································································· 6 2.3.4 FCC 15.207 ··································································································································· 7 2.3.5 FCC 15.209 ··································································································································· 7 2.4 Short Description of the EUT ·············································································································· 8 2.5 Equipment Under Test ························································································································· 8 2.5.1 Operation - mode of the EUT ········································································································ 8 2.5.2 Modification of the EUT················································································································ 8 2.5.3 The Equipment Under Test (EUT) and Peripherals········································································ 8 2.5.4 Details of ports ······························································································································ 8 2.5.5 Type of Interface Cables ················································································································ 9 2.5.6 Abbreviations of the Cable type and Ferrite··················································································· 9 2.5.7 Configuration of the Equipment Under Test (EUT) : ··································································· 10 2.5.8 Block diagram of the Equipment Under Test (EUT) :···································································11 2.6 Environmental Conditions ··················································································································11 3.0 TEST SITE DESCRIPTION······················································································································ 11 4.0 TEST INSTRUMENTATION···················································································································· 12 4.1 Table 4-1 ············································································································································ 12 5.0 TEST EUT SETUP AND CONFIGURATIONS ····················································································· 13 5.1 Technical Requirements ····················································································································· 13 5.1.1 Radiated Emission ······················································································································· 13 6.0 TEST RESULTS ·········································································································································· 16 6.1 Radiated Emission ····························································································································· 16 6.1.1 Test Data······································································································································ 16 6.1.2 Photograph··································································································································· 19 Report No. CSF-11036 FCC ID: ACJ927152TX Page 3 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） 1.0 ENGINEERING TEST REPORT This report is to certify that the Hearing Hub, WH-0M1101A from which the following data has been derived properly complies with the requirements of “FCC Ru…

Text truncated - open the document above for the full version.

Report No. CSF-11036 FCC ID: ACJ927152TX Page 10 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued) 2.5.7 Configuration of the Equipment Under Test (EUT) : X axis Y axis Z axis (continued) Report No. CSF-11036 FCC ID: ACJ927152TX Page 19 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） 6.1.2 Photograph Configuration of the maximized Radiated emission (Below 1GHz) Antenna Height: 1.00m, Polarity: Vertical, Angle of turntable: 142deg. , Angle of turn table 0deg.(CW) (continued) Report No. CSF-11036 FCC ID: ACJ927152TX Page 20 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued) Configuration of the maximized Radiated emission (30MHz - 1GHz) Antenna Height: 1.00m, Polarity: Vertical, Angle of turntable: 50deg. (CW) (continued) Report No. CSF-11036 FCC ID: ACJ927152TX Page 21 of 21 Panasonic EMC Standard Site 231-1 Yashiro, Sasayama, Hyogo 669-2356 Japan Tel 079-552-5681 Fax 079-552-5682(Form12） (continued)
